Product Description

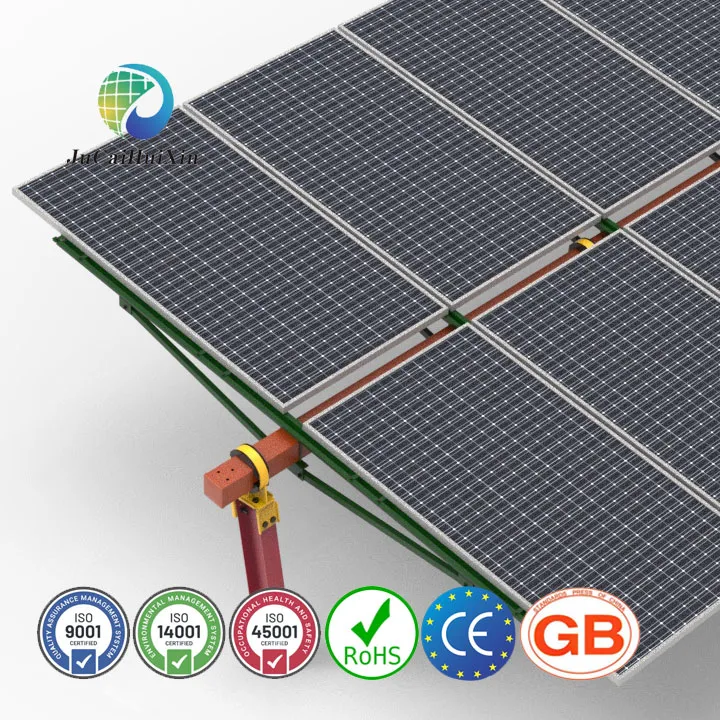

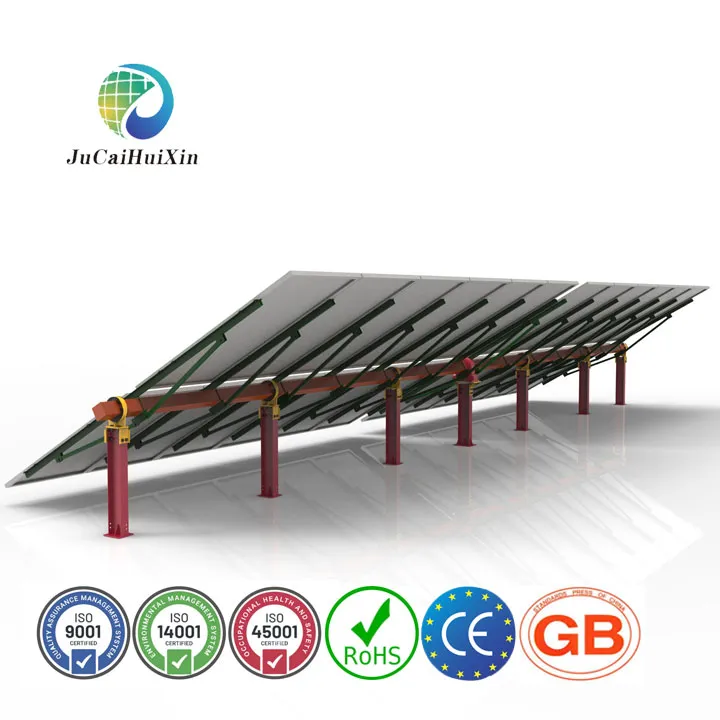

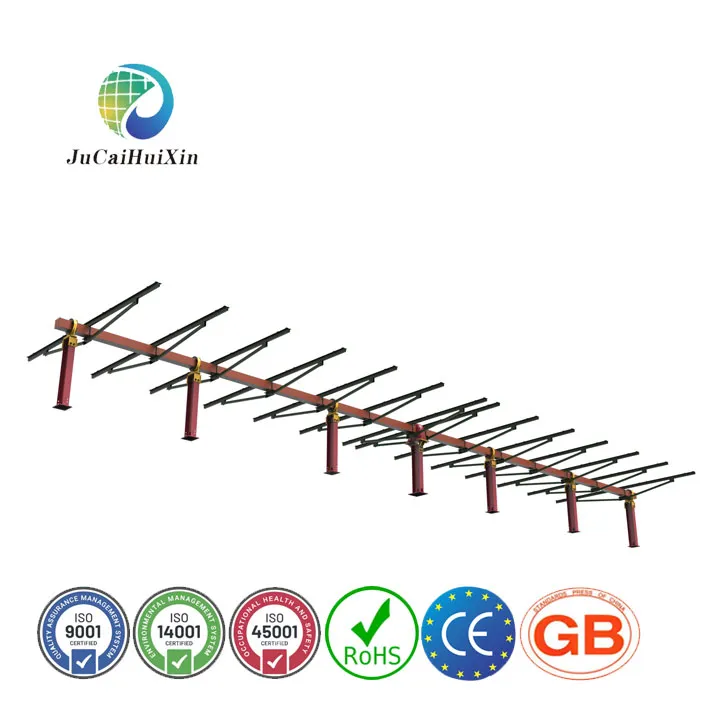

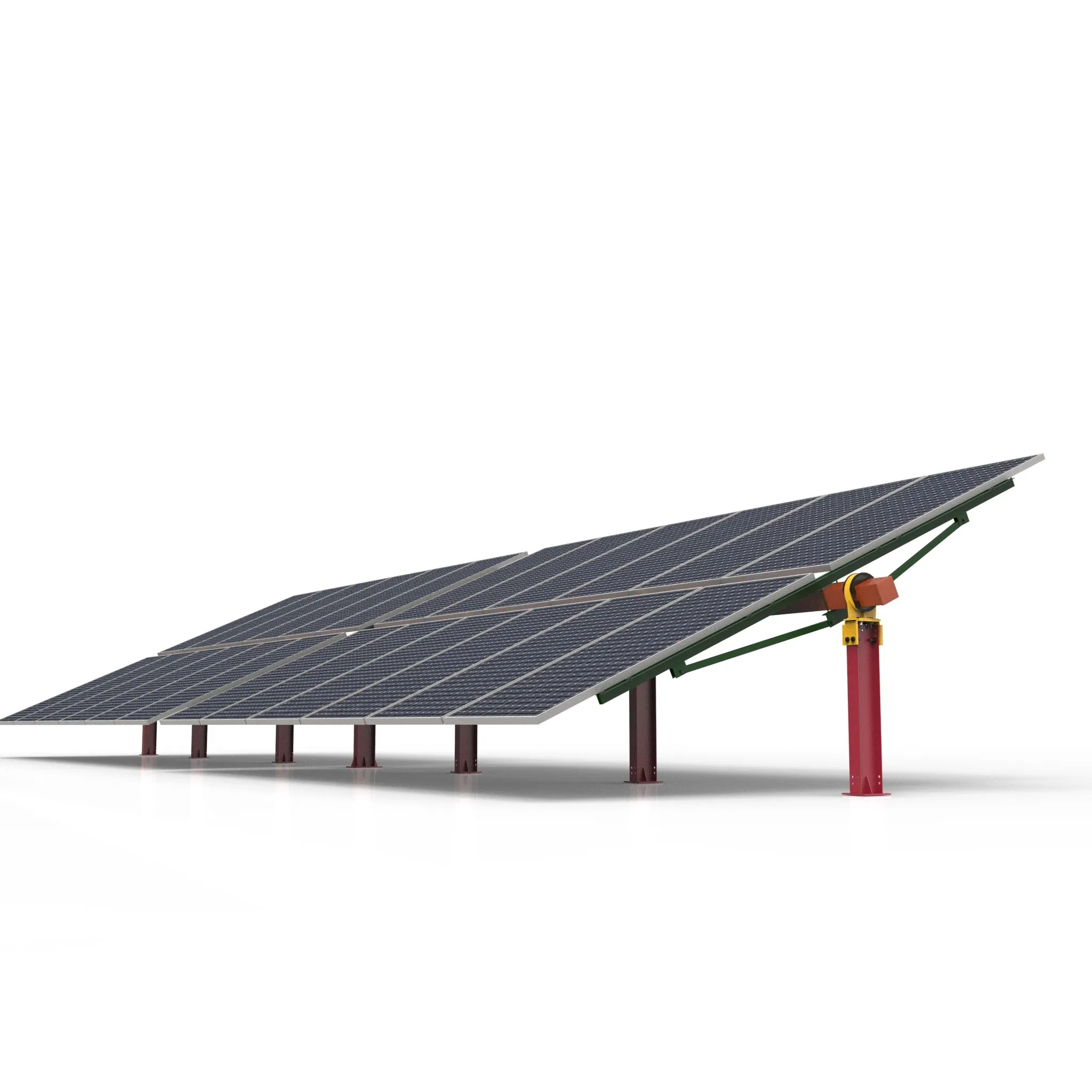

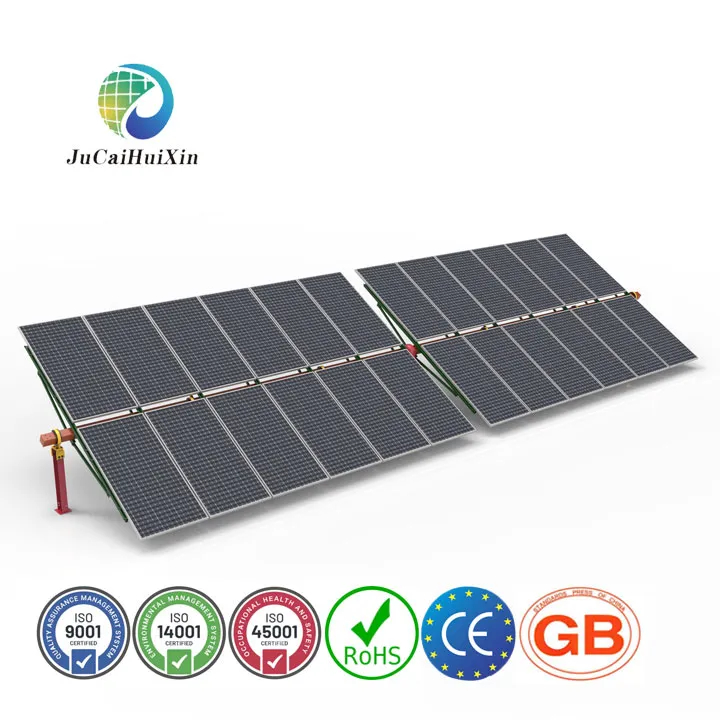

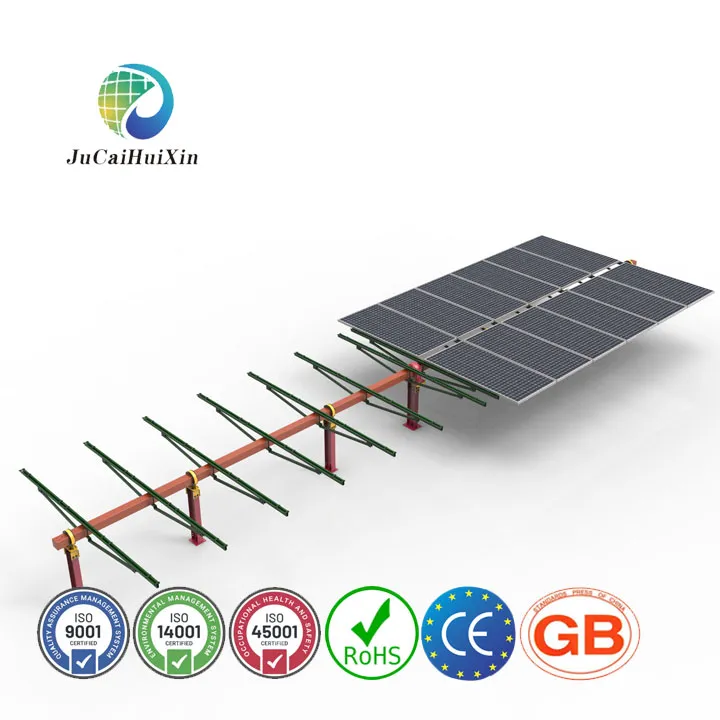

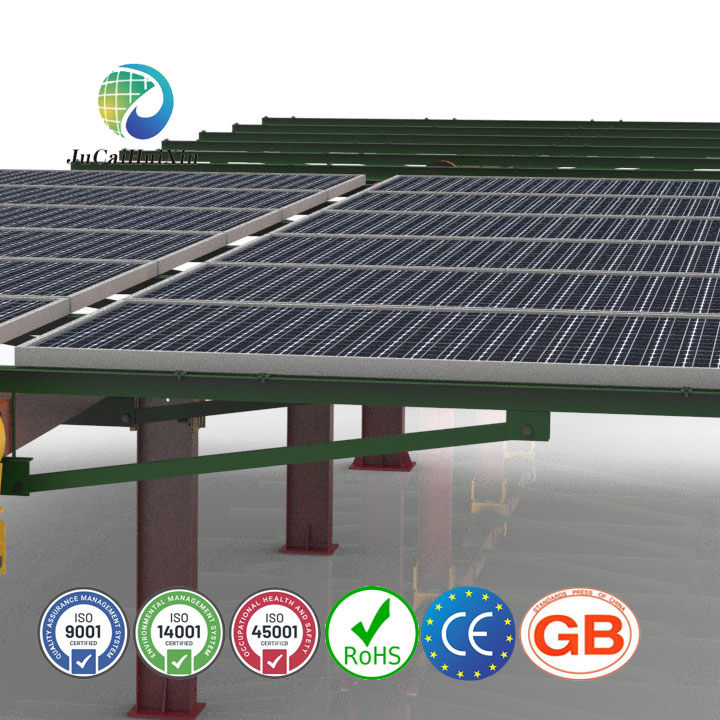

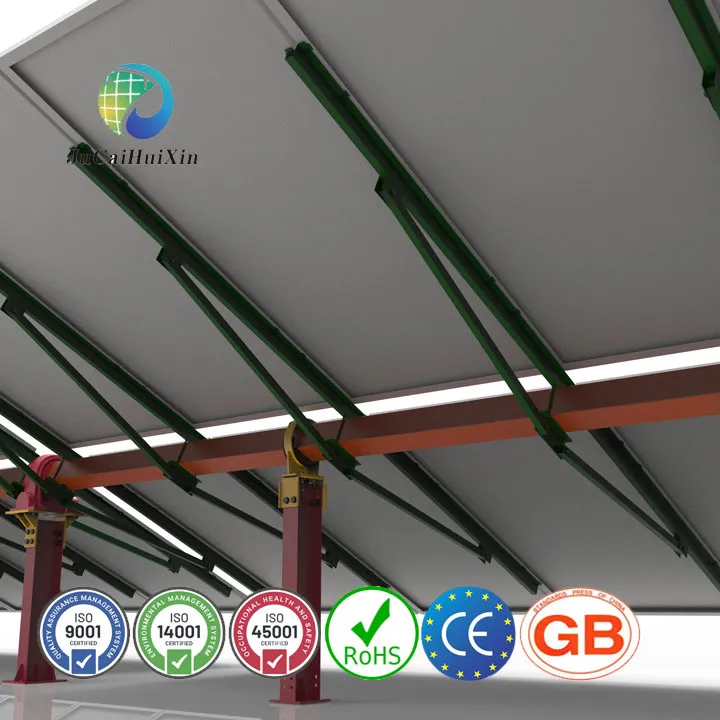

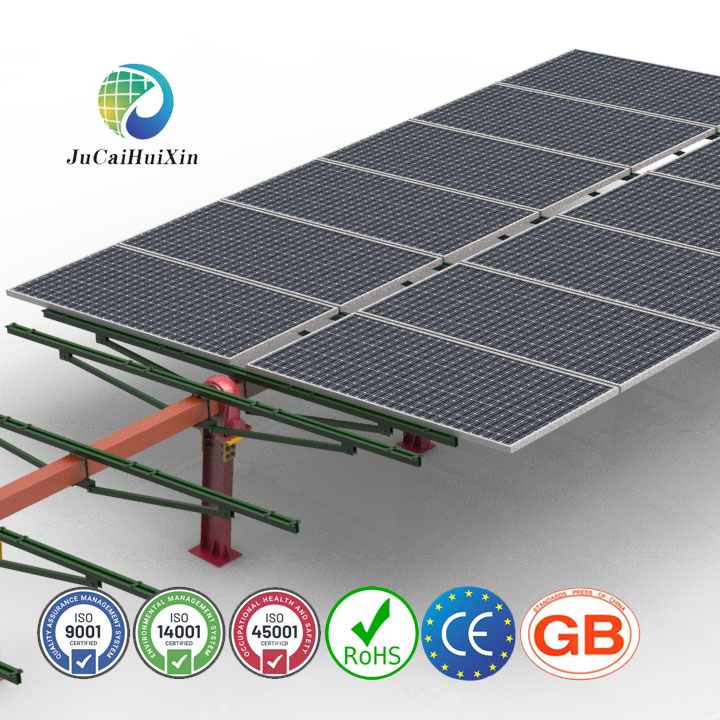

Our Single-Axis Solar Tracker Bracket is easy to install and comes with a complete kit for hassle-free setup. The robust design and durable materials make it ideal for rooftop installations, providing a reliable solution for your solar energy needs.
| System type | Independent Drive |
| NO.of Panel | 2-10 Piece(≤23 sq.m.) |
| Power Consumption | 5.0Kwh/set/year |
| Max. wind speed in running | 24 m/s |
| Max. wind speed in flat | 40 m/s |
| Rust protection | Hot-dipped galvanized/superdyma |
| Azimuth angle tracking range | ±45ºC |
| Elevation angle tracking range | 45ºC |
| Control model | Time + GPS Control |
| Tracking accuracy | 0.1°-2°(Adjustable) |
| Control tilt method | Manual remote control + remote computer control |
❓
Frequently Asked Questions
How does the system reduce maintenance costs?
Modular design reduces on-site welding (assembly efficiency increased by 60%), self-lubricating guide rail reduces manual maintenance frequency, and annual O&M cost only accounts for less than 0.5% of power generation revenue.
How is the load-bearing capacity of a single set of brackets ensured?

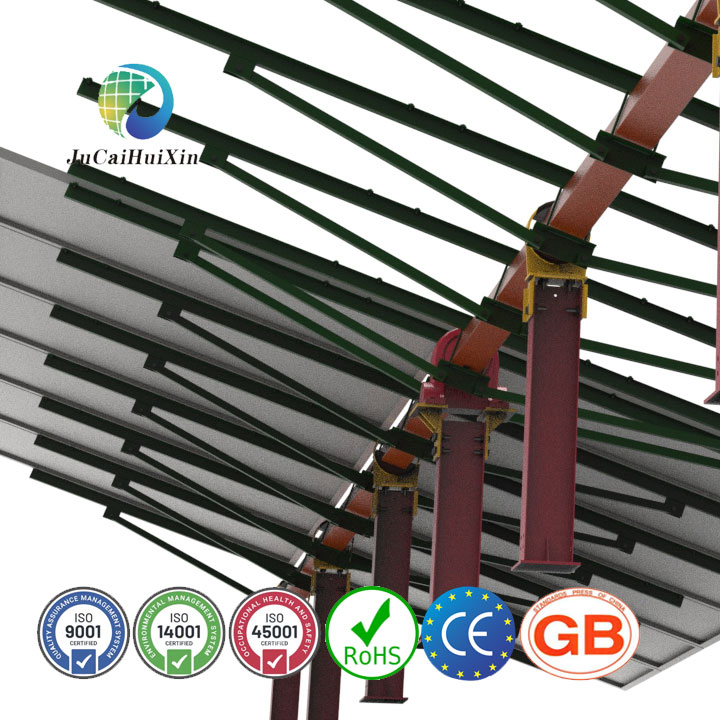

The main beam adopts box section structure, passes IEC 62817 wind and snow resistance test (15 tonnes/group), and is equipped with triple anti-tipping device.
How long is the coating life under acid rain environment?
The triple protection of hot-dip galvanised layer + epoxy primer + polyurethane topcoat, laboratory tests show that the salt spray life is ≥ 30 years.
What is the delivery cycle for large-scale projects?
Standardised prefabrication + regional warehousing, 100MW projects only take 12-16 weeks from order to grid connection.
How to deal with structural deformation during the warranty period?
Free laser calibration service is provided and structural reset is completed within 24 hours with unlimited times during the warranty period.
Are the brackets certified for international use?
Yes, our systems are fully certified with GB, ISO, CE, and RoHS standards, making them suitable for global commercial and industrial applications.
