Product Description

📋

Basic Info

Model NO.HB-DJ817G
ConditionNew
CertificationISO, CB, CE
ApplicationIndustrial
IP RatingIP65
Maxi Load8kN
Static Load25kN
Production Capacity30,000 PCS/Month
🏢

Industry Expertise

Established in 2008, our team is among the pioneering manufacturers of linear actuators, integrating R&D, manufacturing, and marketing for various industrial fields. We are dedicated to modernizing traditional industries and actively developing solutions for green energy, new materials, environmental protection, and high-end equipment manufacturing.
☀️

Horizontal Single-Axis Tracker

This horizontal single-axis tracker system is a high-efficiency solution specifically designed for large-scale ground-mounted photovoltaic (PV) power plants. By intelligently tracking the sun's trajectory, it maximizes power generation revenue. Utilizing mature single-axis drive technology, the system supports a wide tracking range of ±55°, ensuring optimal solar radiation reception from dawn to dusk. Compared to traditional fixed-tilt structures, it can increase annual power generation by 5% to 25%.
🎯 High Accuracy

Boasts a high tracking accuracy of ±1° driven by an intelligent control system.

⚙️ Flexible Power

Configuration of 1 to 8 motors per row for optimized power distribution.

🛡️ Durable Build

Constructed from Hot-Dip Galvanized (HDG) steel or Al-Mg-Zn coated steel for 25+ years of life.

Solar Tracker System View 1
Solar Tracker System View 2
Solar Tracker System View 3
Solar Tracker Component 1
Solar Tracker Component 2

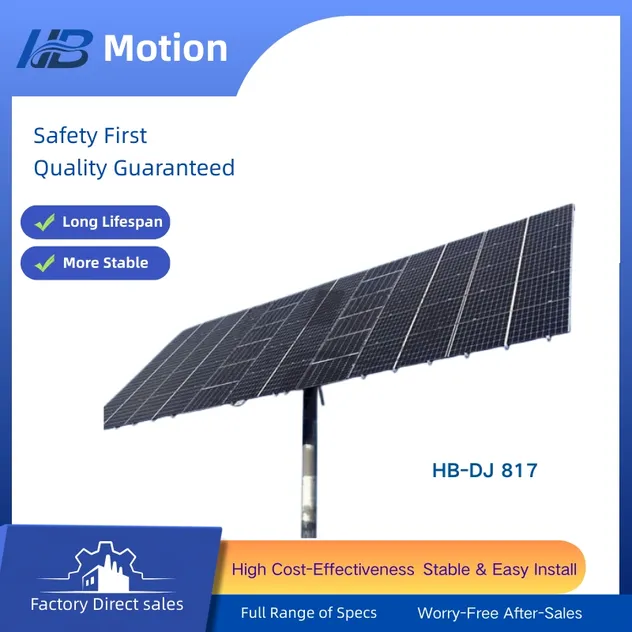

Solar Tracker Component 3
📊

Technical Specifications

Item Details / Description
System TypeHorizontal Single-Axis Tracker
Tracking Range±55° (Customizable according to project)
Tracking Accuracy±1°
Motor Quantity1 - 8 motors per row
Structural MaterialHDG Steel / Al-Mg-Zn Coating Steel
Foundation CompatibilityConcrete foundation, Steel pile, PHC pile
Efficiency EstimateApprox. 205 sets per MW (using 600W modules)
Service Life> 25 Years
❓

Frequently Asked Questions

What is the expected increase in power generation?
Compared to traditional fixed-tilt structures, this single-axis tracker system can increase annual power generation by 5% to 25%, depending on the site location and solar conditions.
What are the main structural materials used?
The system is built using Hot-Dip Galvanized (HDG) steel or Al-Mg-Zn coated steel, both of which offer excellent corrosion resistance for long-term outdoor use.
Can the tracking range be customized?
Yes, while the standard range is ±55°, it can be customized based on the specific project latitude and requirements to ensure optimal sun reception.
What types of foundations are supported?
The system is highly compatible and supports concrete independent foundations, steel piles, and PHC (Prestressed High-Strength Concrete) pipe piles.
What is the IP rating of the system components?
The system components feature an IP65 rating, ensuring high protection against dust and water ingress in harsh industrial and outdoor environments.
How accurate is the solar tracking?
The system utilizes an intelligent control drive that achieves a high tracking accuracy of ±1°, maximizing the efficiency of the PV modules throughout the day.
