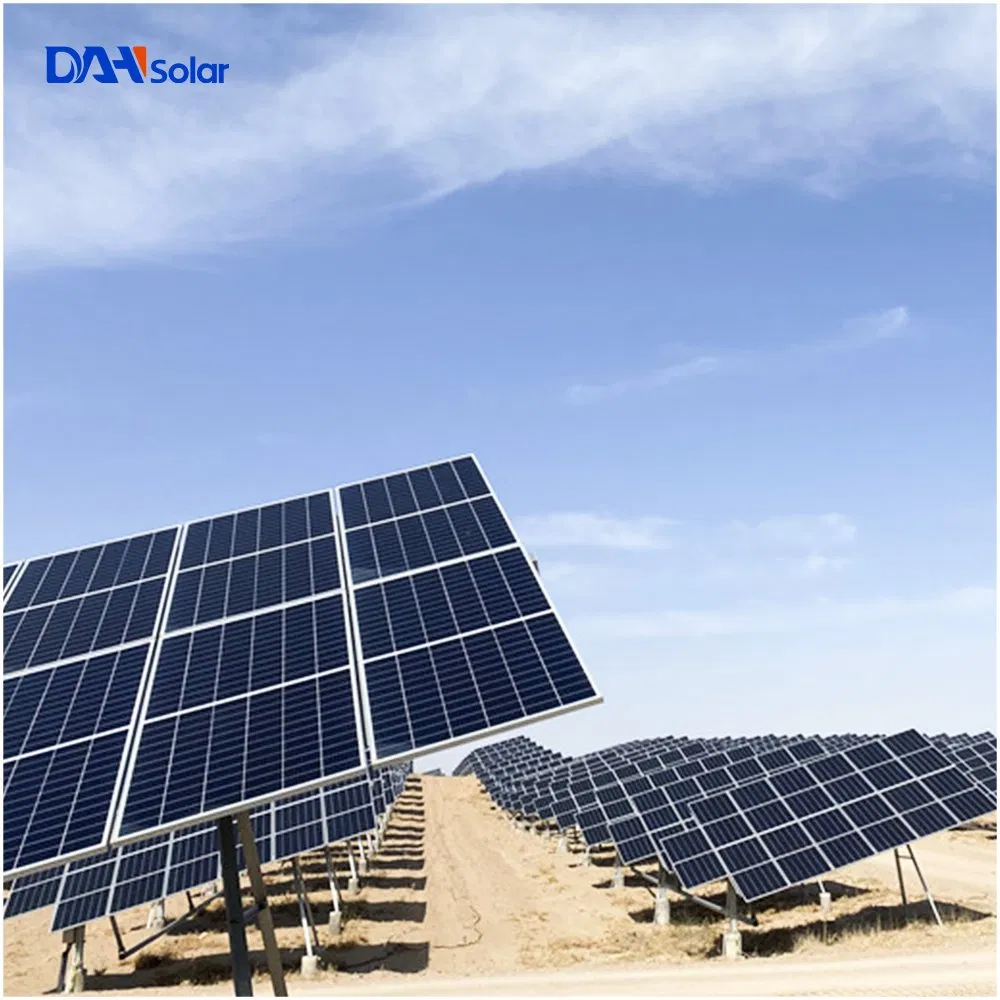

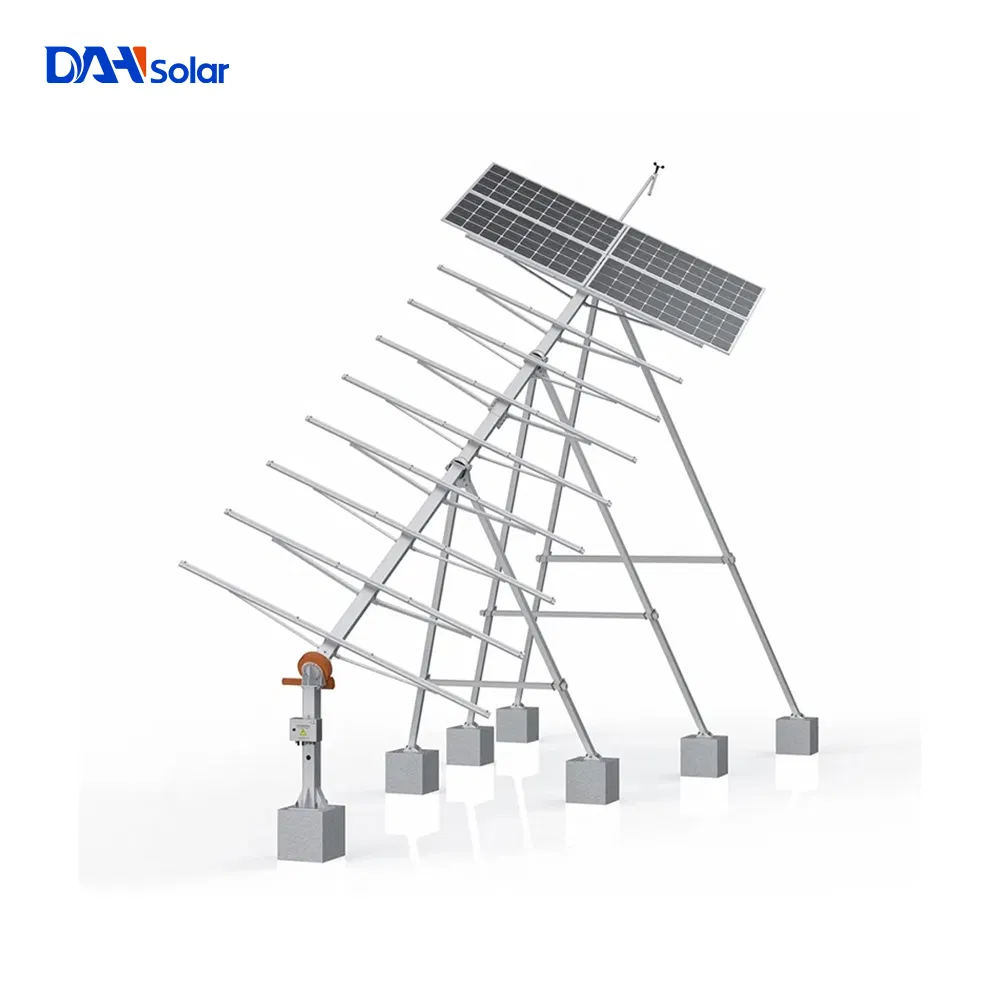

Dah Solar Tilted Single Axis Solar GPS Automatic Sun Tracker Bracket Solar Tracker

1 / 5

Dah Solar Tilted Single Axis Solar GPS Automatic Sun Tracker Bracket Solar Tracker

Customization:	Available
After-sales Service:	Yes
Warranty:	3 Years

Send Inquiry

Product Description

Basic Information

Model NO.

Tilted Single Axis Tracking System

Certification

TUV, CE

Application

Commercial

Material

Hot-Dipped Galvanized Steel & Superdyma

Type

Tracking Bracket

Control Mode

Time + GPS

System Type

Independent Drive / 2-3 Rows Linked

Tracking Accuracy

0.1°- 2.0°(Adjustable)

Gear Motor

24V/1.5A

Output Torque

5000 N.M

Power Consumption

0.01kwh/Day

Azimuth Range

±45°

Product Description

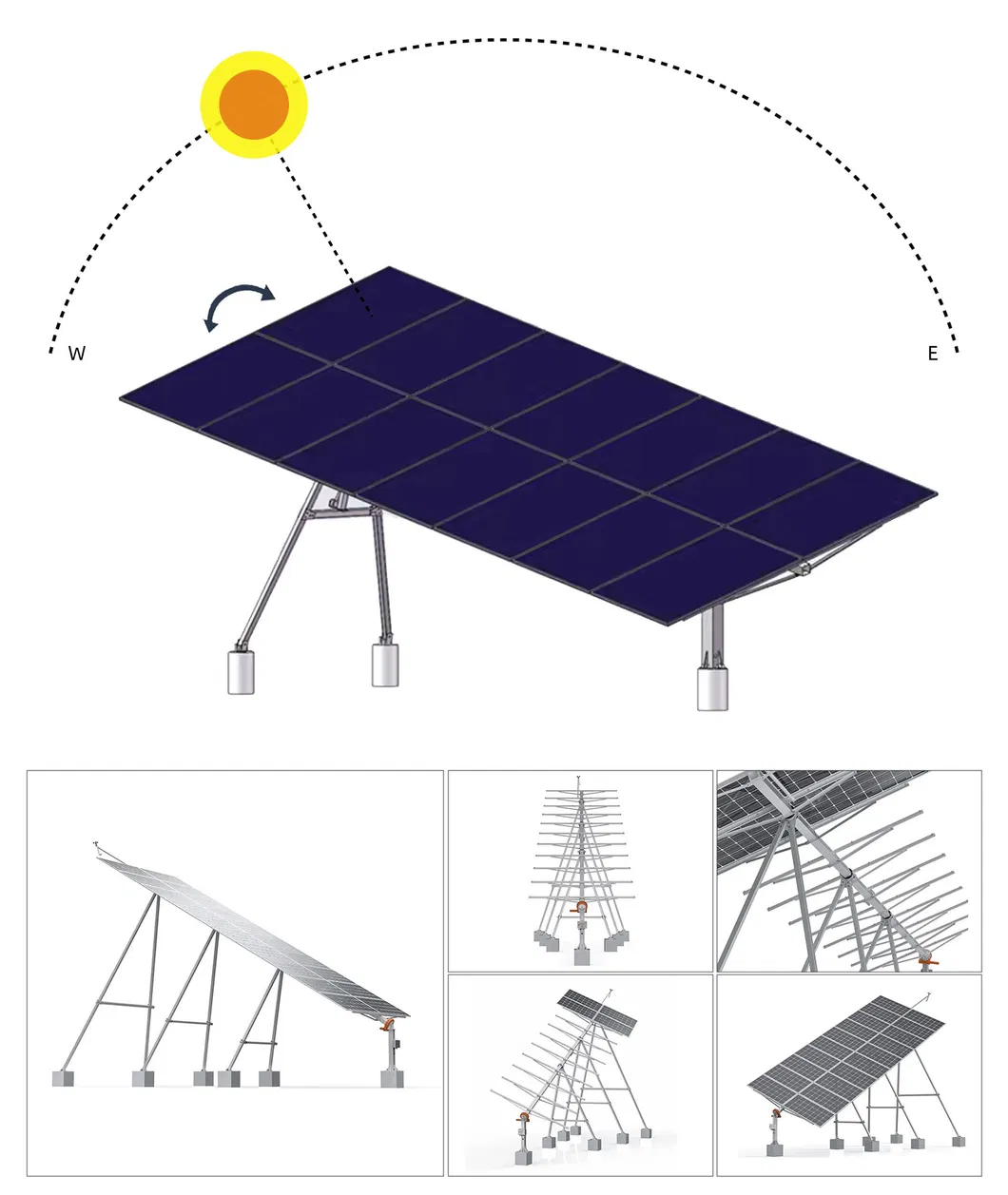

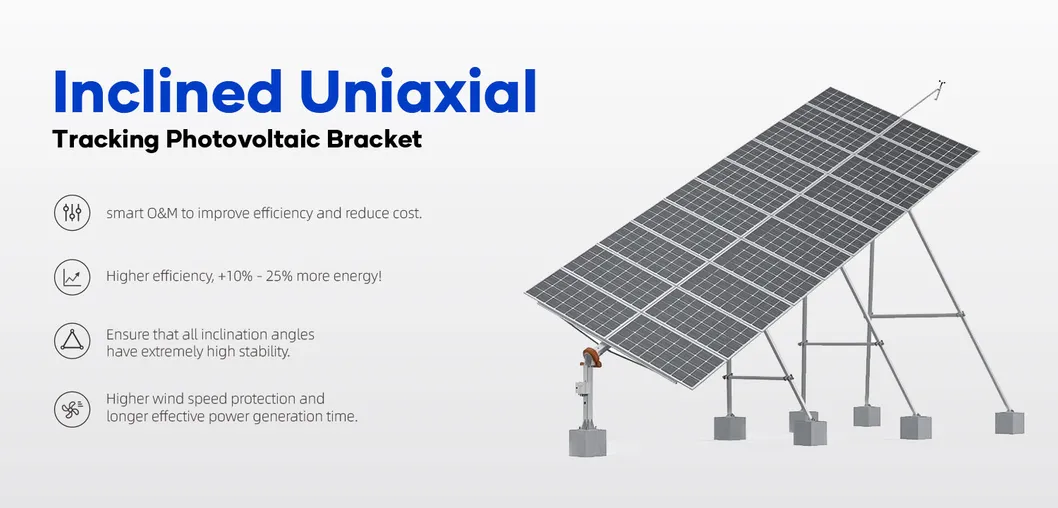

Tilted single axis solar tracking system has one tilted axis (10°- 30°) tracking the azimuth angle of the sun. The control system can control the driving system track the sun according to the GPS + Time data, keeps solar panels at best angle for receiving sunlight, so that it can makes full use of sunlight, promote the power generation capacity by 15%-25%, reduces your LCOE and bring more revenue for investors.

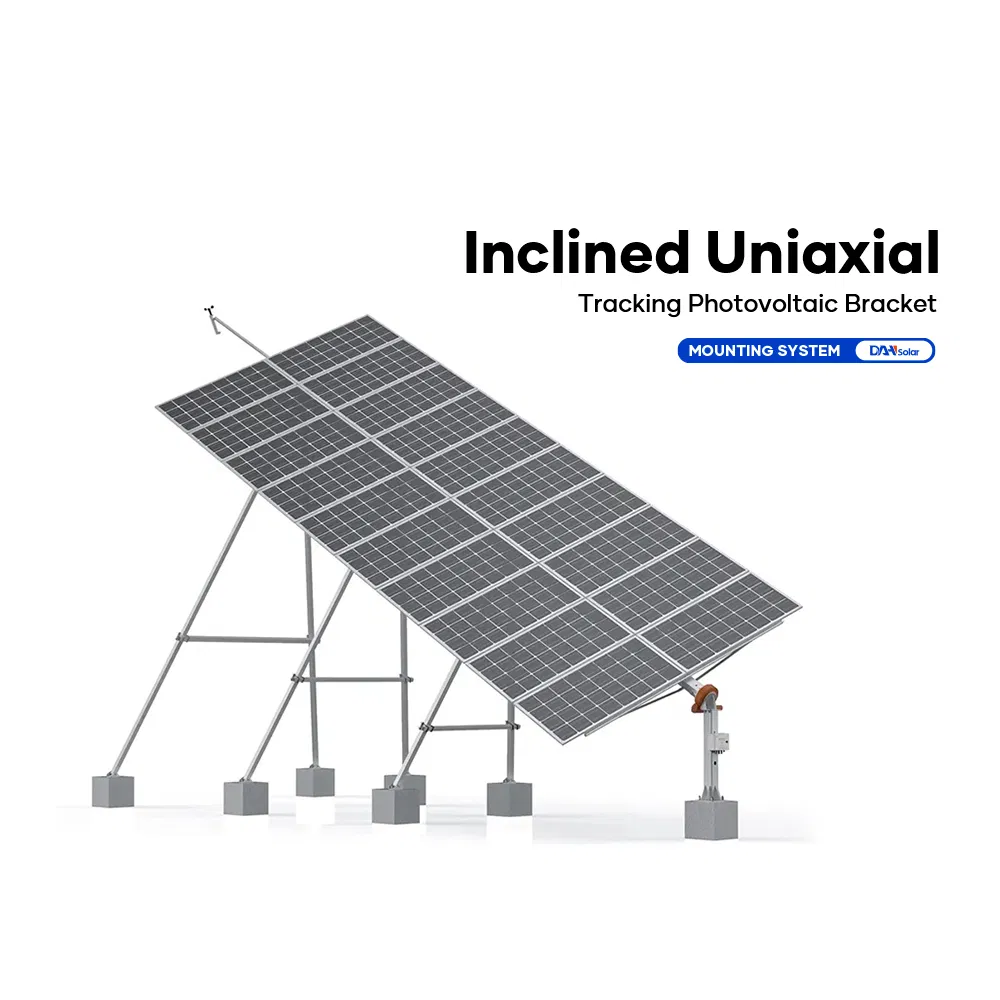

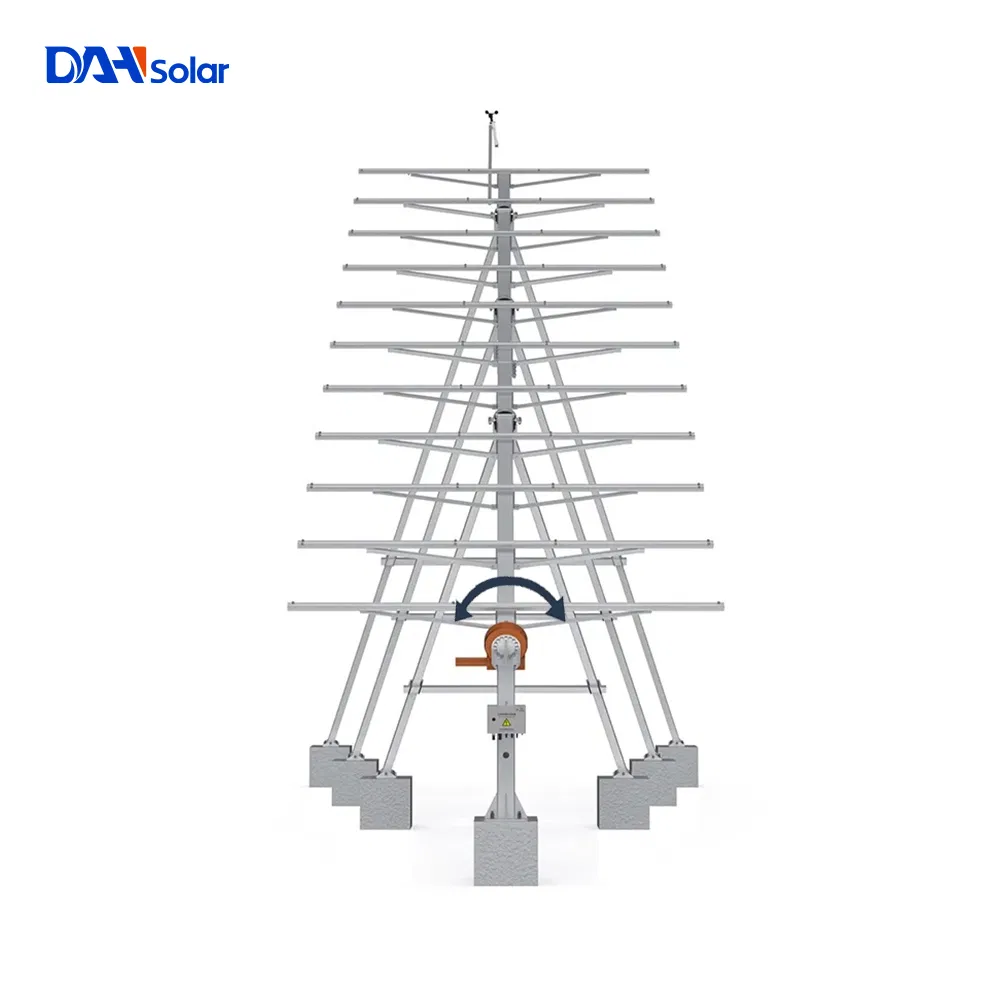

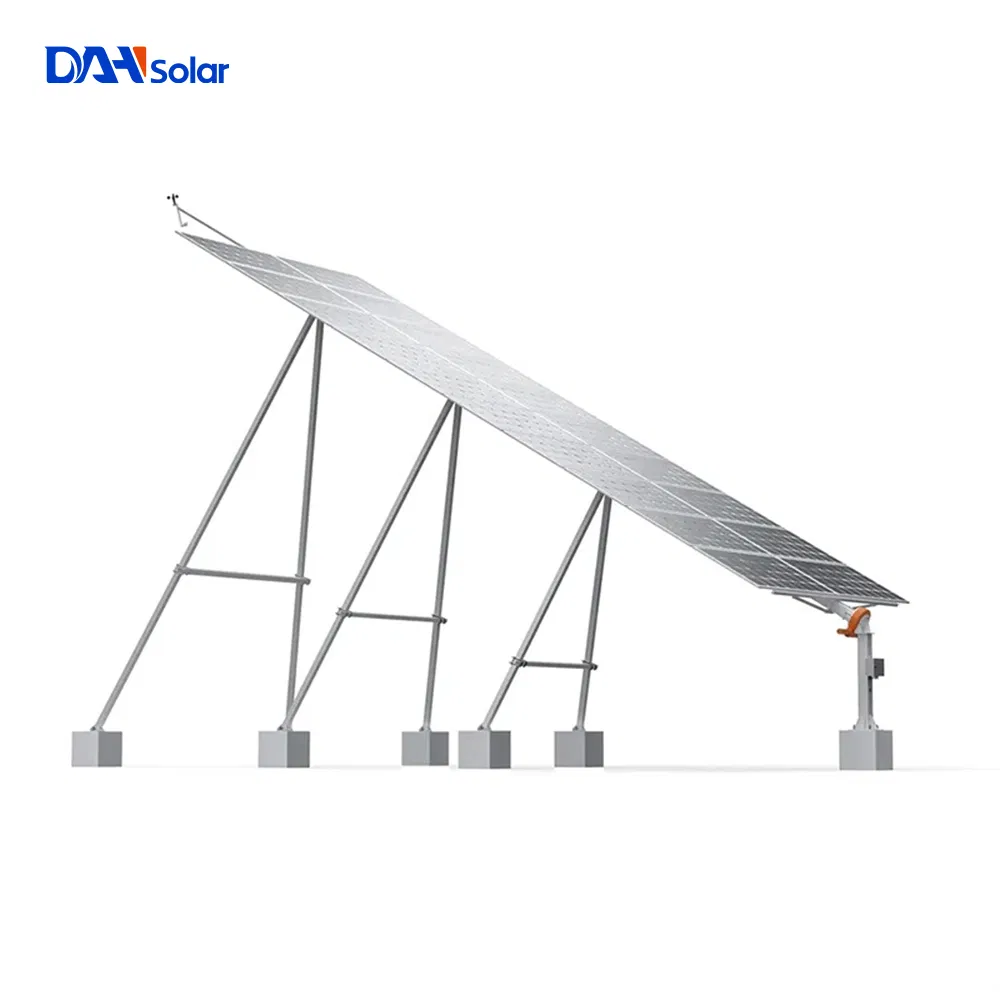

Tilted Single Axis Solar GPS Automatic Sun Tracker Bracket

Control mode	Time + GPS
System type	Independent drive / 2-3 rows linked
Average tracking accuracy	0.1°- 2.0°(adjustable)
Gear motor	24V/1.5A
Output torque	5000 N·M
Tracking power consumption	0.01kwh/day
Azimuth angle tracking range	±45°
Elevation tilted angle	10° - 30°
Max. wind resistance (horizontal)	40 m/s
Max. wind resistance (operation)	24 m/s
Material	Hot-dipped galvanized steel & Superdyma
System warranty	3 years
Working temperature	-40ºC - +75ºC
Total power per set	4kW - 20kW

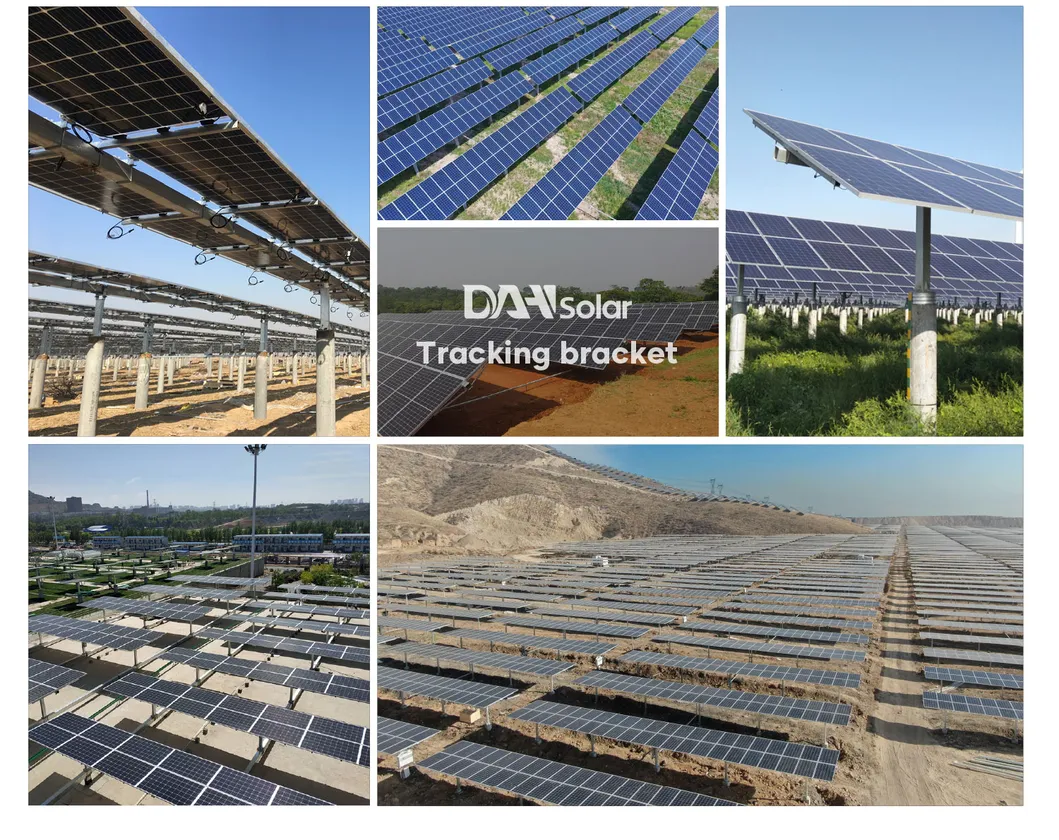

Projects & Exhibitions

Frequently Asked Questions

How much can this system increase power generation?

The tilted single axis tracking system can promote power generation capacity by 15% to 25% compared to fixed brackets by keeping panels at the optimal angle.

What is the tracking accuracy of the system?

The system offers a high average tracking accuracy of 0.1° to 2.0°, which is fully adjustable based on requirements.

What materials are used for the brackets?

The brackets are constructed using high-quality Hot-Dipped Galvanized Steel and Superdyma for superior durability and corrosion resistance.

Can the system withstand high wind speeds?

Yes, the system is designed for a maximum wind resistance of up to 40 m/s in horizontal position and 24 m/s during operation.

What is the power consumption of the tracking motor?

The system is extremely energy-efficient, with a tracking power consumption of only approximately 0.01kwh per day.

What control technology does the tracker use?

It utilizes a sophisticated Time + GPS data control mode to accurately track the sun's azimuth angle throughout the day.
