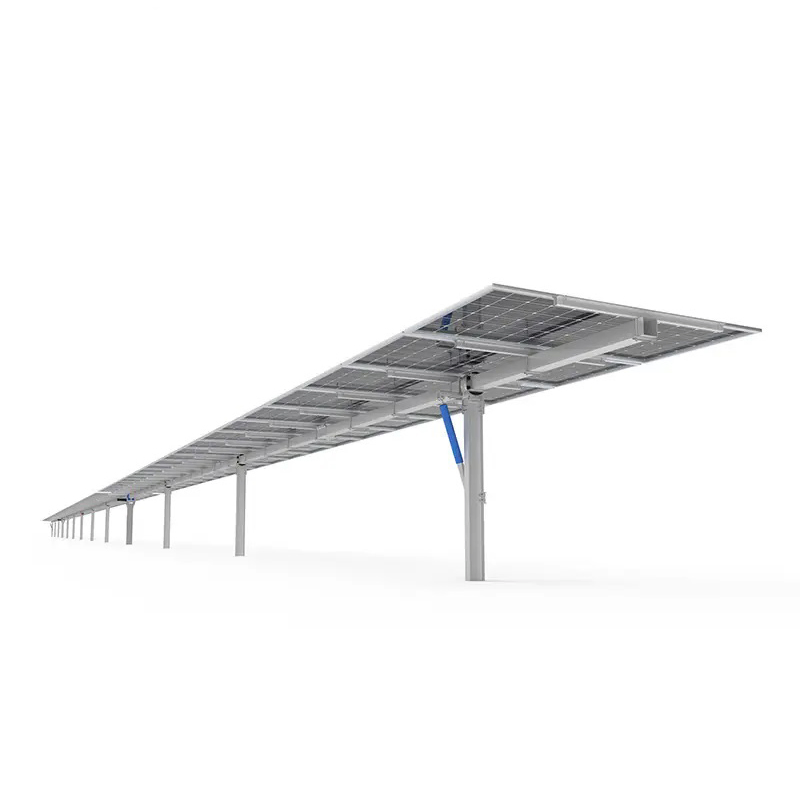

Aluminum Slewing Drive Solar Tracker Single Axis Solar Tracking Mount System
Aluminum Slewing Drive Solar Tracker Single Axis Solar Tracking Mount System
Aluminum Slewing Drive Solar Tracker Single Axis Solar Tracking Mount System
Aluminum Slewing Drive Solar Tracker Single Axis Solar Tracking Mount System
Aluminum Slewing Drive Solar Tracker Single Axis Solar Tracking Mount System
1 / 5
Aluminum Slewing Drive Solar Tracker Single Axis Solar Tracking Mount System
Aluminum Slewing Drive Solar Tracker Single Axis Solar Tracking Mount System
Aluminum Slewing Drive Solar Tracker Single Axis Solar Tracking Mount System
Aluminum Slewing Drive Solar Tracker Single Axis Solar Tracking Mount System
Aluminum Slewing Drive Solar Tracker Single Axis Solar Tracking Mount System

Aluminum Slewing Drive Solar Tracker Single Axis Solar Tracking Mount System

Customization: Available
After-sales Service: Yes
Warranty: 25 Years
Send Inquiry

Product Description

i
Basic Information
Model NO.SAST
CertificationISO, TUV, CE
ApplicationIndustrial
MaterialStainless Steel
TypeTracking Bracket
Product NameSingle Axis Solar Tracker
Module Size1650*992*40mm
Weight1300kg
Scope of Rack100~200m2
Power Supply110V / 220V
Driving Power90~180W
Protection LevelIP65
CommunicationRS485
Production Capacity100,000 Watts Per Month
📦
Packaging & Delivery
Package Size170.00cm * 105.00cm * 10.00cm
Package Gross Weight1300.000kg
⚙️
Technical Parameters
Tracker Structure Tracking Controller
Solar Panel Type 1650*992*35mm (78 Cells) Controller Type MCU (32bit)
Number Of Solar Panels 60 PCS Control Algorithm Astronomical + Closed Loop
Safe Working Wind Speed 17 m/s Wind Protection Included
Survival Wind Speed 37m/s (Up to 60m/s) Tracking Accuracy ≤±2°
Bracket Material Hot-Dip Galvanized Steel Protection Level IP65
Fastener Material 304 Stainless Steel Network Type Bluetooth / WiFi / 4G
Design Life > 25 Years Working Temp -30ºC to +70ºC
🔍
Product Overview

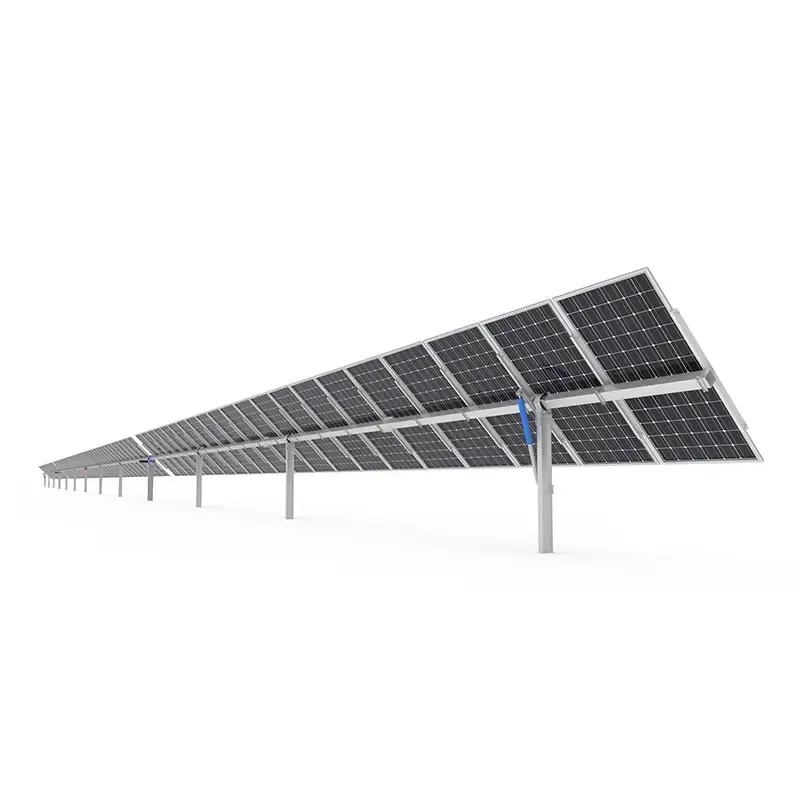

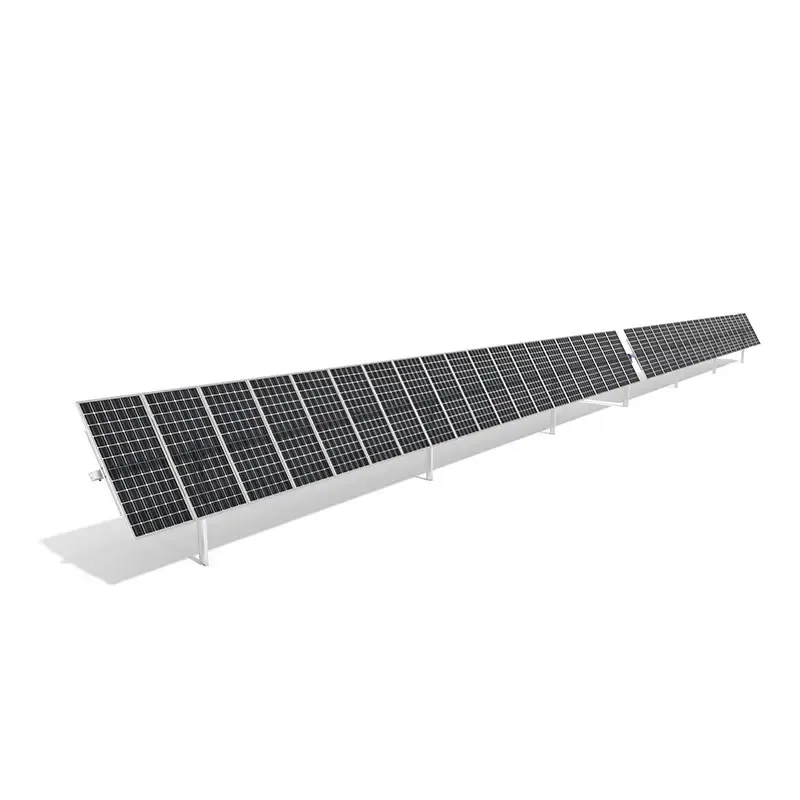

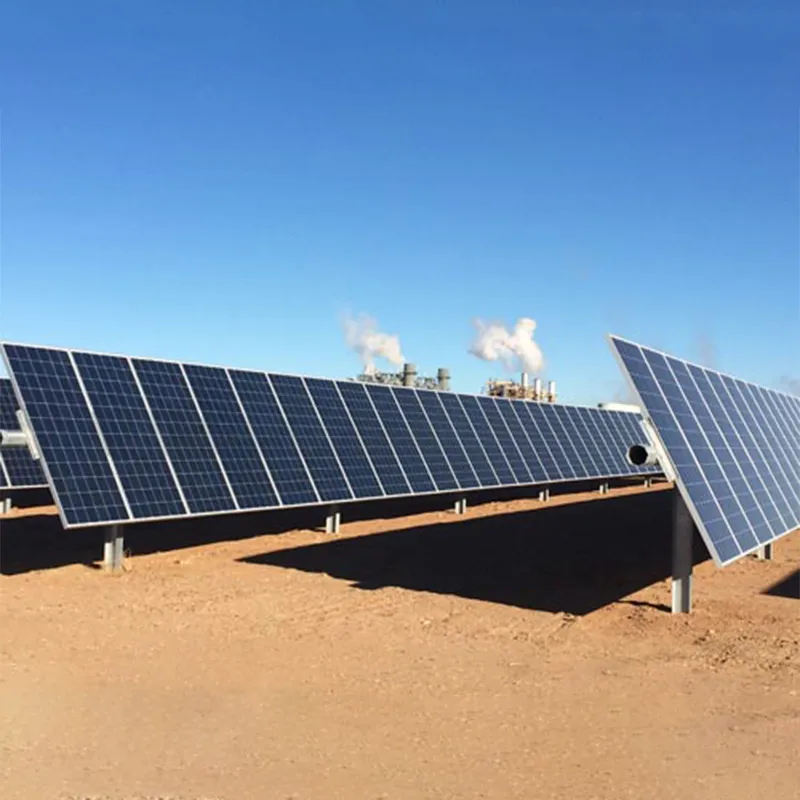

Solar Tracker 1 Solar Tracker 2 Solar Tracker 3

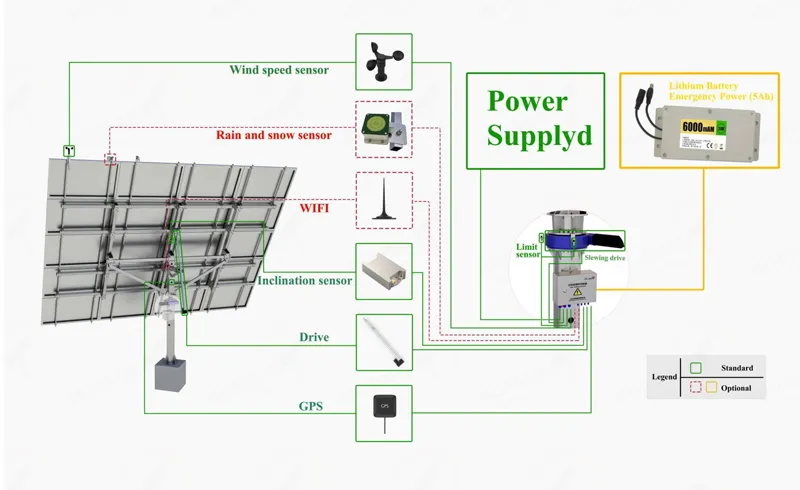

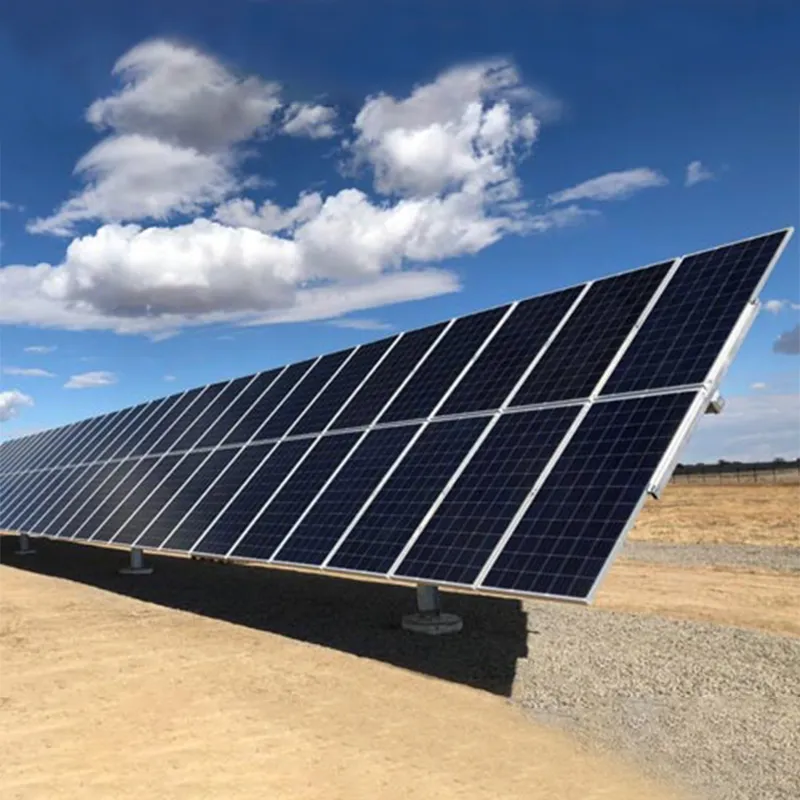

Solar Tracker Detail Solar Tracker Structure
🌍
Application Areas
Application
🏢
Production Facility

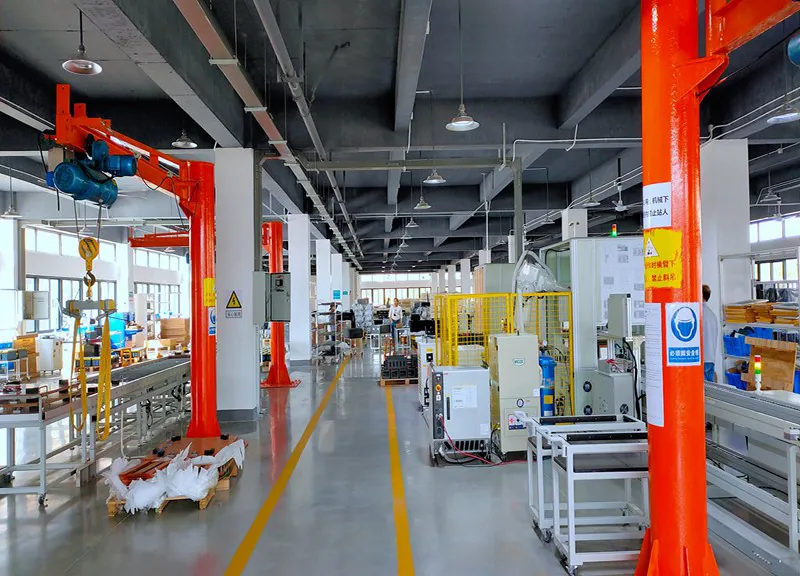

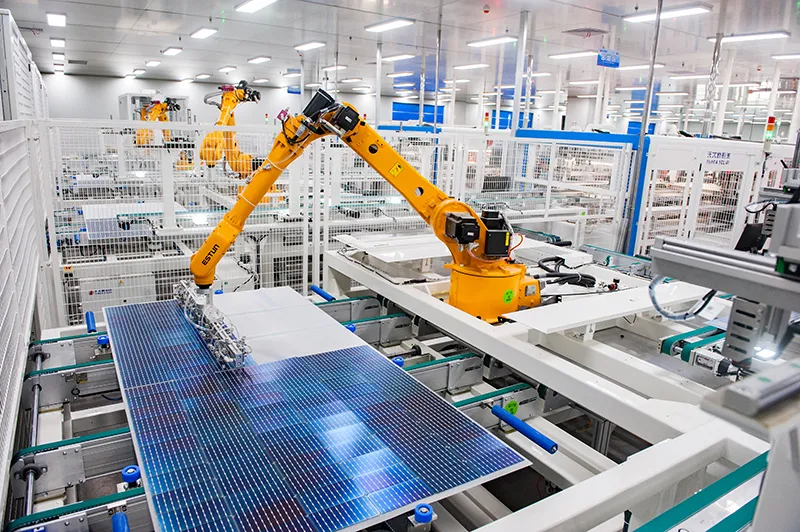

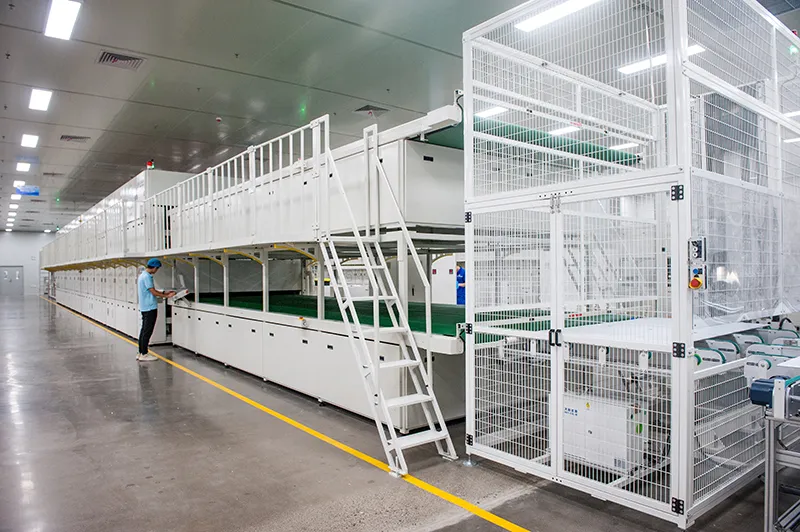

Factory 1 Factory 2 Factory 3

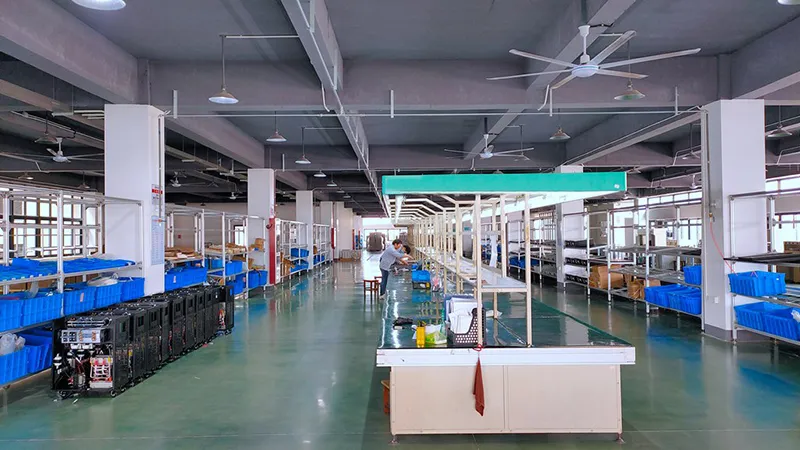

Manufacturing
⚡
Project Cases

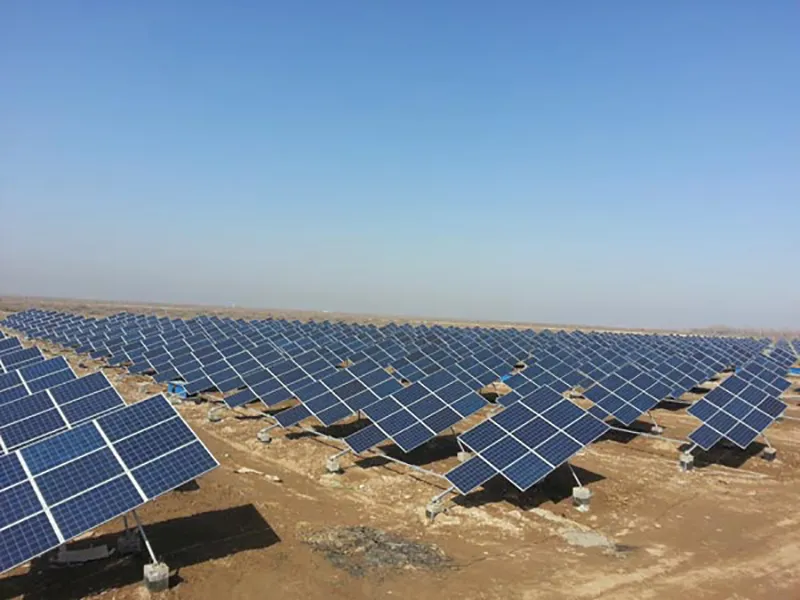

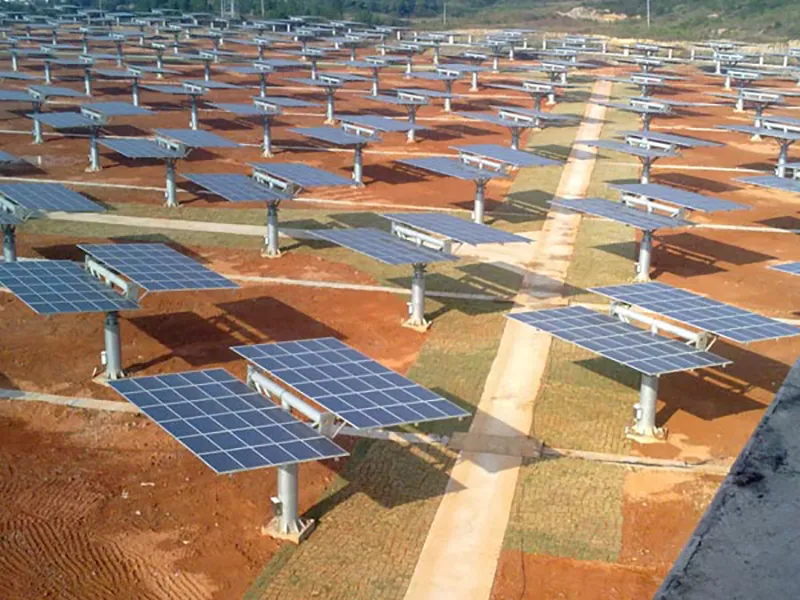

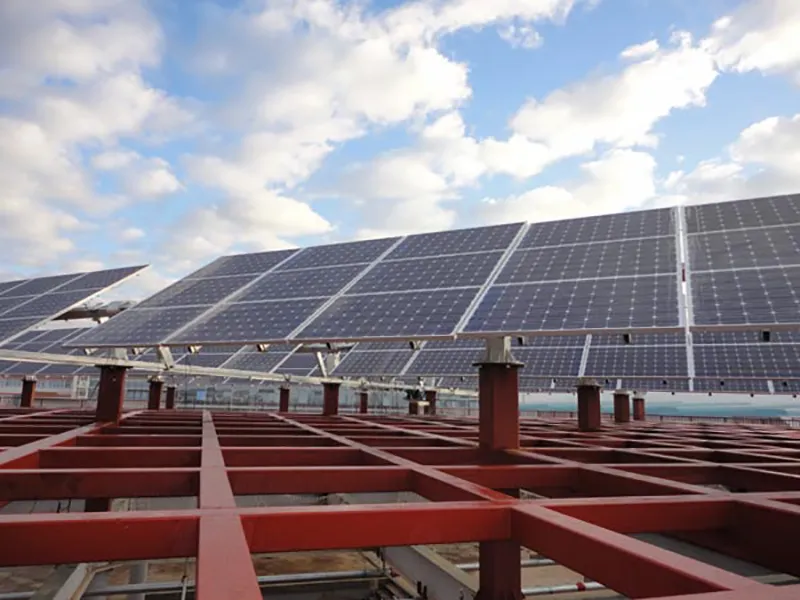

Project 1 Project 2 Project 3

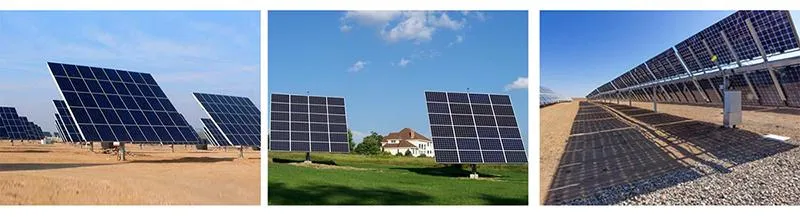

Project Landscape
📜
Certifications
Certificates
?
Frequently Asked Questions
What are the core materials used in the tracking system?
The system utilizes Q235B / Q355B Hot-Dip Galvanized Steel for the bracket structure and A2-70 304 Stainless Steel for fasteners, ensuring a mechanical design life of over 25 years.
How does the solar tracker handle high wind conditions?
The system is designed with a safe working wind speed of 17 m/s and a survival wind speed of 37 m/s, which can be customized up to 60 m/s. It includes active wind protection features.
What is the tracking accuracy of the MCU controller?
The 32-bit MCU controller utilizes an astronomical algorithm combined with position sensor closed-loop control to achieve a tracking accuracy of ≤±2°.
Does the system support remote monitoring?
Yes, while it supports Bluetooth for local networking, it also offers optional WiFi and 4G modules for remote network communication via the RS485 protocol.
Can the tracking range be customized?
Standard azimuth tracking ranges are -45° to +45° on the X-axis and -60° to +60° on the Y-axis, both of which can be customized based on specific project requirements.
What is the power consumption of the tracking system?
The system is highly efficient, with a driving power of 90~180W and a daily power consumption of less than 0.25~1kWh.
