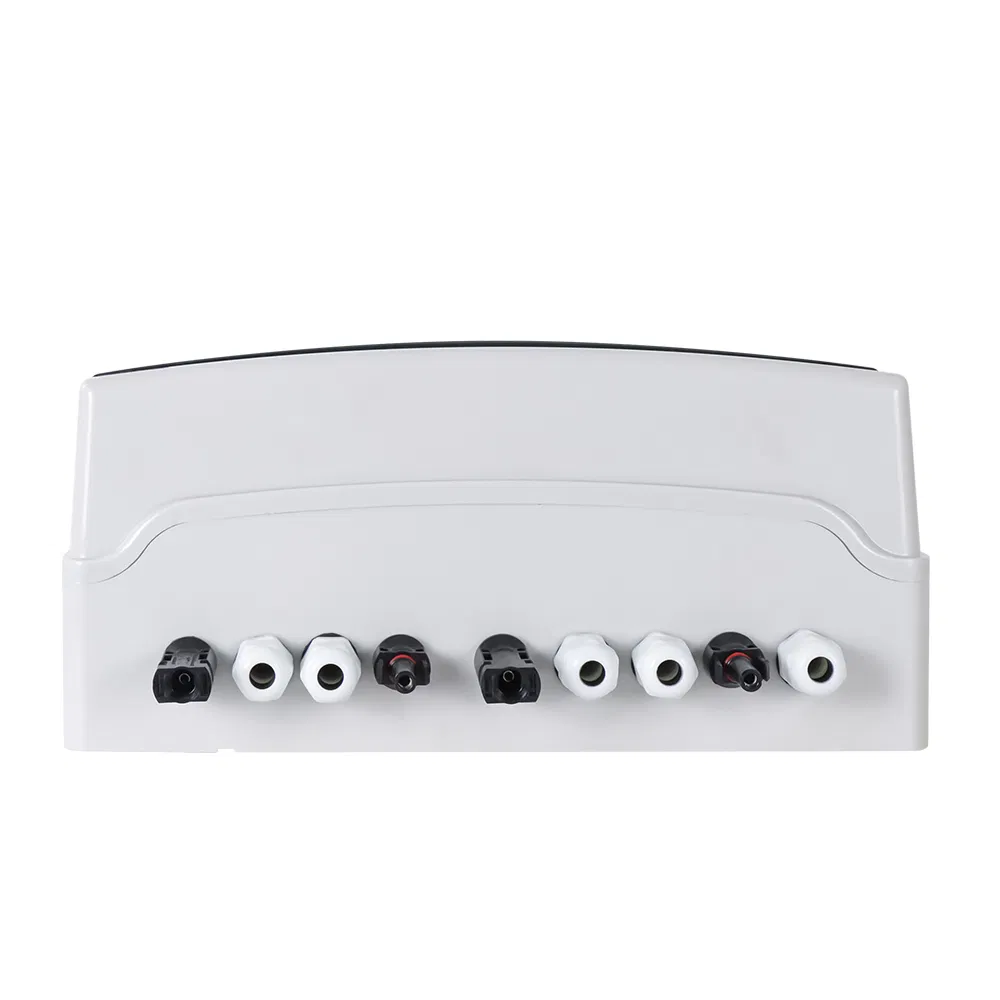

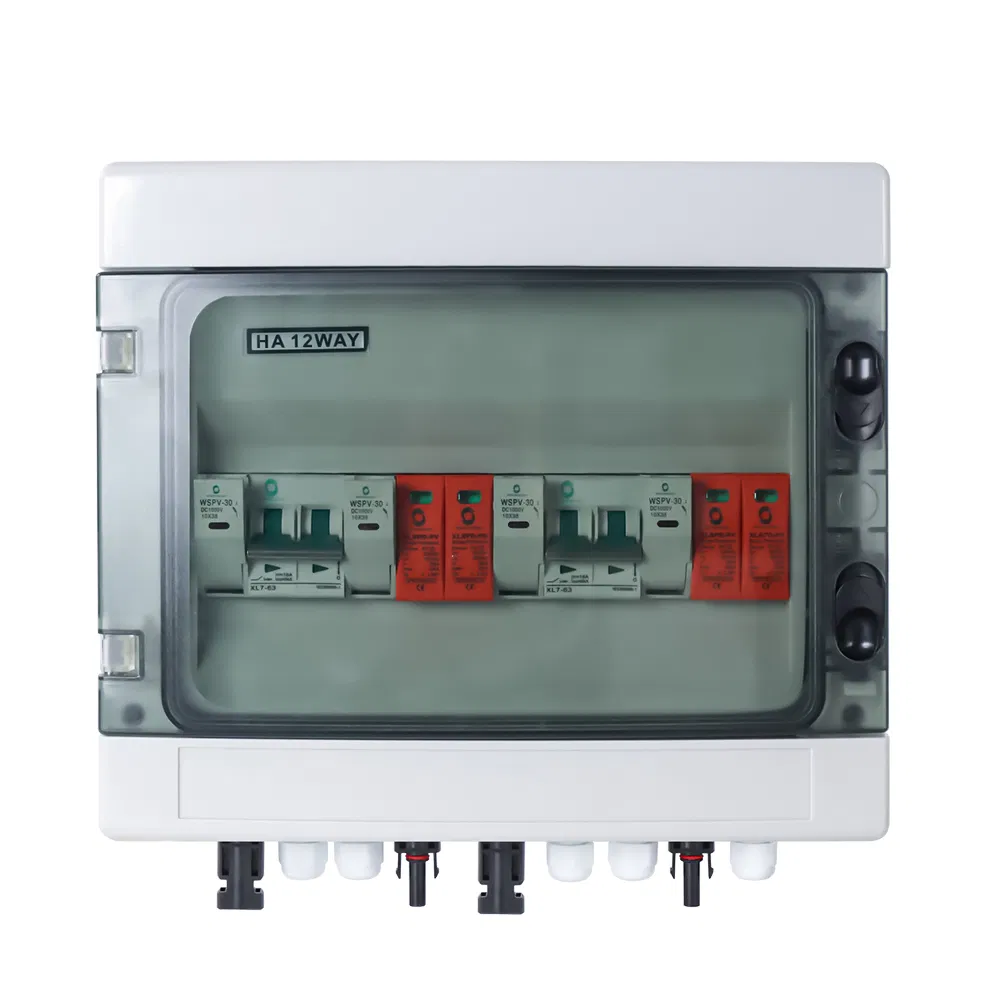

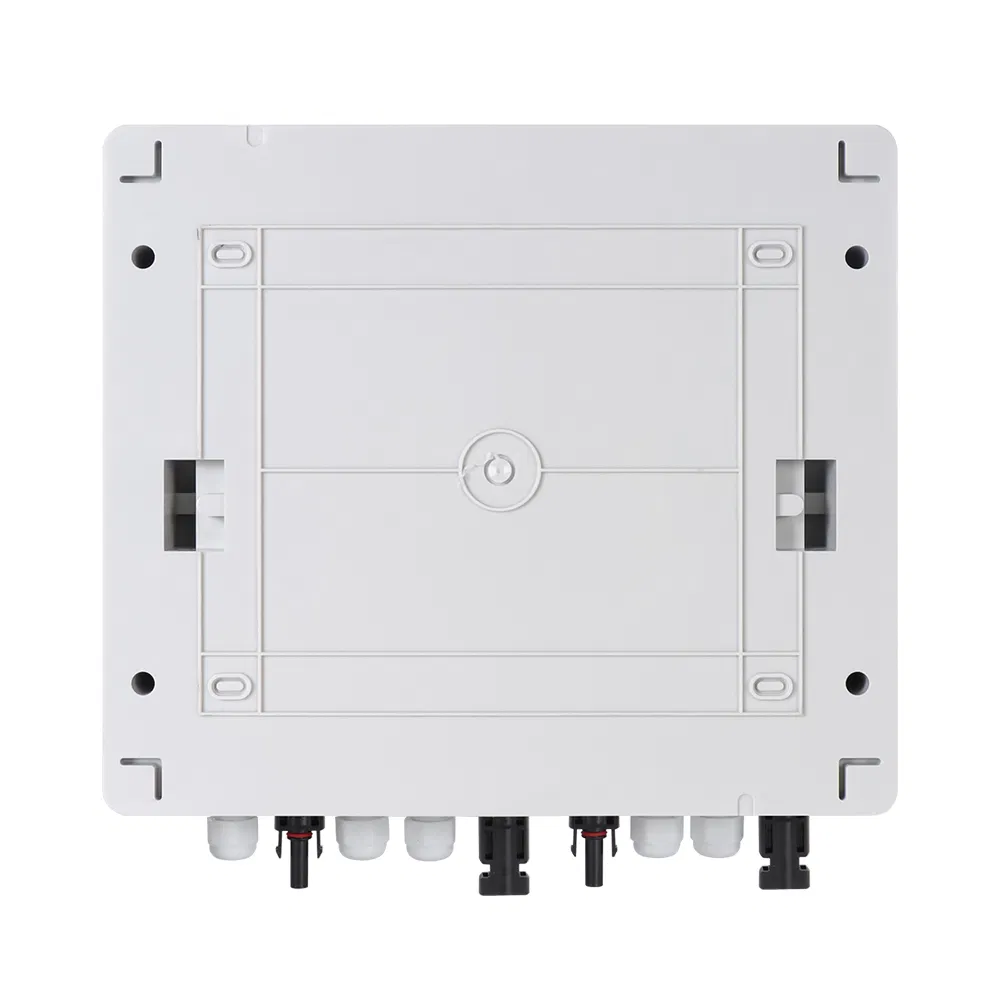

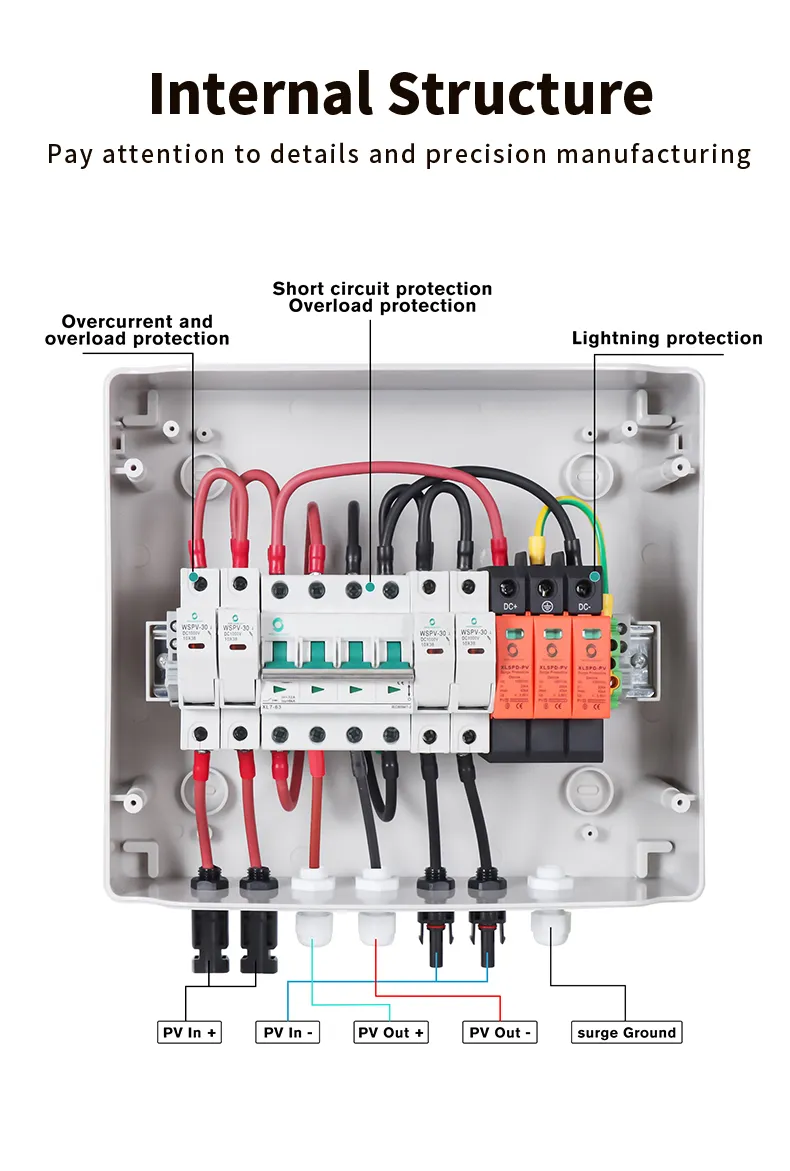

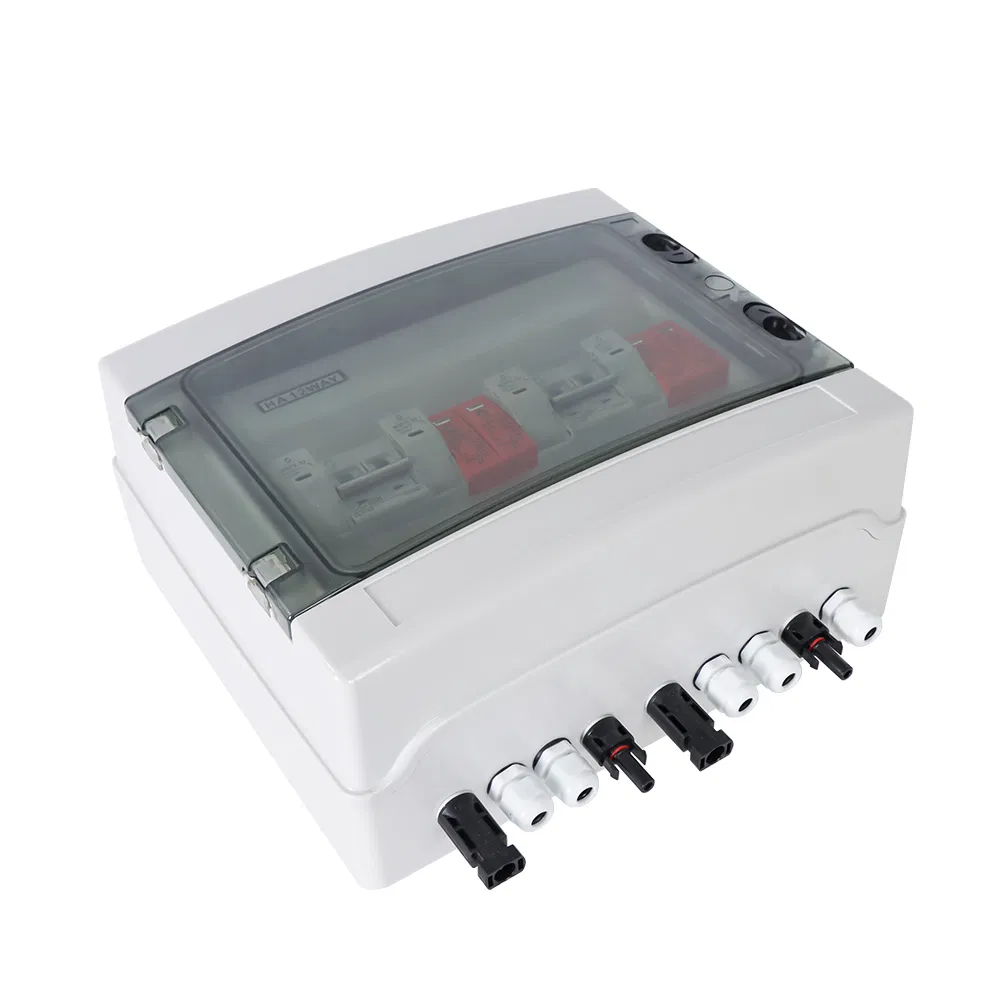

The Combiner Box provides a means of combining multiple source circuits from a PV array into a single DC output. Each source circuit is fused separately using a touch-safe fuse holder. The combiner box allows for fail-safe operation of the system in the unlikely event that a problem with a source circuit leads to abnormally high current. In addition, it provides a convenient means of accessing the DC portion of a PV system for routine maintenance and troubleshooting.
| Technical Specifications (WSDB-PV2/1 1000V) | |
|---|---|

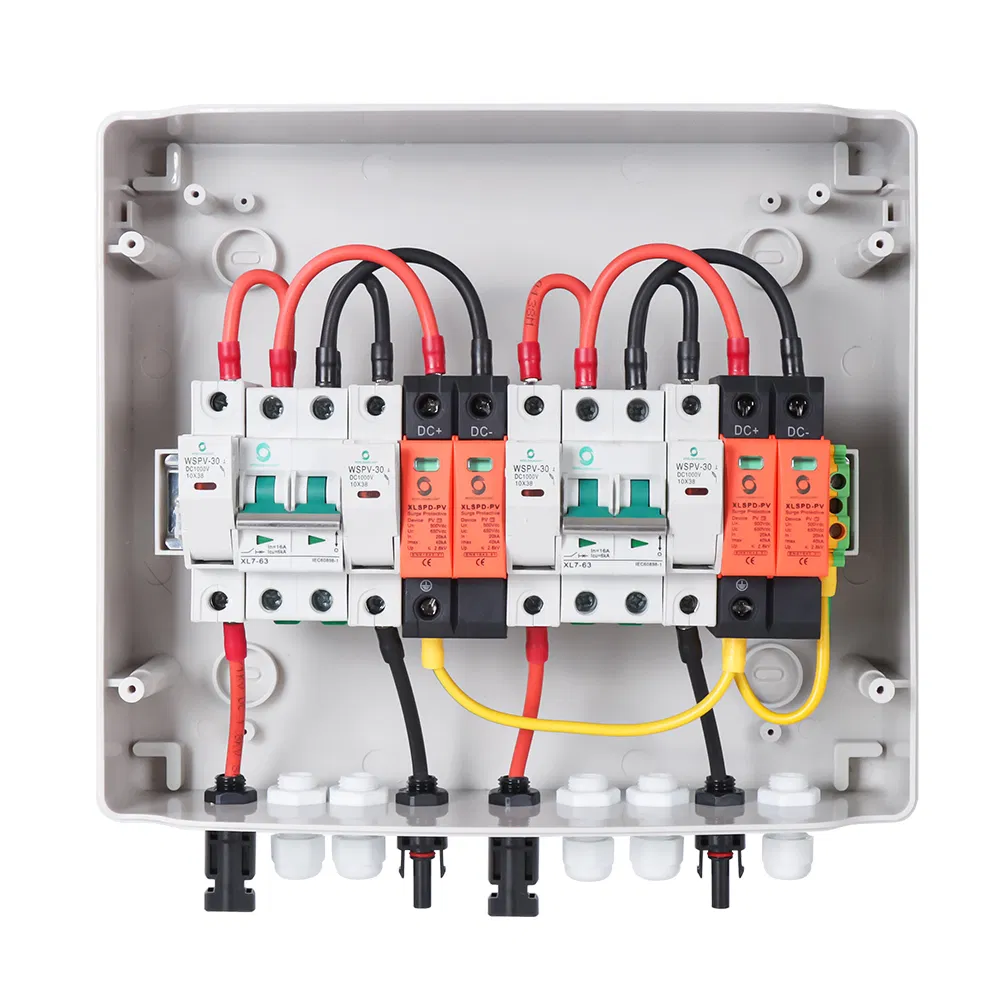

| Includes | 4 pcs fuse + 4p 1000v mcb + 3p 1000v spd + distribution box + MC4 + cable gland |
| Input / Output | 2 Strings Input / 1 String Output |
| Maximum Voltage | 1000V |
| Rated Current | 15A (Input/Output) |

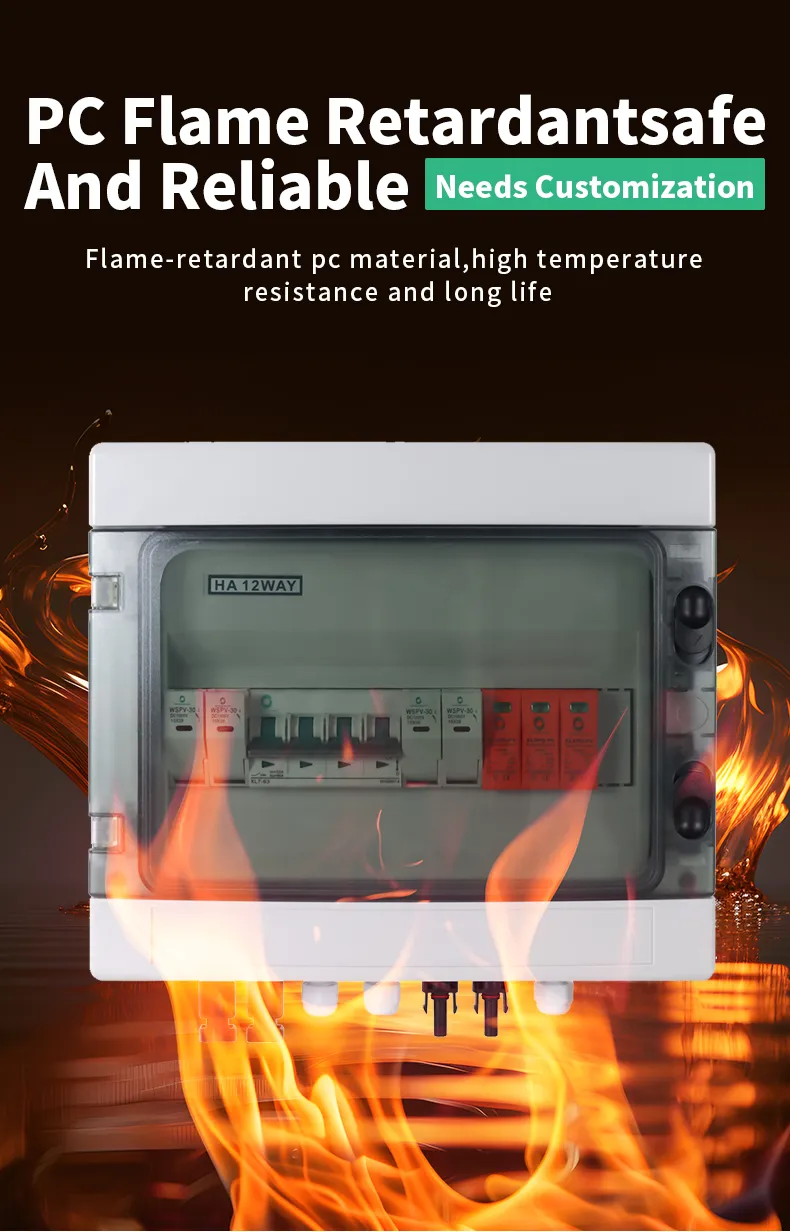

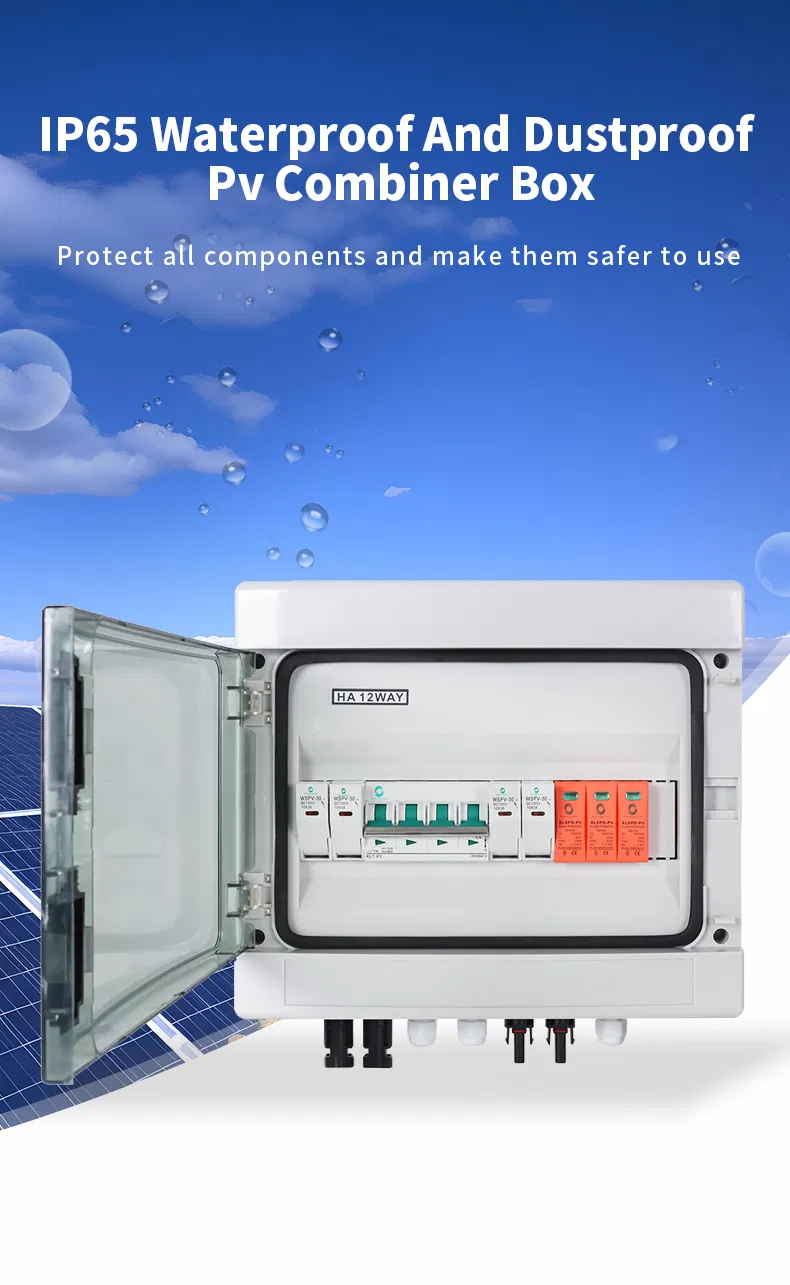

| Enclosure Material | PC/ABS (IP65 Protection) |
| Impact Resistance | IK10 |
| Dimensions | 296mm * 255mm * 140mm |

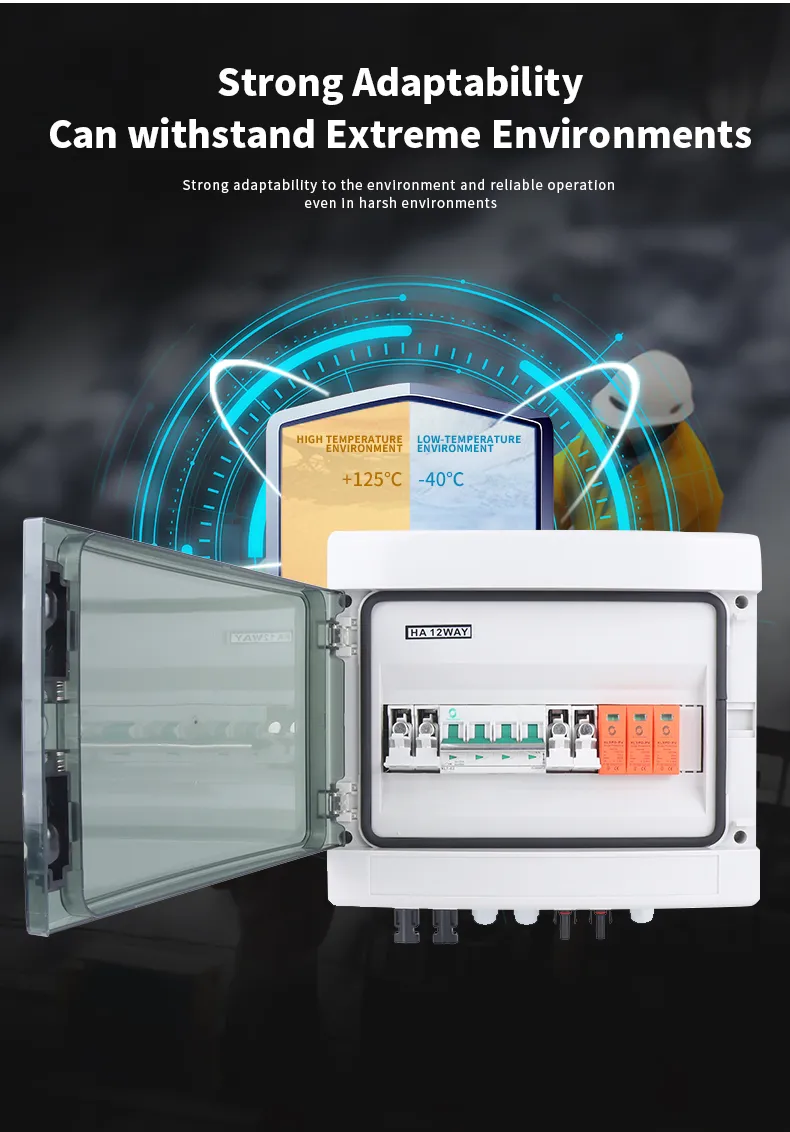

| Operating Temp | -25ºC ~ +55ºC |
