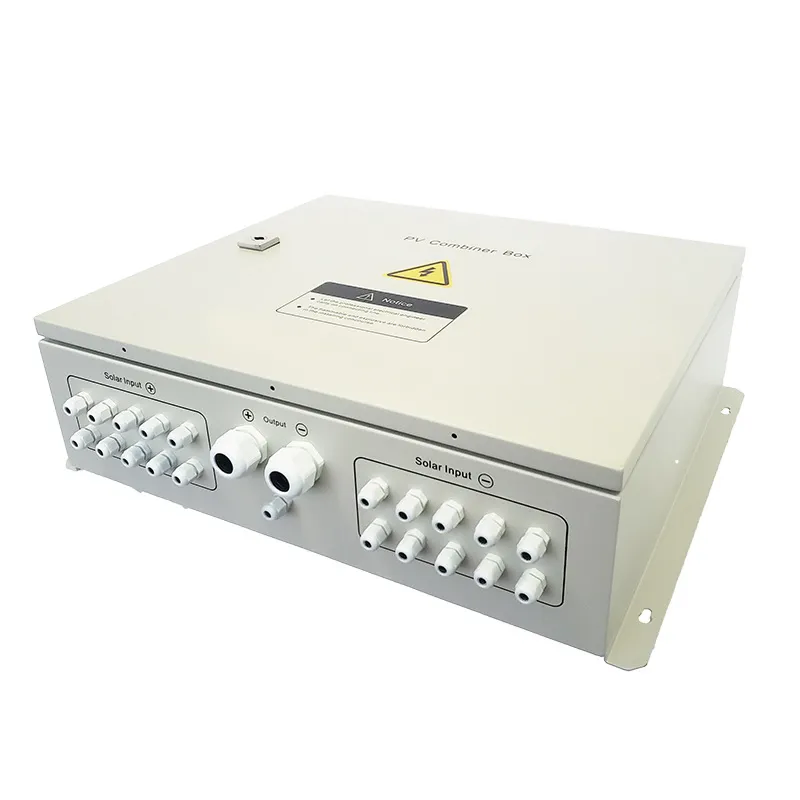

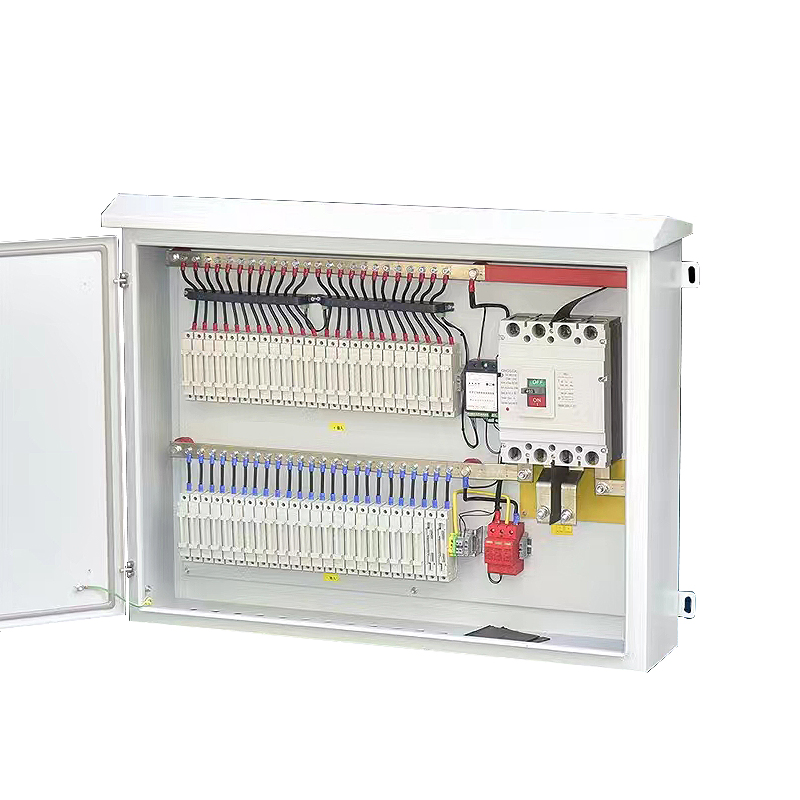

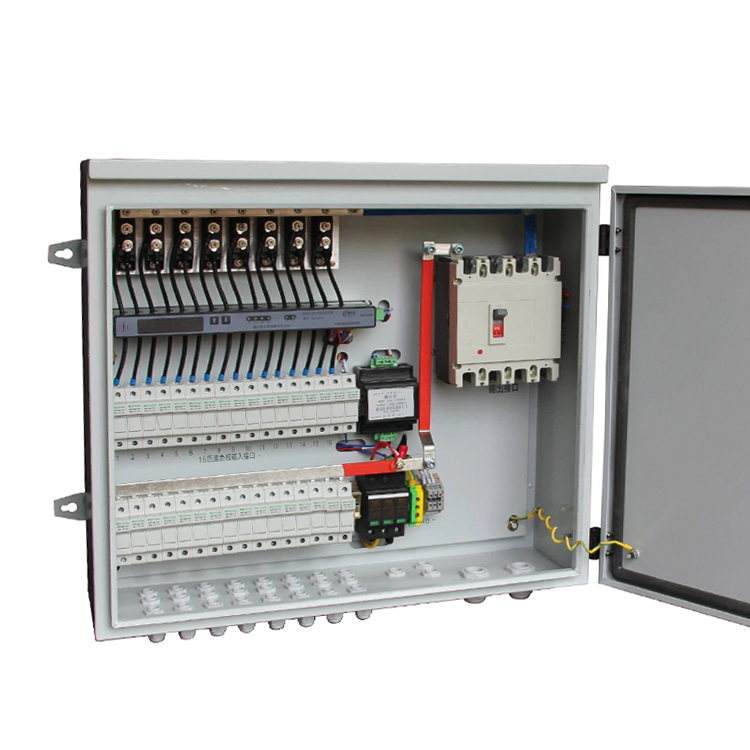

Outdoor Waterproof IP65 1000VDC PV Combiner Box 10 in 1 out 10 String Solar Surge Lightning Protection DC Combiner Box
Outdoor Waterproof IP65 1000VDC PV Combiner Box 10 in 1 out 10 String Solar Surge Lightning Protection DC Combiner Box
Outdoor Waterproof IP65 1000VDC PV Combiner Box 10 in 1 out 10 String Solar Surge Lightning Protection DC Combiner Box
Outdoor Waterproof IP65 1000VDC PV Combiner Box 10 in 1 out 10 String Solar Surge Lightning Protection DC Combiner Box
Outdoor Waterproof IP65 1000VDC PV Combiner Box 10 in 1 out 10 String Solar Surge Lightning Protection DC Combiner Box
1 / 5
Outdoor Waterproof IP65 1000VDC PV Combiner Box 10 in 1 out 10 String Solar Surge Lightning Protection DC Combiner Box
Outdoor Waterproof IP65 1000VDC PV Combiner Box 10 in 1 out 10 String Solar Surge Lightning Protection DC Combiner Box
Outdoor Waterproof IP65 1000VDC PV Combiner Box 10 in 1 out 10 String Solar Surge Lightning Protection DC Combiner Box
Outdoor Waterproof IP65 1000VDC PV Combiner Box 10 in 1 out 10 String Solar Surge Lightning Protection DC Combiner Box
Outdoor Waterproof IP65 1000VDC PV Combiner Box 10 in 1 out 10 String Solar Surge Lightning Protection DC Combiner Box

Outdoor Waterproof IP65 1000VDC PV Combiner Box 10 in 1 out 10 String Solar Surge Lightning Protection DC Combiner Box

Customization: Available
Type: Waterproof Junction Box
Material: Cold-Rolled Steel Plate/Stainless Steel
Send Inquiry

Product Description

Basic Specifications

Model NO. CSPVB/10-1
IP Rating IP65
Certification ISO, CCC, CQC, CE
Shape Rectangle
Product Name Solar Combiner Box
Installation Site Rooftop

Packaging & Delivery

Package Size 85.00cm * 45.00cm * 22.00cm
Gross Weight 18.000kg
Package Type Carton / Pallets

Product Overview

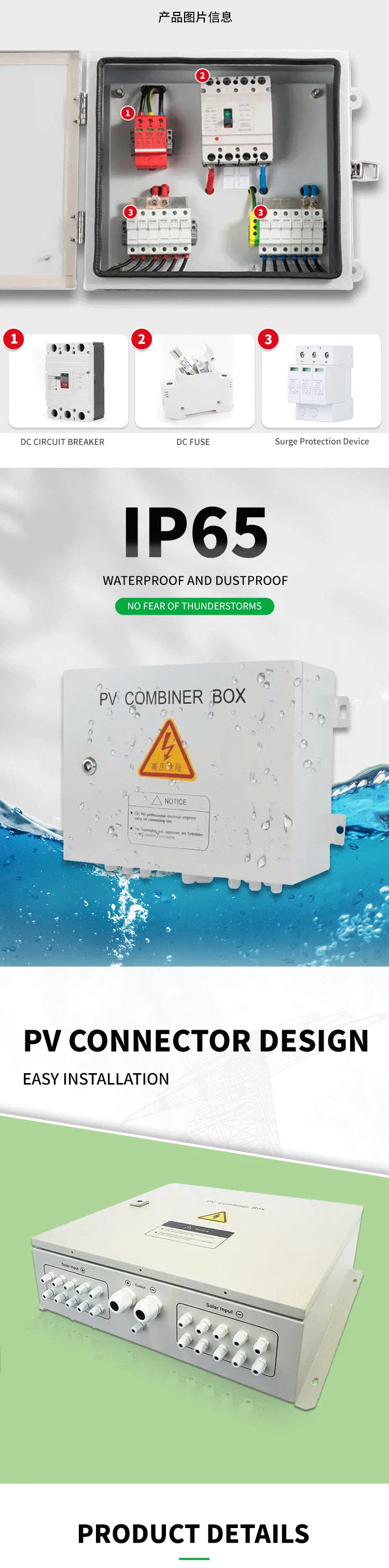

Solar Combiner Box Details

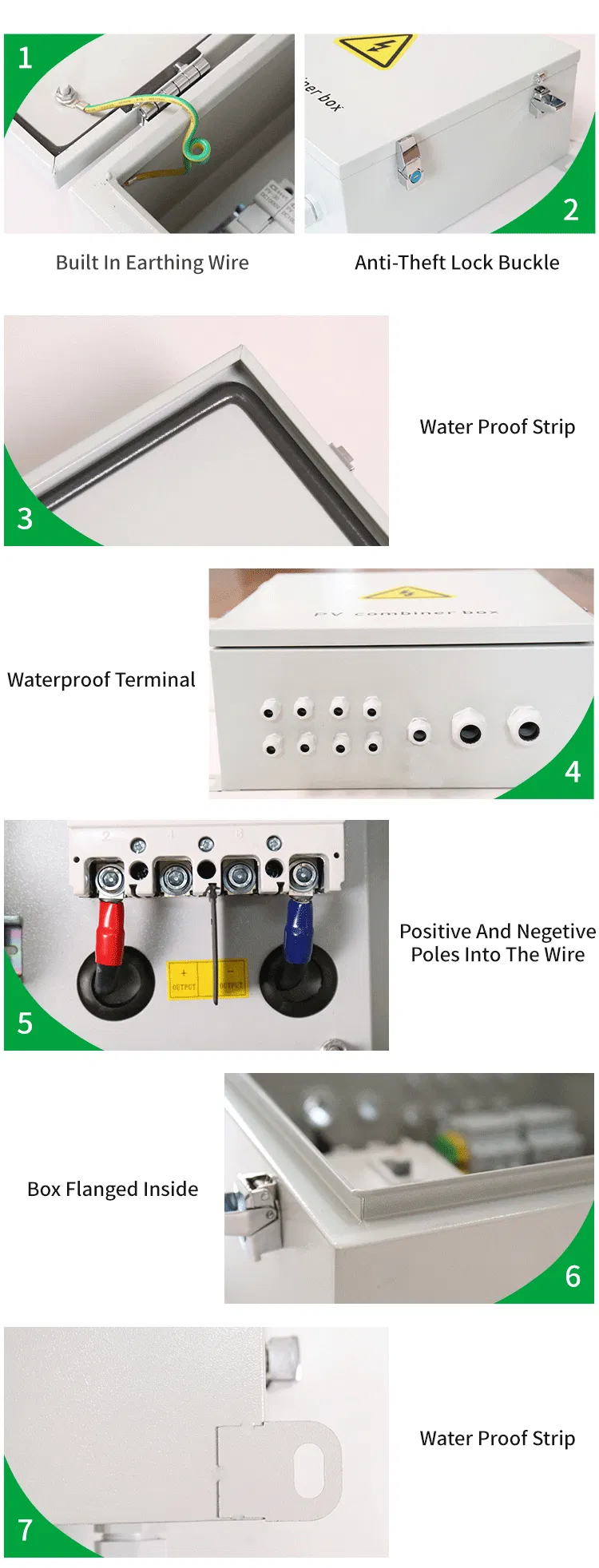

PV Combiner Box Features

Technical Parameters

Electric Parameters
Model CSPVB/10-1
System Maximum DC Voltage 1000V
Maximum Input Current (Each String) 15A
Maximum Input Strings 10
Maximum Output Switch Current 150A
Number of Output Strings 1
Lightning Protection
Category of Test Grade 2 Protection
Nominal Discharge Current 20kA
Maximum Discharge Current 40kA
Voltage Protection Level 3.8kV
Maximum Continuous Operating Voltage Uc 1050V
System & Mechanics
Protection Grade IP65
Output Switch DC Circuit Breaker
Box Material Engineering Plastics
Operating Temperature -25℃ to +55℃
Dimensions (W x H x D) 700 x 460 x 180 mm
Available Configurations:
2-way to 24-way Combiner Boxes available with various dimensions ranging from 400*400*180mm to 800*560*200mm to suit different project scales.

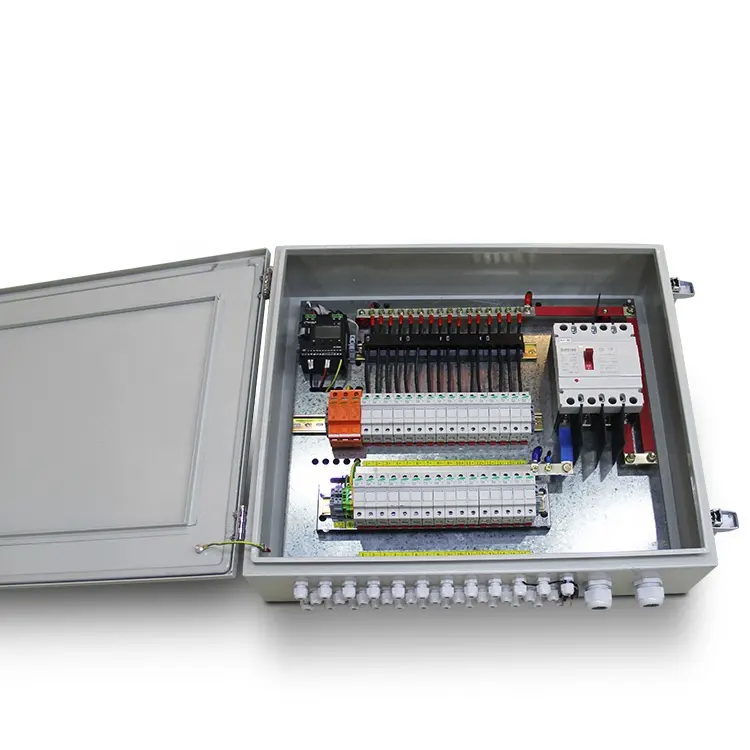

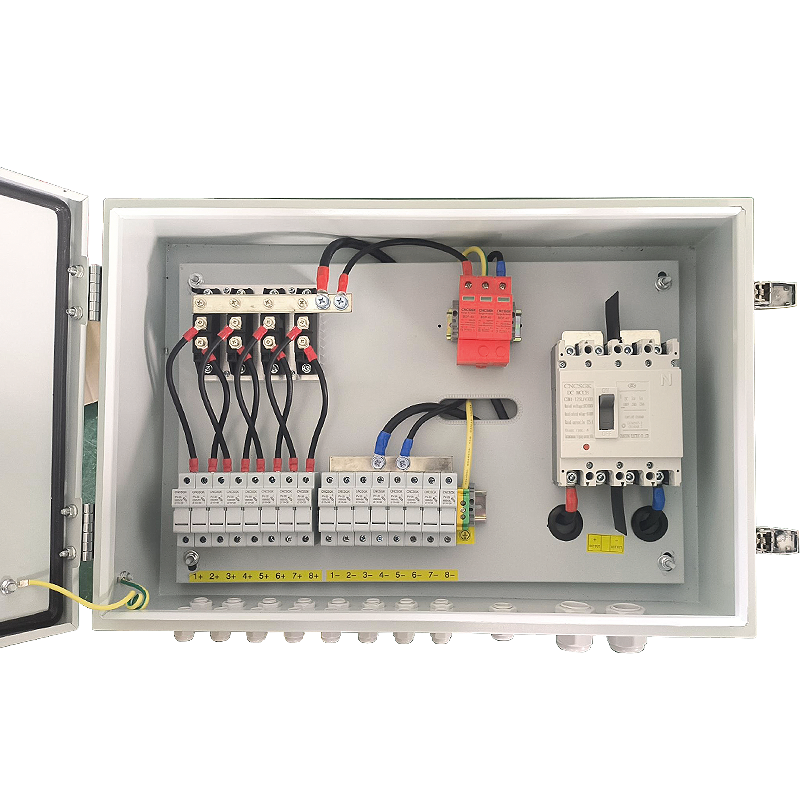

Internal Structure

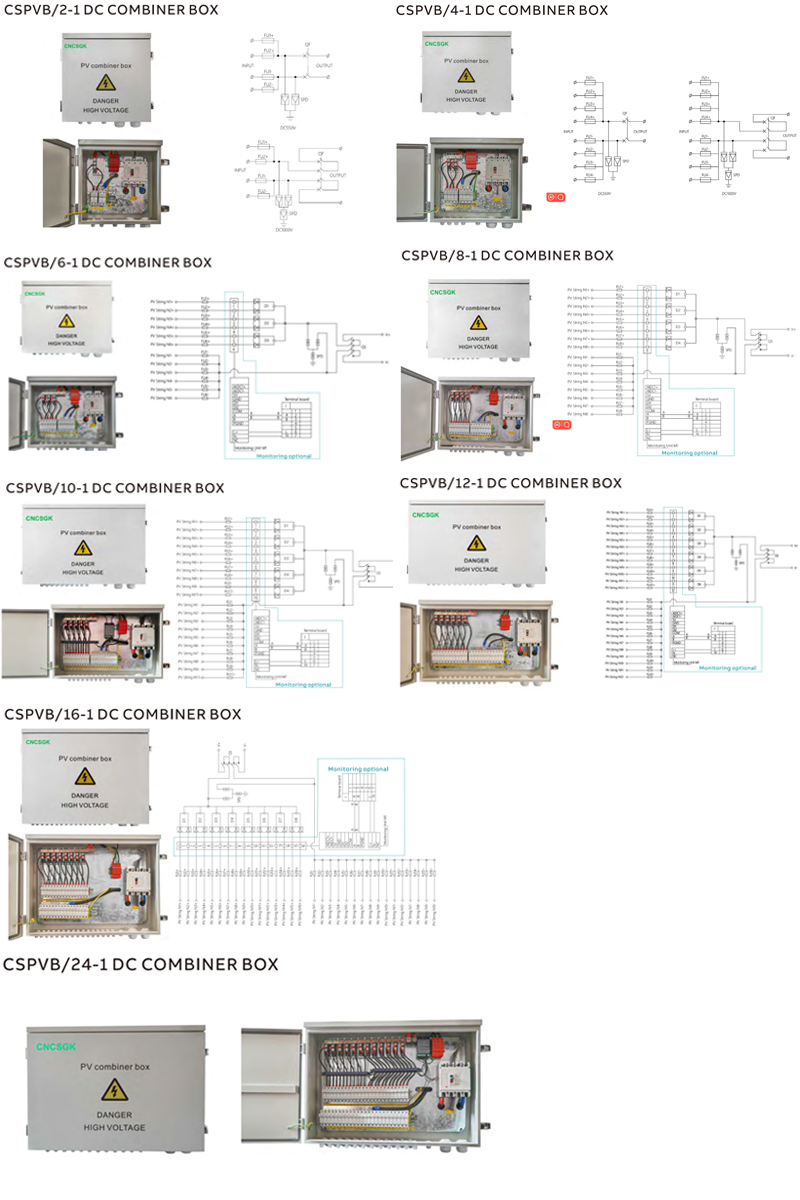

Components View

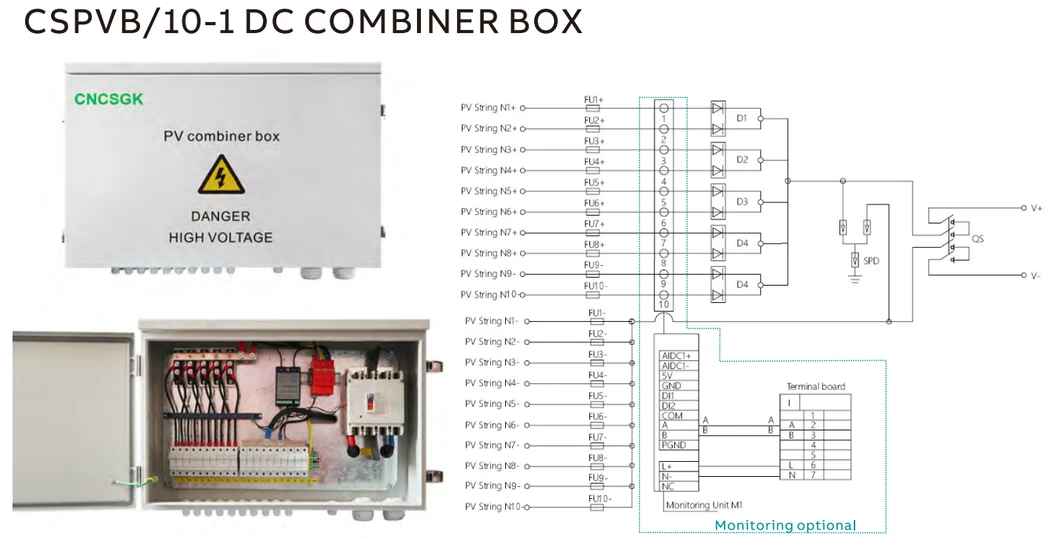

Connection Diagram
Installation Method
Product Quality
Outdoor Testing
Application Scenario
Certificates

Frequently Asked Questions

What is the waterproof rating of this combiner box?
This solar combiner box features an IP65 rating, making it completely dust-tight and protected against water jets from any angle, ideal for outdoor rooftop installations.
How many solar strings can I connect to this model?
The CSPVB/10-1 model supports up to 10 input strings, providing a consolidated output for your solar power system.
Does it include lightning and surge protection?
Yes, it comes with standard PV surge protection (Grade 2) with a maximum discharge current of 40kA and a nominal discharge current of 20kA.
What is the maximum voltage this box can handle?
The system is designed for a maximum DC voltage of 1000V, with a maximum continuous operating voltage (Uc) of 1050V.
What material is used for the enclosure?
The box is constructed from high-quality engineering plastics, which provide excellent durability and resistance to environmental factors.
What is the recommended operating temperature?
The device is designed to operate reliably within a temperature range of -25°C to +55°C.
