| Type | GDT-PV6/1 | GDT-PV8/1 | GDT-PV12/1 | GDT-PV16/1 | GDT-PV24/1 |
| Max DC Voltage | 1000V DC | ||||
| Max Input Strings | 6 | 8 | 12 | 16 | 24 |
| Max Output Current | 125A | 125A | 200A | 250A | 400A |
| Discharge Current (Imax) | 40kA | ||||
| Protection Level (Up) | 4.0kV | ||||
| Operating Temp | -25 °C ... +55 °C | ||||

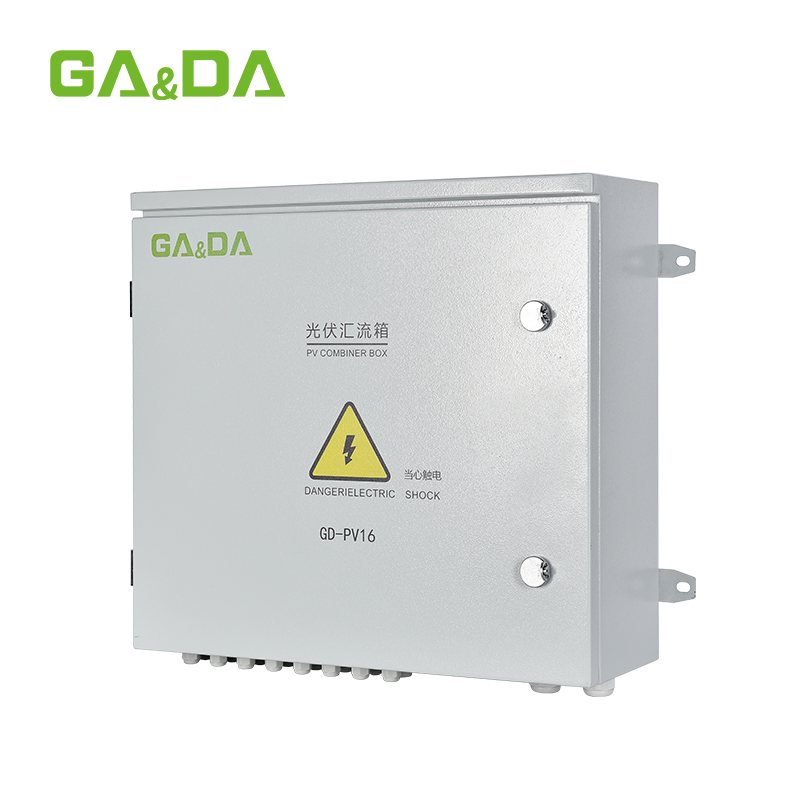

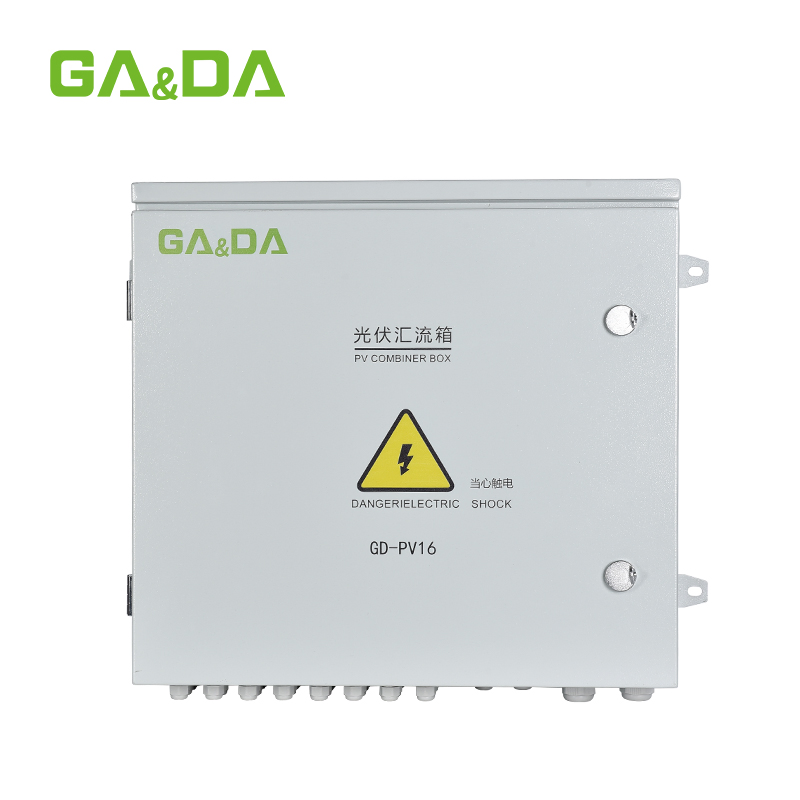

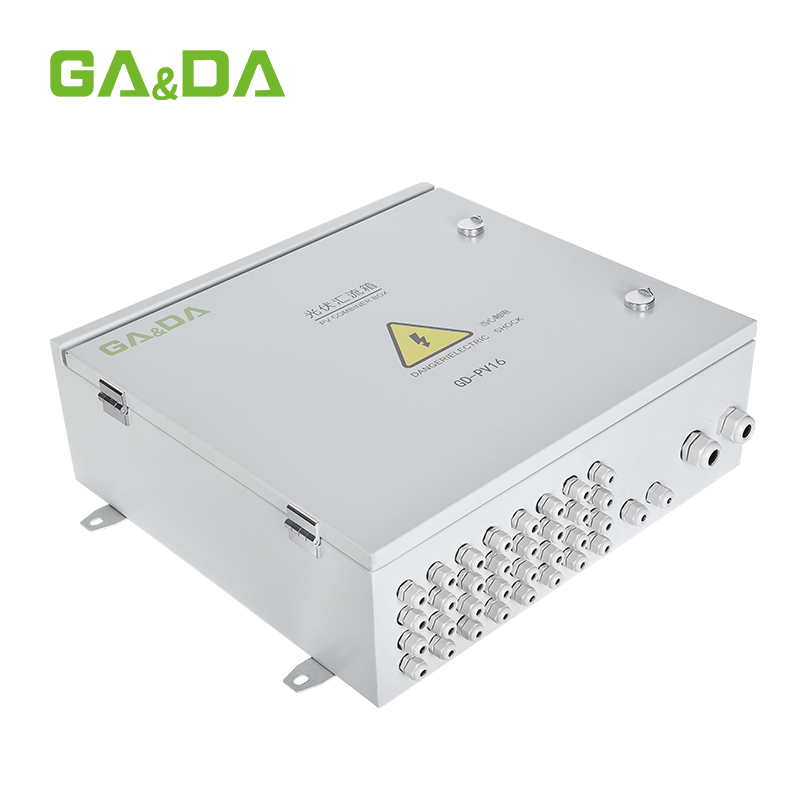

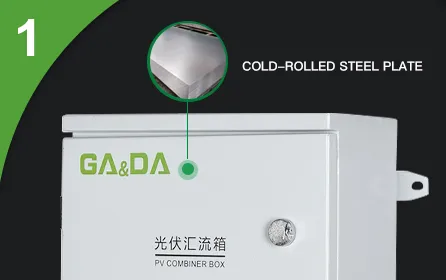

The box body is constructed from high-quality cold-rolled steel plate with electrostatic spraying technology, ensuring corrosion resistance and a long service life.

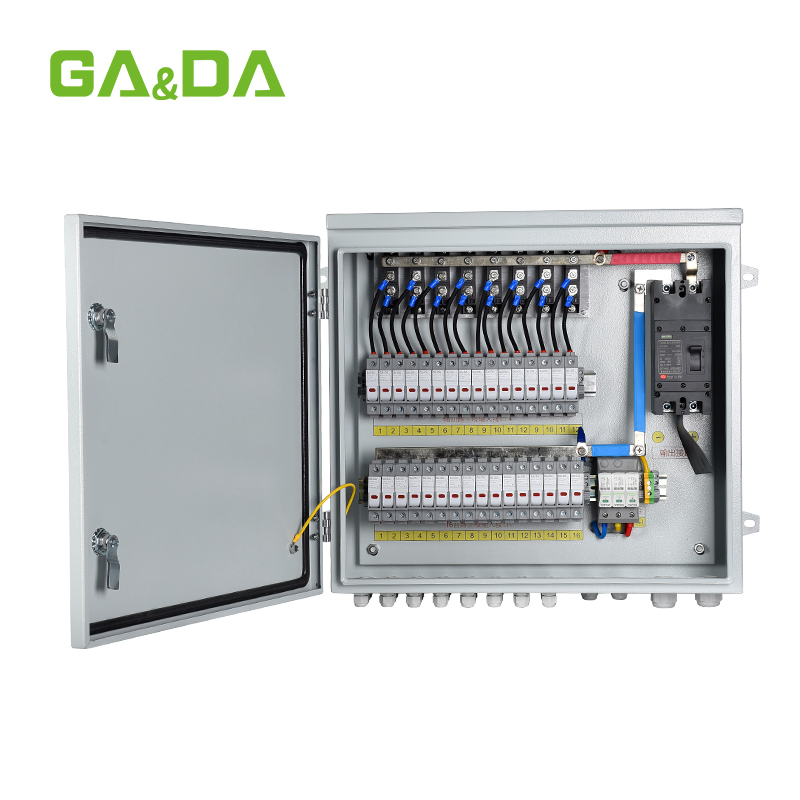

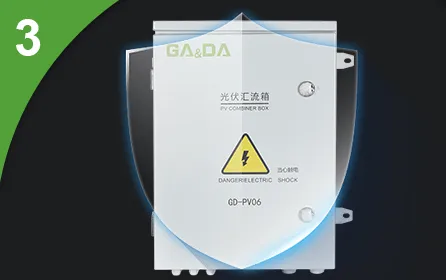

Features include isolation protection, overload protection, short circuit protection, and surge grounding protection to ensure maximum system safety.
