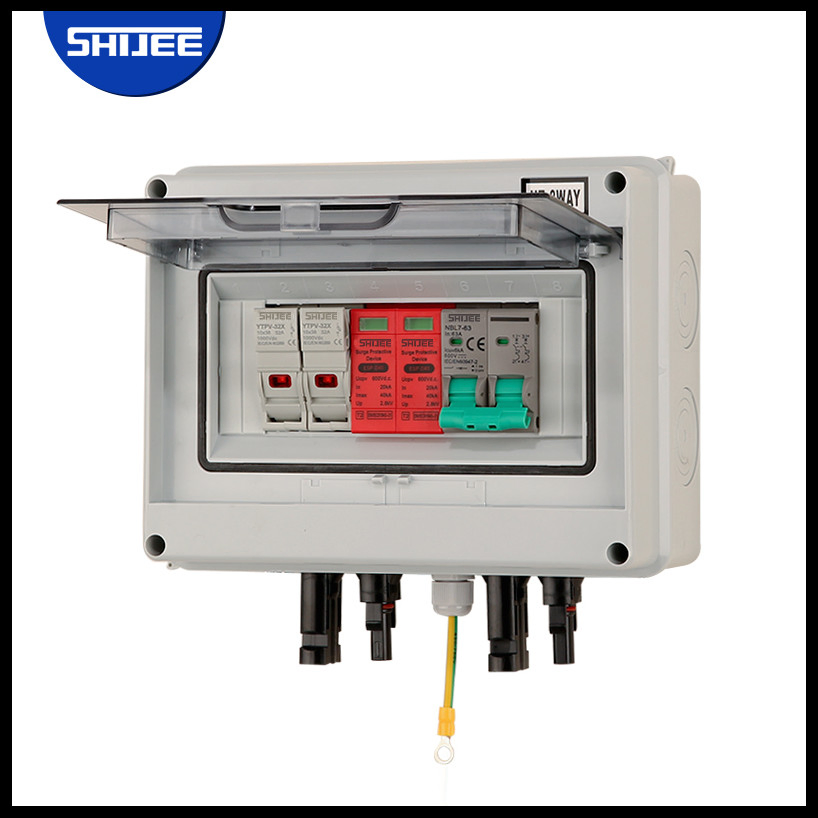

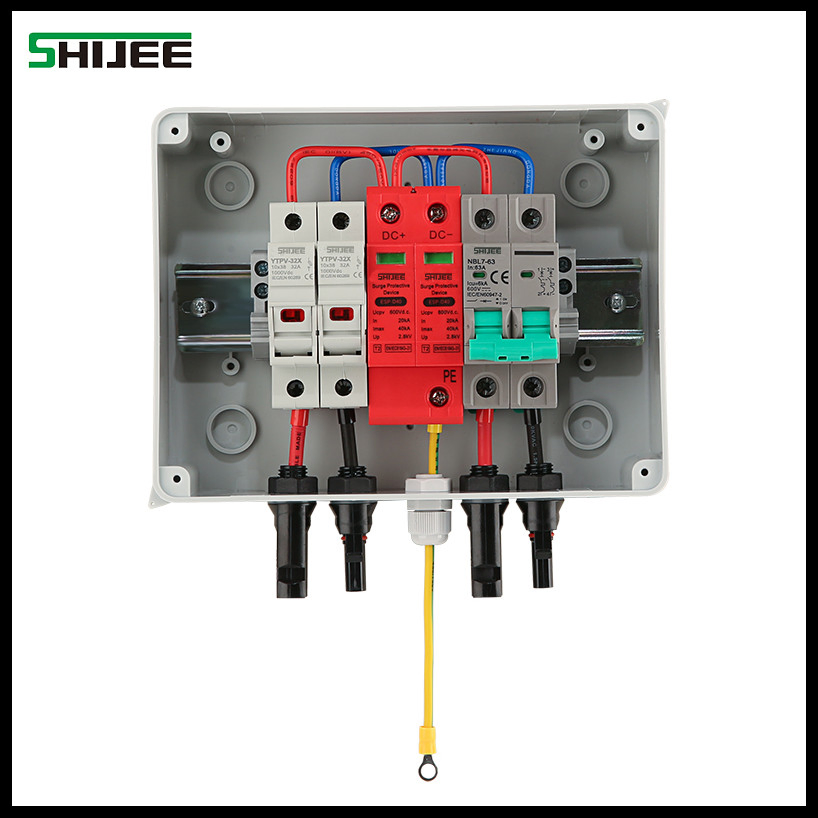

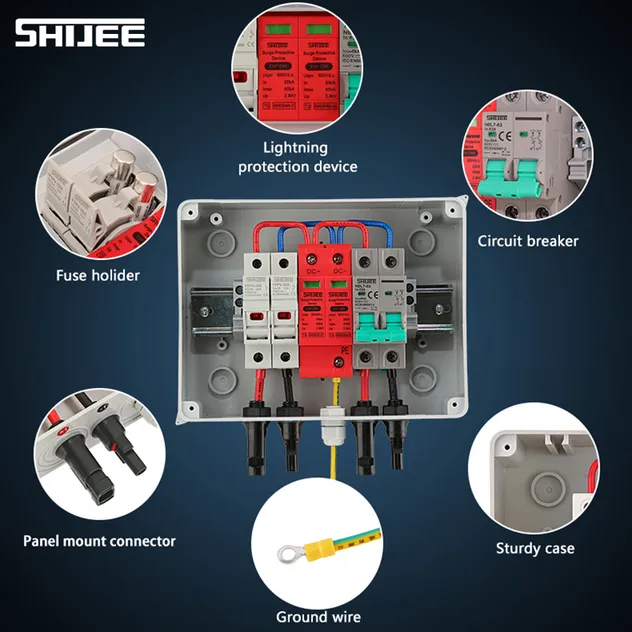

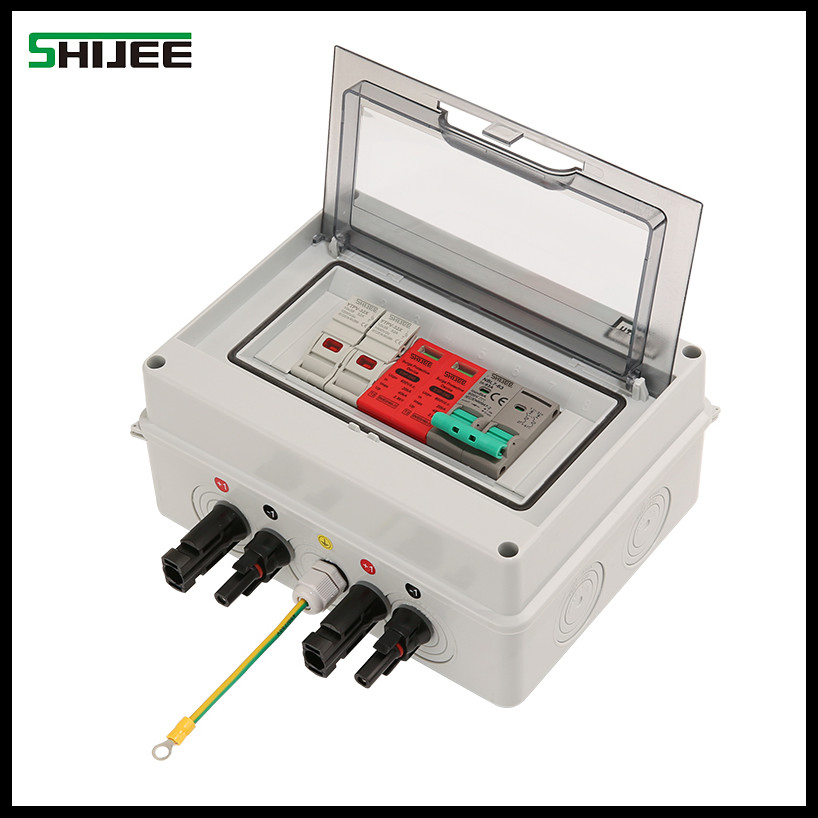

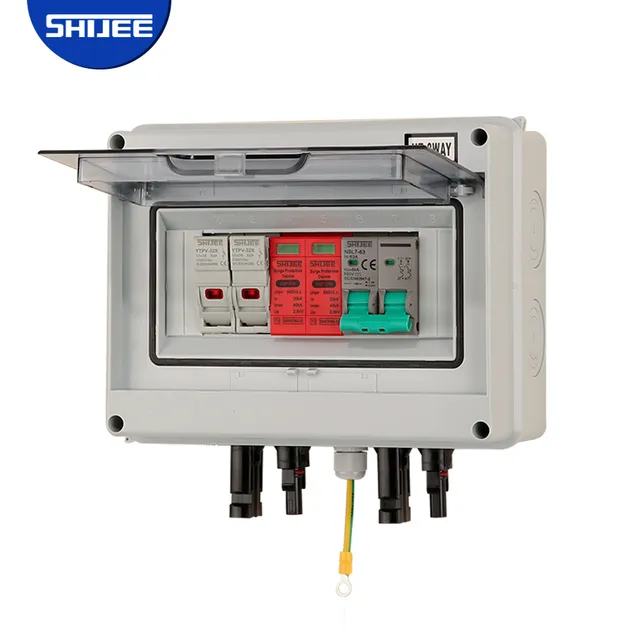

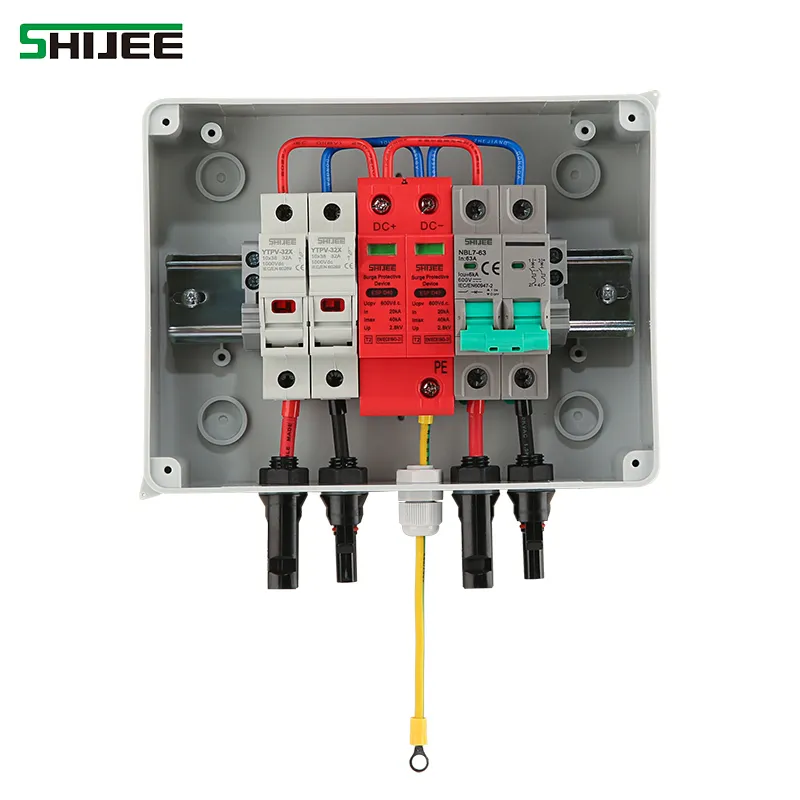

IP65 1in1 Configuration: This 1-in-1-out PV combiner box is engineered for safe, efficient, and reliable solar system interconnection, supporting up to 600V DC. Designed with an IP65 weatherproof enclosure, it offers robust protection against dust, moisture, and harsh outdoor conditions, making it ideal for rooftop, ground-mounted, or industrial PV installations. Each unit integrates a 15A PV input and a 63A circuit breaker, ensuring precise overcurrent protection and simplified system maintenance.
Compact yet highly functional, this junction box streamlines wiring, reduces installation time, and enhances overall system safety. The integrated circuit breaker enables easy disconnection for servicing while maintaining compliance with electrical safety standards. Built for durability and long-term performance in demanding environments, it provides a dependable, ready-to-deploy solution for residential, commercial, and utility-scale solar power systems.
| Product Name | 1-in-1-out 600V DC Solar PV Combiner Junction Box |
| Rated Voltage (DC) | 600 V |
| Input Current Rating | 15 A |
| Circuit Breaker Rating | 63 A (DC MCB / DC Disconnector) |

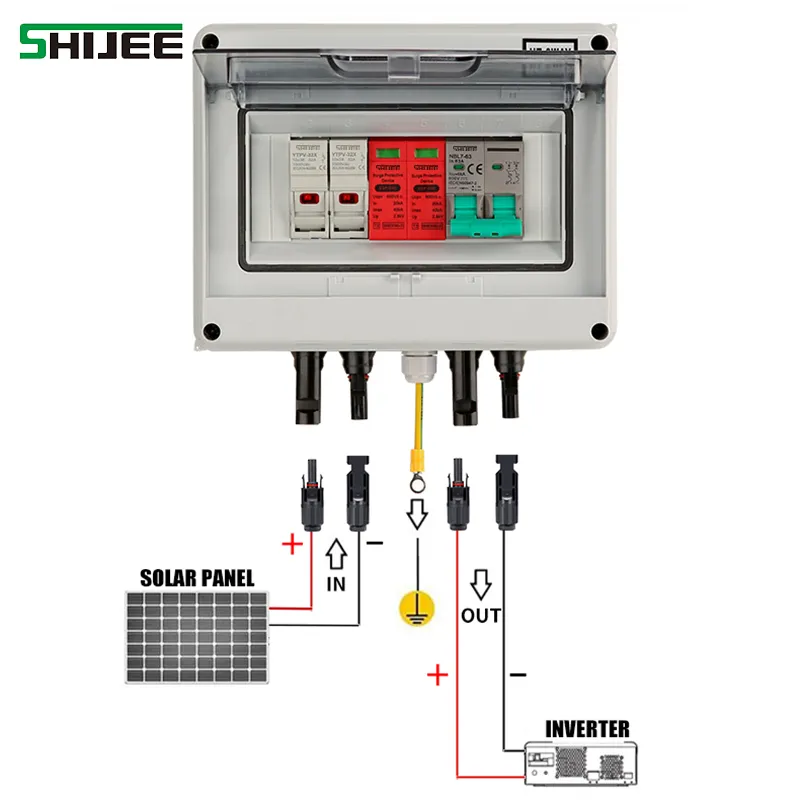

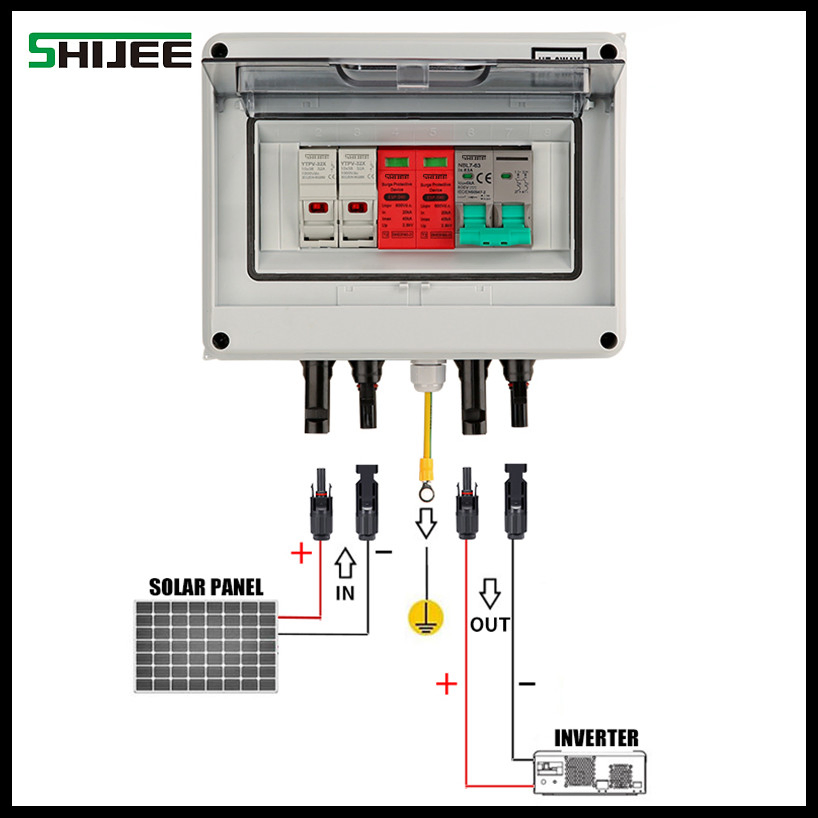

| Input / Output Configuration | 1 Input / 1 Output |
| Protection Level | IP65 (Dust-tight & Water-jet protected) |
| Enclosure Material | UV-resistant engineering plastic (PC/ABS) |
| Terminal Type | Screw terminals or MC4 compatible |
| Operating Temperature | -25°C to +60°C |
| Application | Small-scale solar PV, balcony PV, single-string systems |
| Key Features | Weatherproof, compact design, reliable DC protection |
As a professional solar PV electric components manufacturer, we specialize in high-quality DC Combiner boxes, DC circuit breakers, MC4 connectors, Surge Protective Devices, DC fuses, and isolator switches. With over 10 years of electrical industry experience, our components comply with the latest DC standards.
