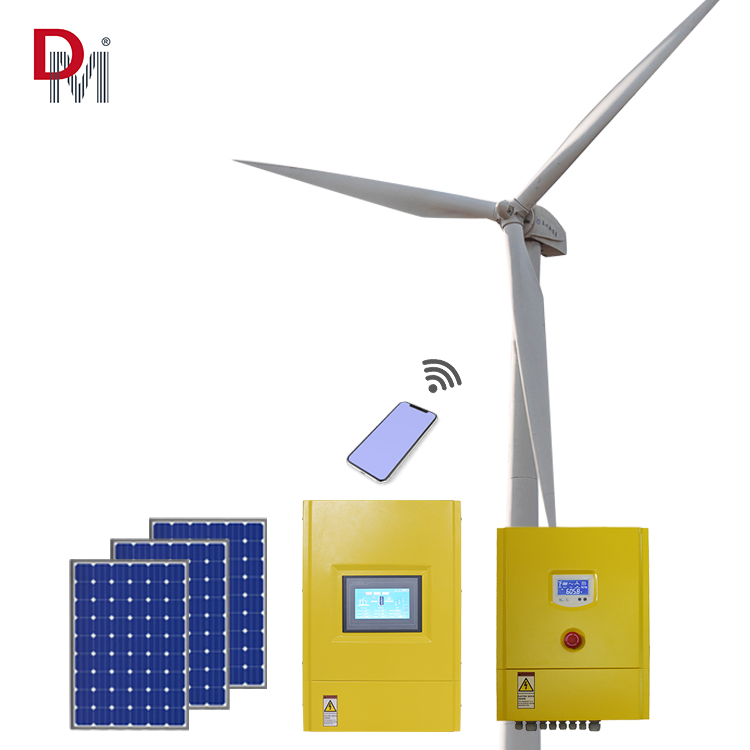

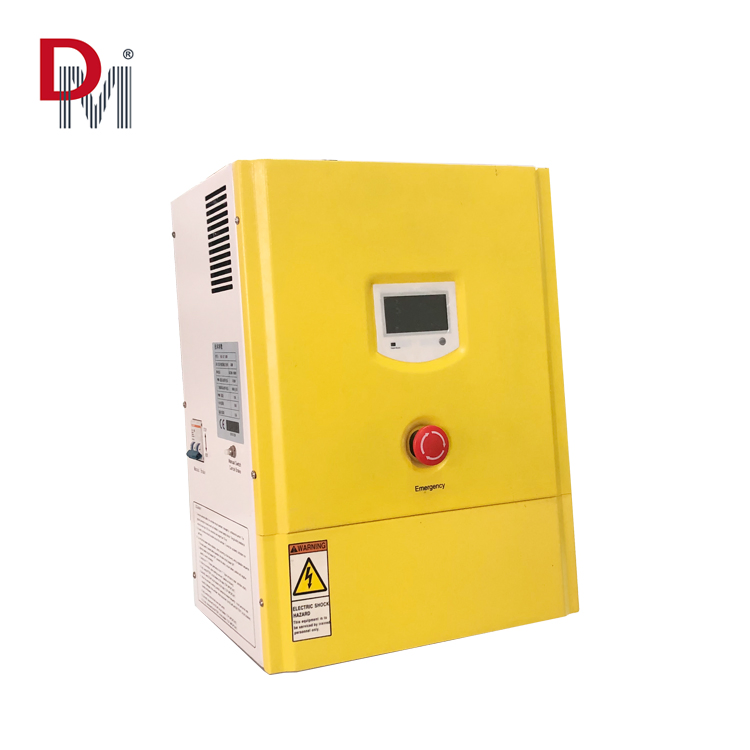

Fkj-Gt 5kw Hybrid Wind Solar Charge Controller for on Grid Wind System with Dump Load Vertical Wind Turbine Generator Controller
Fkj-Gt 5kw Hybrid Wind Solar Charge Controller for on Grid Wind System with Dump Load Vertical Wind Turbine Generator Controller
Fkj-Gt 5kw Hybrid Wind Solar Charge Controller for on Grid Wind System with Dump Load Vertical Wind Turbine Generator Controller
Fkj-Gt 5kw Hybrid Wind Solar Charge Controller for on Grid Wind System with Dump Load Vertical Wind Turbine Generator Controller
Fkj-Gt 5kw Hybrid Wind Solar Charge Controller for on Grid Wind System with Dump Load Vertical Wind Turbine Generator Controller
1 / 5
Fkj-Gt 5kw Hybrid Wind Solar Charge Controller for on Grid Wind System with Dump Load Vertical Wind Turbine Generator Controller
Fkj-Gt 5kw Hybrid Wind Solar Charge Controller for on Grid Wind System with Dump Load Vertical Wind Turbine Generator Controller
Fkj-Gt 5kw Hybrid Wind Solar Charge Controller for on Grid Wind System with Dump Load Vertical Wind Turbine Generator Controller
Fkj-Gt 5kw Hybrid Wind Solar Charge Controller for on Grid Wind System with Dump Load Vertical Wind Turbine Generator Controller
Fkj-Gt 5kw Hybrid Wind Solar Charge Controller for on Grid Wind System with Dump Load Vertical Wind Turbine Generator Controller

Fkj-Gt 5kw Hybrid Wind Solar Charge Controller for on Grid Wind System with Dump Load Vertical Wind Turbine Generator Controller

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Hybrid Wind Solar Charge Controller
⚙️ Basic Specifications
Model NO.
FKJ-GT 5KW
Condition
New
Certification
ISO, CE
Application
Wind Controller
Rated Voltage
340V
Wind Turbine Power
Rated 5kw / Max 10kw
Solar Panel Power
1.5kw (1500W)
Display Mode
LCD
Interfaces
RS485, WiFi, GPRS, RJ45
Efficiency
More Than 92%
Dump Load
Included
Dimensions
560*430*320mm

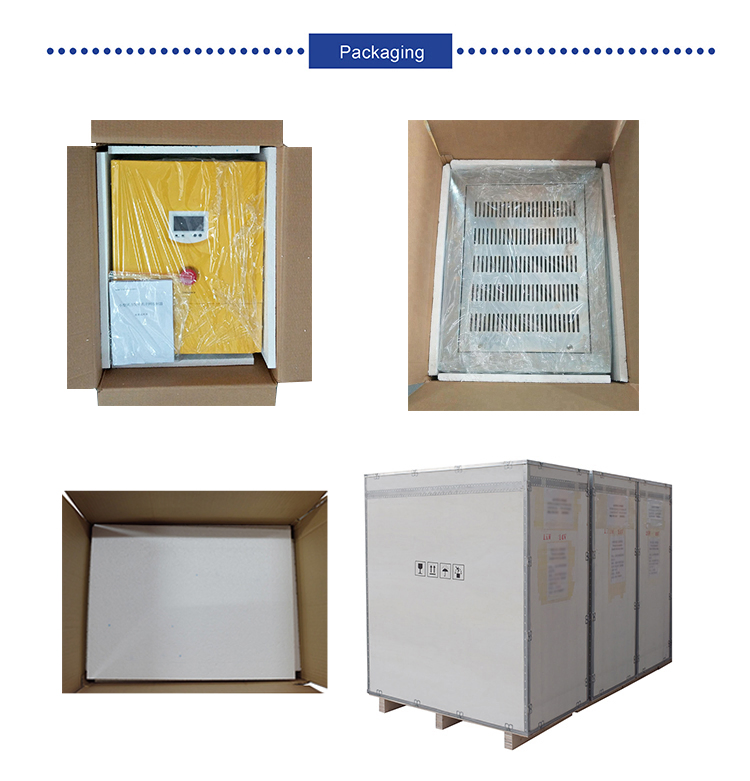

📦 Packaging & Delivery
Package Size
56.00cm * 43.00cm * 32.00cm
Gross Weight
50.000kg
Package Type
Wooden Case
📝 Product Overview
5KW 10KW 15KW On Grid Tie MPPT Wind Turbine Solar Hybrid Controllers
The On-grid wind turbine system is composed of a wind turbine, on-grid controller, on-grid inverter, metering device, and power distribution system. Wind energy is converted into AC electrical energy by the wind turbine, then processed by the controller and inverter to supply the local load or feed surplus power into the grid.

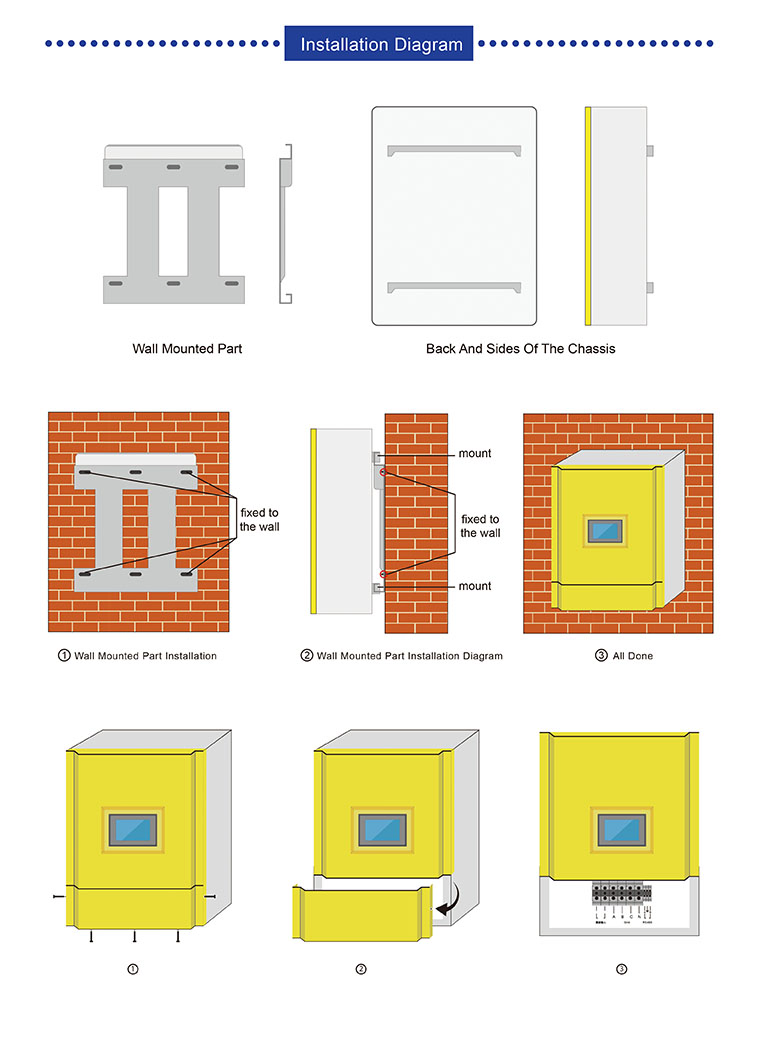

Controller System Layout

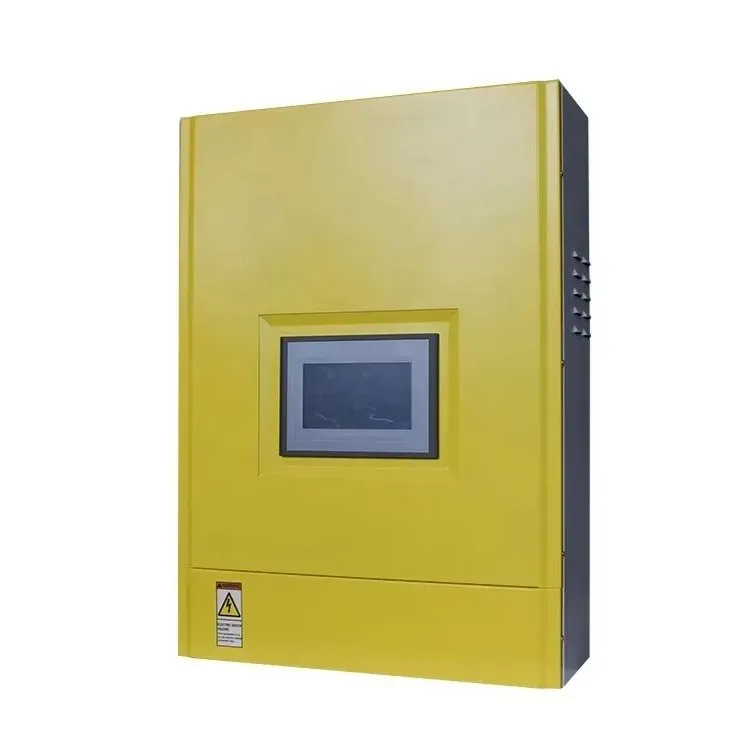

Wind Controller Front View

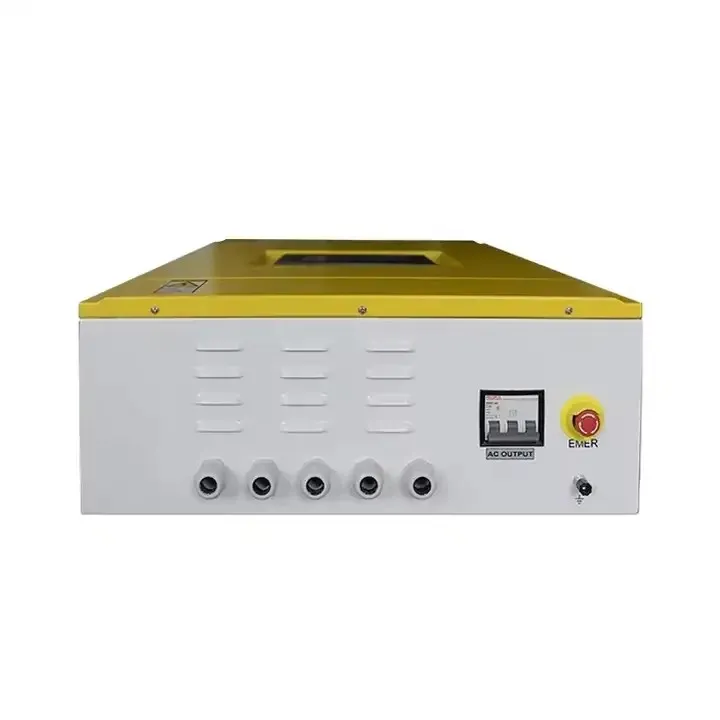

Wind Controller Internal Detail
📊 Technical Parameters (5KW - 20KW)
Type FKJ-GT5KW (220V) FKJ-GT5KW (380V) FKJ-GT10KW
Wind Turbine Rated Power5KW5KW10KW
Wind Turbine Max. Power10KW10KW20KW
Wind Turbine Rated VoltageAC220VAC380-400VAC380-400V
Solar Panel Power1.5KW1.5KW10KW
PWM Constant Voltage≥320dc≥520dc≥520dc
Dump Load Voltage350±5Vdc540±5Vdc540±5Vdc
Protection DegreeIP20 (Indoor) / IP65 (Outdoors)
Weight (Controller)18Kg18Kg23Kg
🚀 Performance Characteristics
📱
Touch Screen Display: Color touch screen visually displays working status, real-time voltage, current, and cumulative power generation.
🛡️
Dual Control Systems: Uses PWM constant voltage/current system plus a three-phase braking system for maximum safety.
🛑
Automatic Braking: Automatically controls wind turbine brakes during grid failure or extreme wind conditions.
⚡
Surge Protection: Equipped with internal surge protectors to handle lightning and over-voltage.
🌐
Smart Monitoring: Supports RS485, WiFi, GPRS, and Ethernet for remote monitoring via PC or Mobile (Android/IOS).
🖐️
Manual Controls: Includes emergency stop and manual brake switches for immediate intervention.
🖼️ Installation Cases & Factory

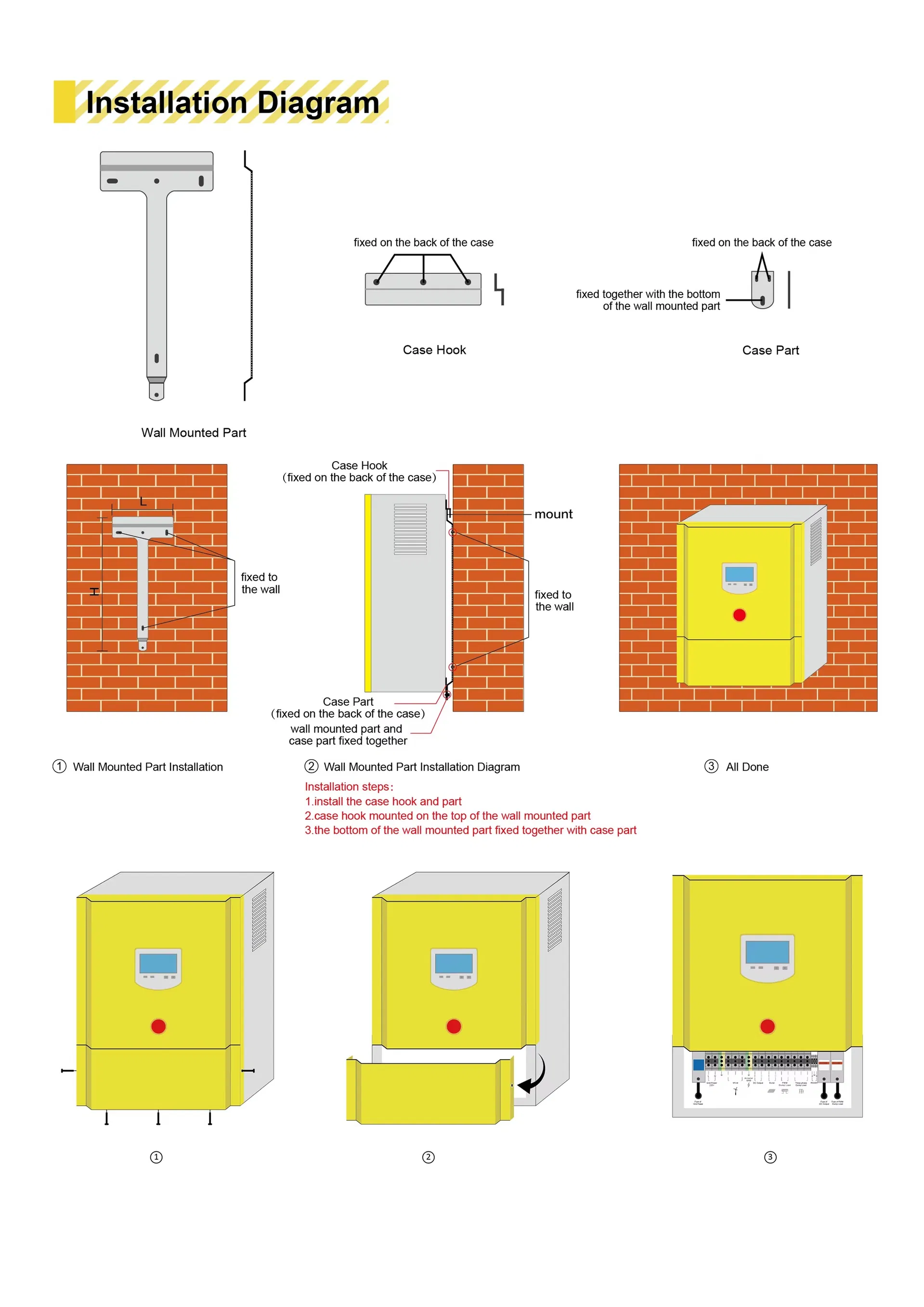

Installation Case 1
Installation Case 2
Factory Production
Quality Testing
Frequently Asked Questions (FAQ)
❓ What is the function of the dump load in this system?
The dump load is a safety component that consumes excess energy when the wind turbine generates more power than the grid or batteries can handle, or during high wind speeds to prevent the turbine from over-speeding.
❓ Can I monitor the system performance remotely?
Yes. The controller supports multiple communication interfaces including RS485, WiFi, and GPRS. You can monitor real-time data and historical performance via a PC or a mobile app (compatible with Android and iOS).
❓ What happens if the utility grid goes down?
For safety reasons, the controller will automatically apply the wind turbine brake and stop the inverter from outputting power to the grid. Once the grid is restored, the controller releases the brake and resumes operation.
❓ Does this controller support solar panels as well?
Yes, this is a hybrid controller. It can manage both wind turbine inputs and solar panel inputs (optional) simultaneously to optimize energy generation.
❓ Is the controller suitable for outdoor installation?
We offer both IP20 (Indoor) and IP65 (Outdoor) protection degrees. Please specify your environment requirements during selection to ensure the proper protection level is provided.
❓ Can the technical parameters be adjusted for specific wind turbines?
Absolutely. Technical parameters can be adjusted via the color touch screen interface to match the specific voltage and power requirements of different wind turbine models.
