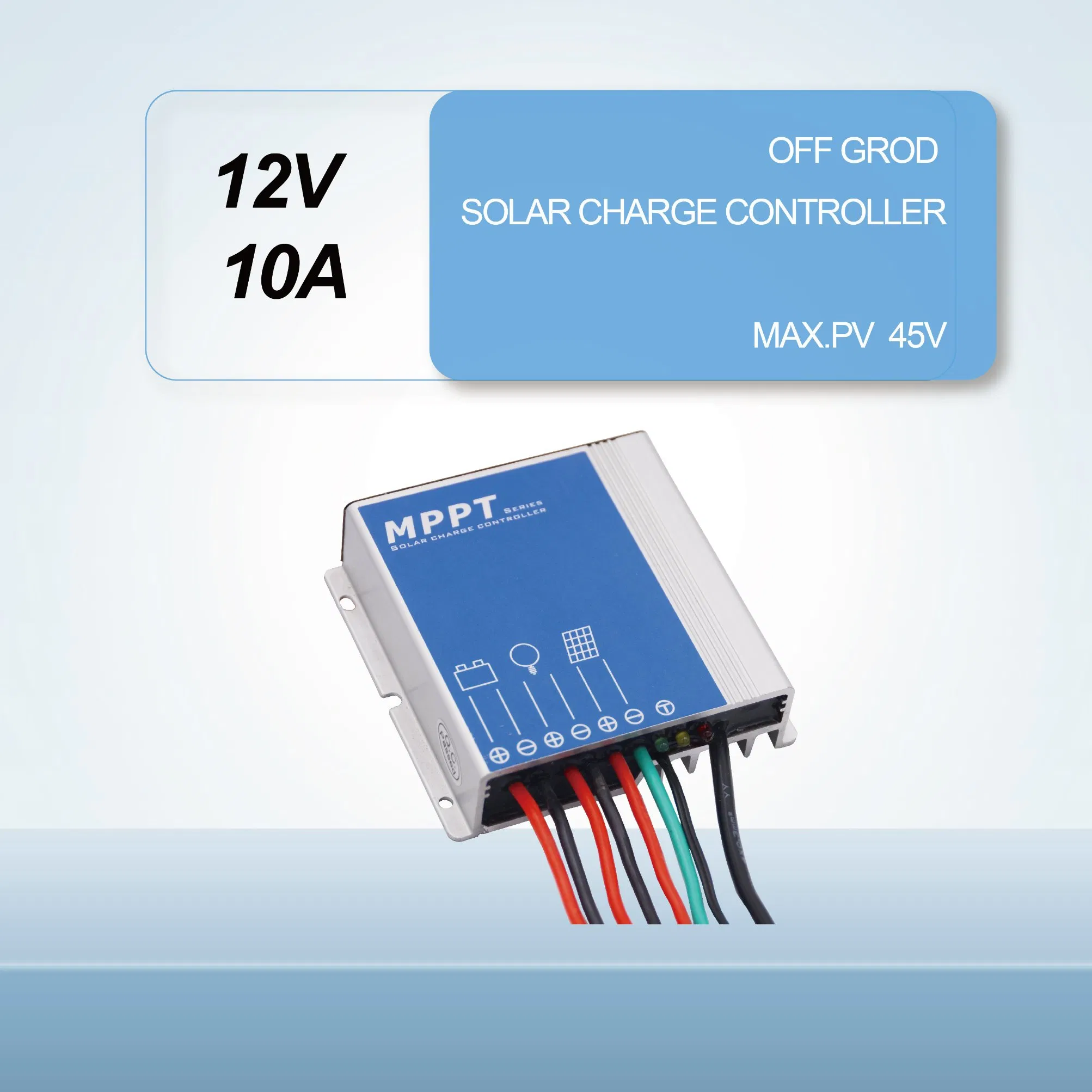

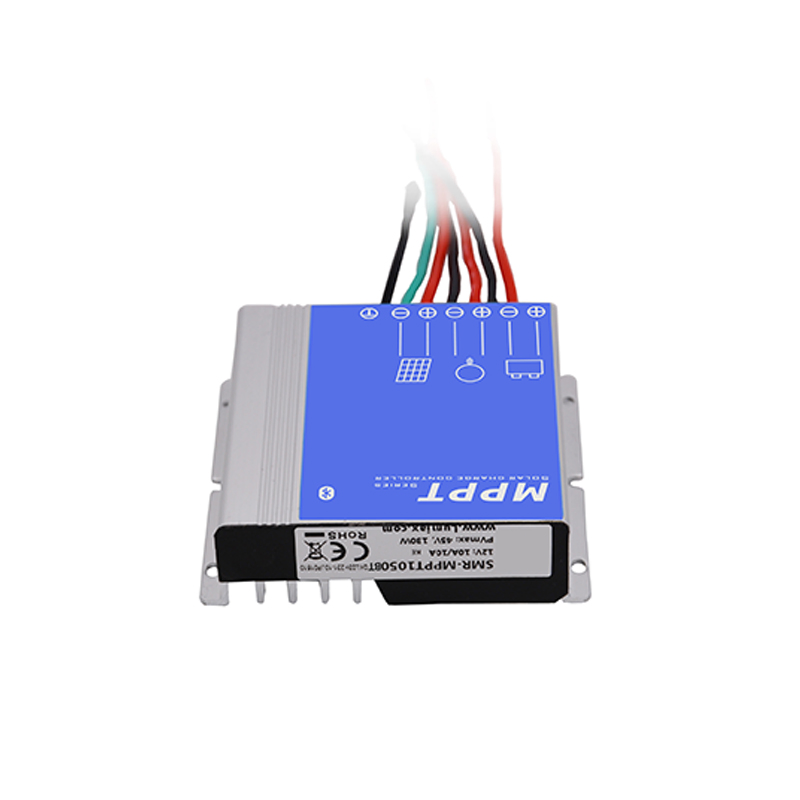

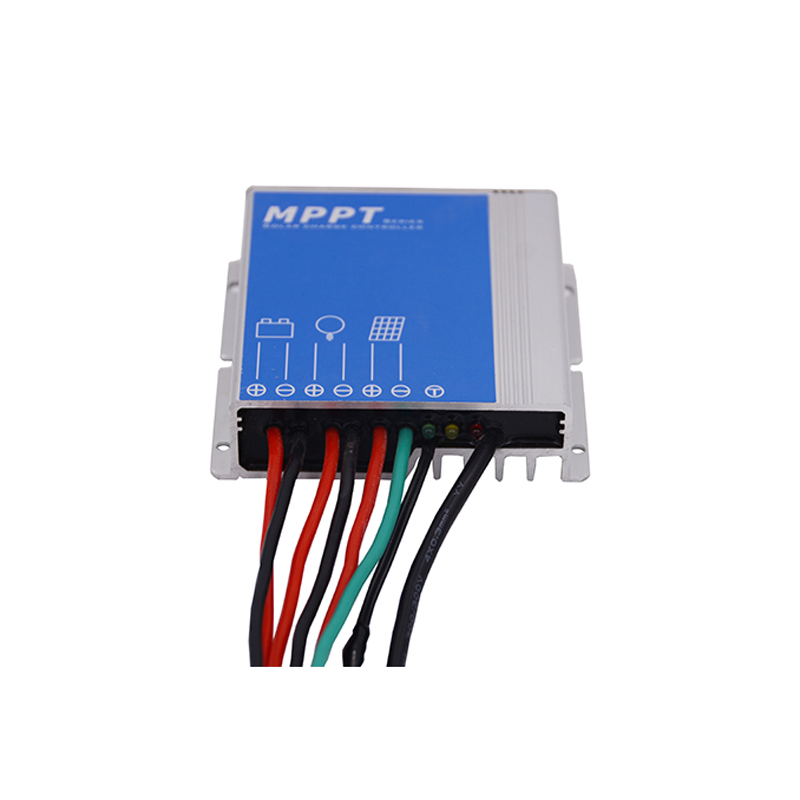

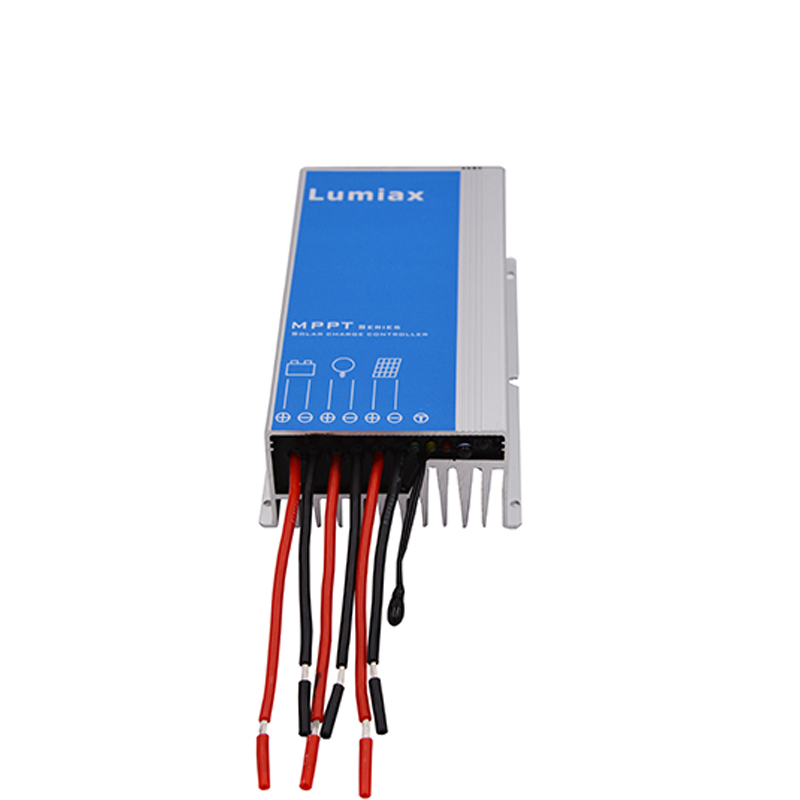

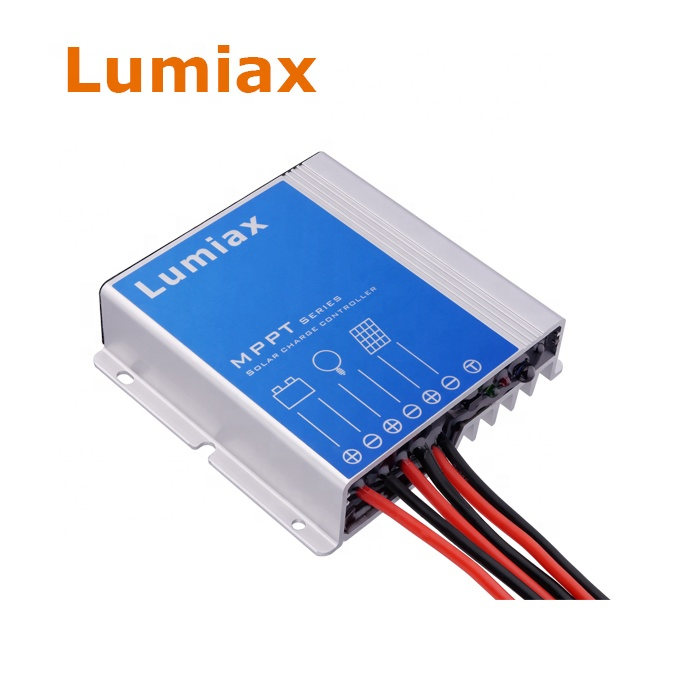

12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT
12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT
12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT
12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT
12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT
1 / 5
12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT
12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT
12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT
12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT
12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT

12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT

Customization: Available
After-sales Service: Installation and Debugging Guide
Warranty: 1
Send Inquiry

Product Description

📌 Basic Information
Model NO.
SMR-MPPT Series
Condition
New
Certification
ISO, CE, RoHS, FCC
Rated Voltage
12V/24V
Max Efficiency
99.9%
Battery Type
Lithium, Liquid, Gel, AGM
Protection
IP67
Charging Current
10A; 15A; 20A

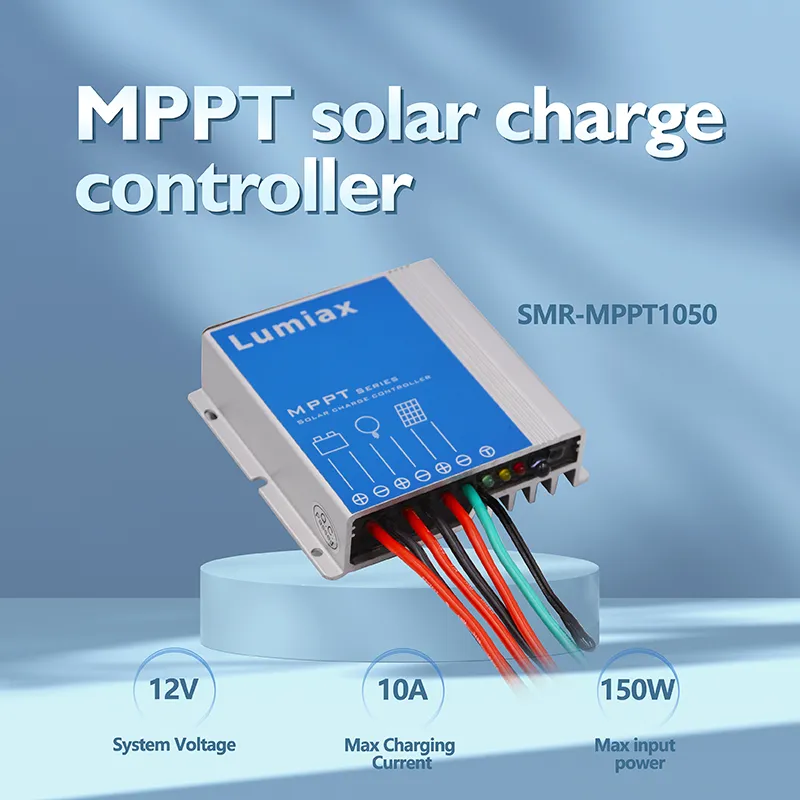

Solar Charge Controller
Controller Specs Overview
📊 Technical Parameters
Item SMR-MPPT1050 SMR-MPPT1575 SMR-MPPT2075
Max Charging Current 10A 15A 20A
System Voltage 12V 12V/24V auto recognition
Max Input Power 130W 200W/400W 260W/520W
Max Volt on PV Terminal 45V 55V
Battery Type Lithium, Liquid, Gel, AGM (Programmable)
MPPT Efficiency >99.9%
IP Degree IP67
Communication Infrared/RS485/BT
🔍 Product Description

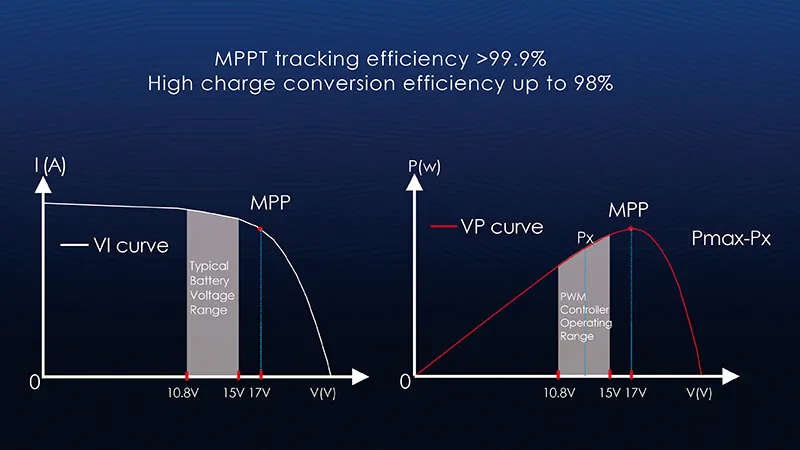

Detailed View

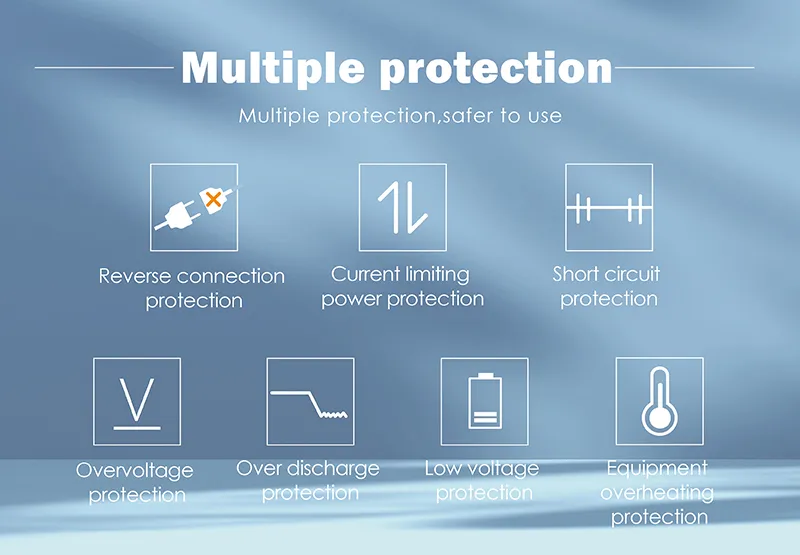

Feature 1
Feature 2

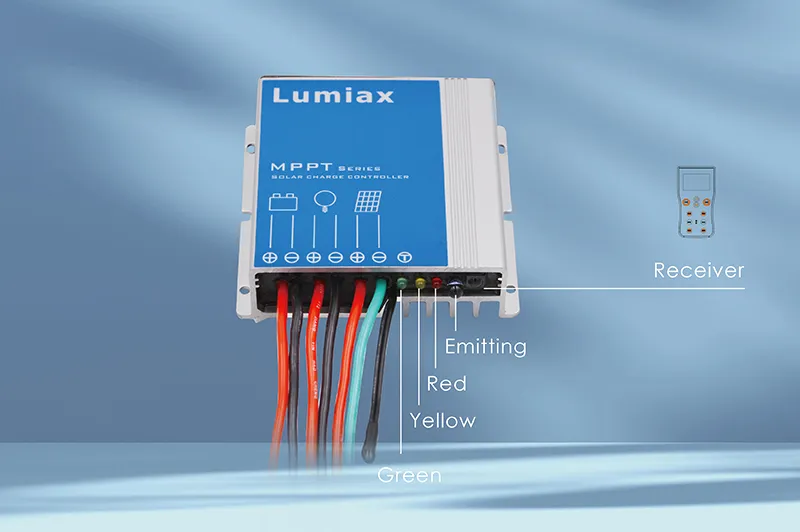

Feature 3

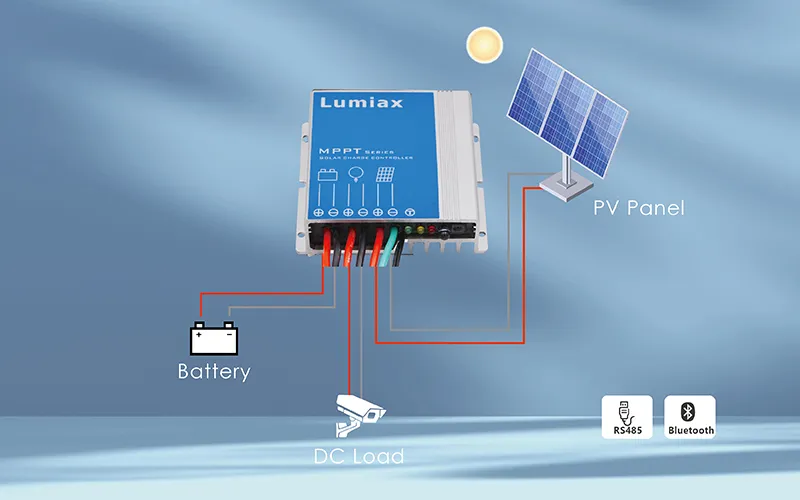

Feature 4

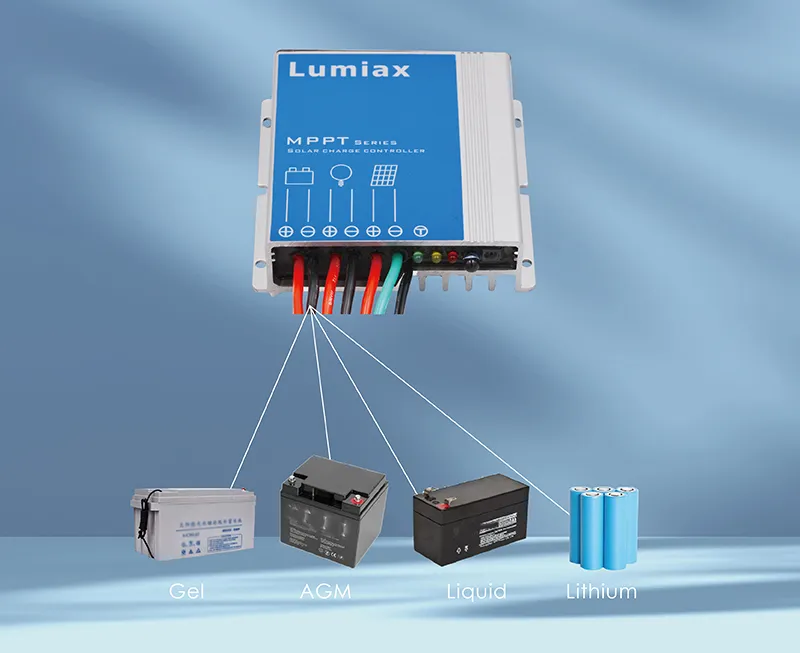

Feature 5
⭐ Our Advantages & Certifications
Advantage 1

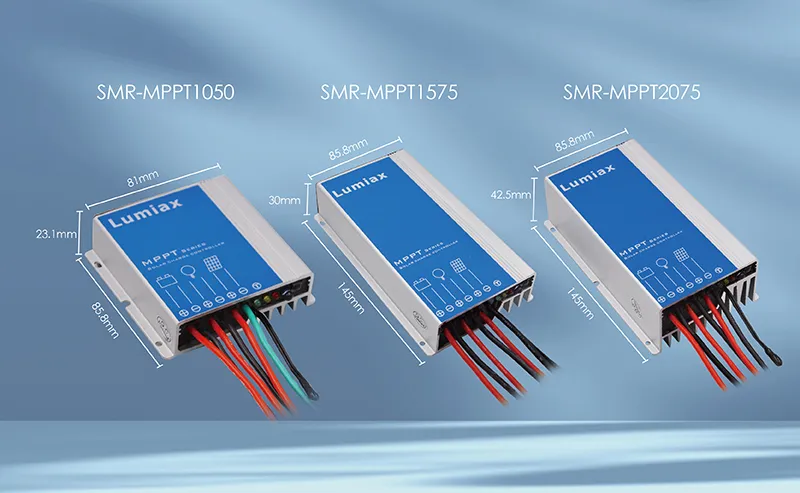

Advantage 2
Certifications
🏢 Factory & Production Showcase
Factory 1

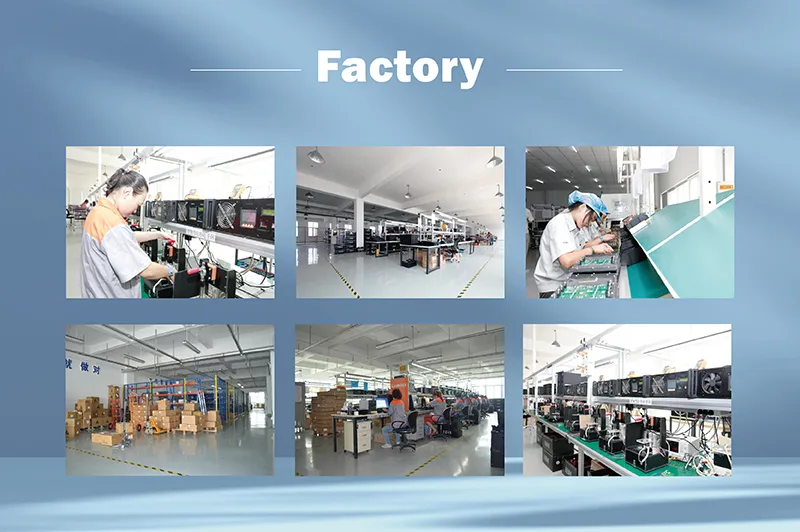

Factory 2
Factory 3
Production Line

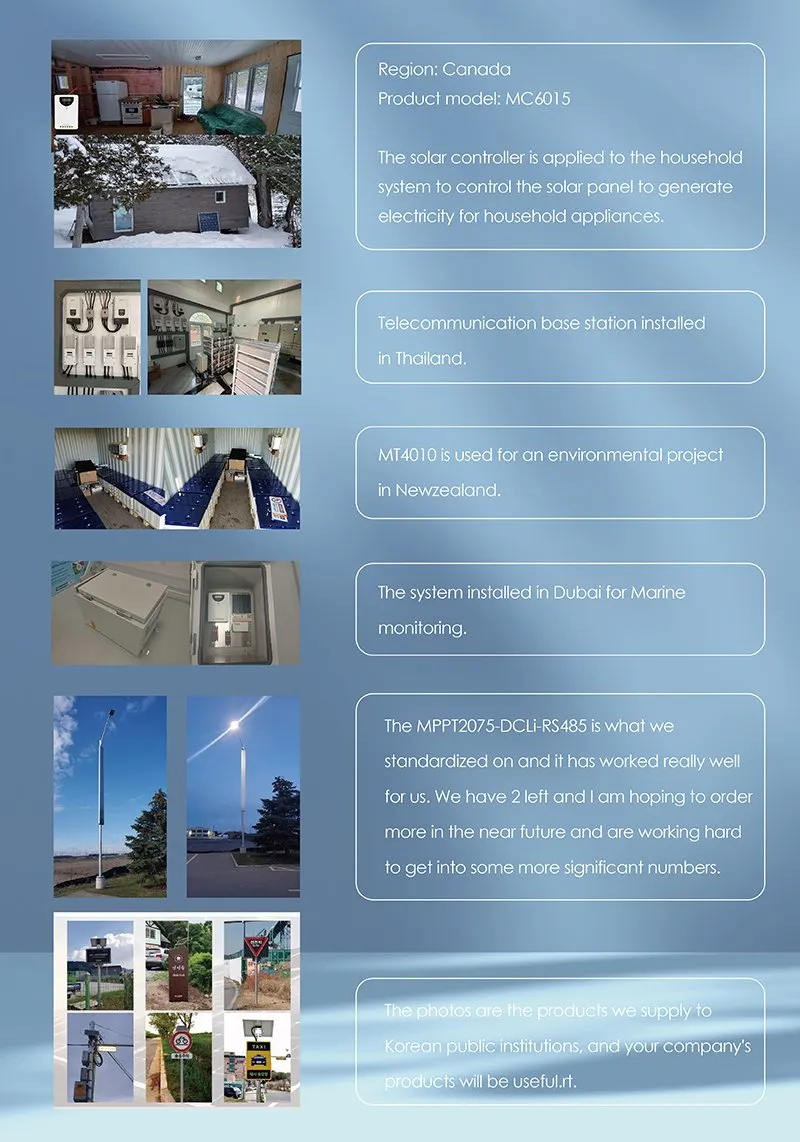

Testing
❓ Frequently Asked Questions
What is the maximum tracking efficiency of this MPPT controller?
The controller features an advanced MPPT algorithm with a tracking efficiency of up to 99.9%, ensuring maximum power extraction from your solar panels.
Is it compatible with Lithium (LiFePO4) batteries?
Yes, the SMR-MPPT series is programmable and supports various battery types including Lithium, Liquid, Gel, and AGM batteries.
What is the IP protection rating?
The product is rated IP67, making it completely dust-tight and protected against the effects of immersion in water, suitable for harsh environments.
Can I monitor the controller via Bluetooth?
Yes, this series supports communication through Infrared, RS485, and Bluetooth for convenient monitoring and parameter adjustment.
Does it support automatic system voltage recognition?
Yes, the 15A and 20A models support 12V/24V automatic recognition, while the 10A model is designed for 12V systems.
