| Model NO. | EKDB10-6T | Certification | CE, UKCA |
|---|---|---|---|
| Form | All-packaged Type | Operation Voltage | Low Voltage |
| Size | 6 Modules | Application Range | High-rise Buildings |
| Shell Material | PC / ABS | Protection Grade | IP65 |

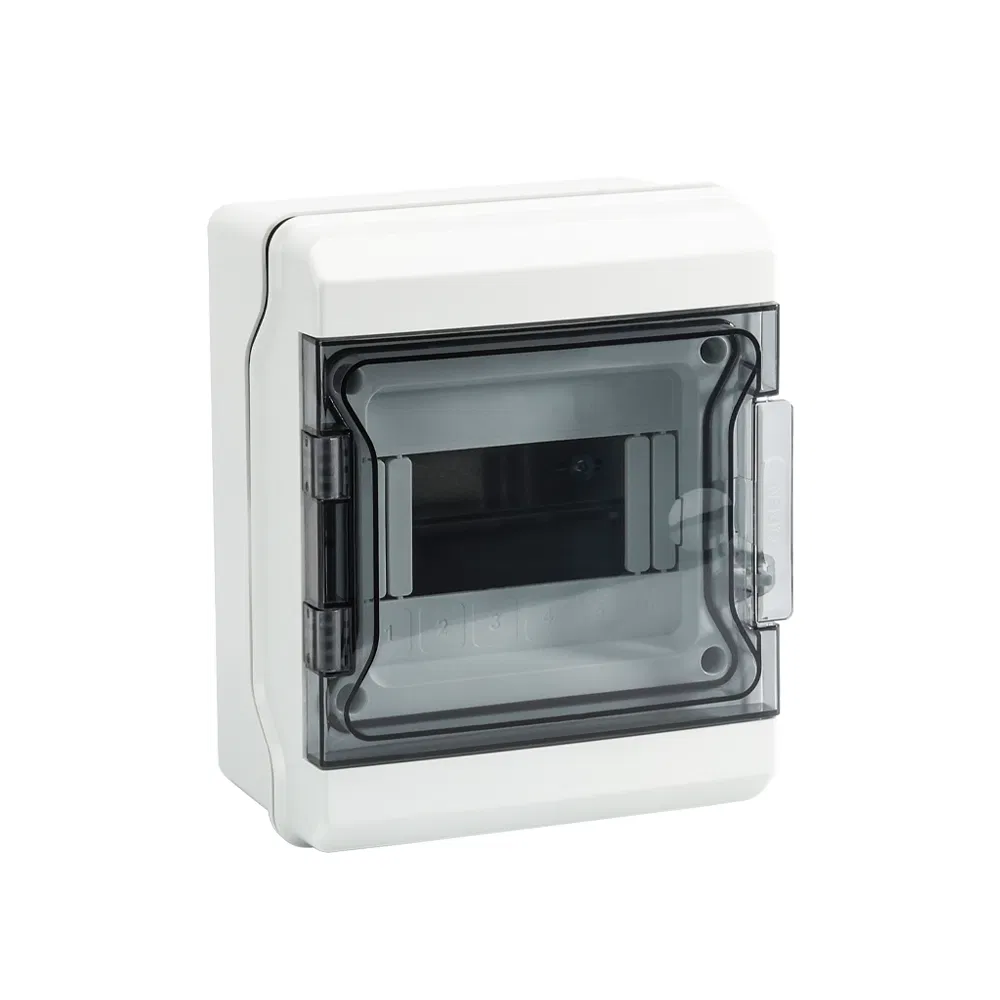

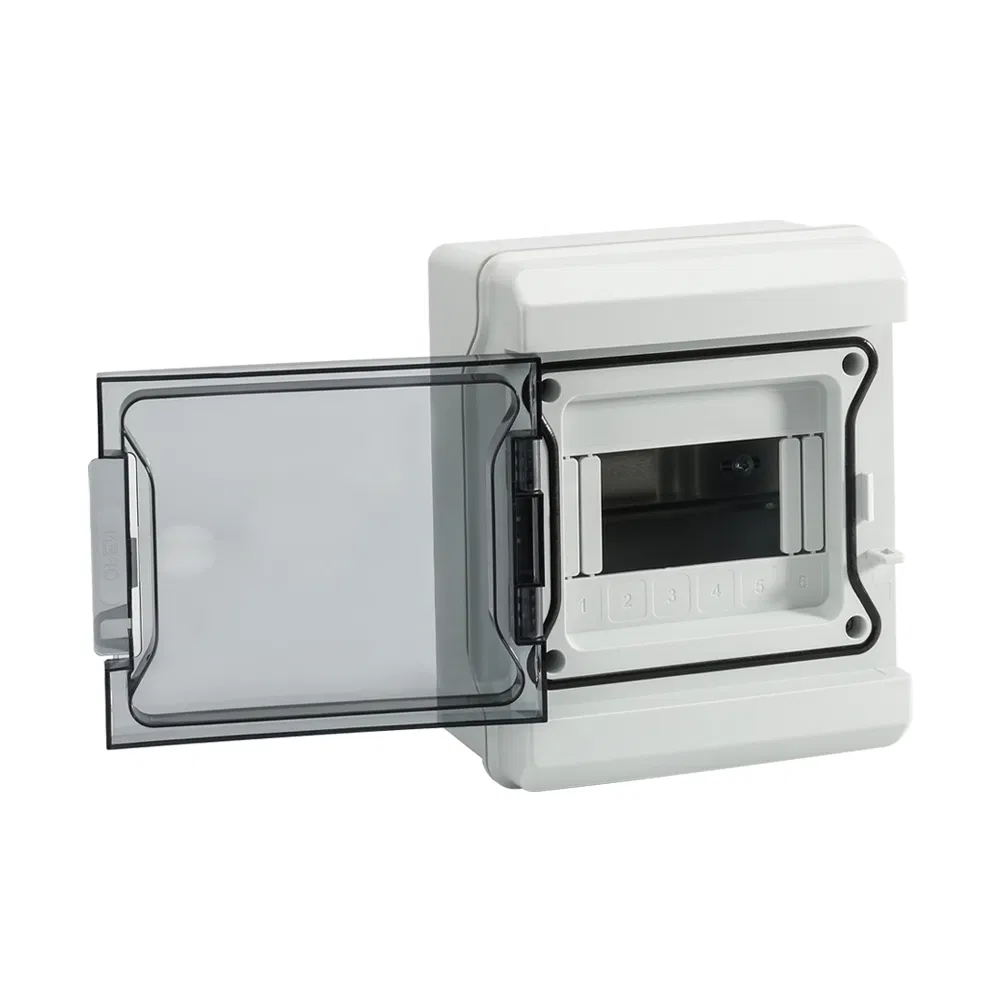

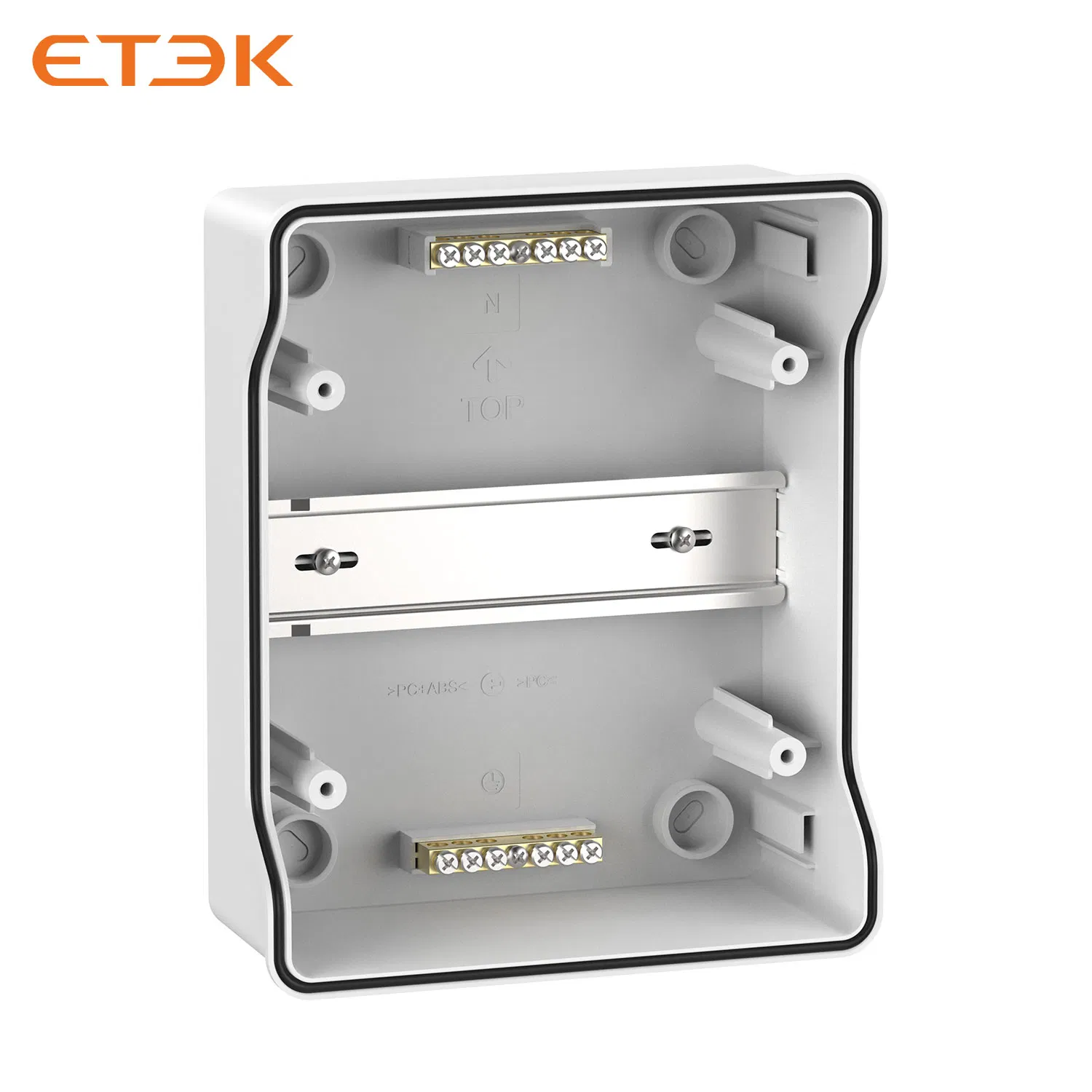

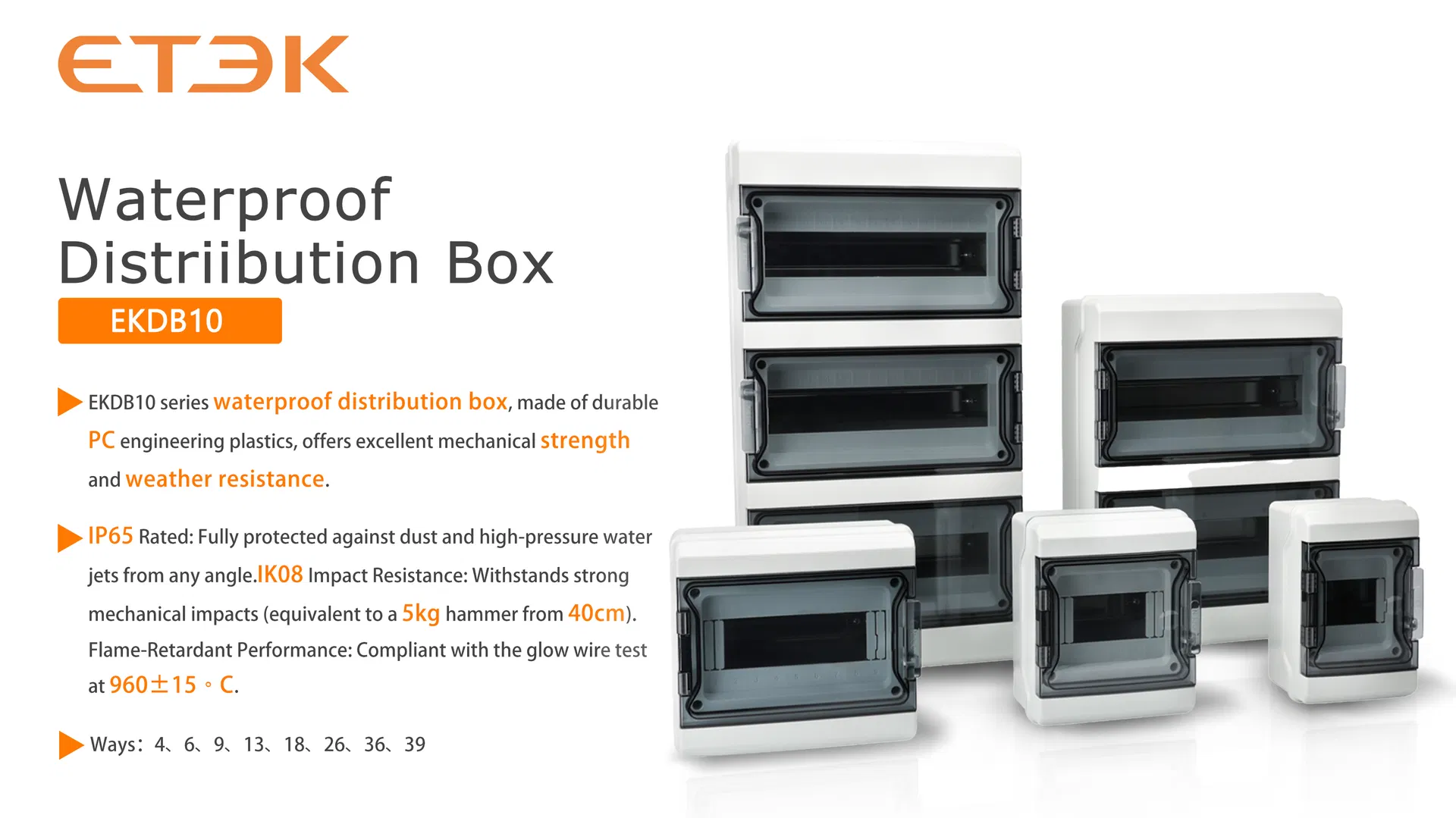

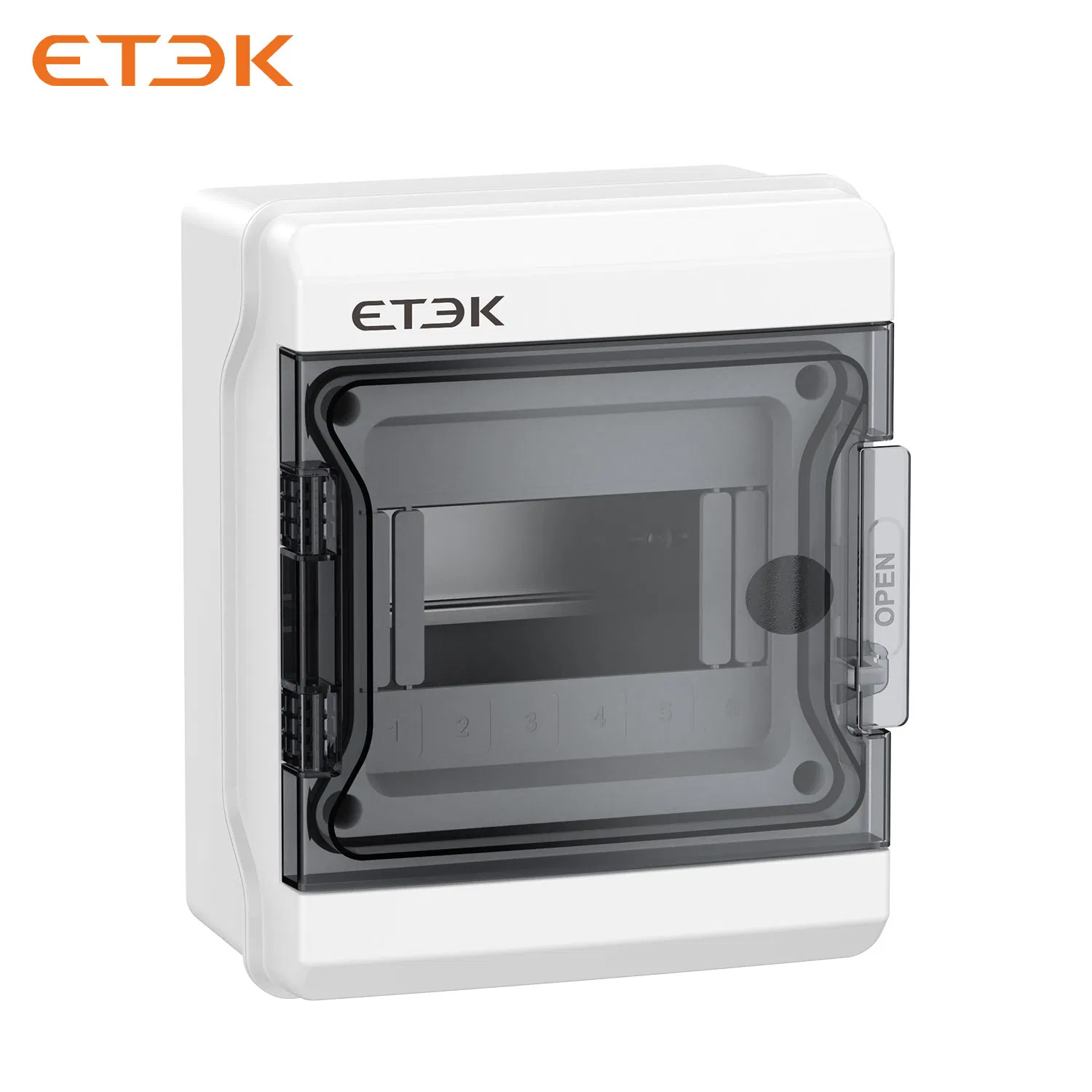

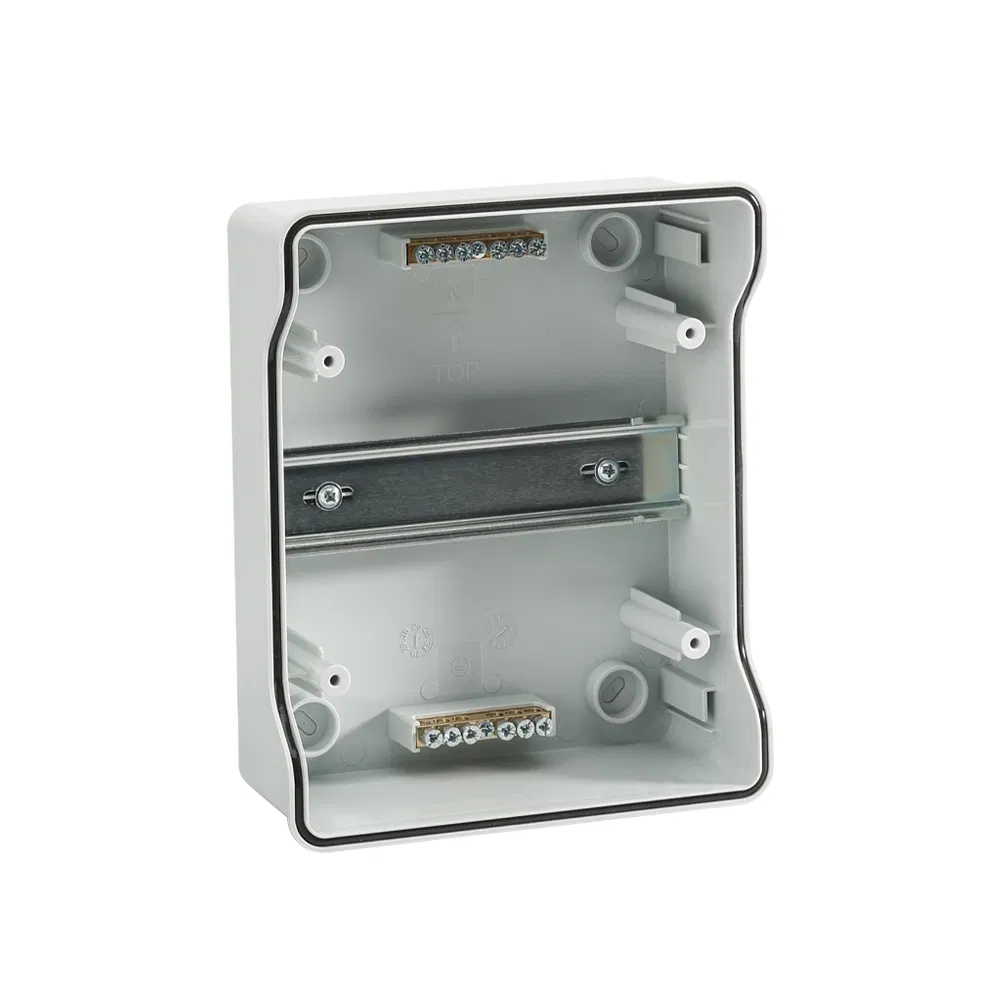

EKDB10 Distribution Box

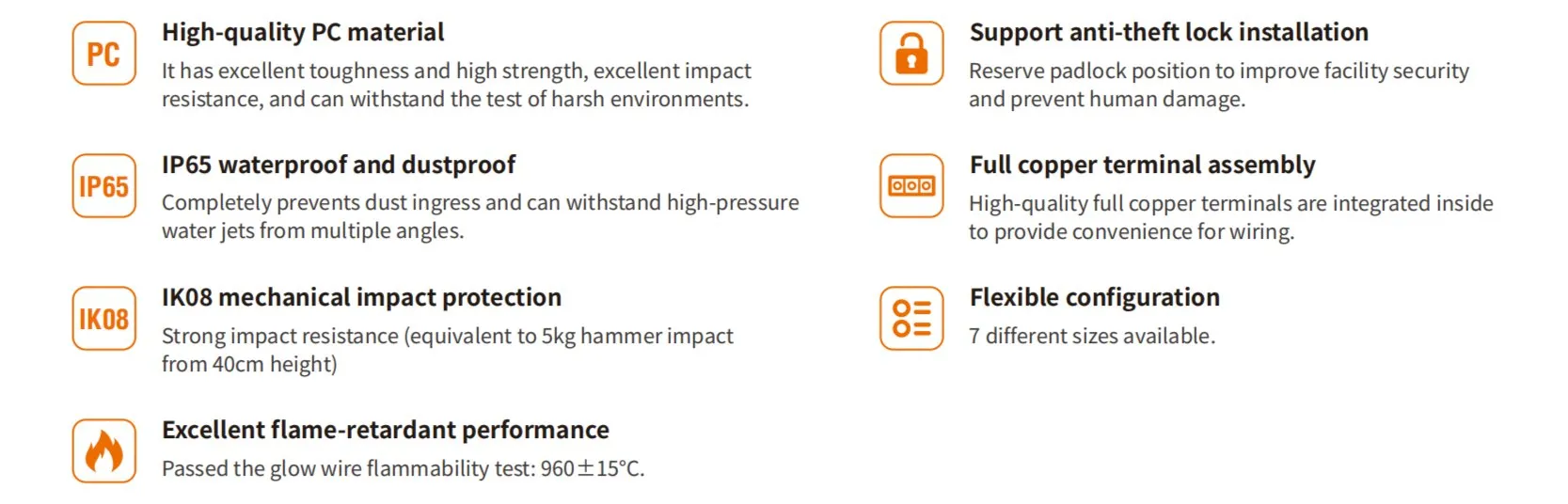

The EKDB10 series waterproof distribution box is constructed from high-quality, durable PC engineering plastics, offering excellent mechanical strength and weather resistance. Designed to meet international IEC standards, it provides reliable protection for electrical equipment in various industrial, commercial, photovoltaic, and other indoor or outdoor applications.
| General Data | |
|---|---|
| No. of modules | 6 |
| No. of layers | 1 |
| Degree of protection | IP65 |
| Mechanical impacts | IK08 |
| Rated insulation voltage (Ui) | 690VAC, 1500VDC |
| Method of fixing | Wall mounting |

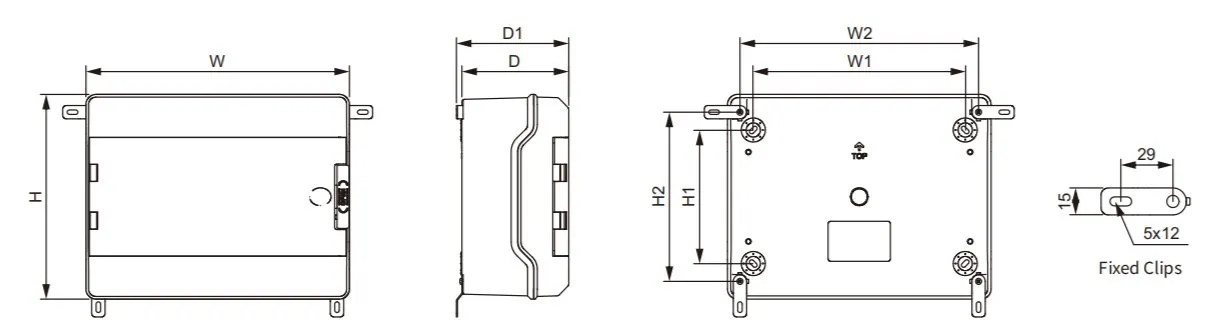

| Dimensions | |
|---|---|
| Width (W) | 164mm |
| Height (H) | 200mm |
| Depth (D) | 103.5mm |
| W1 / H1 | 108mm / 150mm |
| Package Size | 54.00cm * 42.90cm * 53.00cm |
| Package Gross Weight | 21.500kg |
Quality Assurances
Three-year replacement warranty for your purchase.
Online Support
Prompt response for any product issues encountered.

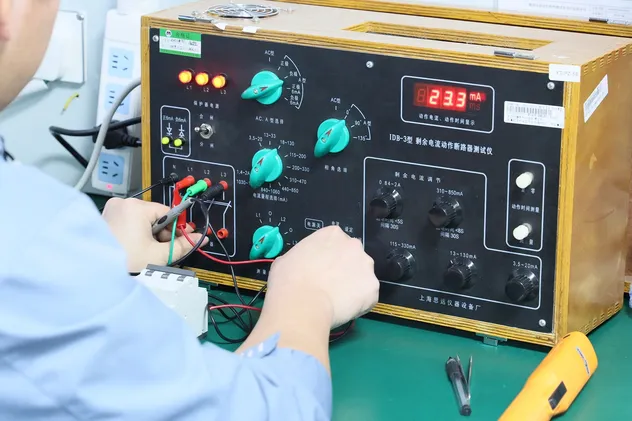

Technical Support
Professional technical team available for assistance.

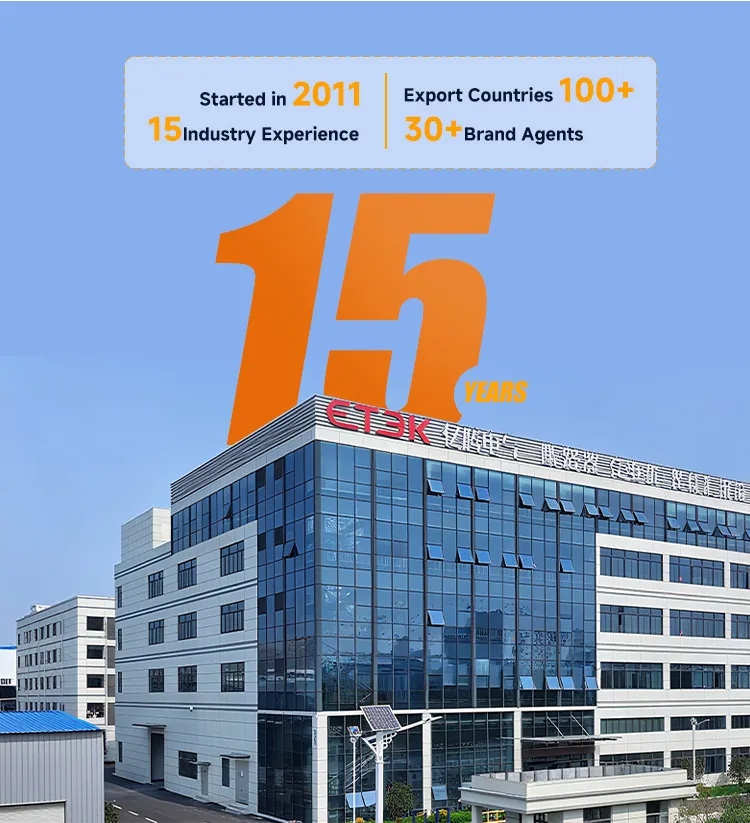

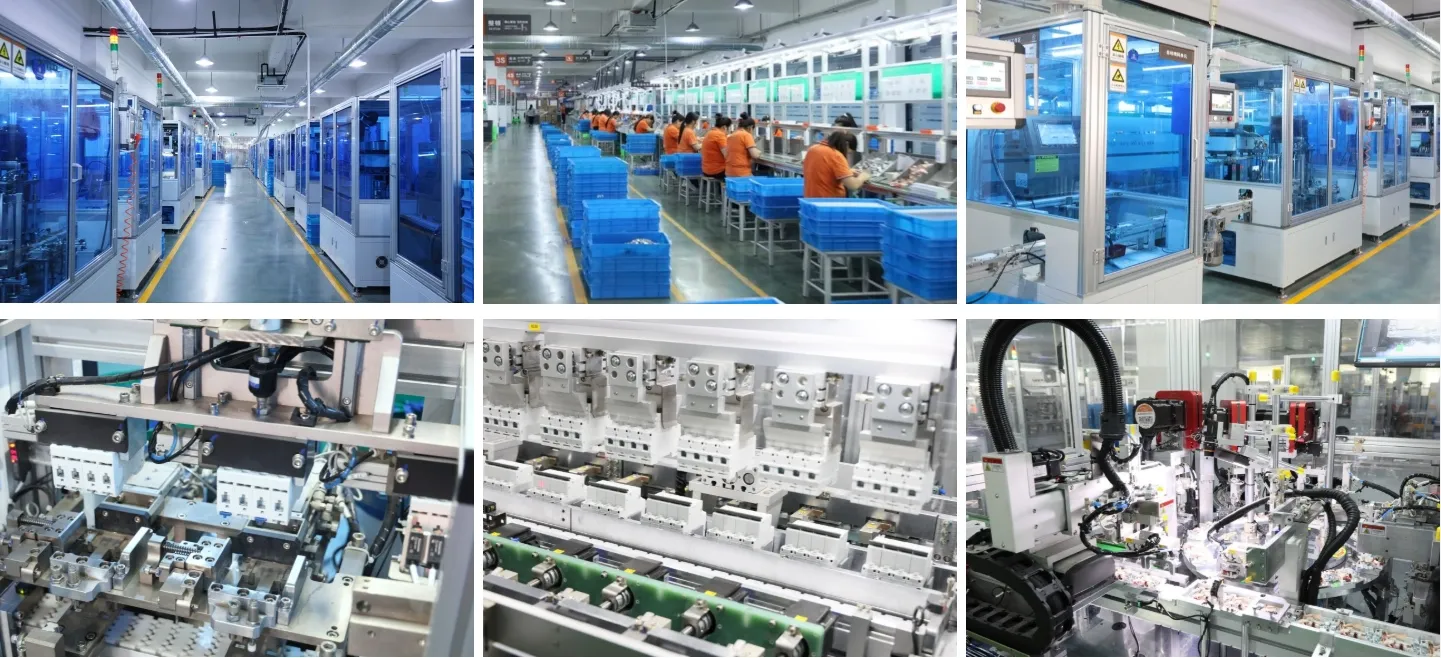

Specializing in low-voltage electrical appliances, our production facility spans 10,000 square meters with an annual output exceeding 8 million poles. With over 14 years of industry experience, we have achieved full automation across multiple production lines.

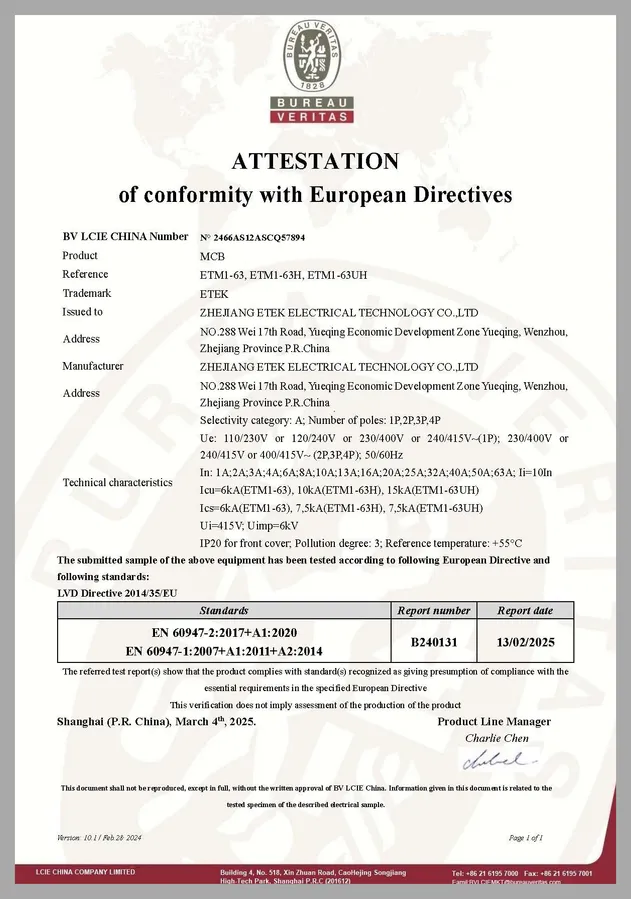

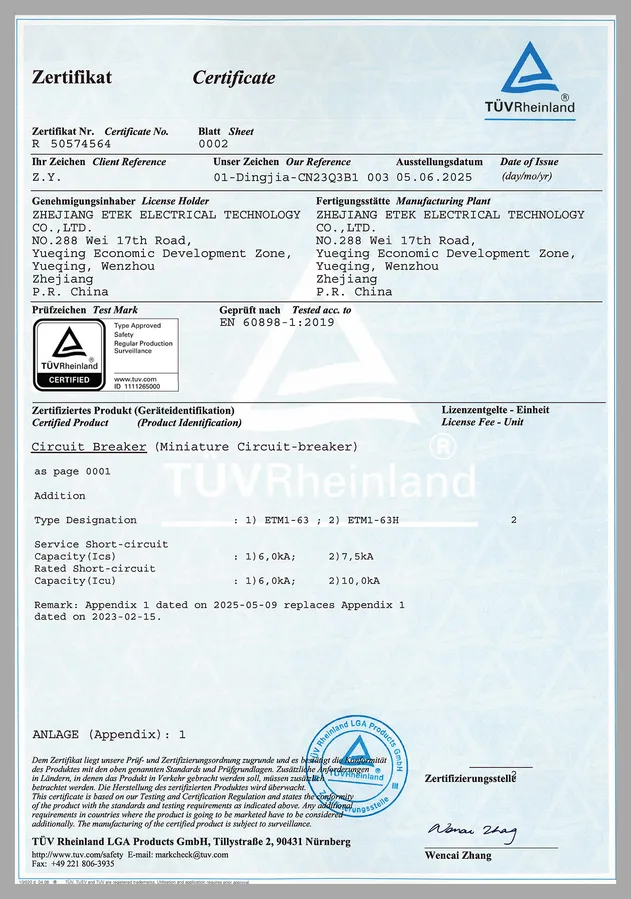

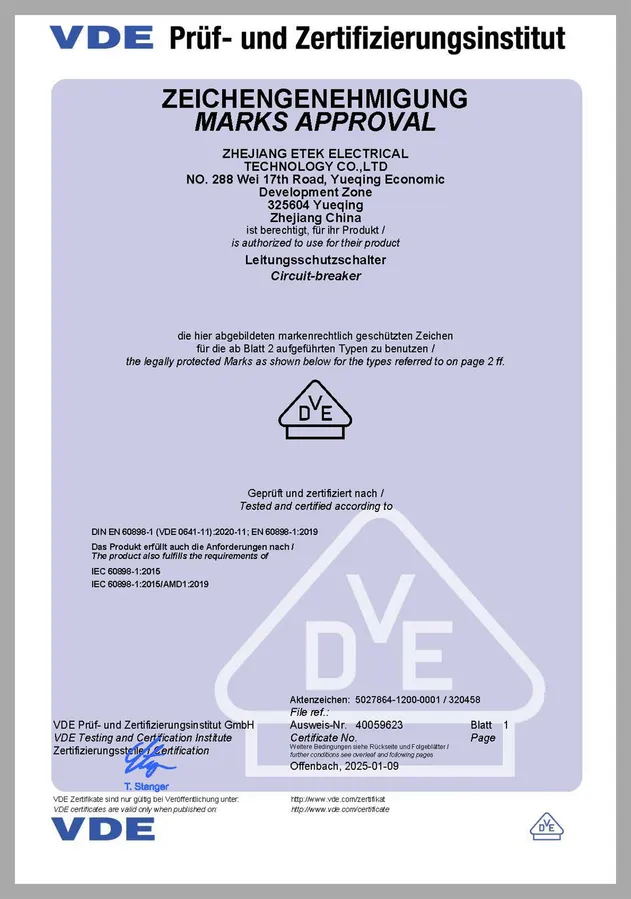

Our manufacturing processes hold ISO9001, ISO14001, and ISO45001 certifications. Our products are exported to more than 100 countries including the UK, France, Australia, and Russia.
