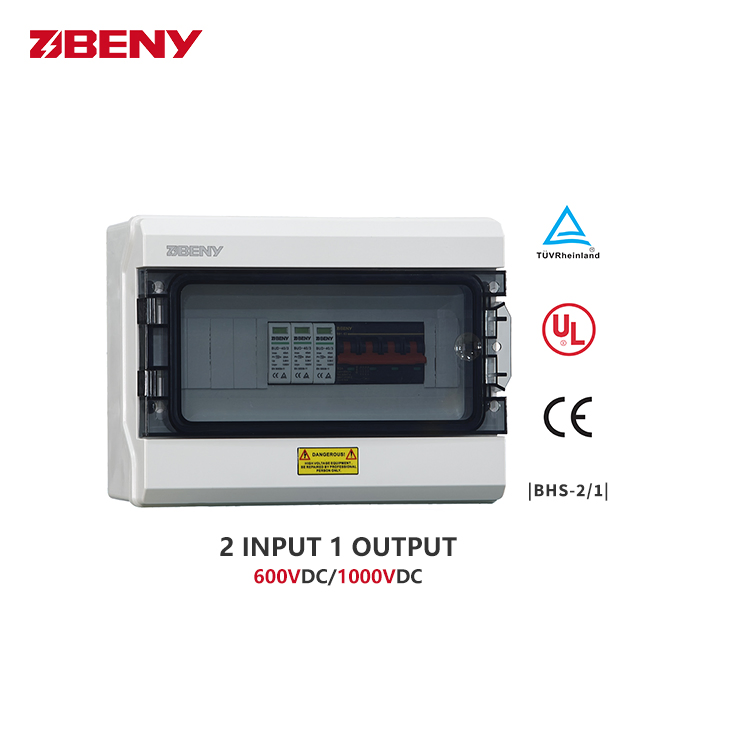

| Model NO. | Solar-BHS-2-1-600V |
| Certification | CE/UL/TUV |
| Operation Voltage | High Voltage (600V) |
| Application Range | PV Solar |
| Protection Grade | IP65 |
| Inputs/Outputs | 2 Inputs / 1 Output |
| Warranty | 5 Years |
| Package Size | 40.00cm * 23.50cm * 18.00cm |
| Gross Weight | 8.000kg |

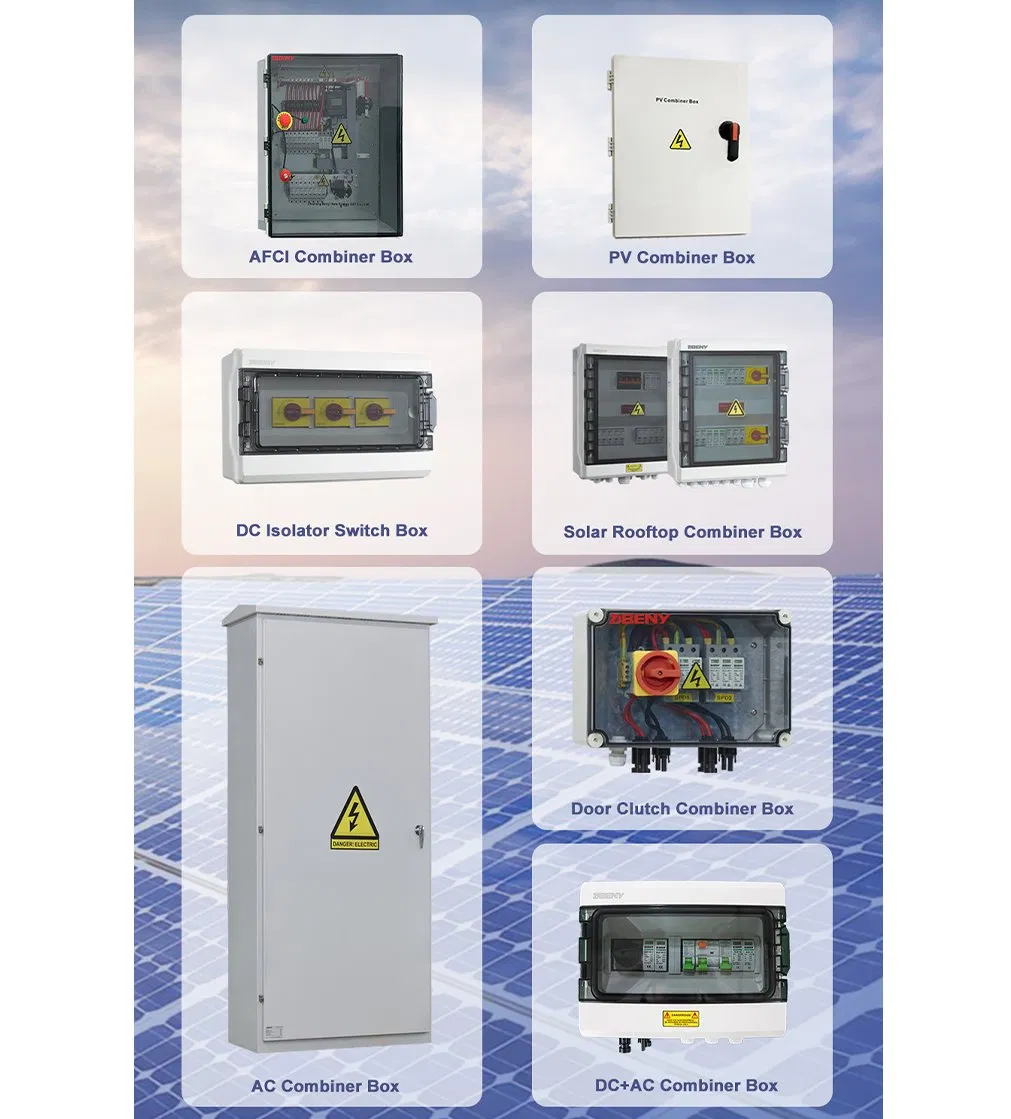

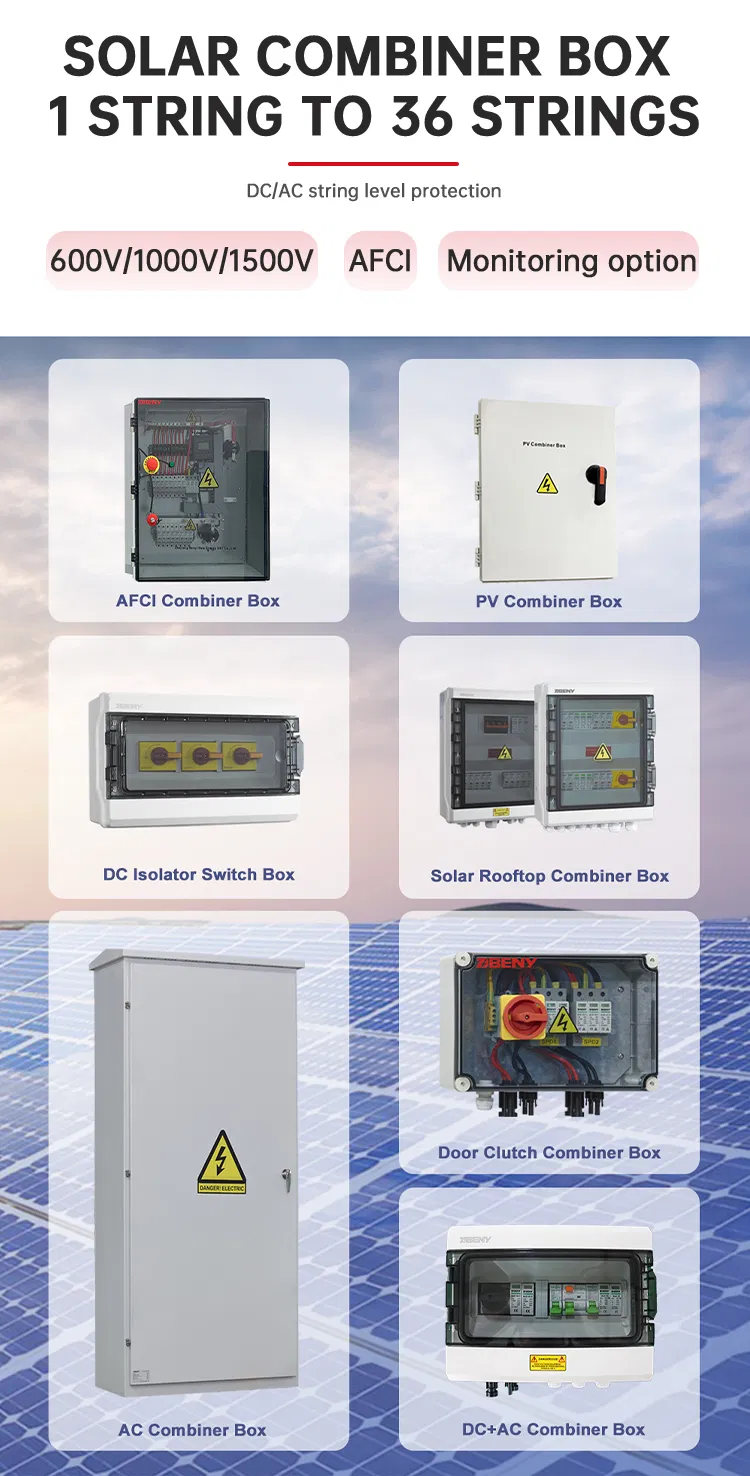

Offering a full range of solar PV combiner boxes for residential, commercial, and utility-scale projects.
Professional team support for custom manufacturing stages, from designing to material costing.
IP-rated string combiner boxes are waterproof, dustproof, and corrosion-resistant for harsh weather.
Comprehensive 5-year warranty service with technical support available for all solutions.
| General Data | |
| Model No. | BHS-2/1 |
| Maximum Voltage | 600V |
| Rated Current DC Breaker | 25A |
| Max Current Output | 63A |
| Enclosure | |
| Material Type | Polycarbonate/ABS |
| Impact Resistance | IK10 |
| Dimensions | 292*220*120mm |
| Operating Temp | -25ºC to +60ºC |

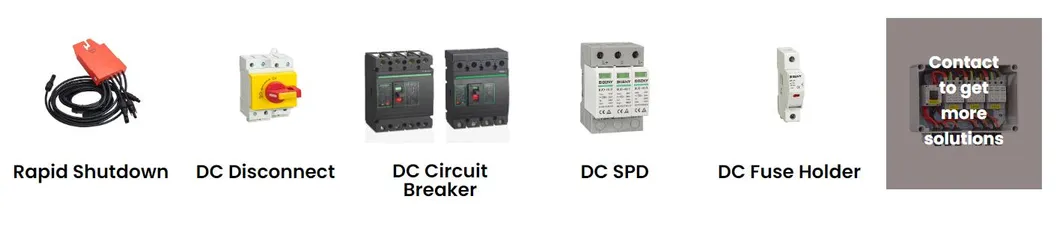

We provide custom features including logos, box measurements, components, DC inputs/outputs, and chosen over-voltage protection degrees.
To improve rooftop fire protection, each box can feature different numbers of DC inputs and 3 MPPT variants. Choose from class I or II variants of overvoltage protection.
• Grade IP 65/66: Waterproof, dustproof and anti-corrosion for long-term use.
• Current Aggregation: Multiple strings input up to 24 solar strings (30A per string).
• Effective Isolating: Series Isolator Switches up to 1500V DC.
• Lightning Protection: Pluggable BU-40/3 Surge protector device included.
• Over-current Protection: BR-30 touch-safe fuse with LED indicator.
• Short-Circuit Protection: BD and BB1 series circuit breakers.
Trusted global manufacturer of protective components for photovoltaic systems with over 30 years of research inheritance. We serve major solar power system manufacturers, PV project contractors, and EV charging operators globally.
