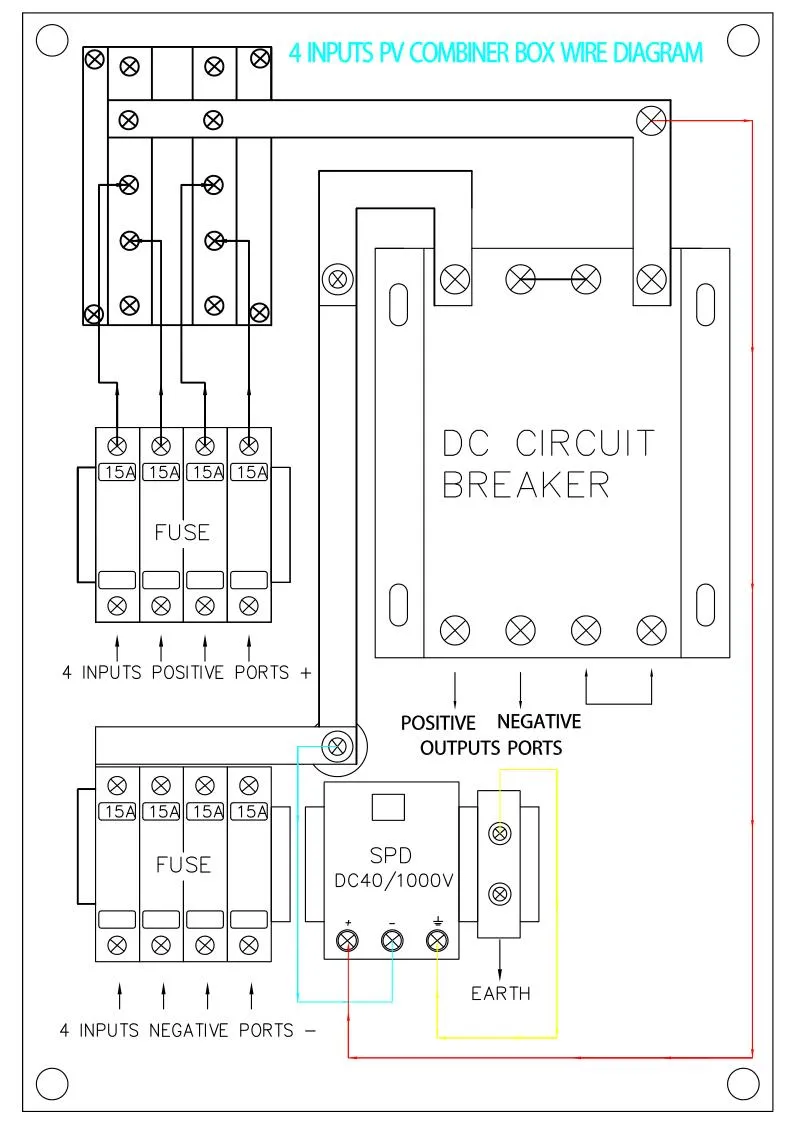

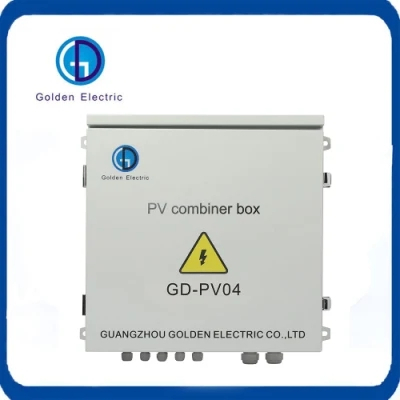

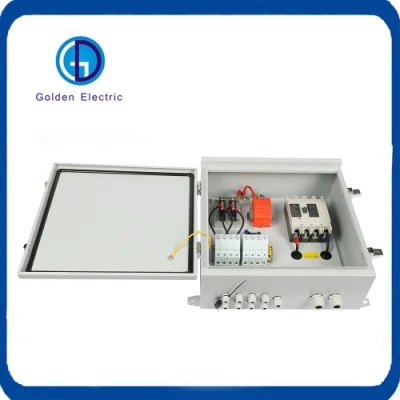

The GD-PV4/1 PV combiner box facilitates the synthetic DC input of 4 PV components to 1 output. Each channel is equipped with a dedicated fuse, while the output side features lightning protection and a circuit breaker. This design significantly simplifies the input wiring for DC power distribution cabinets and inverters, providing robust lightning protection, short circuit protection, and grounding protection.
Available in both intelligent and non-intelligent versions, the intelligent PV combiner box includes a monitoring unit to detect input current per string, internal temperature, lightning protection status, and circuit breaker status, while summarizing output voltage.
| Electric Parameters | |
| System Maximum DC Voltage | 1000V |
| Maximum Input Current (per string) | 15A |
| Maximum Input Strings | 1 |
| Maximum Output Switch Current | 20A/32A |
| Number of Output Strings | 1 |
| Lightning Protection | |
| Category of Test | II Grade Protection |
| Nominal Discharge Current | 20kA |
| Maximum Discharge Current | 40kA |
| Voltage Protection Level | 3.8kV |
| Maximum Continuous Operating Voltage (Uc) | 1050V |
| System & Mechanical | |
| Protection Grade | IP65 |
| Box Material | Metal |
| Operating Temperature | -25ºC ~ +55ºC |
| Permissible Relative Humidity | 0-95%, no condensation |

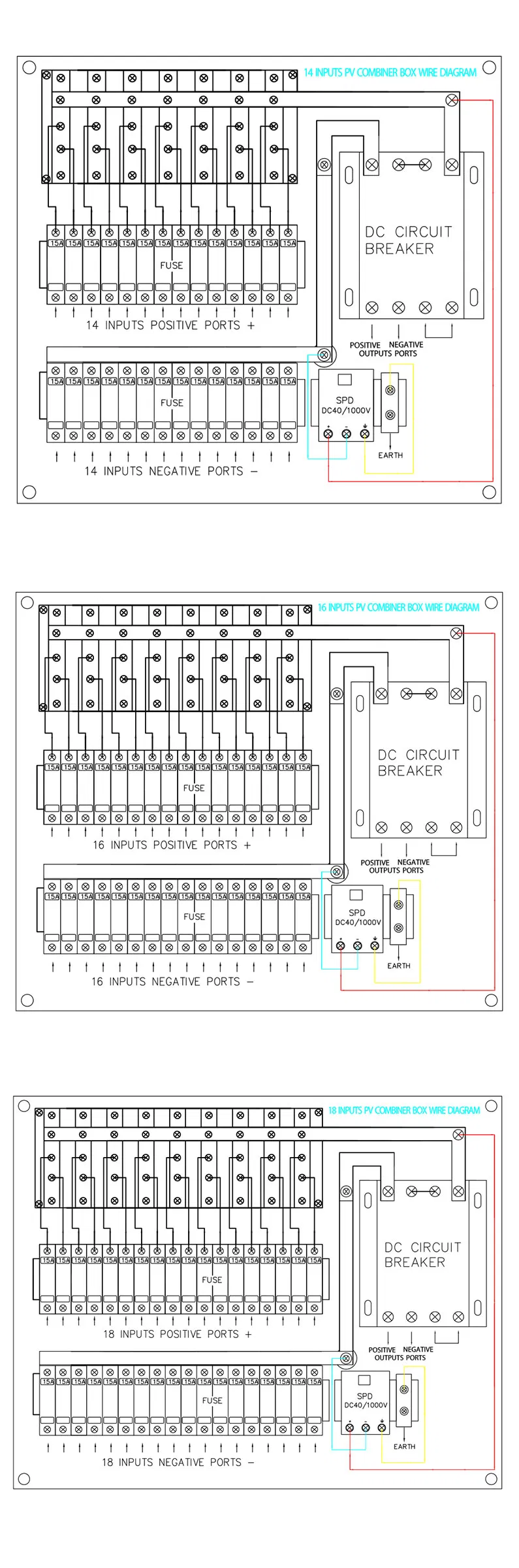

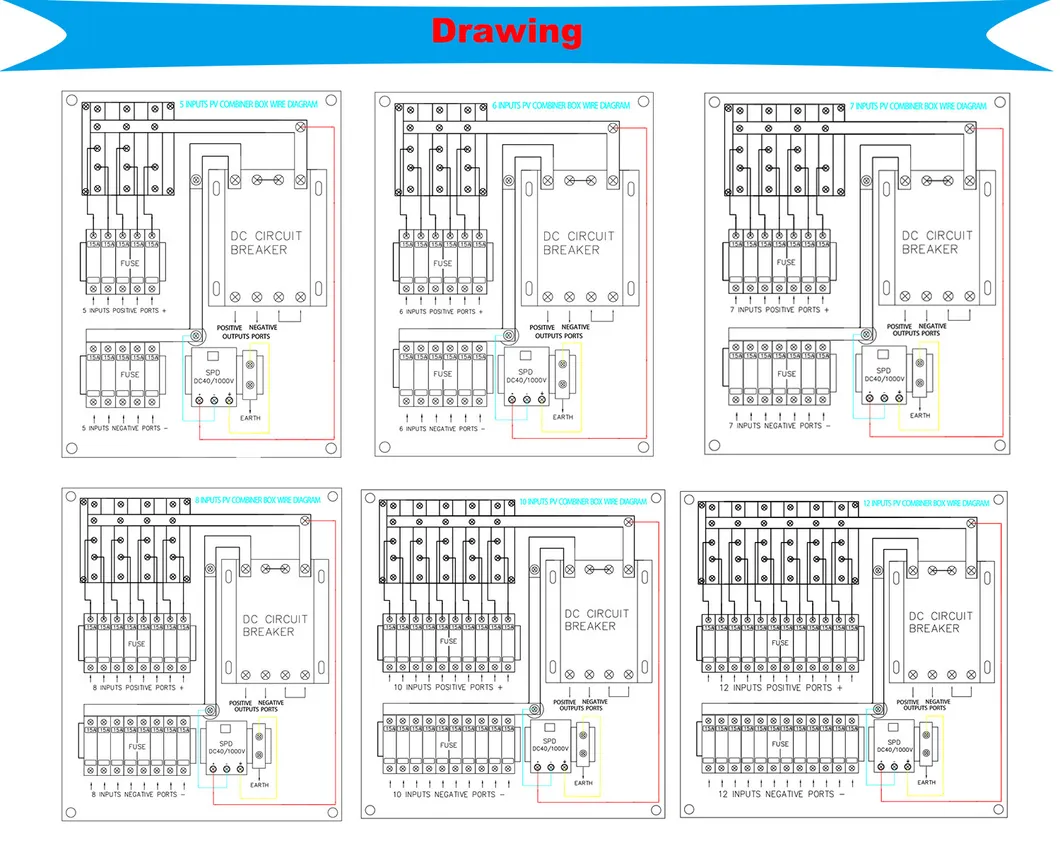

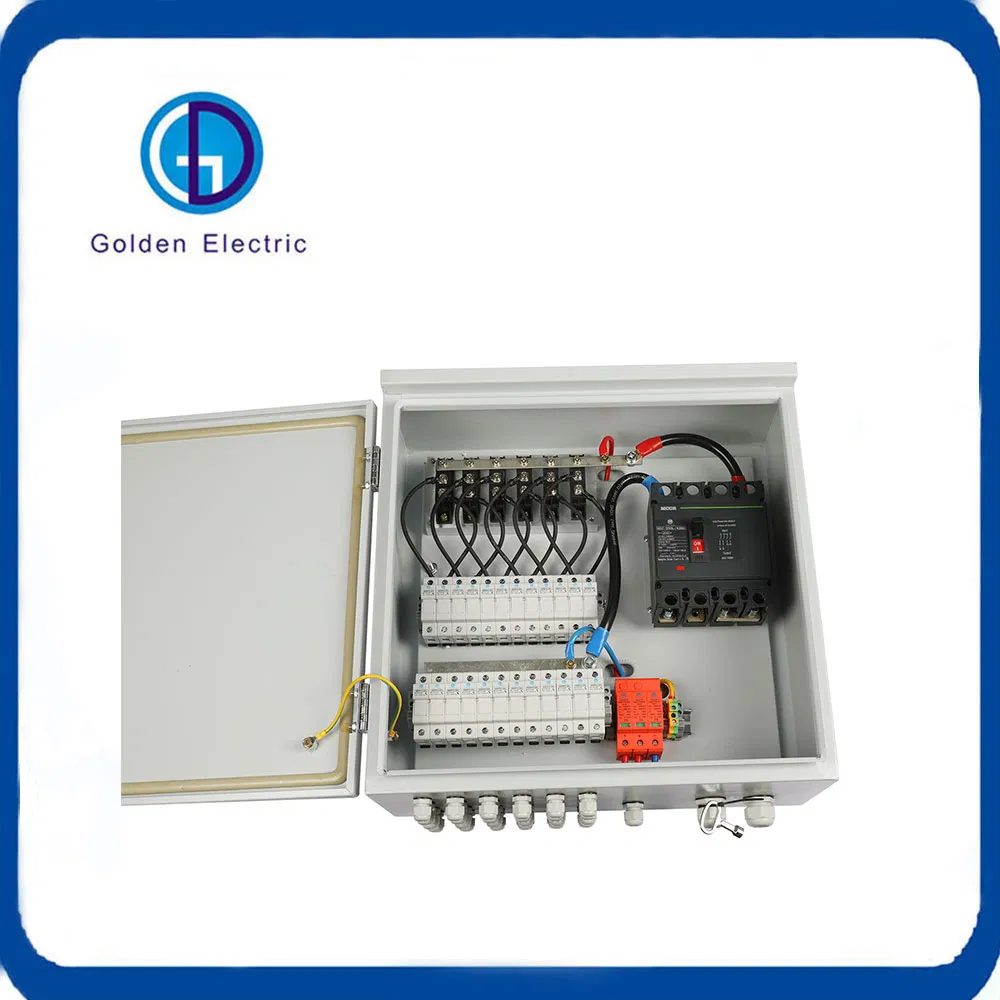

High Reliability: Equipped with DC fuses, surge protection devices, and DC circuit breakers or load isolation switches.
Strong Adaptability: IP65 waterproof and anti-dust design. Constructed with cold-rolled steel for durability in extreme temperatures.
Flexible Configuration: Compatible with single crystal, polycrystalline, and thin-film solar modules.
