Our pneumatic fittings are key connecting parts in pneumatic systems, linking air hoses, tubes, cylinders, valves, and other components. Their main job is to enable secure, leak-free compressed air transfer—vital for keeping systems efficient, stable, and safe in industries like automation, manufacturing, automotive, and aerospace.

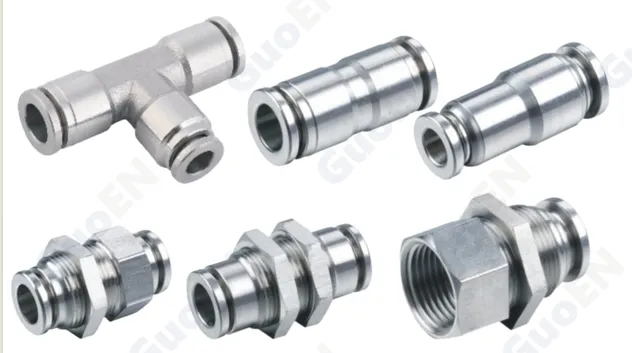

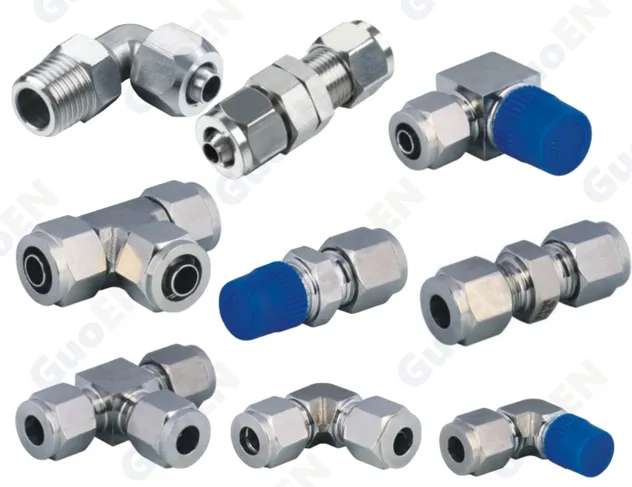

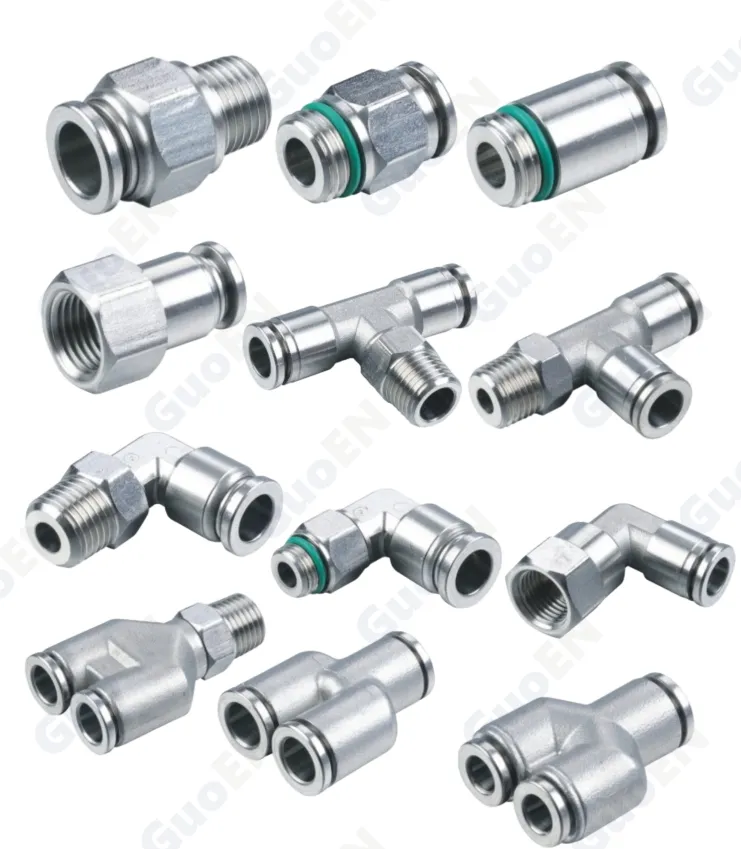

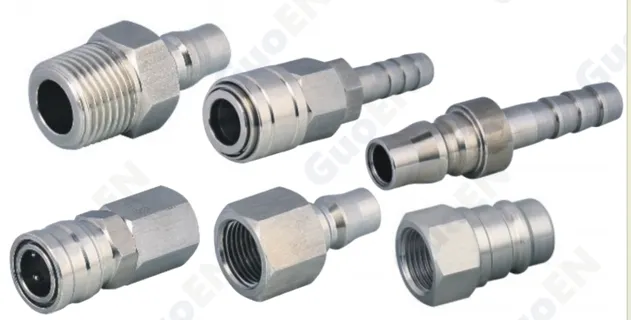

1. Connection Structure: Quick-connect (tool-free), threaded (NPT/G thread), push-to-connect (flexible tubing), and barbed options.
2. Size Specifications: Compatible with tube diameters (4mm/6mm/8mm) and standard thread sizes (M5, 1/4" NPT).
3. Material Options: Brass (corrosion-resistant), stainless steel (high-pressure/temp), and engineering plastics.
4. Sealing Element: O-rings (rubber/silicone) or gaskets to prevent air leakage based on pressure requirements.
5. Ratings: Supports operating pressures of 0.1-1.0MPa and temperatures from -20 to 80℃.

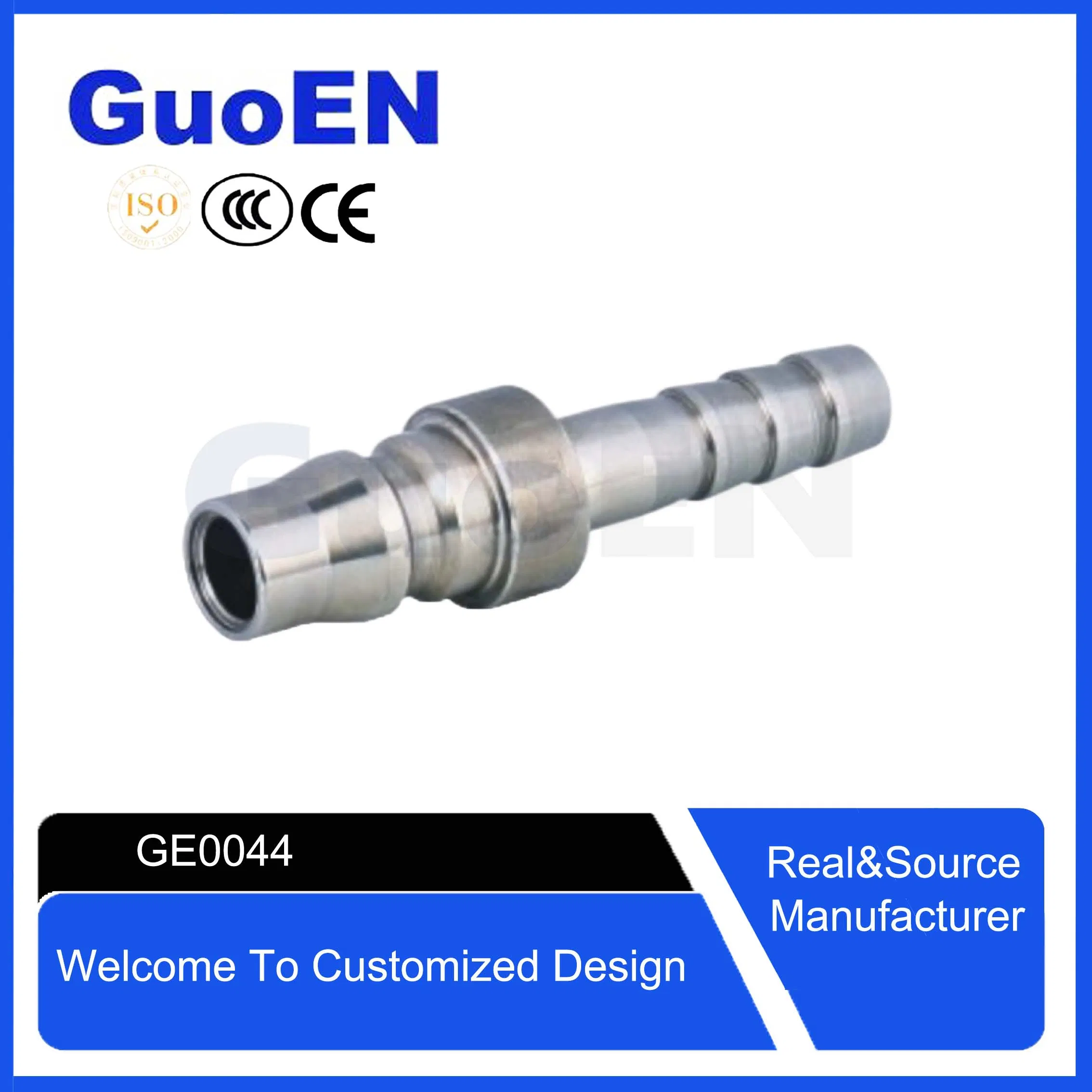

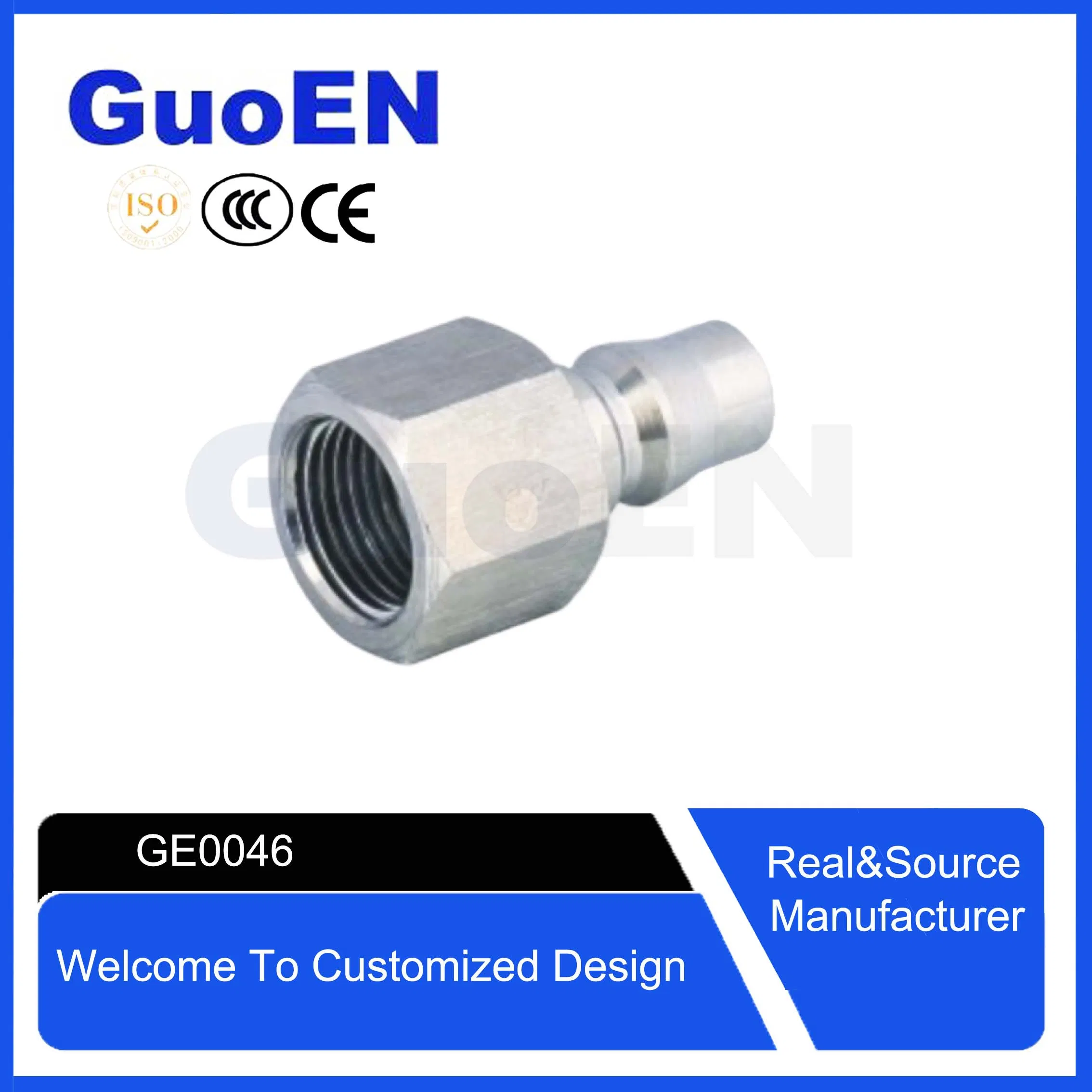

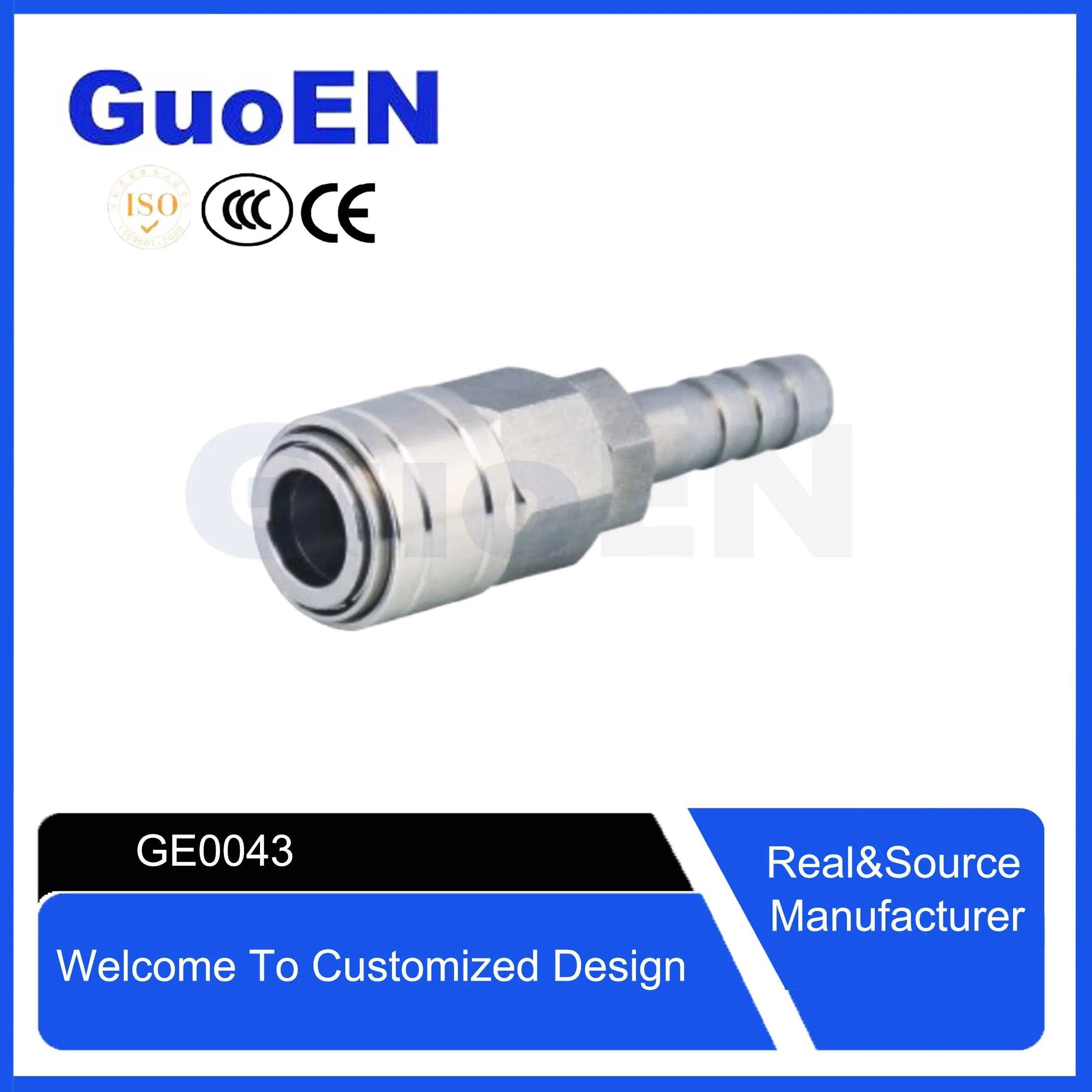

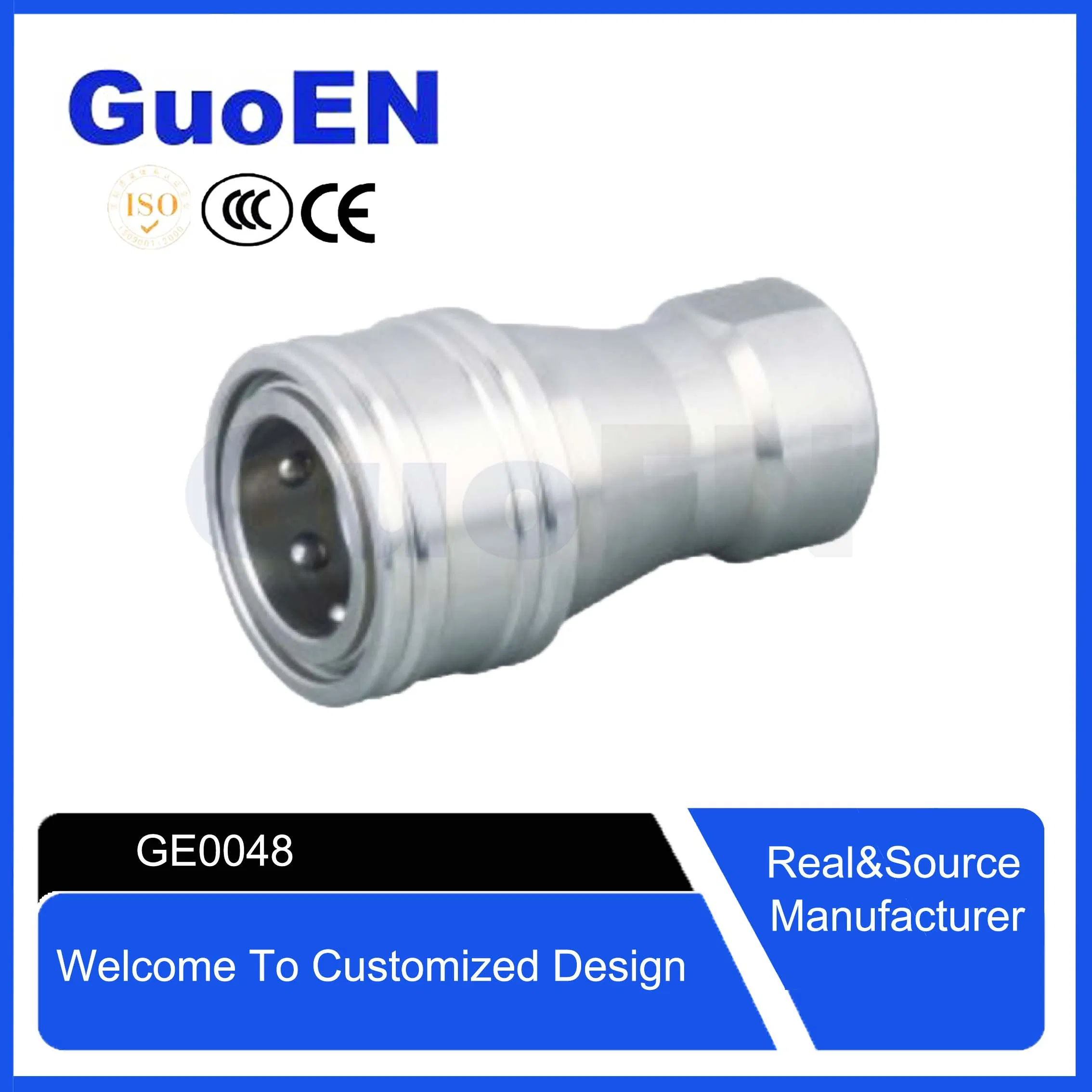

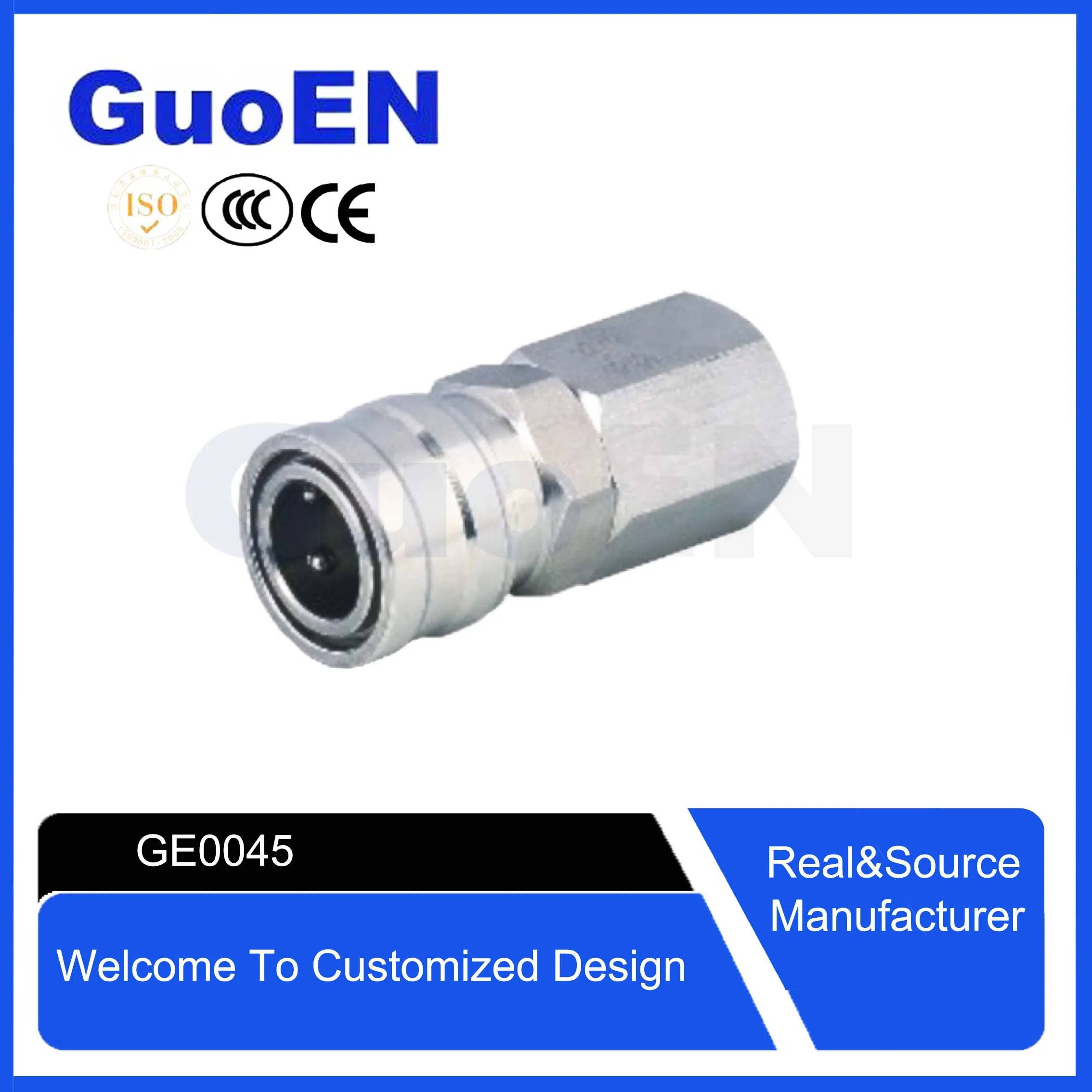

| Product Name | PC stainless steel pneumatic release push in quick connect coupling |
| Material | Stainless Steel, Carbon Steel |
| Body Type | Straight, Elbow, 45 degree, 90 degree |
| Thread System | Metric, ISO Tapered, NPT, BSPP, BSPT, JIS, SAE, UNF, G, R, JIC |
| Connection Surface | Multiseal, Flat, Flat O-Ring, Cone Seat |
| Cleaning Process | Standard Cleaning and Packaging |

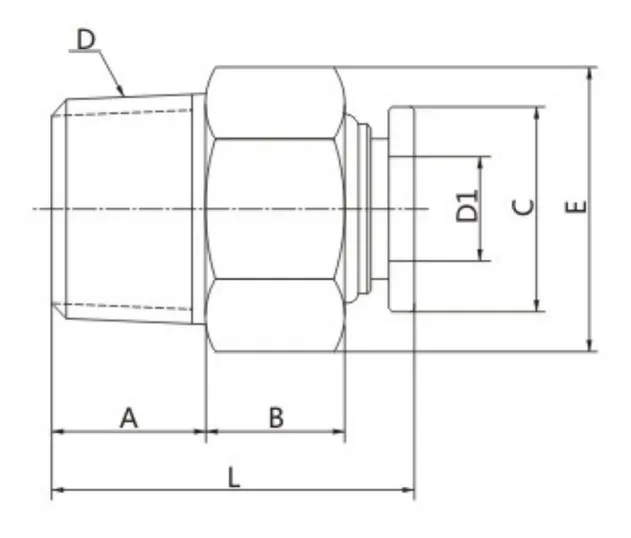

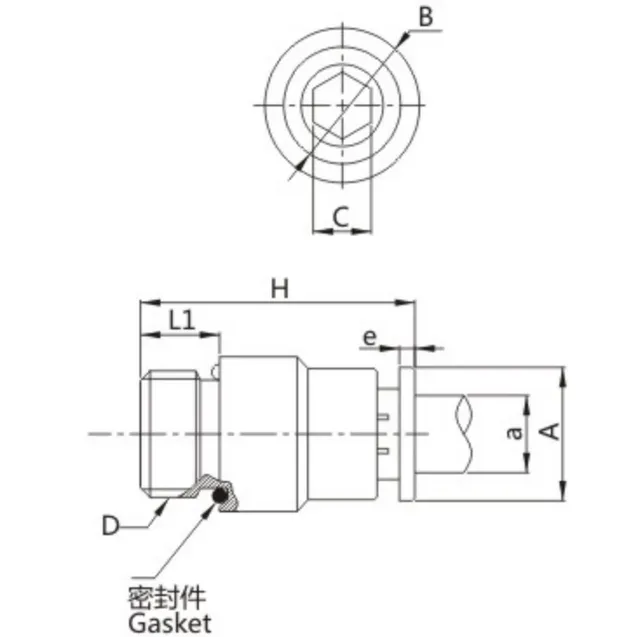

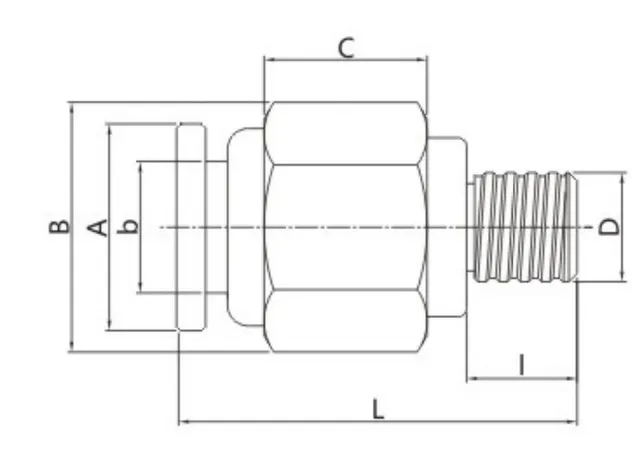

Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.

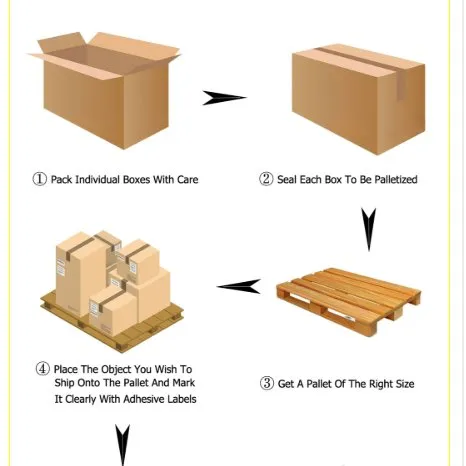

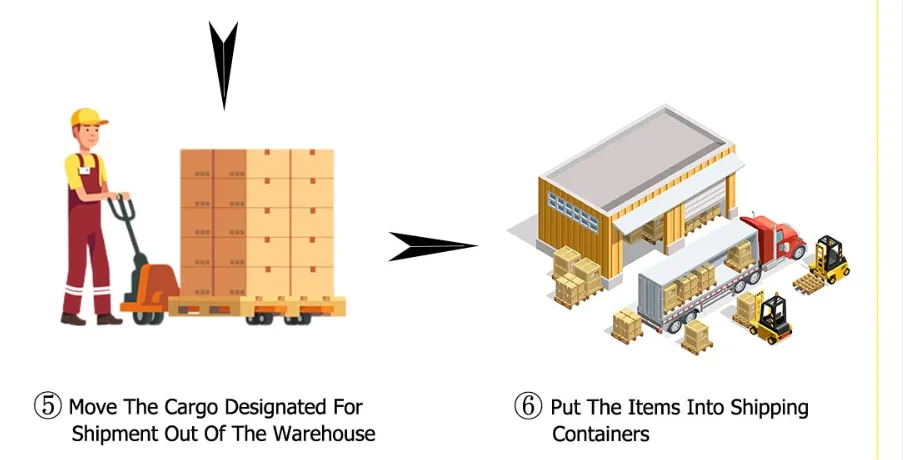

Regarding the packaging, we adopt sturdy and protective materials to ensure the products remain intact during transportation. Each item will be individually wrapped with anti-static and shock-absorbing materials. Then, they will be placed in durable cartons with proper cushioning fillers to prevent movement.
