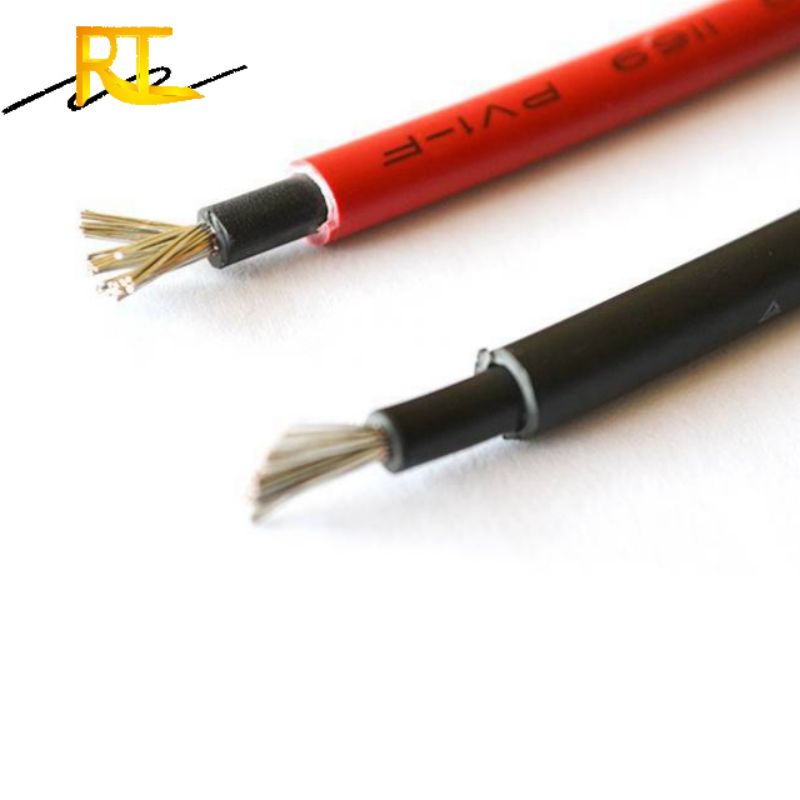

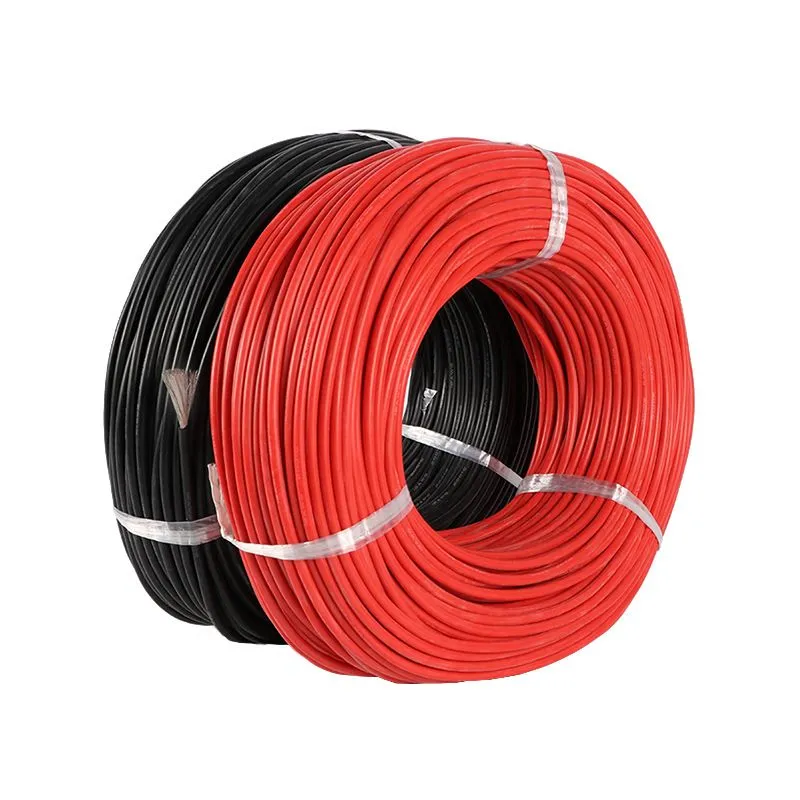

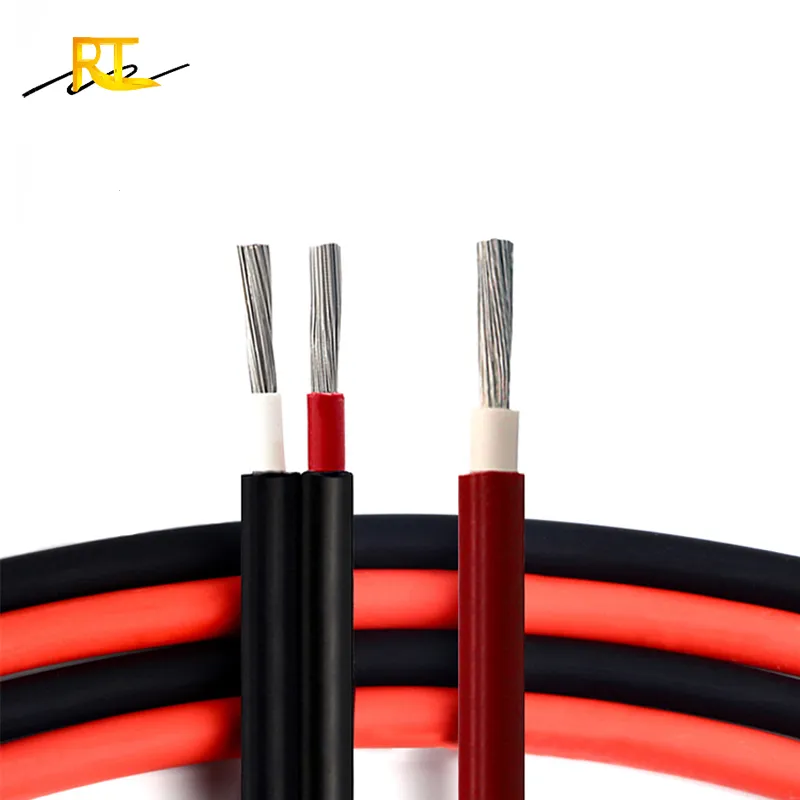

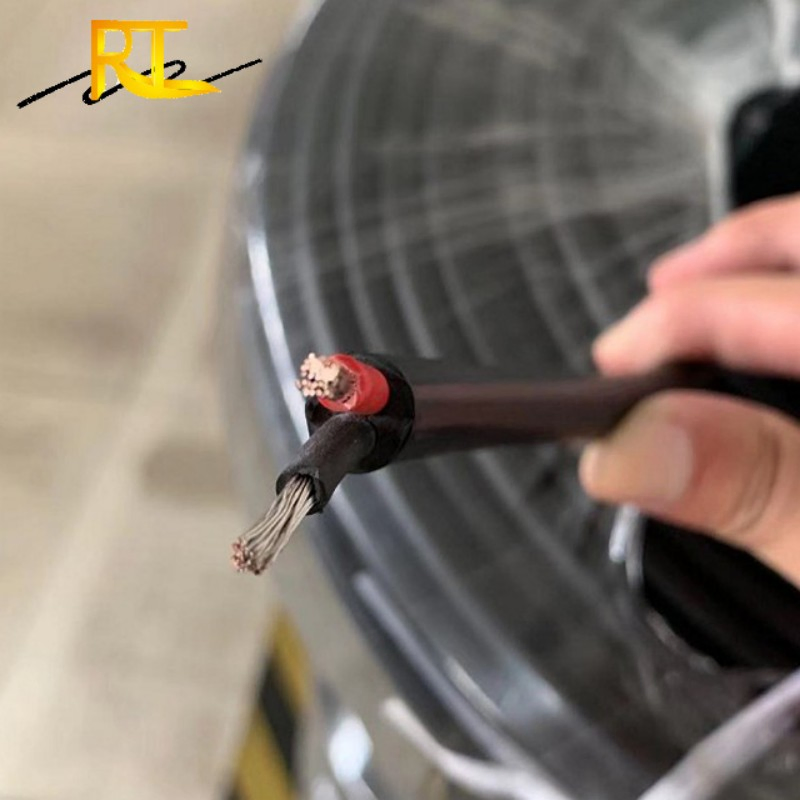

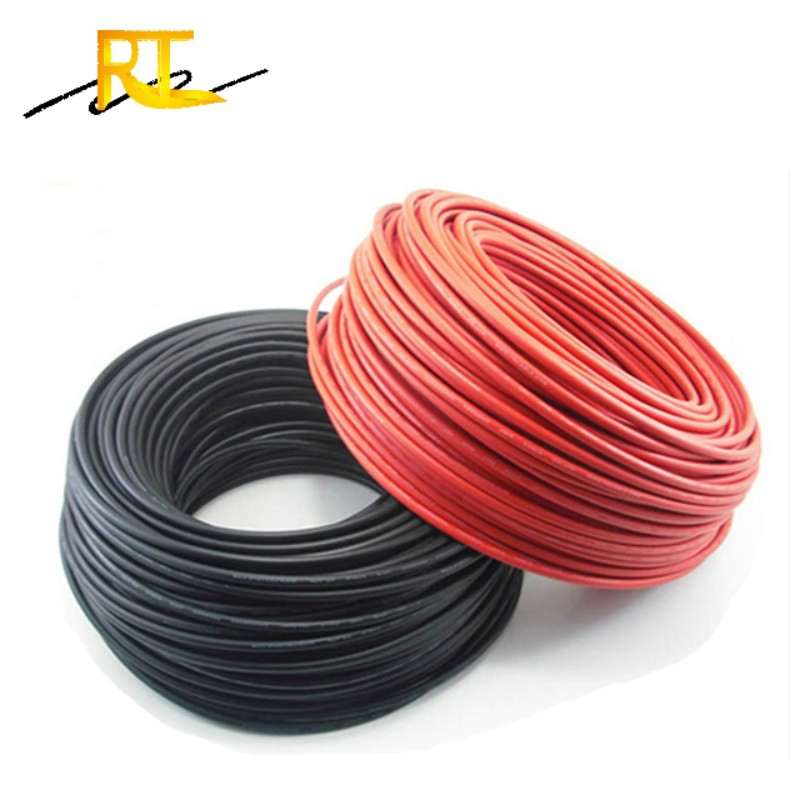

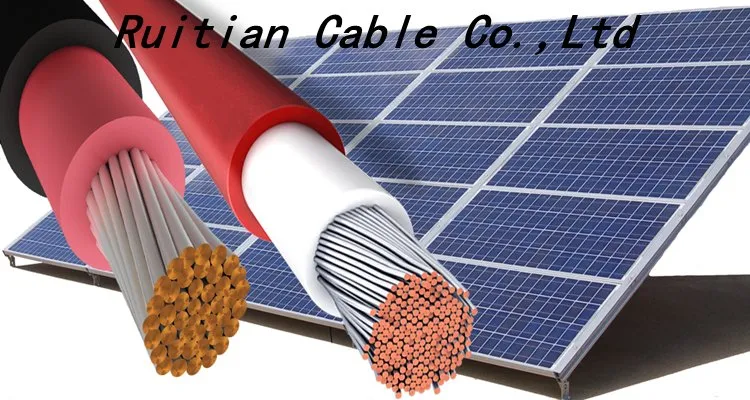

TUV Certified PV1-F Multi-Model 4mm 6mm Electrical Solar PV DC Wire Power Copper Cable
| Technical Parameters | |
|---|---|
| Product Name | Solar Cable |
| Production Specification | 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm |
| Conductor Material | Copper/Tinned Copper |
| Insulation Material | XLPE (XLPO) |
| Color | Red / Black / White |
| Temperature Range | -40ºC ~ 90ºC |
| Rated Voltage | AC 0.6/1KV, DC 1.0/1.5KV |
| Type | Specification (mm²) | Conductor Construction | Outer Diameter (mm) | Max Resistance (Ω/kM) | Current Capacity (A) |
|---|---|---|---|---|---|

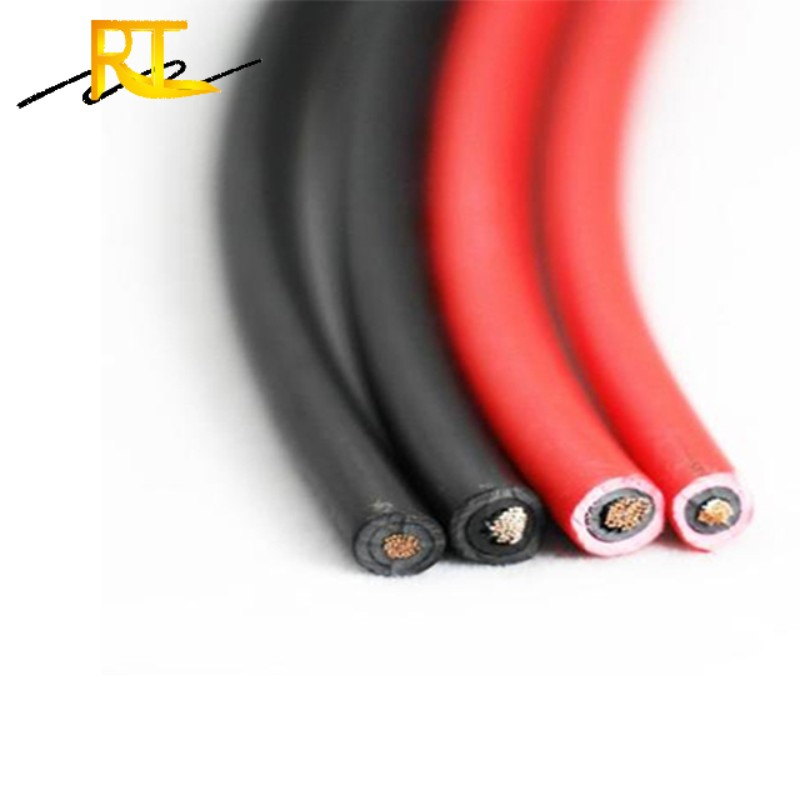

| Single Core | 1x2.5 | 50/0.25 | 5.4 | 7.98 | 41 |
| 1x4 | 56/0.3 | 6.1 | 4.75 | 50 | |
| 1x6 | 84/0.3 | 7.2 | 3.39 | 70 | |
| 1x10 | 142/0.3 | 9 | 1.95 | 98 | |

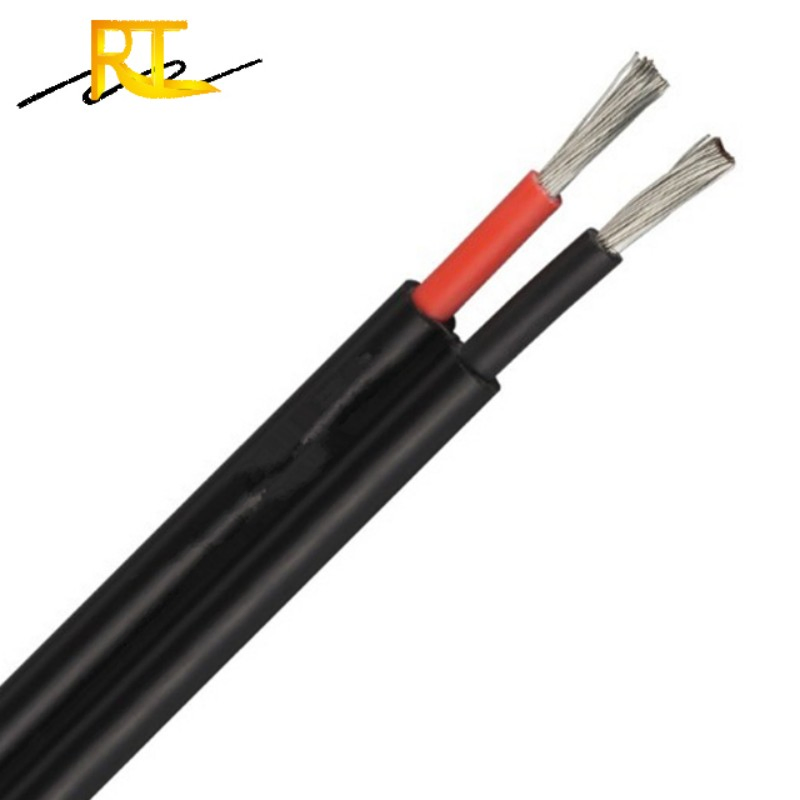

| Twin Core | 2x4 | 56/0.3 | 12 | 4.75 | 50 |
| 2x6 | 84/0.3 | 13.5 | 3.39 | 70 |

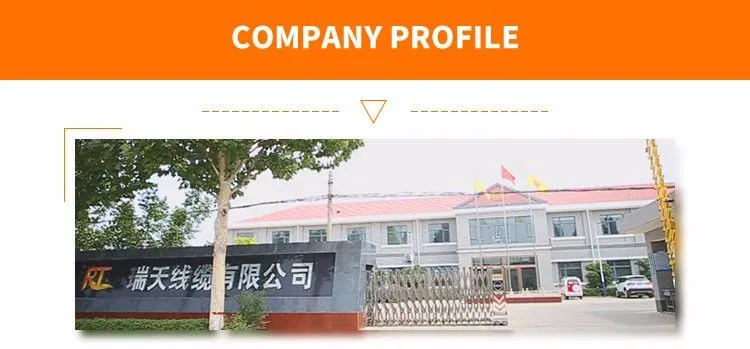

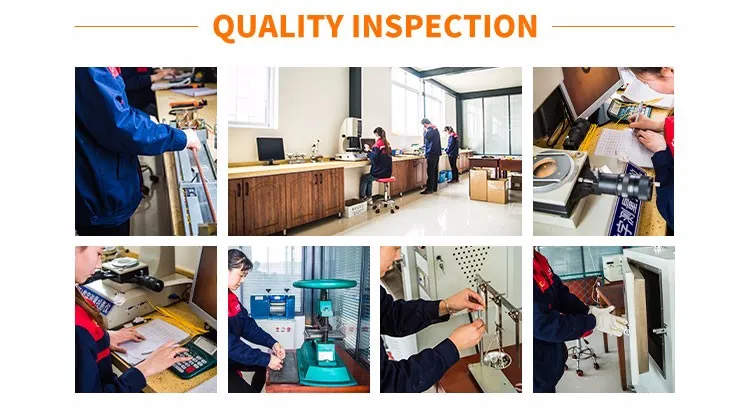

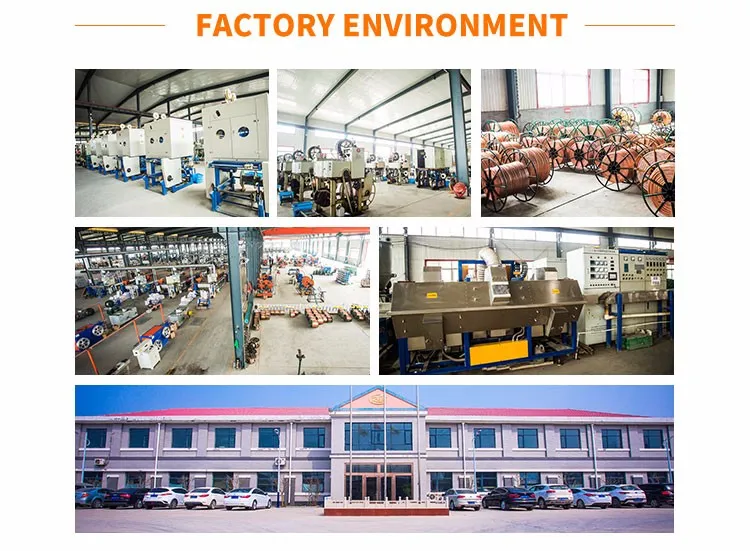

Established in 2008, our facility is a professional manufacturer engaged in research, development, production, and service of power cables, solar cables, and specialty wires. We maintain strict quality control through advanced equipment for testing, insulation, and cabling, ensuring full customer satisfaction and compliance with global standards including TUV, CE, and ISO 9001.
