| Parameter | Description |
|---|---|
| Installation site | According to requirements |
| Fasten material | Aluminum, SUS304, Steel |
| Solar panel type | Framed or Frameless |
| Panel Orientation | Transverse or vertical |
| Design Standard | CE; ISO9001; SGS |
| Quality warranty | 12-25 years |
| Duration | More than 20 years |
| NO. | NAME | SIZE (mm) | QTY | MATERIAL |
|---|---|---|---|---|

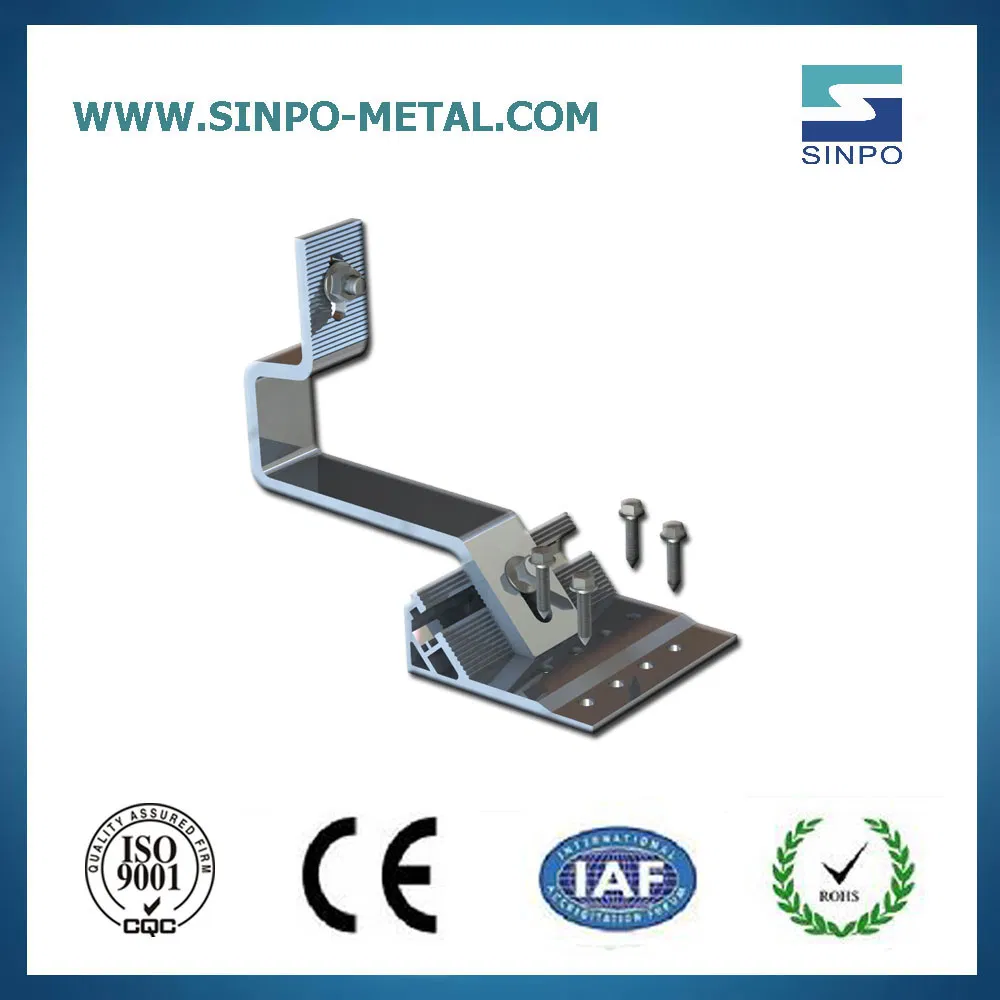

| 1 | Roof Hook | - | 8 | AL6063-T5 |
| 2 | Drilling Screw | M5.5*60 | 32 | 304 Stainless Steel |

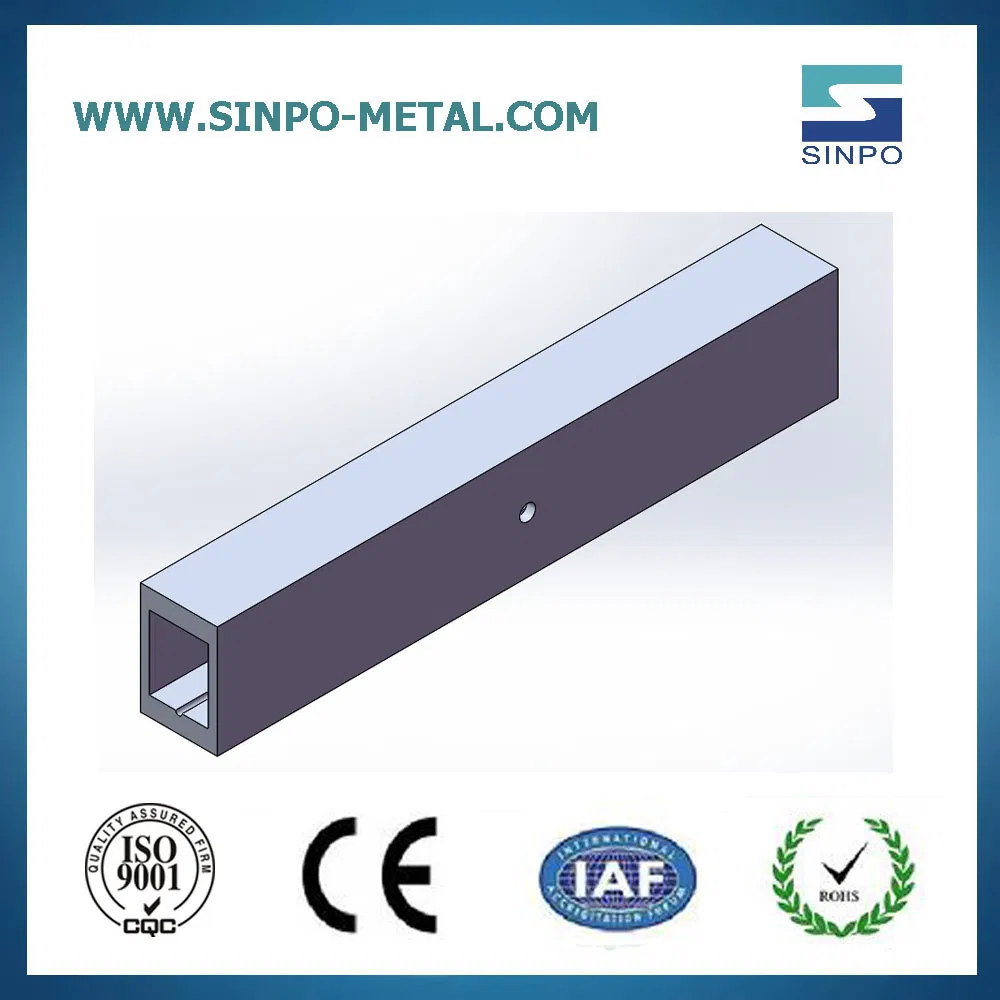

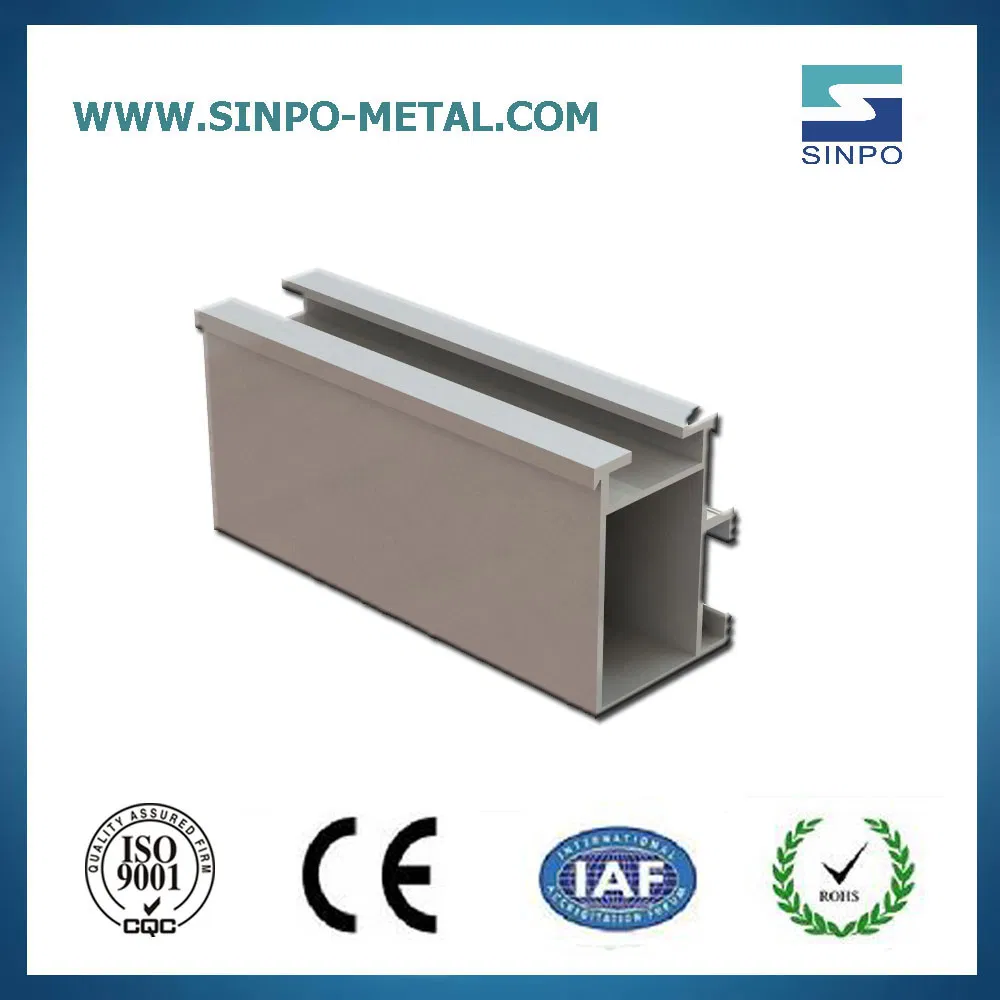

| 3 | Rail | 2100 | 4 | AL6063-T5 |
| 4 | Rail Joiner | 200 | 2 | AL6063-T5 |
| 5 | Mid Clamp | Viega Profi-press | 6 | AL6063-T5 |
| 6 | End Clamp | Viega Profi-press | 4 | AL6063-T5 |

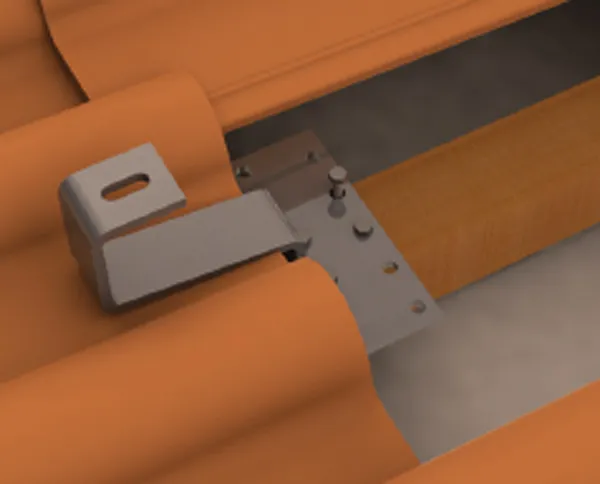

Fix roof hook on to the wooden beam with wood screw. Generally, three wood screws are enough to ensure stability.

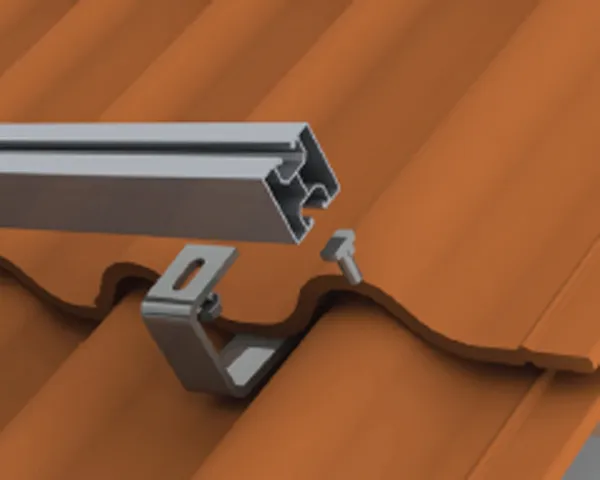

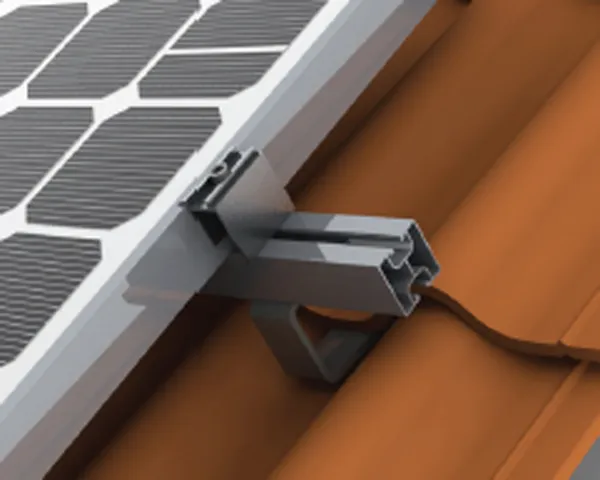

Fix the aluminum rail to the roof hook using the T-head bolt and flange nut provided in the kit.
Fasten the hex bolt securely once the module clamps and PV modules are correctly located on the rails.
To provide you with the most accurate system design, please provide the following details:
