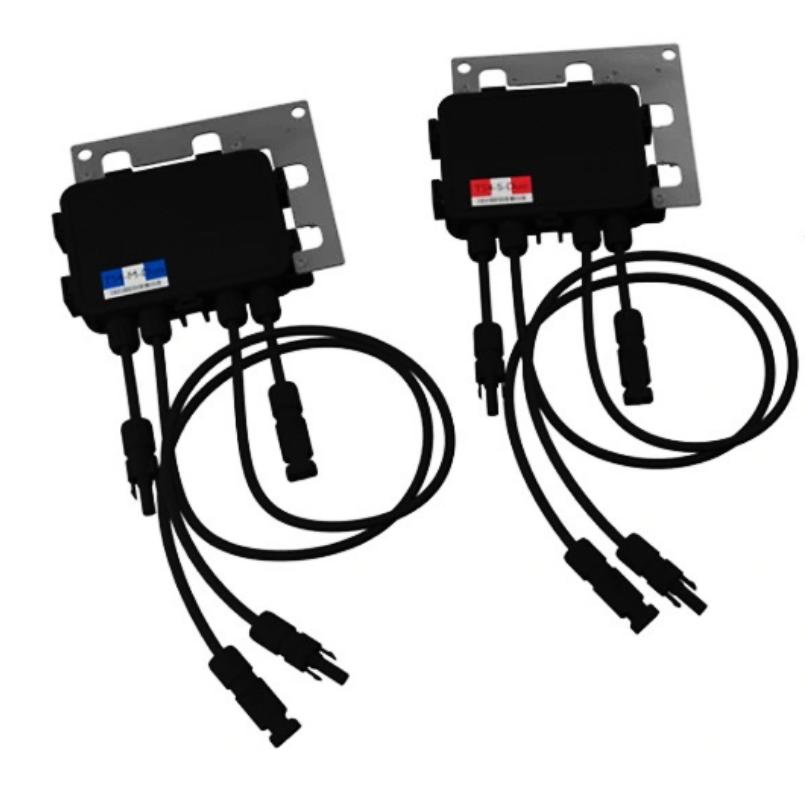

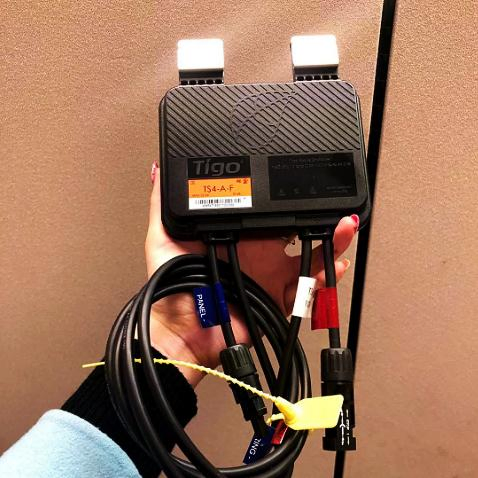

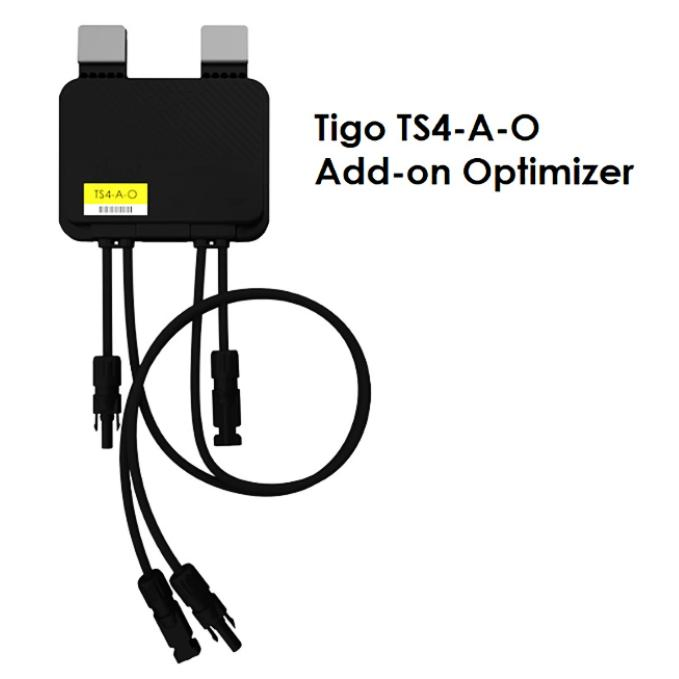

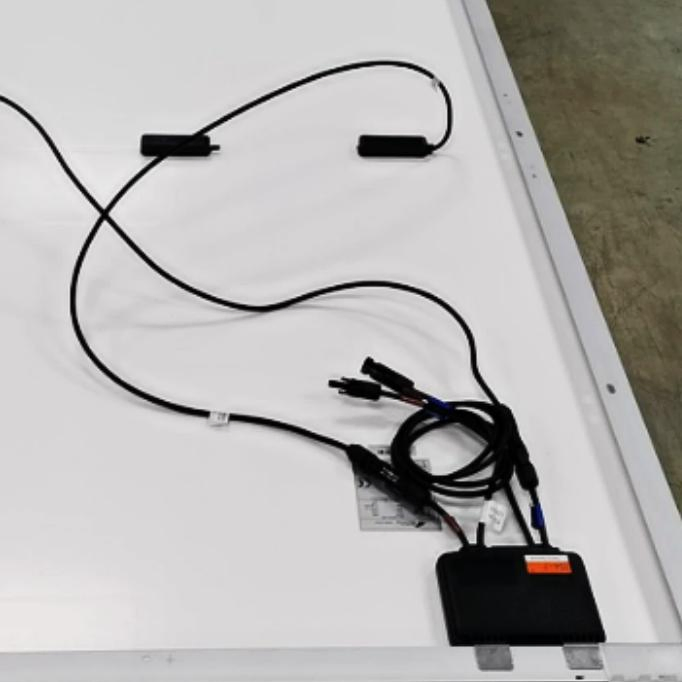

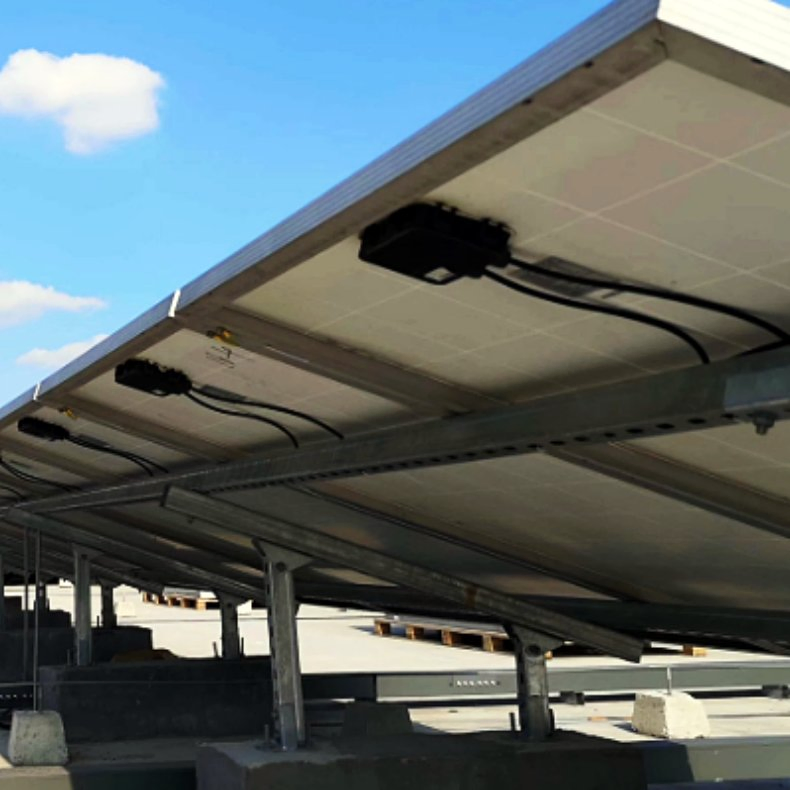

Tigo Optimizer Power Solar Panel 700W Solar Panels Optimizer
Tigo Optimizer Power Solar Panel 700W Solar Panels Optimizer
Tigo Optimizer Power Solar Panel 700W Solar Panels Optimizer
Tigo Optimizer Power Solar Panel 700W Solar Panels Optimizer
Tigo Optimizer Power Solar Panel 700W Solar Panels Optimizer
1 / 5
Tigo Optimizer Power Solar Panel 700W Solar Panels Optimizer
Tigo Optimizer Power Solar Panel 700W Solar Panels Optimizer
Tigo Optimizer Power Solar Panel 700W Solar Panels Optimizer
Tigo Optimizer Power Solar Panel 700W Solar Panels Optimizer
Tigo Optimizer Power Solar Panel 700W Solar Panels Optimizer

Tigo Optimizer Power Solar Panel 700W Solar Panels Optimizer

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Overview & Basic Info

Model NO.
TS4-A-O
IP Rating
IP68
Certification
ISO, CCC, CE, RoHS, TUV
Function
Improving Power Generation
MOQ
20PCS
Outdoor Rating
IP68, NEMA 3r
Weight
520g
Max Input Voltage
80V
Input Voltage Range
16 - 80V
Maximum Current
15A
Dimensions
138.4*139.7* 22.9mm
HS Code
8517623990

Advantages of Solar Optimizer

✓
Module-level Max. Power Point Tracking (MPPT), 5-25% more power yield
✓
Real-time panel monitoring, timely warning and alert
✓
Secure solar system, remote shutdown, elimination of high voltage danger
✓
Module added-on, compatible with third party inverter, available for the new or existing solar plant
✓
Flexible system design for max. space utilization
✓
25 years lifespan, perfectly matching the solar module

Application of solar power optimizer

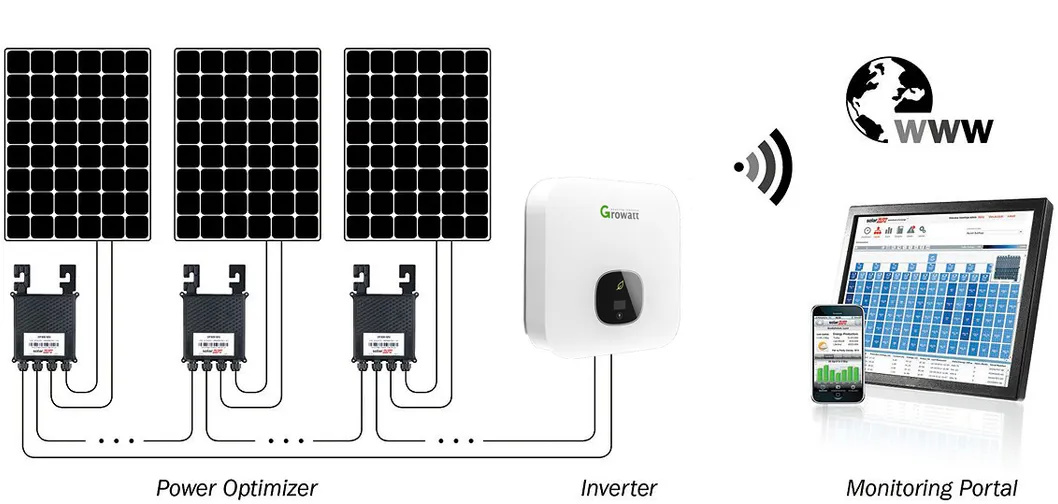

Solar Power Optimizer Application

Technical Specifications

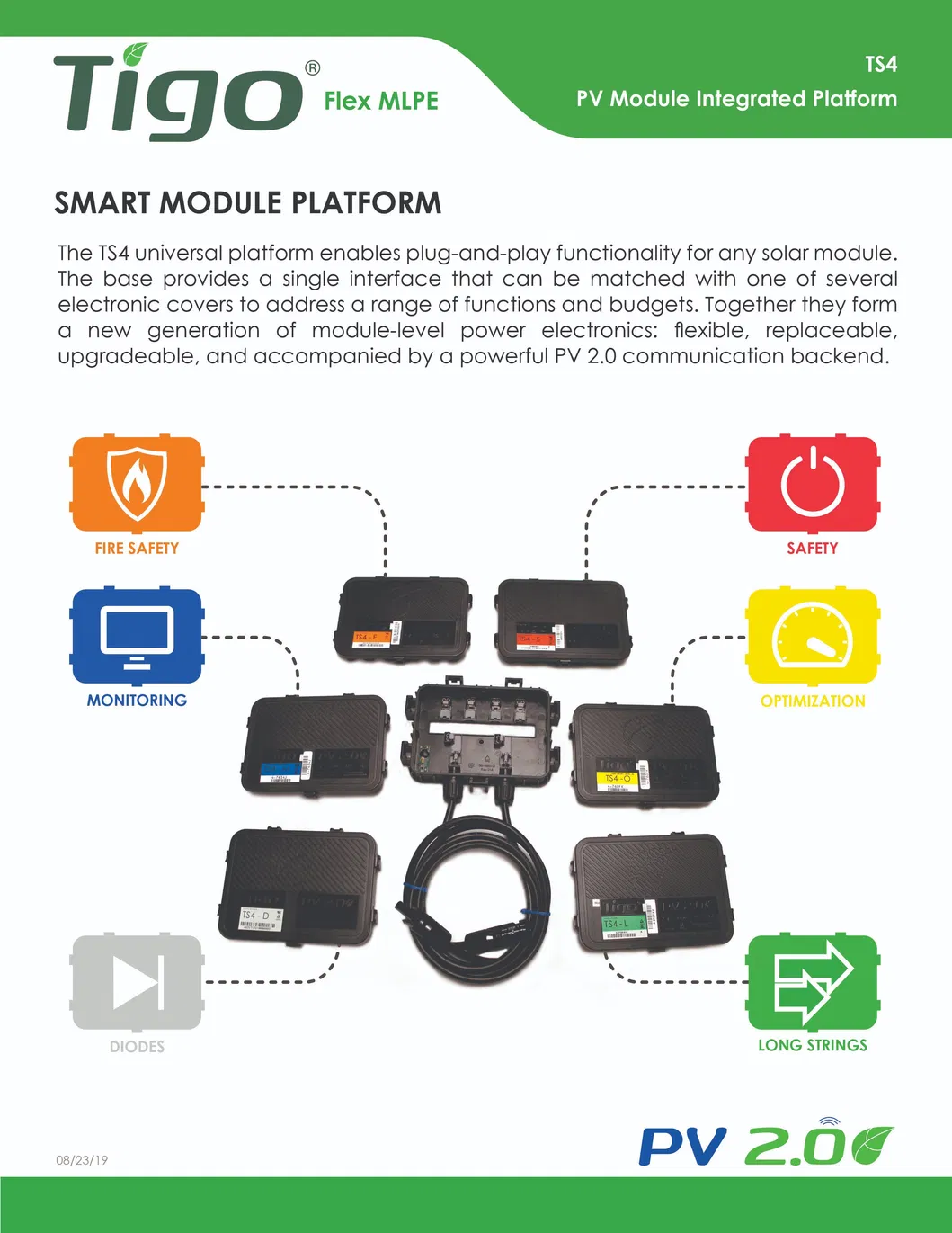

Specification Part 1

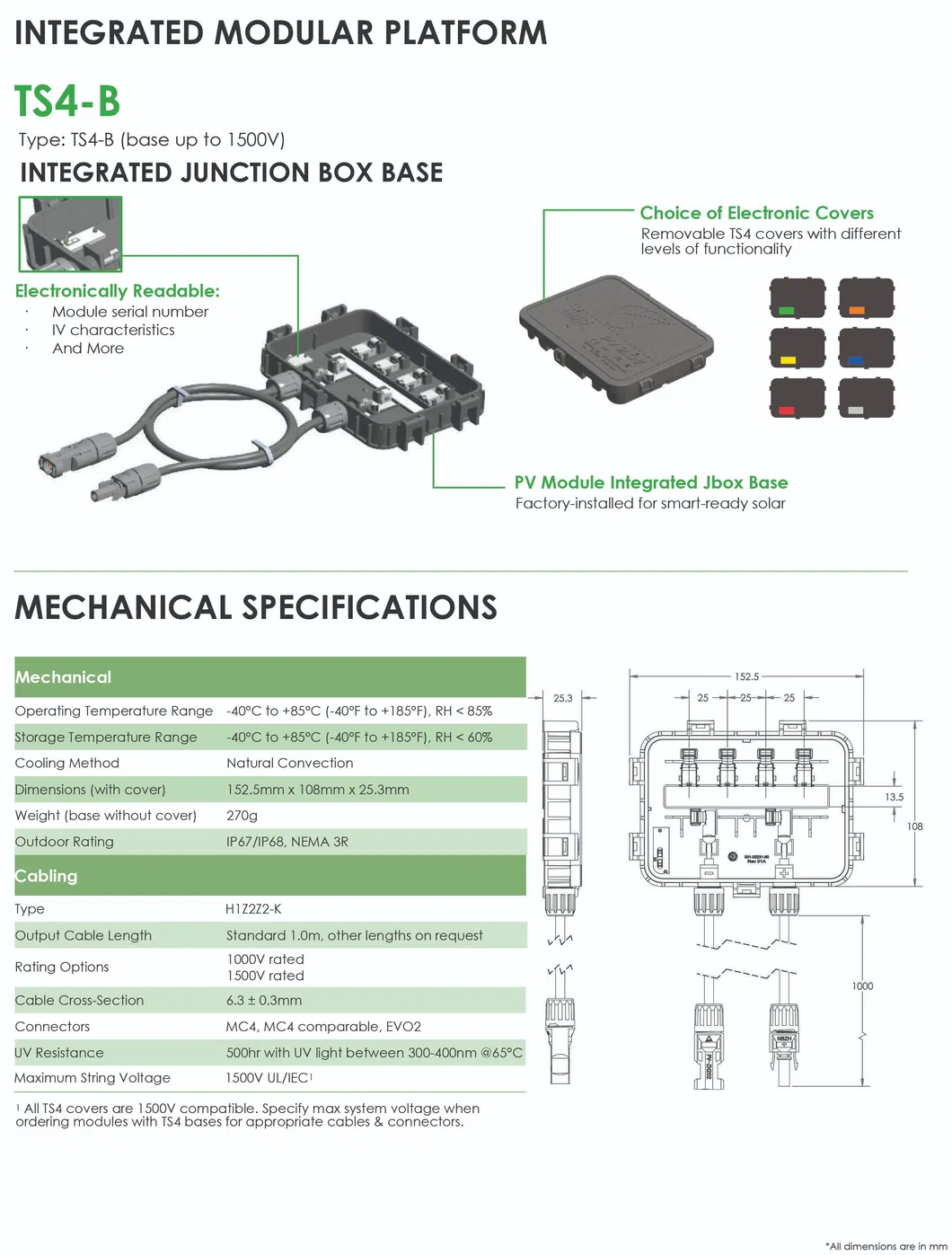

Specification Part 2

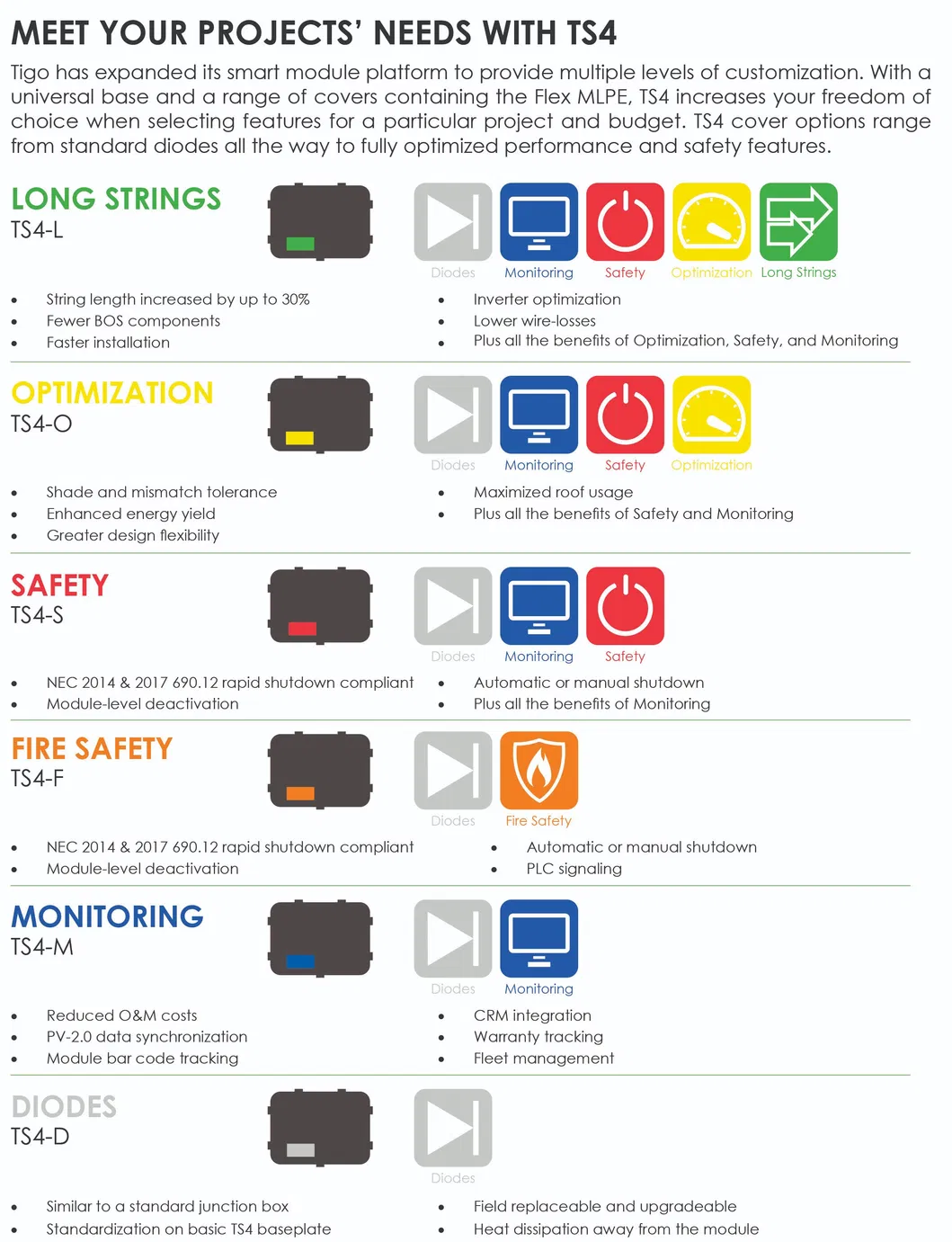

Specification Part 3

Project Show

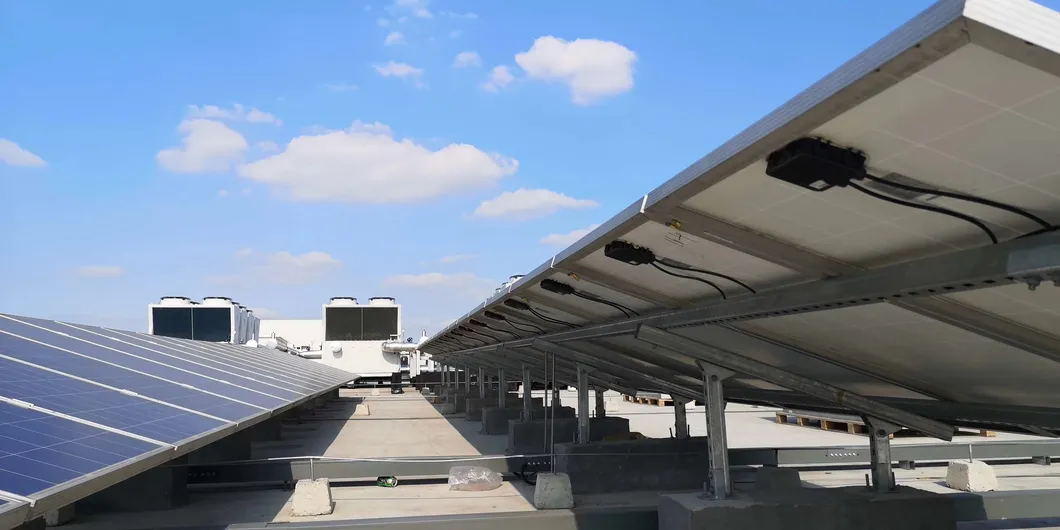

Solar Project Display 1

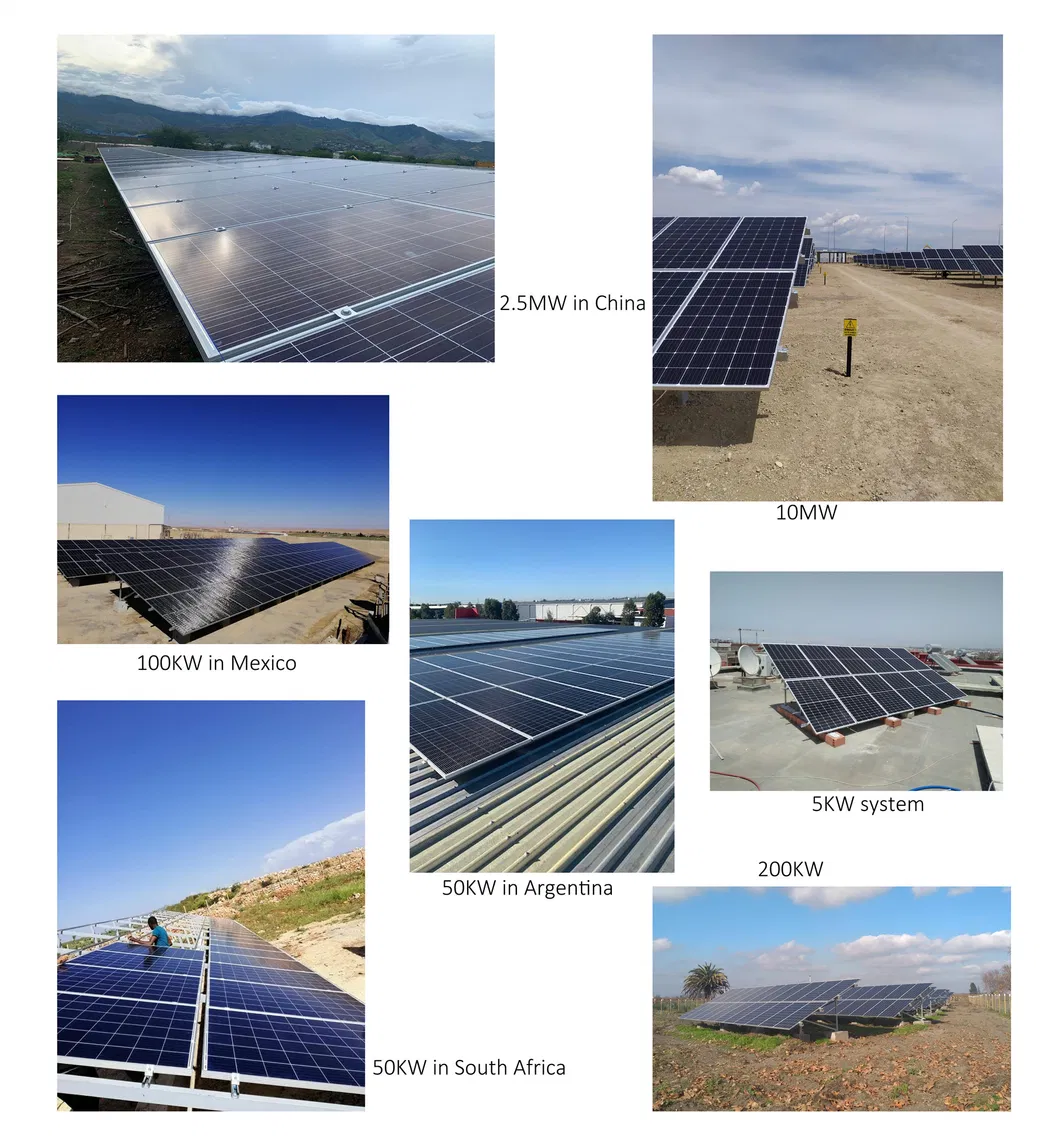

Solar Project Display 2

Frequently Asked Questions

What is the lead production time?
The typical production lead time is approximately 10 to 15 days.
What quality standards are used for these optimizers?
We use A-grade materials for all components and final products to ensure maximum efficiency and durability.
What are the available payment terms?
We accept various payment methods including T/T, L/C, and Paypal. Trading terms can be FOB, CIF, CFR, DDU, or DDP.
Is the optimizer compatible with other inverters?
Yes, the solar optimizer is designed to be module-added and is fully compatible with third-party inverters, making it suitable for both new and existing solar plants.
What is the expected lifespan of the product?
The optimizer has a 25-year lifespan, which perfectly matches the typical lifecycle of standard solar modules.
How does the optimizer improve power generation?
It uses module-level Maximum Power Point Tracking (MPPT) to optimize each panel individually, which can increase overall power yield by 5-25%.
