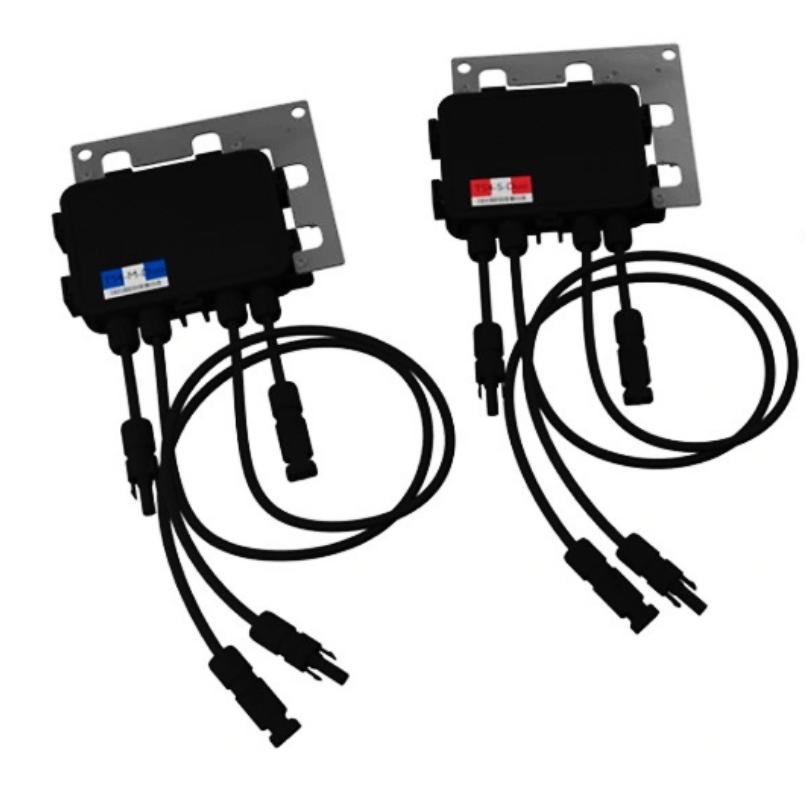

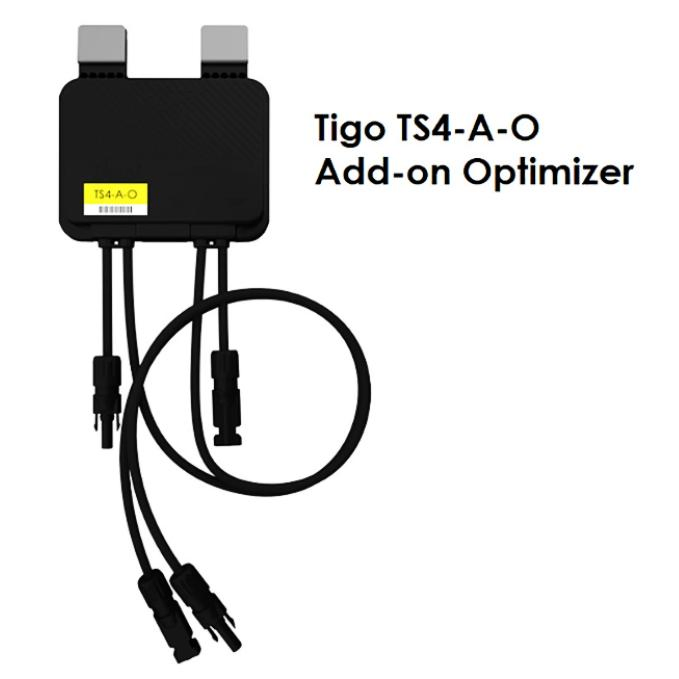

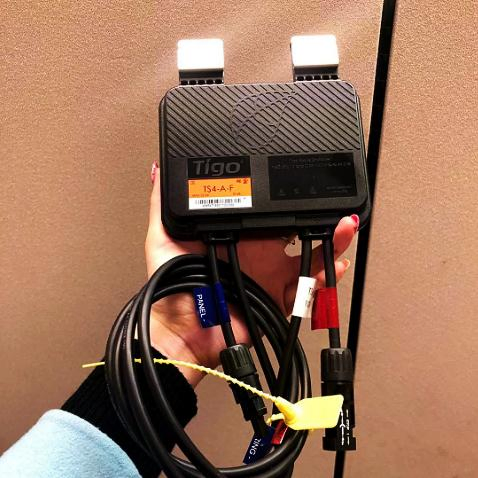

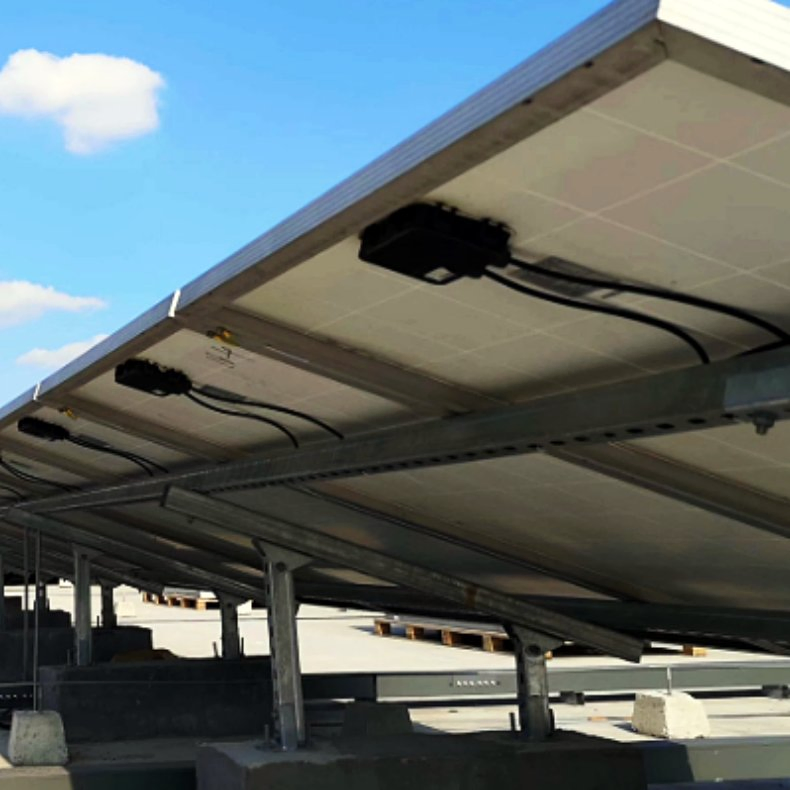

Solar Power 700W Optimizer for Increasing Yield From Solar Energy System Improving Power Generation

Customization: Available
Type: Waterproof Junction Box
Material: ABS

Product Description

Basic Specifications
Model NO.
TS4-A-O
IP Rating
IP68
Certification
ISO, CCC, CE, RoHS
Function
Improving Power Generation
MOQ
20PCS
Outdoor Rating
IP68, NEMA 3r
Weight
520g
Max Input Voltage
80V
Input Voltage Range
16 - 80V*
Maximum Current
15A
Production Capacity
10000PCS/Month
Specification
138.4*139.7* 22.9mm
Product Advantages
  • Module-level Max. Power Point Tracking (MPPT), achieving 5-25% more power yield.
  • Real-time panel monitoring with timely warnings and alerts.
  • Secure solar system featuring remote shutdown to eliminate high voltage danger.
  • Module added-on design, compatible with third-party inverters for new or existing plants.
  • Flexible system design for maximum space utilization.
  • 25-year lifespan, perfectly matching the solar module durability.

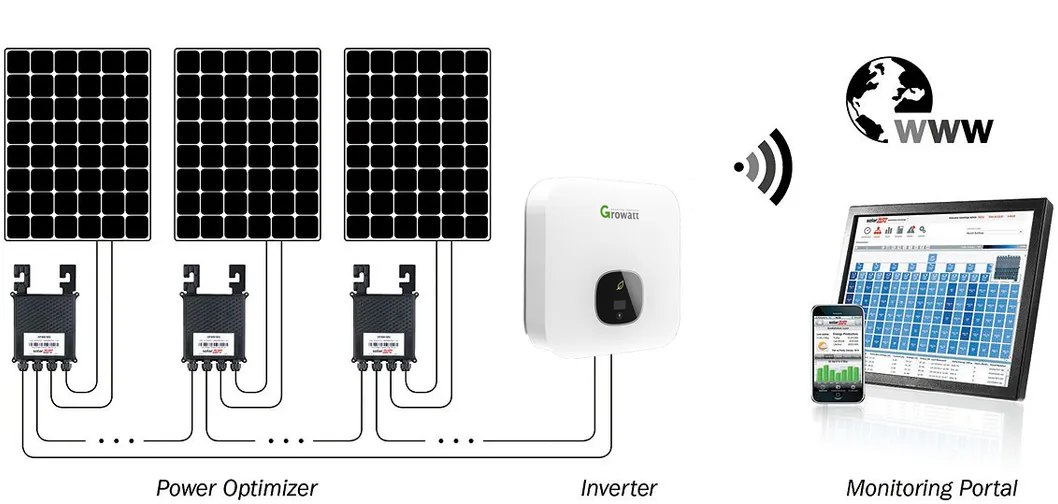

Application of solar power optimizer
Technical Specifications

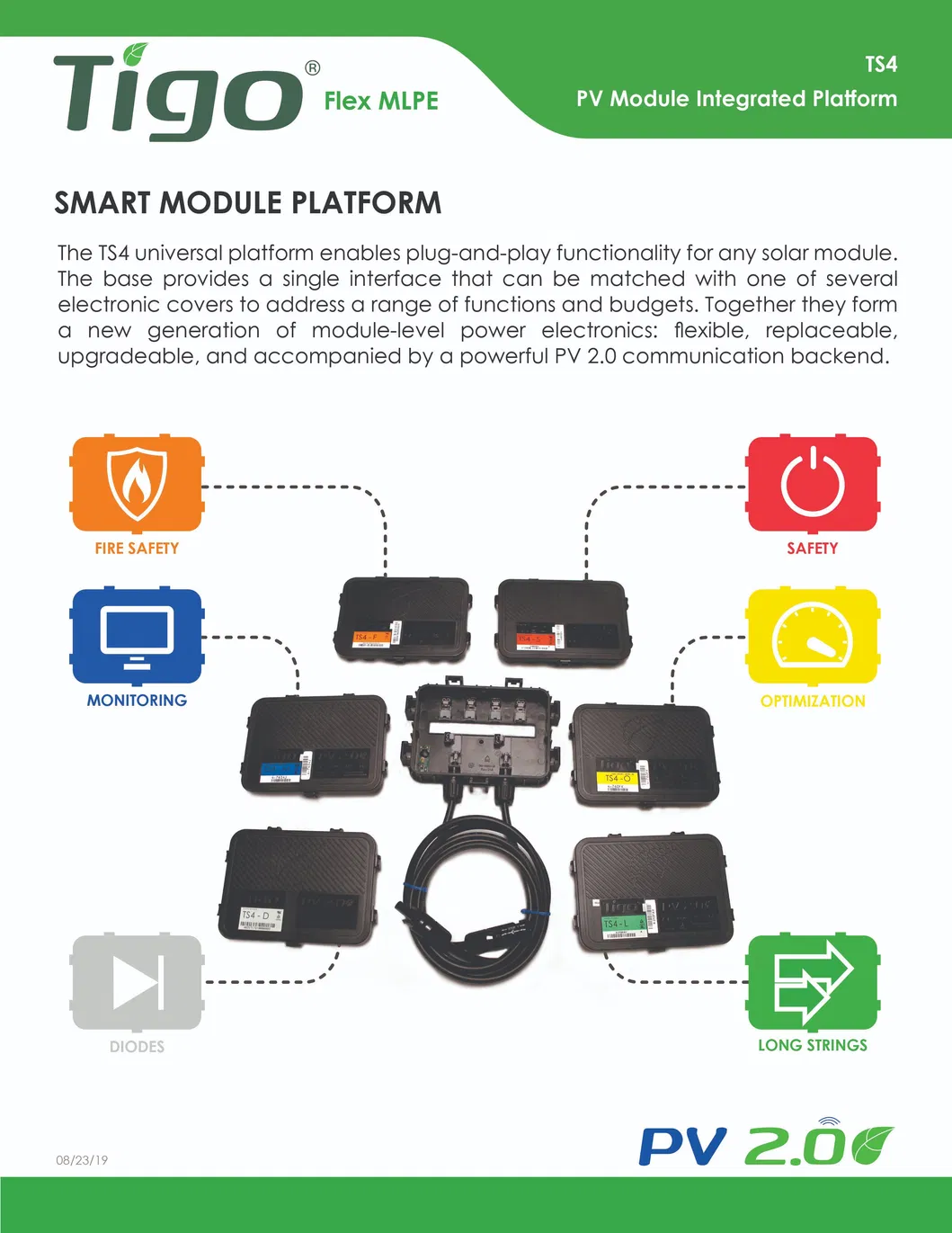

Technical Data 1

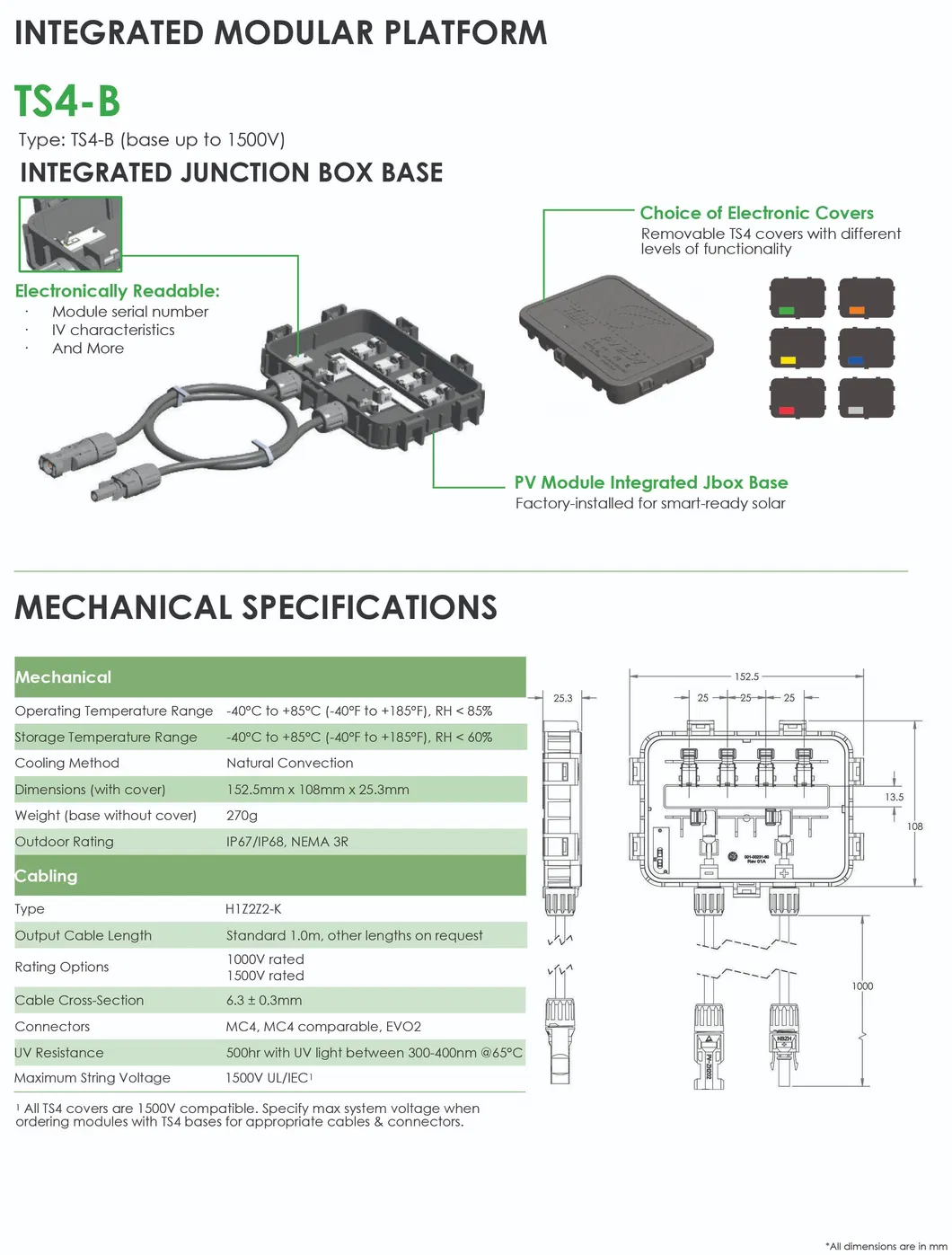

Technical Data 2

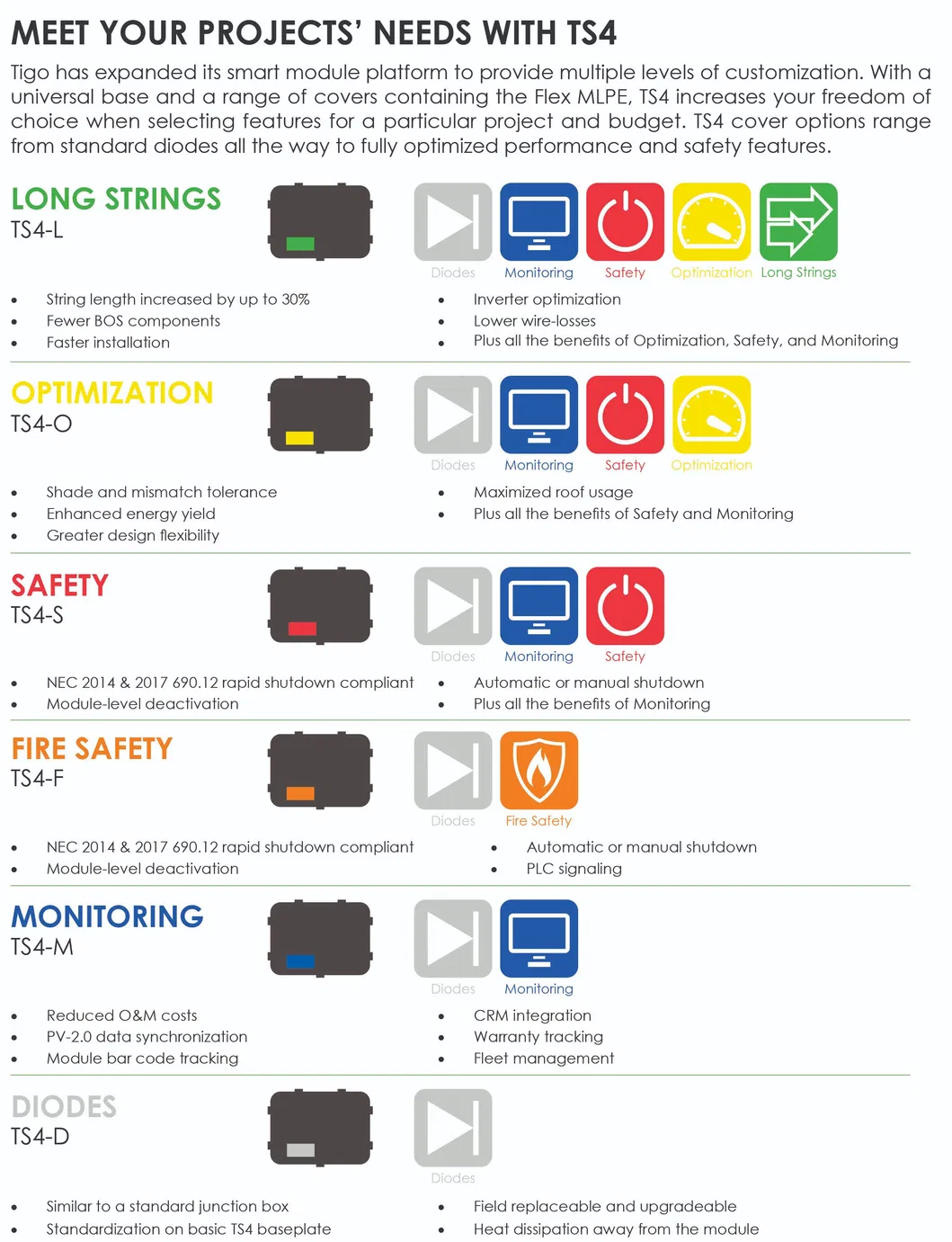

Technical Data 3

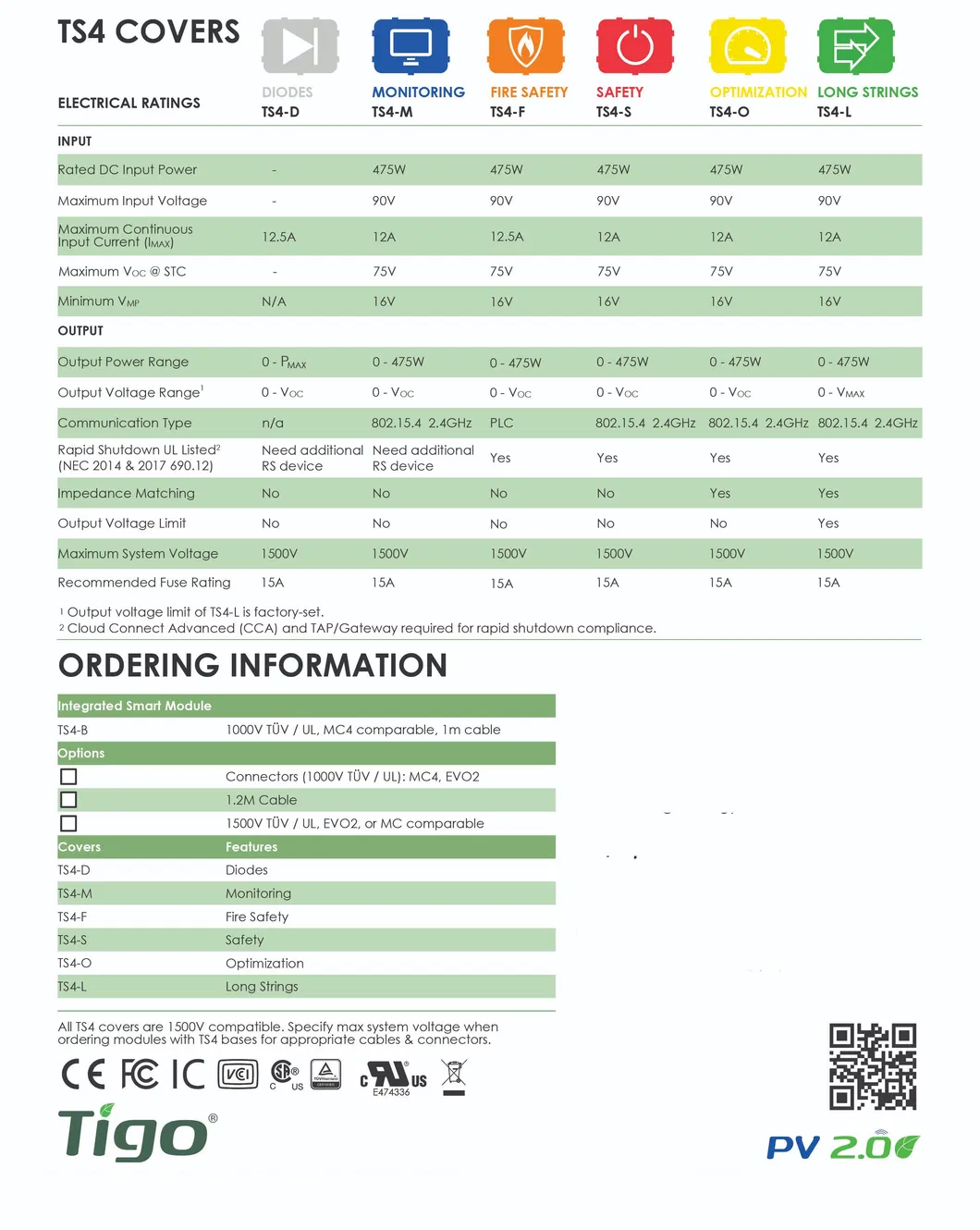

Technical Data 4
Project Showcase

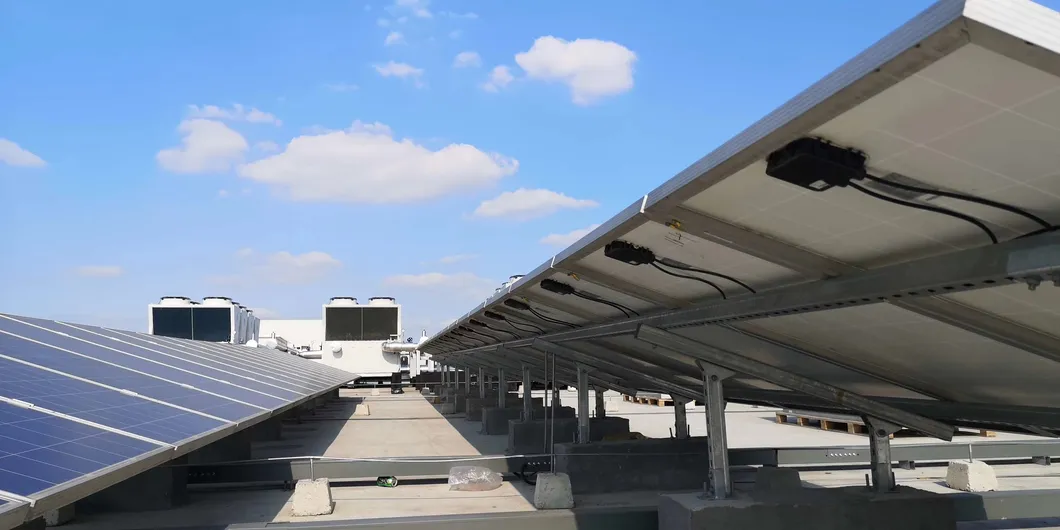

Project Example 1

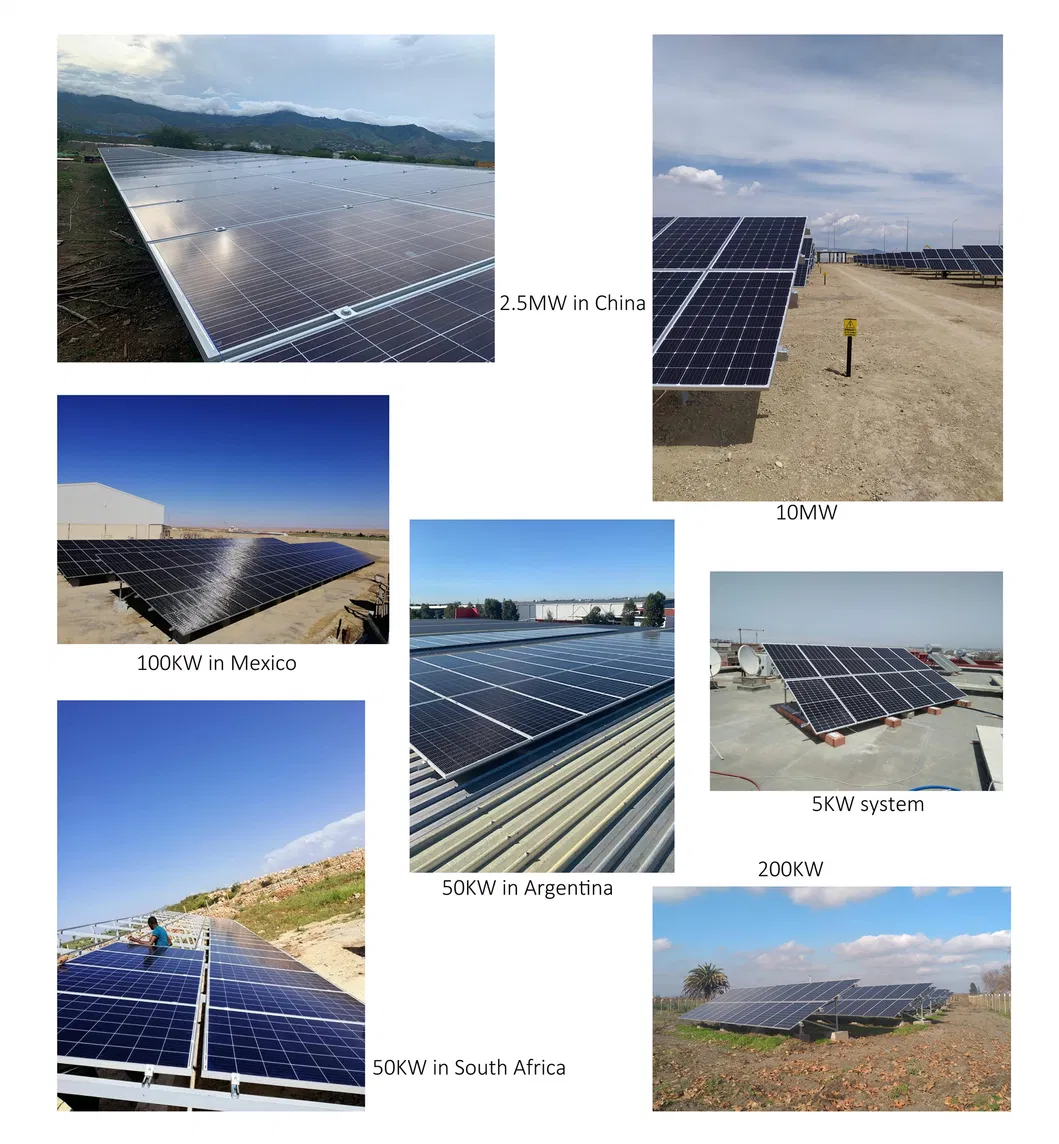

Project Example 2
Frequently Asked Questions
1. What is the typical lead time for production?
The lead production time is generally between 10 to 15 days depending on the order volume.
2. What quality standards do your products meet?
Our products are strictly oriented toward high quality, utilizing A-grade materials for all final components and products.
3. What payment and trade terms are available?
We accept various payment terms including T/T, L/C, and Paypal. Available trade terms include FOB, CIF, CFR, DDU, and DDP.
4. Where are the main ports of loading located?
Products are primarily loaded and shipped from Ningbo or Shanghai ports in China.
5. What are the delivery and shipment options?
Delivery can be arranged by sea or by train where applicable, partnering with major carriers such as OOCL, MSK, and ONE.
