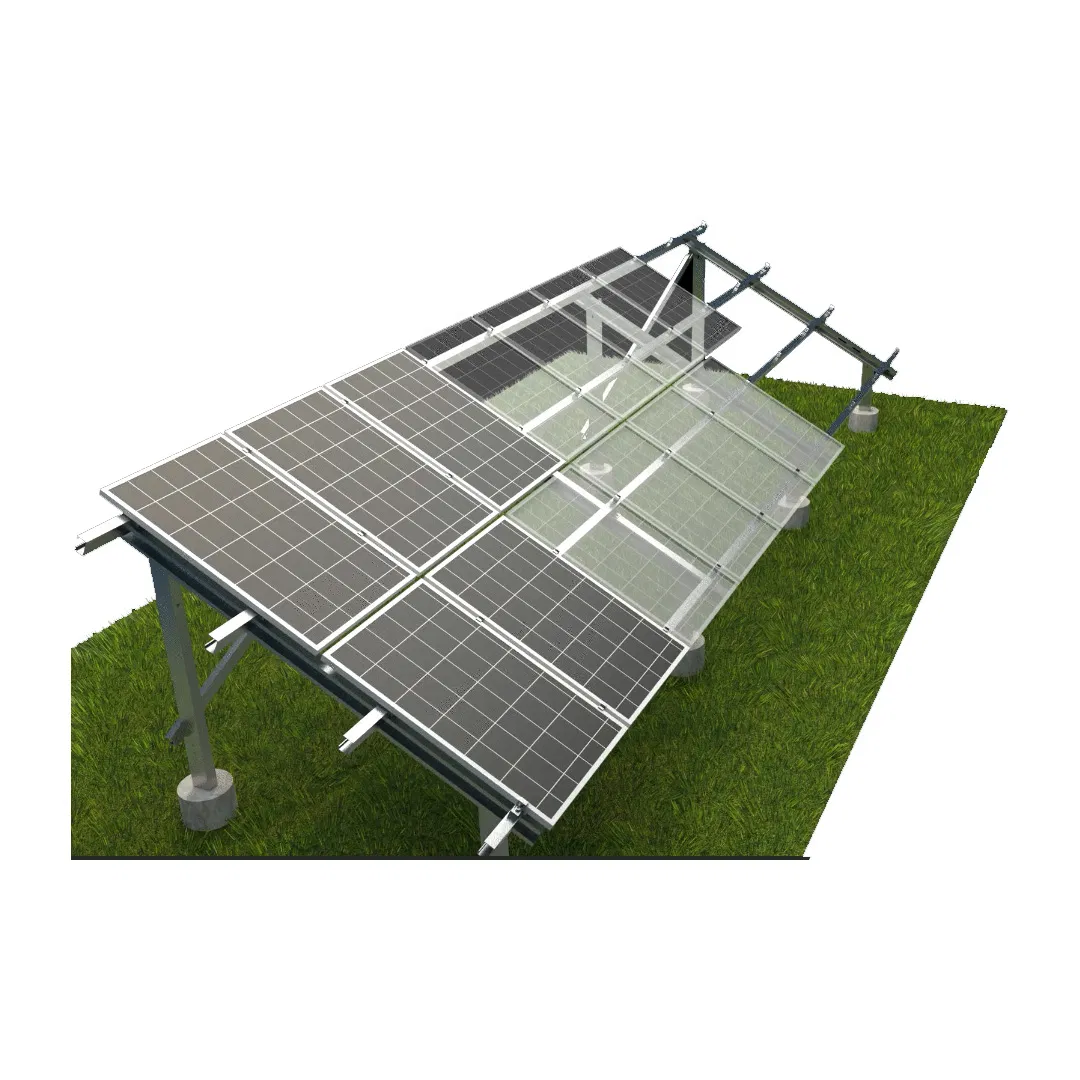

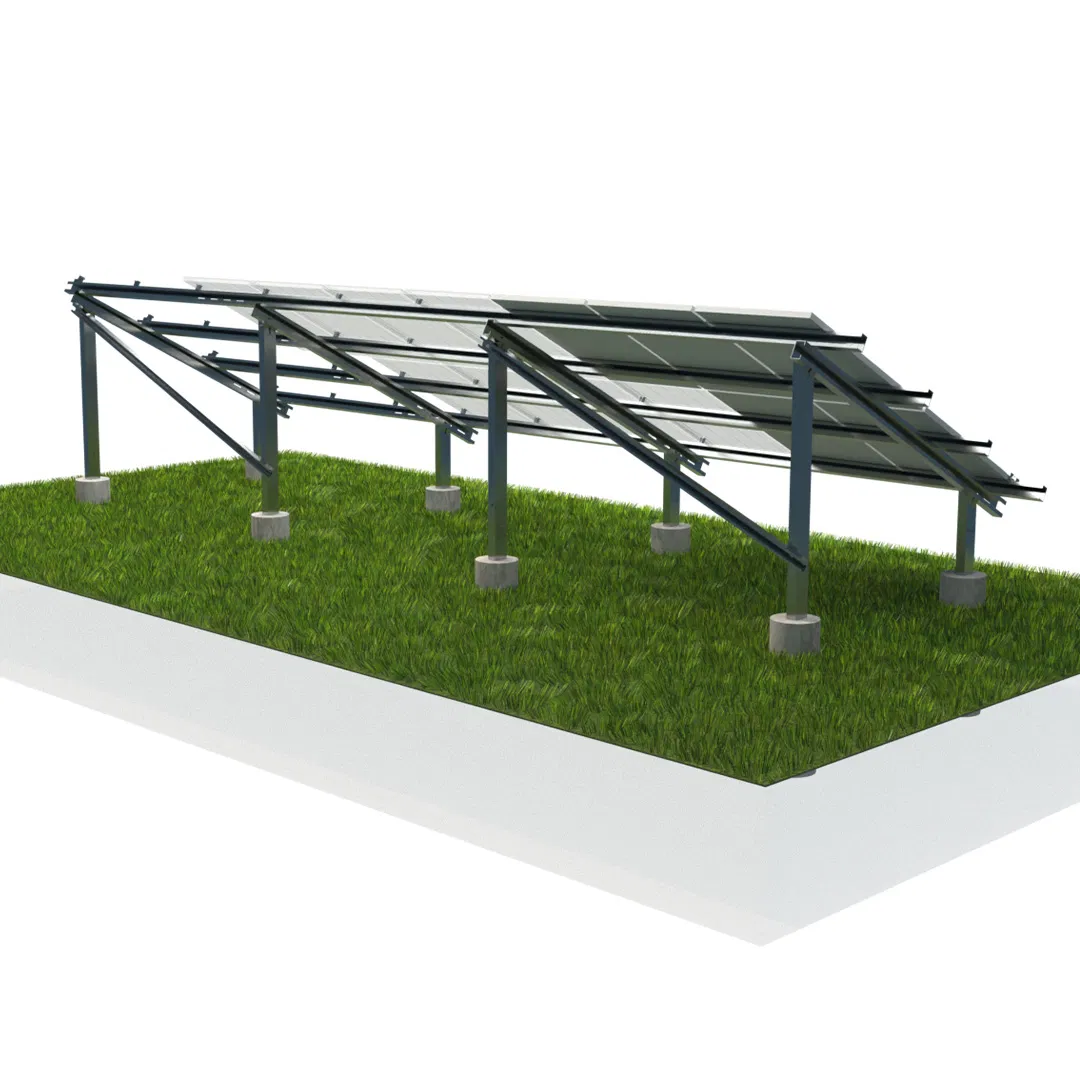

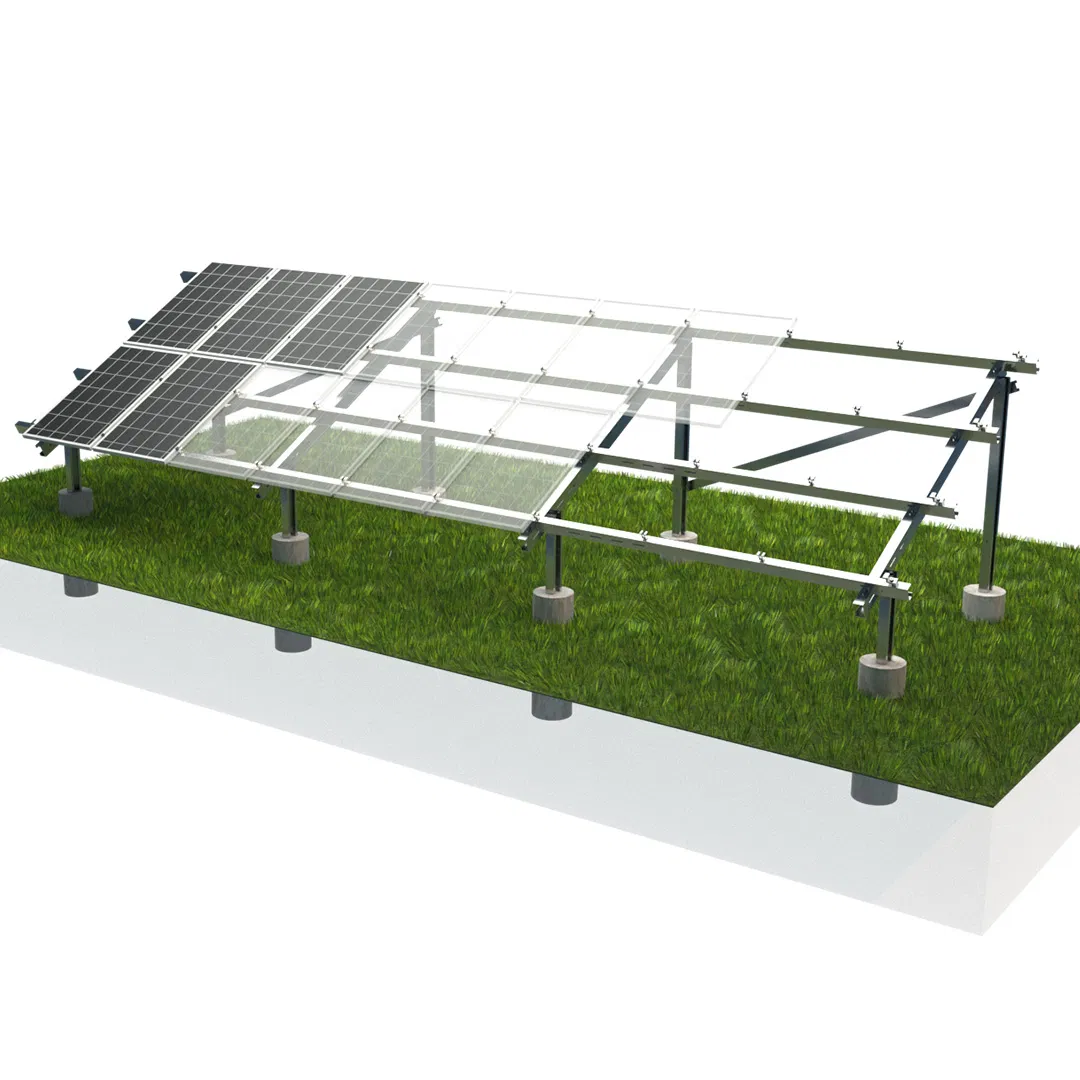

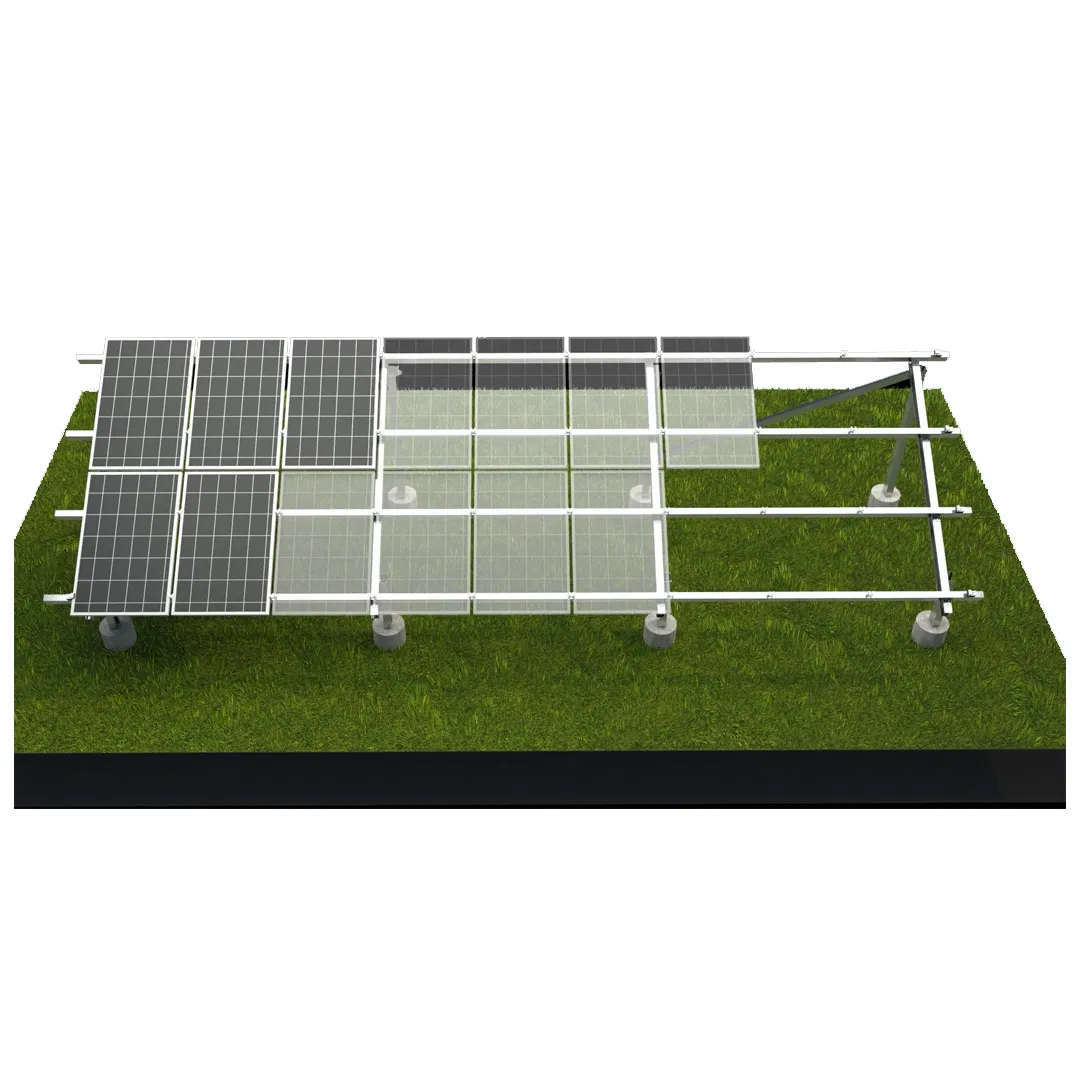

Solar Panel Racking Ground Mounting PV Concrete Foundation Fixed Structure
Solar Panel Racking Ground Mounting PV Concrete Foundation Fixed Structure
Solar Panel Racking Ground Mounting PV Concrete Foundation Fixed Structure
Solar Panel Racking Ground Mounting PV Concrete Foundation Fixed Structure
Solar Panel Racking Ground Mounting PV Concrete Foundation Fixed Structure
1 / 5
Solar Panel Racking Ground Mounting PV Concrete Foundation Fixed Structure
Solar Panel Racking Ground Mounting PV Concrete Foundation Fixed Structure
Solar Panel Racking Ground Mounting PV Concrete Foundation Fixed Structure
Solar Panel Racking Ground Mounting PV Concrete Foundation Fixed Structure
Solar Panel Racking Ground Mounting PV Concrete Foundation Fixed Structure

Solar Panel Racking Ground Mounting PV Concrete Foundation Fixed Structure

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋
Basic Information
Material
Steel
Type
Ground Bracket
Standard
DIN, ASTM/ASME, JIS, En, ISO, as, GB
Finishing
Zinc, HDG, Sandblasting
Certificate
ISO 9001:2015
Delivery Time
7-30 days
Installation Site
Flat Roof, Ground
Wind Load
60m/S
Snow Load
1.6kN/M2
Panel Layout
Portrait or Landscape
Specification
SS304, AL6005-T5
Origin
China
📦
Packaging & Delivery
Package Size
20.00cm * 20.00cm * 20.00cm
Gross Weight
10.000kg
Transport
20-25kg/Cartons + 900kg/Pallets
Capacity
500 ton/Month
☀️
Product Description

Solar Panel Racking Ground Mounting PV Concrete Foundation Fixed Solar Structure

A ground screw (also known as a helical pile or screw pile) is a type of foundation used in solar mounting systems. It is a steel shaft with one or more helical blades that is drilled into the ground to provide a stable foundation for solar panels and related structures.

Technical Parameters
System Name Solar Ground Mounting System Design Standard AS/NZS 1170, DIN 1055, JIS C8955:2017
Installation Site Flat Roof, Ground Building Code IBC 2009 / CBC 2010
Tilt Angle 5-10° Hook Material SUS304
Wind Load 60m/s Fastener SUS304
Snow Load 1.6KN/M² Small Components AL6005-T5(Anodized)
Module Type Framed Warranty 10-year warranty

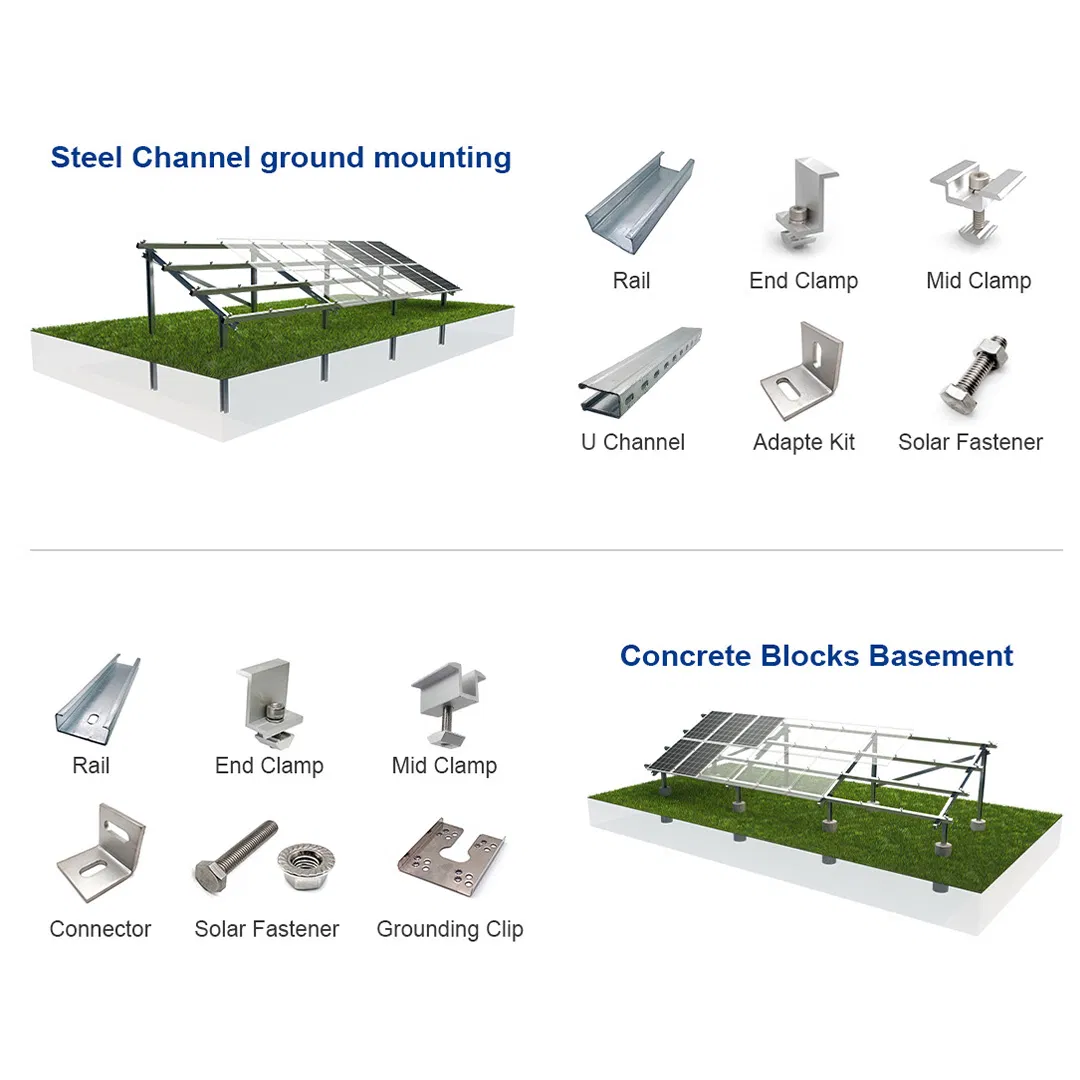

Solar Ground Mounting System Overview
🛠️
Our Services
Professional Manufacturer All fasteners are designed and manufactured according to buyers' specification and performance.
Quality Guaranteed Durability testing and critical technical design to enhance fasteners lifetime.
Cost Effective Competitive prices with professional factory supply.
10 Years Experience Perfect fastening solution with a wide range of parts selection to solve your problems.
Customized Solutions Customized services according to the samples and drawings offered.
🖼️
Product Showcase
Solar Structure Part 1

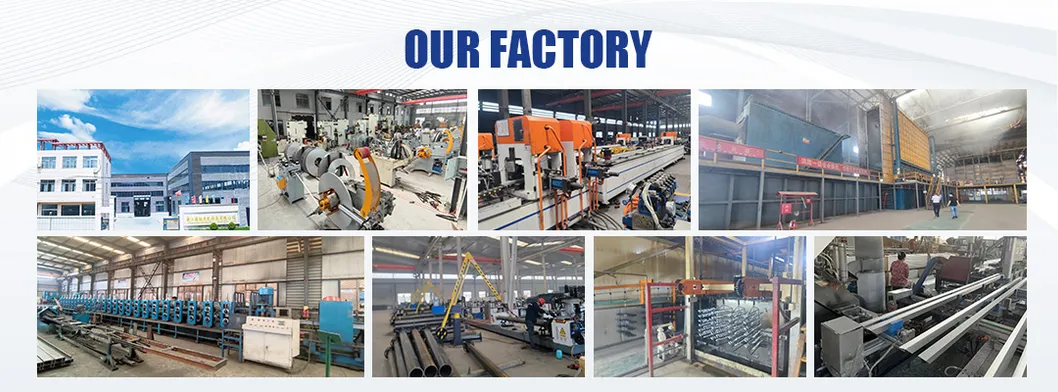

Solar Structure Part 2
Solar Structure Part 3
Solar Structure Part 4
Solar Structure Part 5
❓
Frequently Asked Questions
What is the advantage of using a ground screw foundation?
Ground screws provide a stable, durable foundation without the need for concrete, allowing for faster installation and immediate loading.
What materials are used in the solar mounting system?
We primarily use high-quality Steel, SUS304 stainless steel fasteners, and Anodized Aluminum AL6005-T5 for small components to ensure corrosion resistance.
Can this system withstand extreme weather conditions?
Yes, the system is designed to withstand a wind load of up to 60m/s and a snow load of 1.6kN/M², meeting international standards like AS/NZS 1170.
Is the mounting system compatible with different panel layouts?
Absolutely. Our structure supports both Portrait and Landscape layouts for framed solar modules.
What is the typical lead time for an order?
The delivery time usually ranges from 7 to 30 days depending on the order size and customization requirements.
Do you offer a warranty on the solar racking system?
Yes, we provide a 10-year warranty on our solar ground mounting systems, reflecting our commitment to quality and durability.
