🔍 Product Description

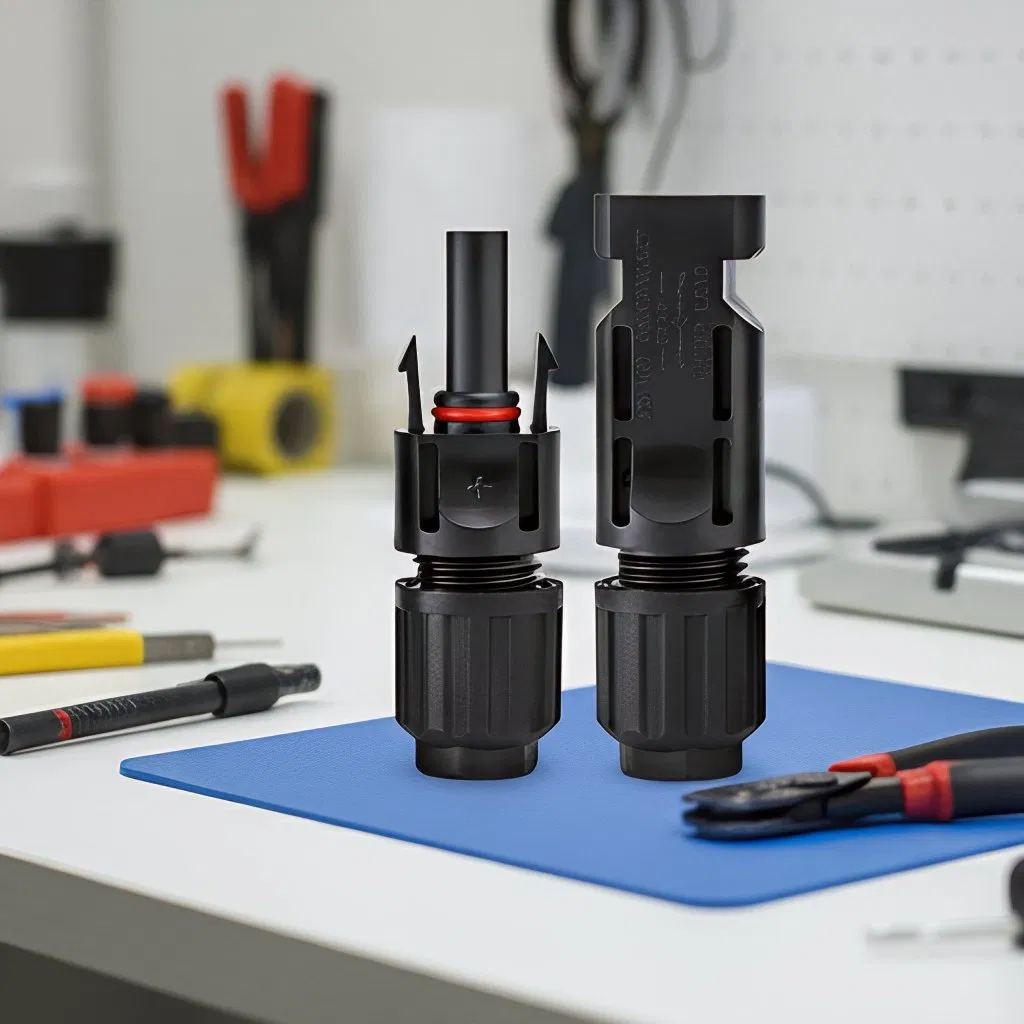

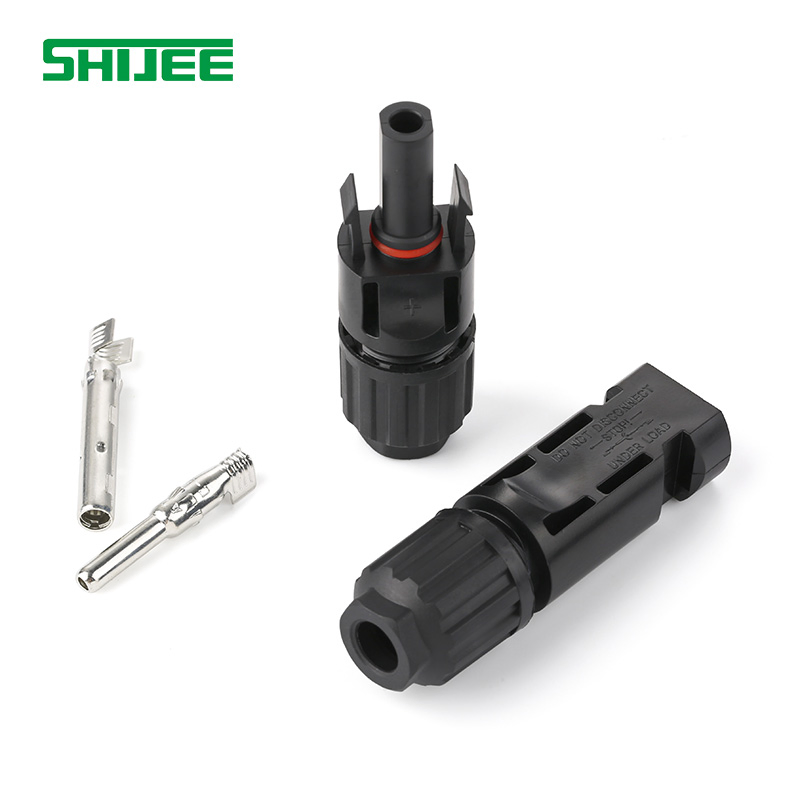

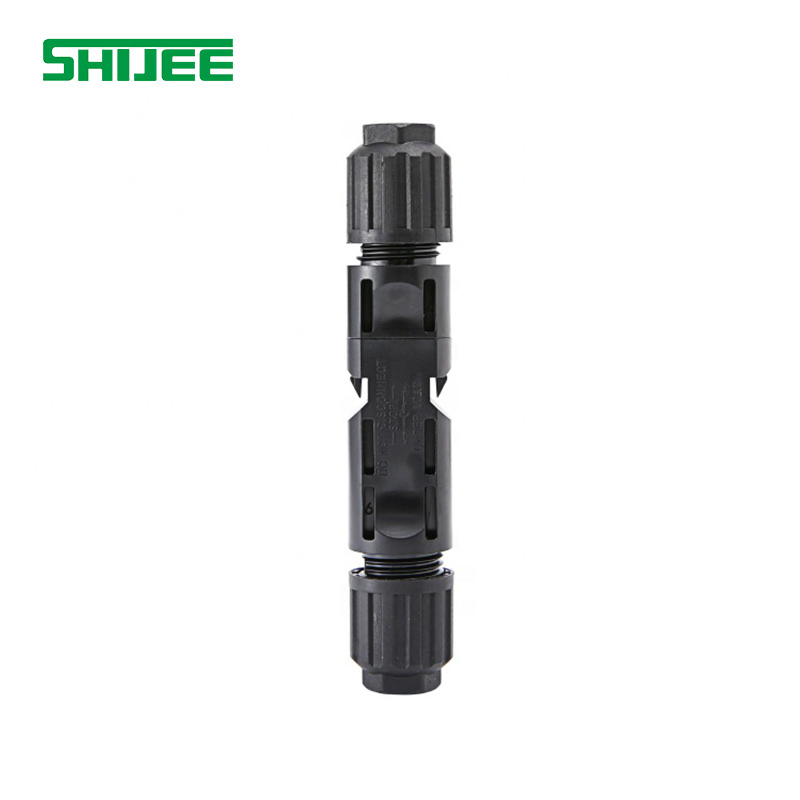

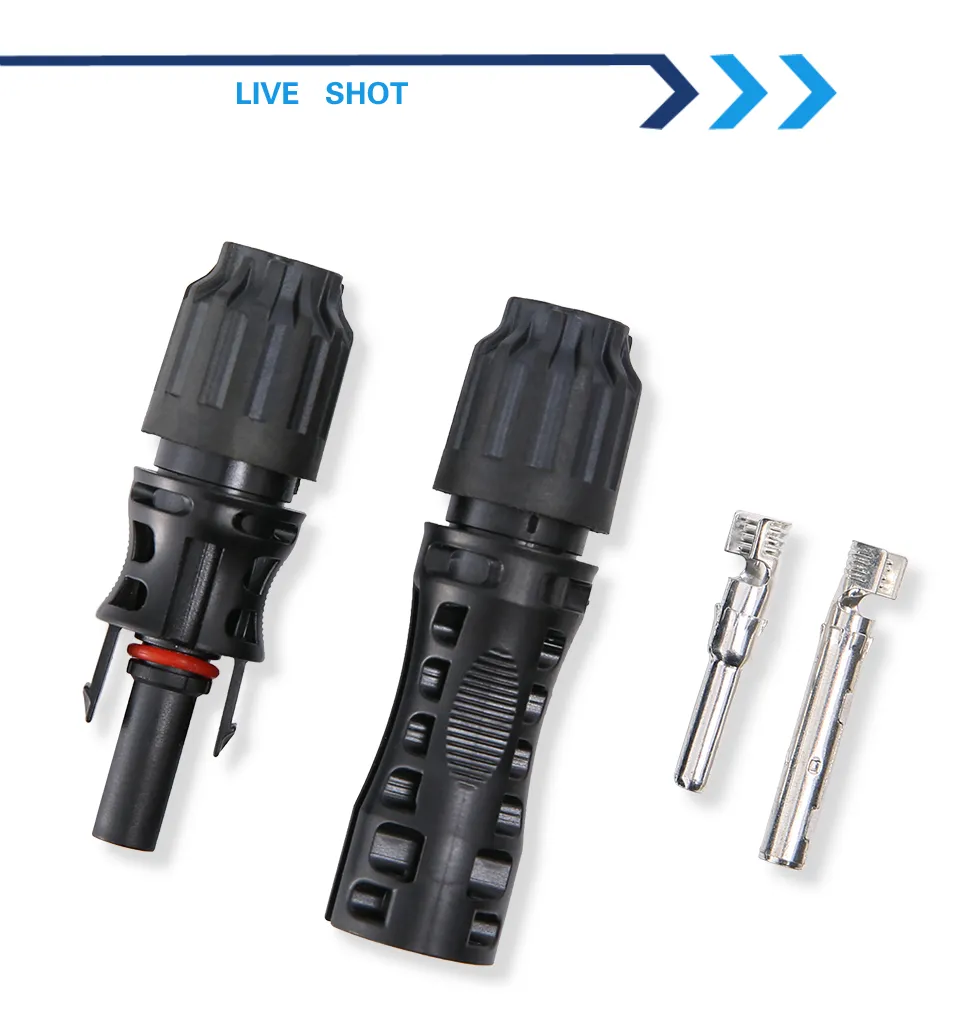

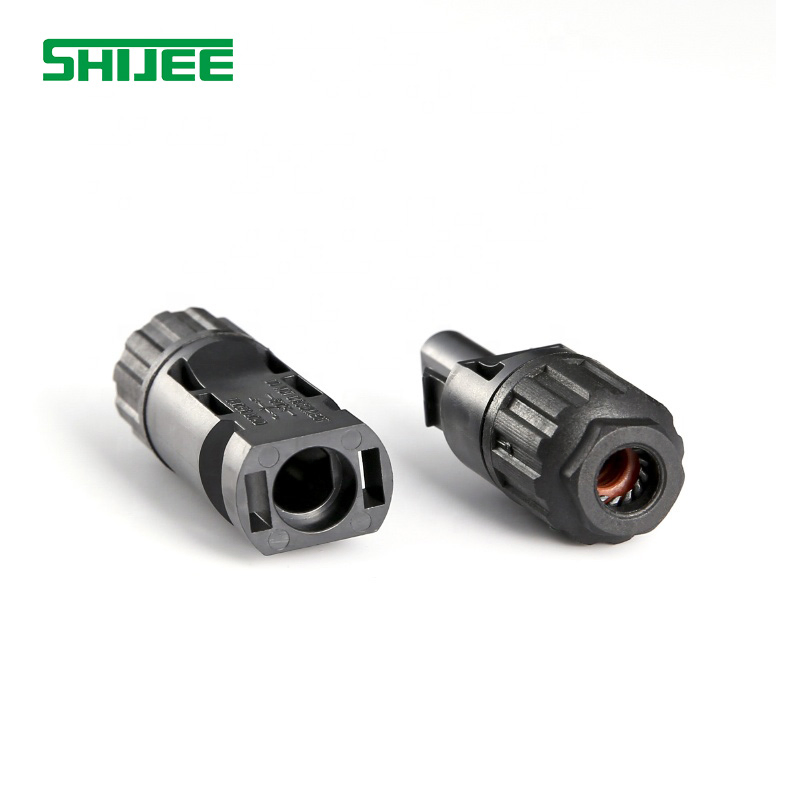

Introducing the PV004, a top-tier DC1500V 35A IP67 Waterproof Connector that redefines excellence in solar technology. Crafted for optimal performance, this solar panel cable connector is made from superior PPO material, ensuring durability and reliability. With a robust IP67 waterproof rating, it provides unmatched protection against the elements, making it ideal for challenging environments. The 35A DC 1500V capacity coupled with a sophisticated tin-plated finish enhances conductivity and efficiency. Experience the pinnacle of high-quality solar panel connectivity.
⚙ Product Parameters
Dive into the impressive specifications of our connector: Featuring an insulation material blend of PC/PPO, this connector is engineered for resilience. It supports a rated current of 35A and upholds a Safety Class II standard for assured safety. With an IP67 waterproof level, it withstands harsh conditions, while operating efficiently through ambient temperatures ranging from -40 to +90 (IEC standards).
| Product Name | PV Connector |
| Insulation Material | PC/PPO |
| Rated Current | 35A |
| Safety Class | II |
| Waterproof Level | IP67 |
| Ambient Temperature | -40~+90(IEC) |
| Upper Temperature Limit | +105 |
| Resistance | ≤0.5Ω |
❓ Frequently Asked Questions
What is the waterproof rating of this PV connector?

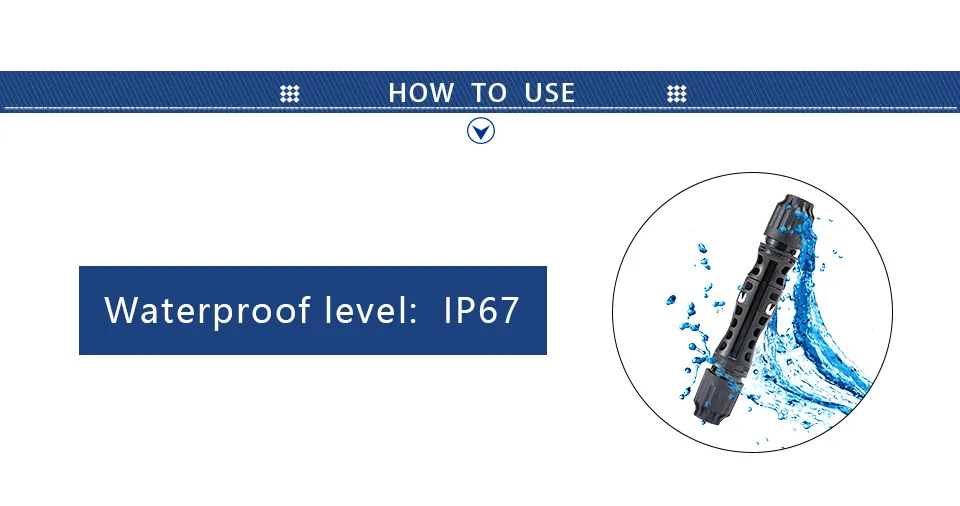

The connector features an IP67 protection rating, ensuring it is fully protected against dust and can withstand temporary immersion in water.
What materials are used in the insulation?
High-quality PPO and PC materials are used to ensure excellent UV resistance and long-term durability in outdoor solar environments.
Can these connectors handle high voltage systems?
Yes, these connectors are rated for 1000V/1500V DC output voltage, making them compatible with modern high-capacity solar installations.
What is the operating temperature range?
The ambient temperature range is -40°C to +90°C (according to IEC standards), with an upper temperature limit of +105°C.
Is the connector compatible with standard MC4 cables?
Yes, it is designed for standard PV solar panel cable connection systems and is compatible with MC4 solar power interfaces.
What is the contact resistance?
The contact resistance is exceptionally low at ≤0.5mΩ, ensuring minimal power loss and high efficiency.
