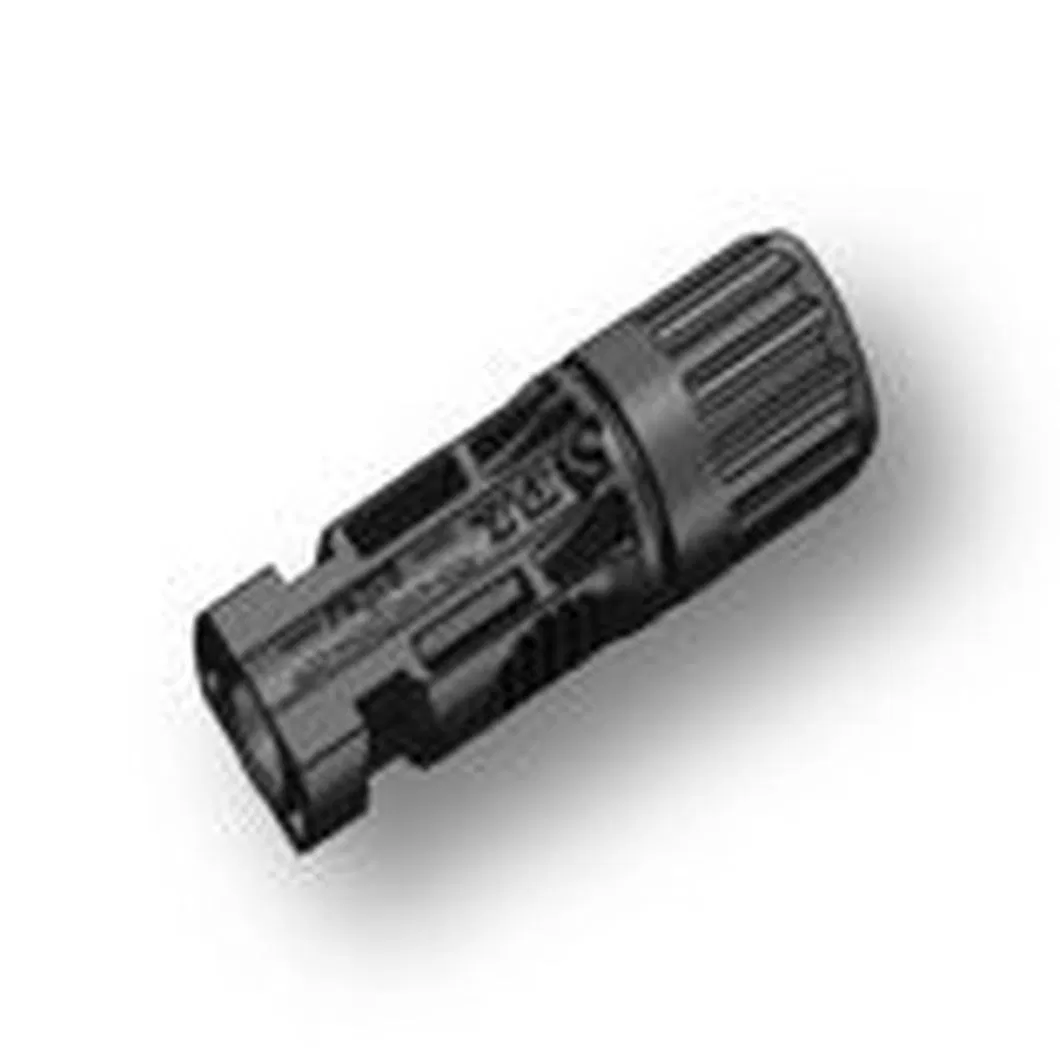

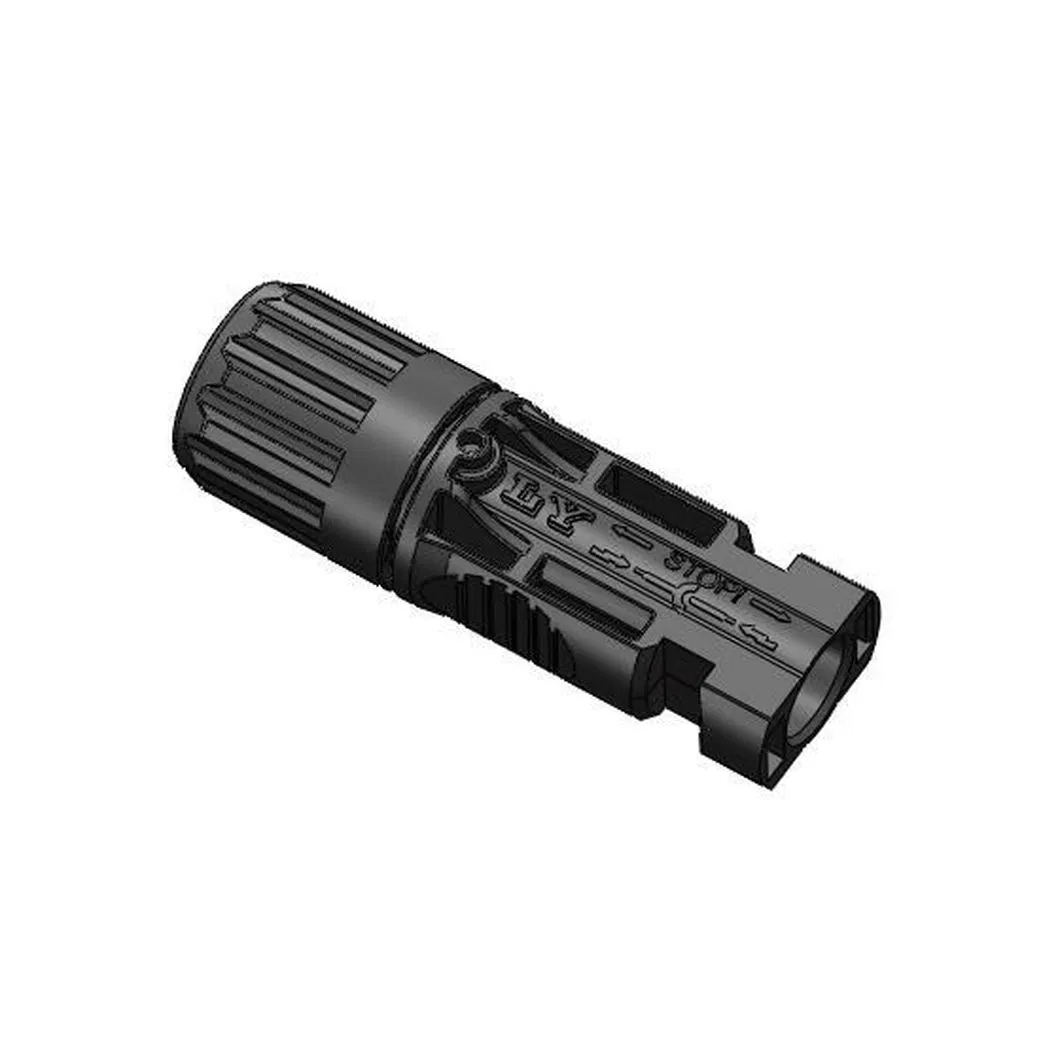

Premium 7mm DC Solar Cable with Heavy-Duty Mc4 Connectors
Premium 7mm DC Solar Cable with Heavy-Duty Mc4 Connectors
Premium 7mm DC Solar Cable with Heavy-Duty Mc4 Connectors
Premium 7mm DC Solar Cable with Heavy-Duty Mc4 Connectors
Premium 7mm DC Solar Cable with Heavy-Duty Mc4 Connectors
1 / 5
Premium 7mm DC Solar Cable with Heavy-Duty Mc4 Connectors
Premium 7mm DC Solar Cable with Heavy-Duty Mc4 Connectors
Premium 7mm DC Solar Cable with Heavy-Duty Mc4 Connectors
Premium 7mm DC Solar Cable with Heavy-Duty Mc4 Connectors
Premium 7mm DC Solar Cable with Heavy-Duty Mc4 Connectors

Premium 7mm DC Solar Cable with Heavy-Duty Mc4 Connectors

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

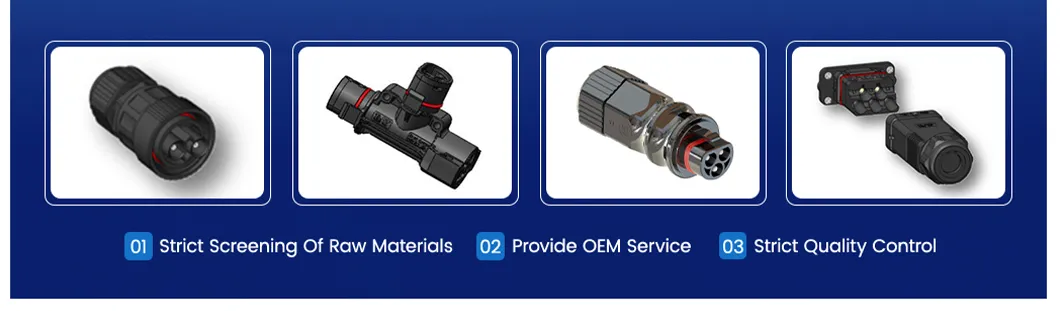

Solar Connector Header Product Overview
📦 Basic Info.
Model NO.PV-C2101-30702
ApplicationPower
CertificationYUV, MSDS, CE, ISO 9001, RoHS
Interface TypeAC/DC
Rated Current40A
Rated Voltage1100 V
ProtectionIP68
OriginChina
🔍 Product Description
DC Connector Detail

Available Interconnect Solutions:

  • Cable Male/Female Connectors
  • Board Male/Female Connectors
  • Clip Type & Latch Type Board Connectors
  • 10 Pole Board Connectors
  • Waterproof Quick Connectors
  • DC Tee & DC Board Connectors
We are committed to providing customers with professional interconnect solutions. The product layout covers photovoltaic DC, AC, communication, energy storage, industrial wiring harness, and non-standard product customization.
📊 Technical Parameters
Product NameDC Cable Male Connector
ModelPV-C2101-30702
Pins Number1P
Impulse Voltage8000 V
Insulation Resistance500 MΩ
Cable Specification2.5 - 6.0 mm²
Wiring MethodCrimping
CustomizationOEM & ODM / Logo Custom Accept
🖼️ Detailed Photos

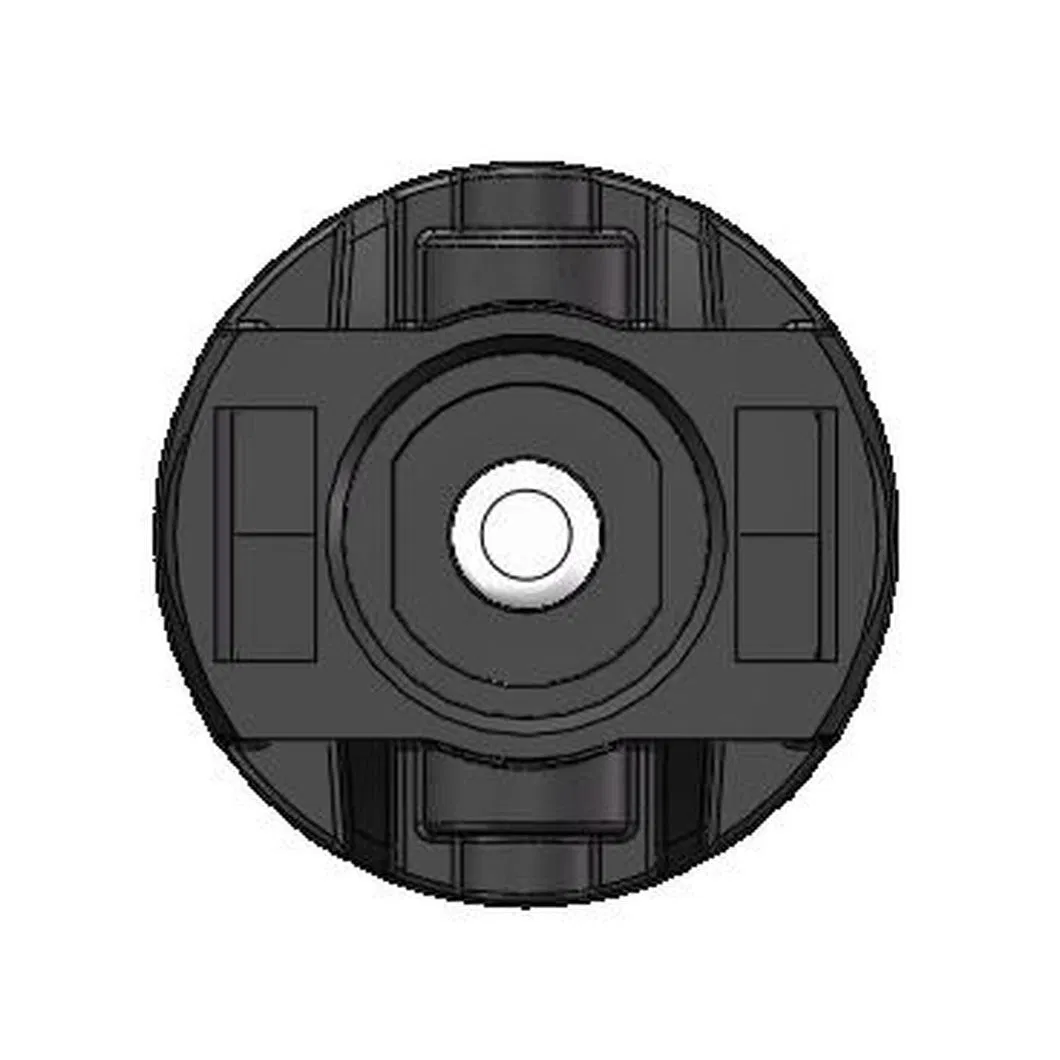

Connector 1 Connector 2 Connector 3

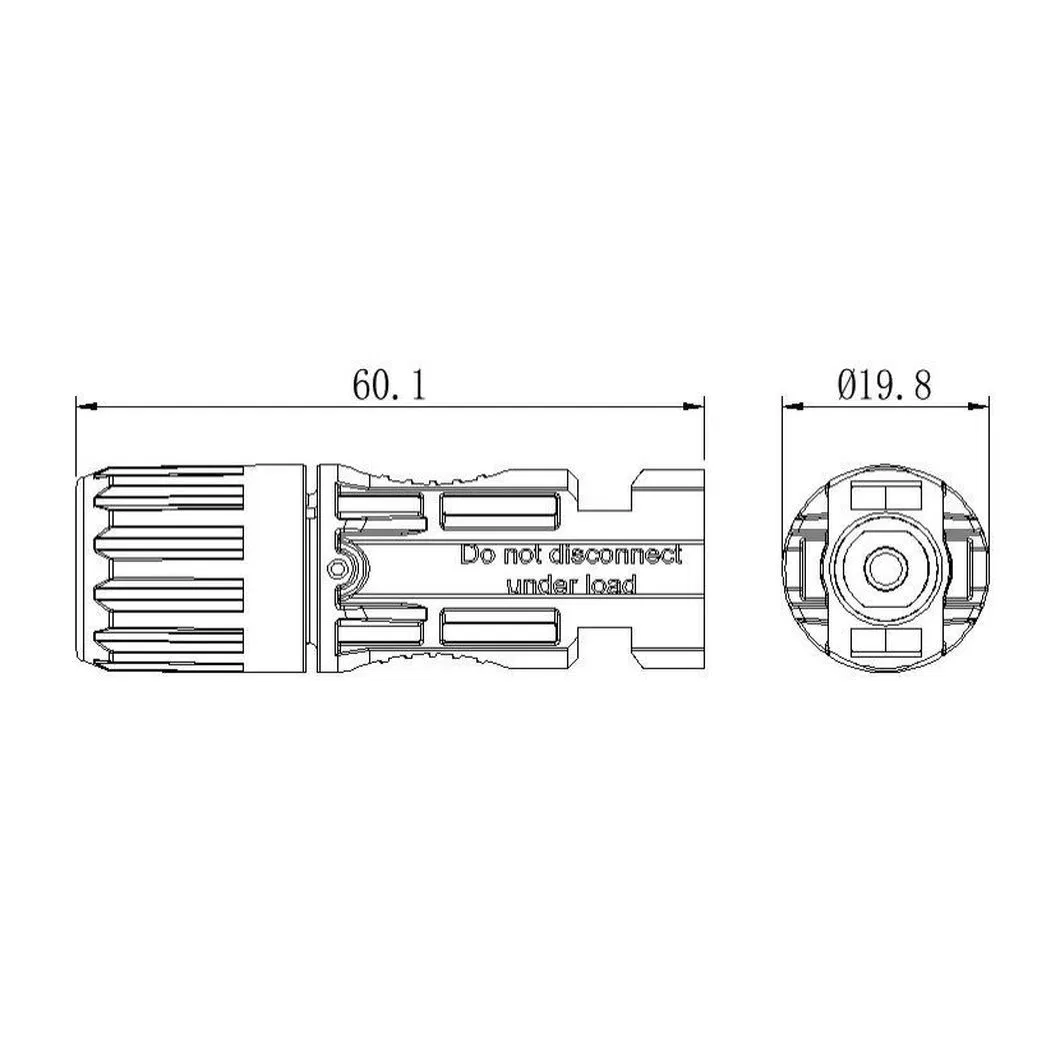

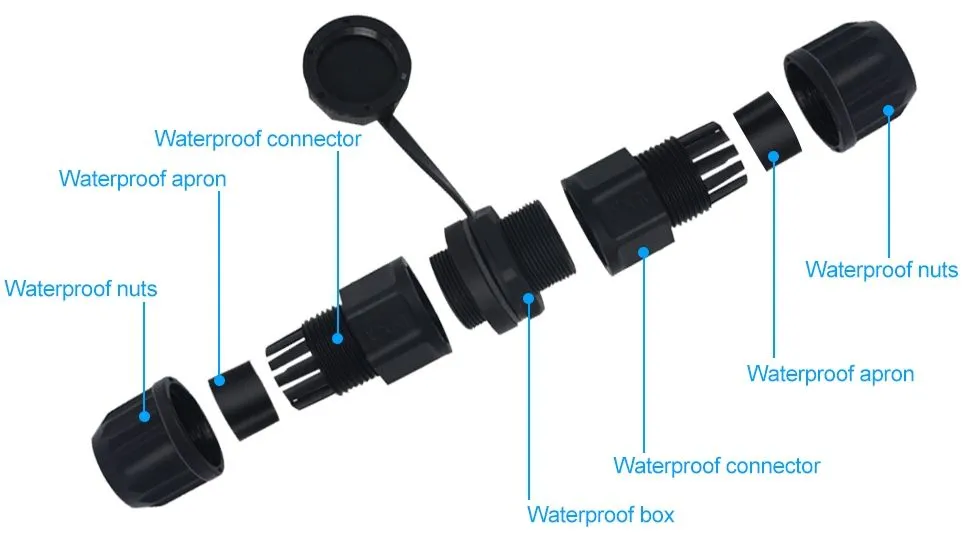

Schematic Application Specifications Diagram Installation Size Detail Packaging Certifications
❓ FAQ
What is the protection rating for these connectors?
These connectors are rated at IP68, ensuring high protection against dust and water immersion.
What cable sizes are compatible with the DC Cable Male Connector?
The connectors are designed for cable specifications ranging from 2.5 mm² to 6.0 mm².
Do you support custom logo branding?
Yes, we accept Logo customization and OEM/ODM services for our connectors.
What is the maximum rated current?
The rated current for this model (PV-C2101-30702) is 40A.
Is a sample order accepted?
Yes, we accept sample requests and maintain a low MOQ for initial orders.
What is the insulation resistance of the product?
The insulation resistance is 500 MΩ, providing reliable safety for photovoltaic applications.
