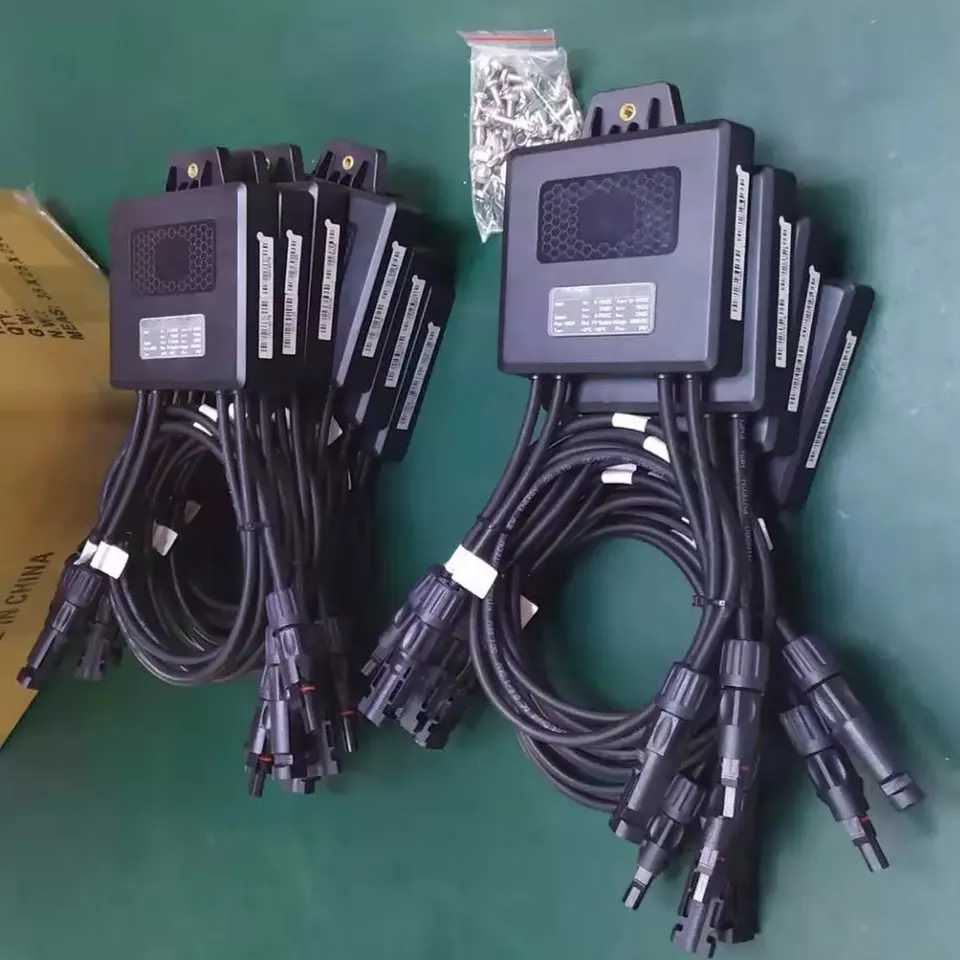

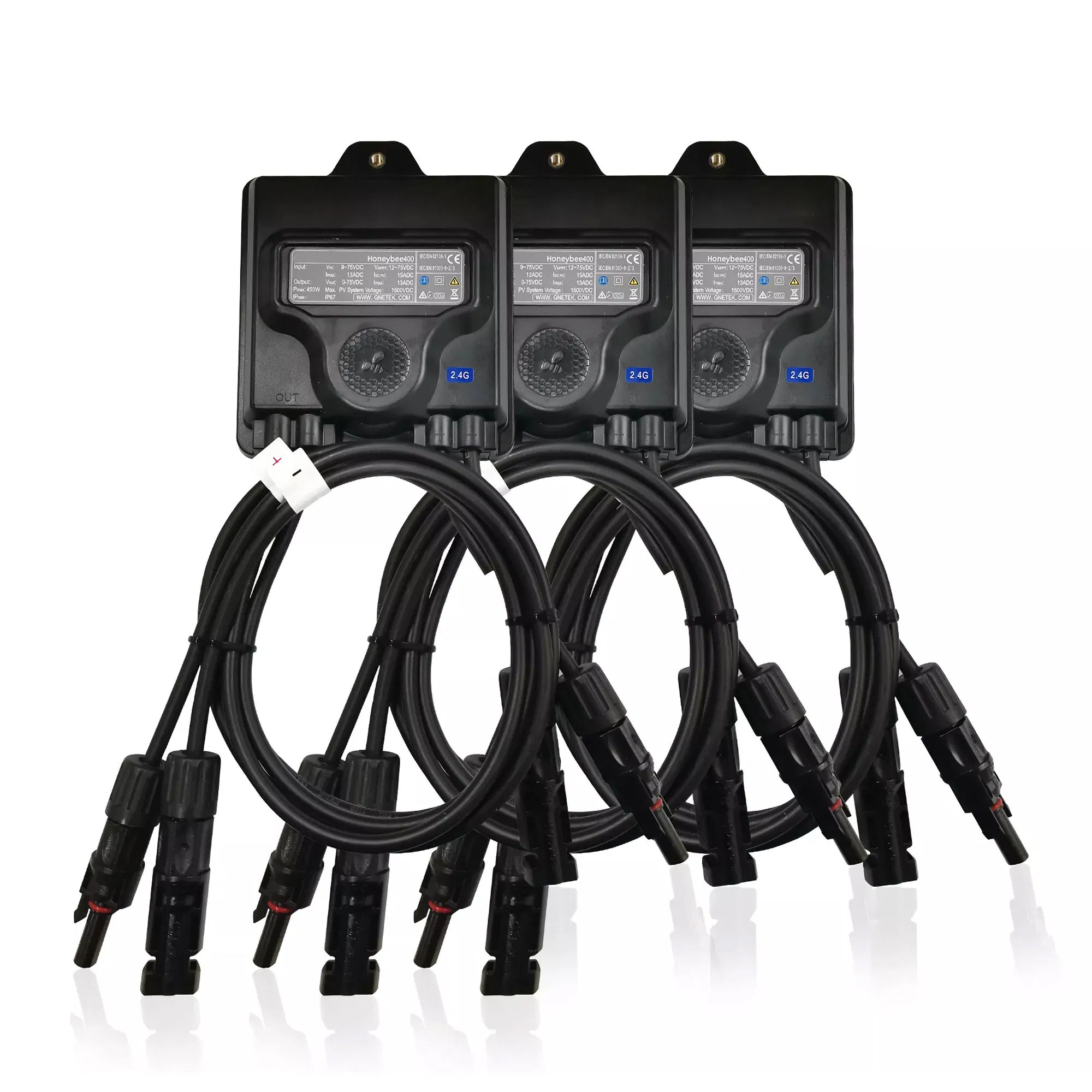

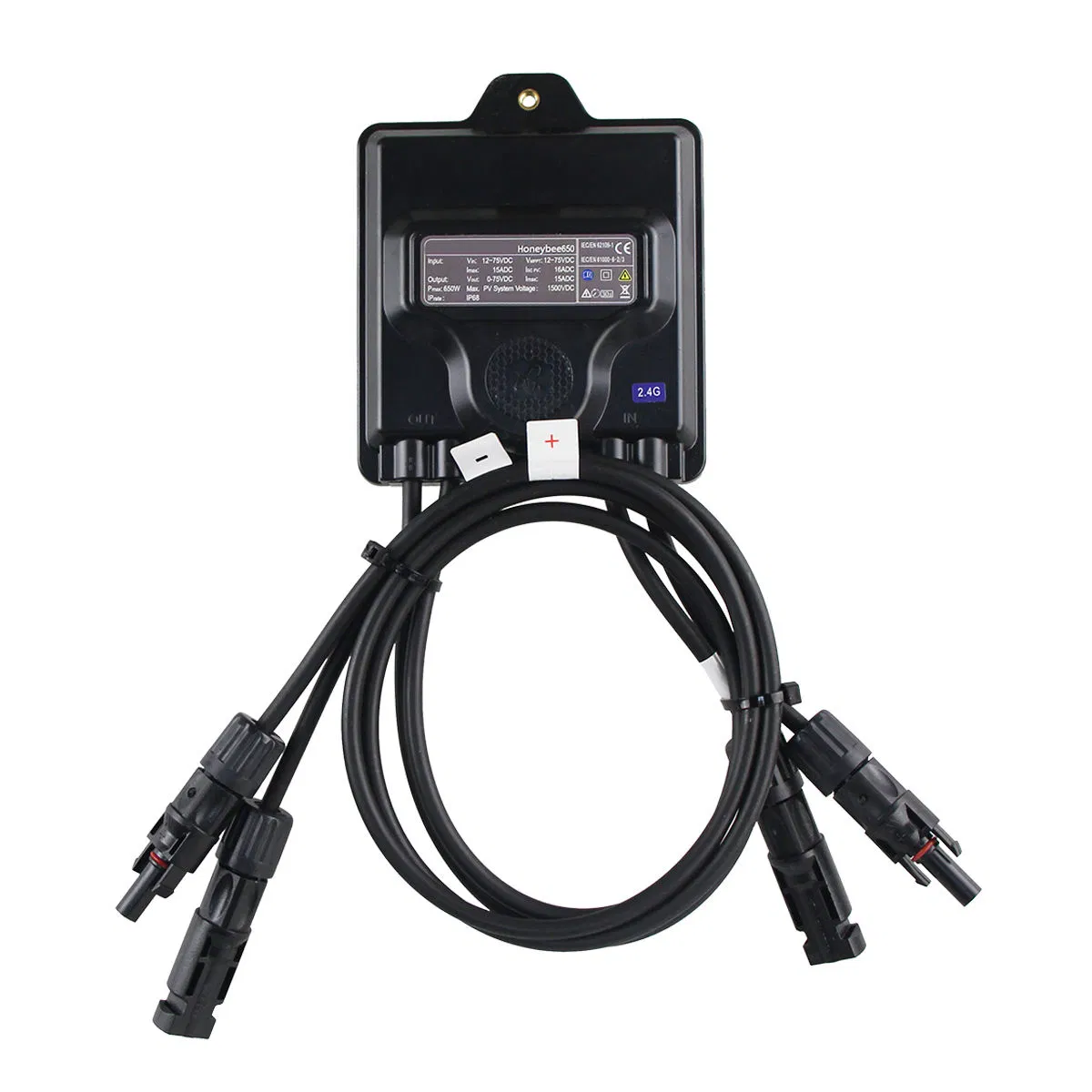

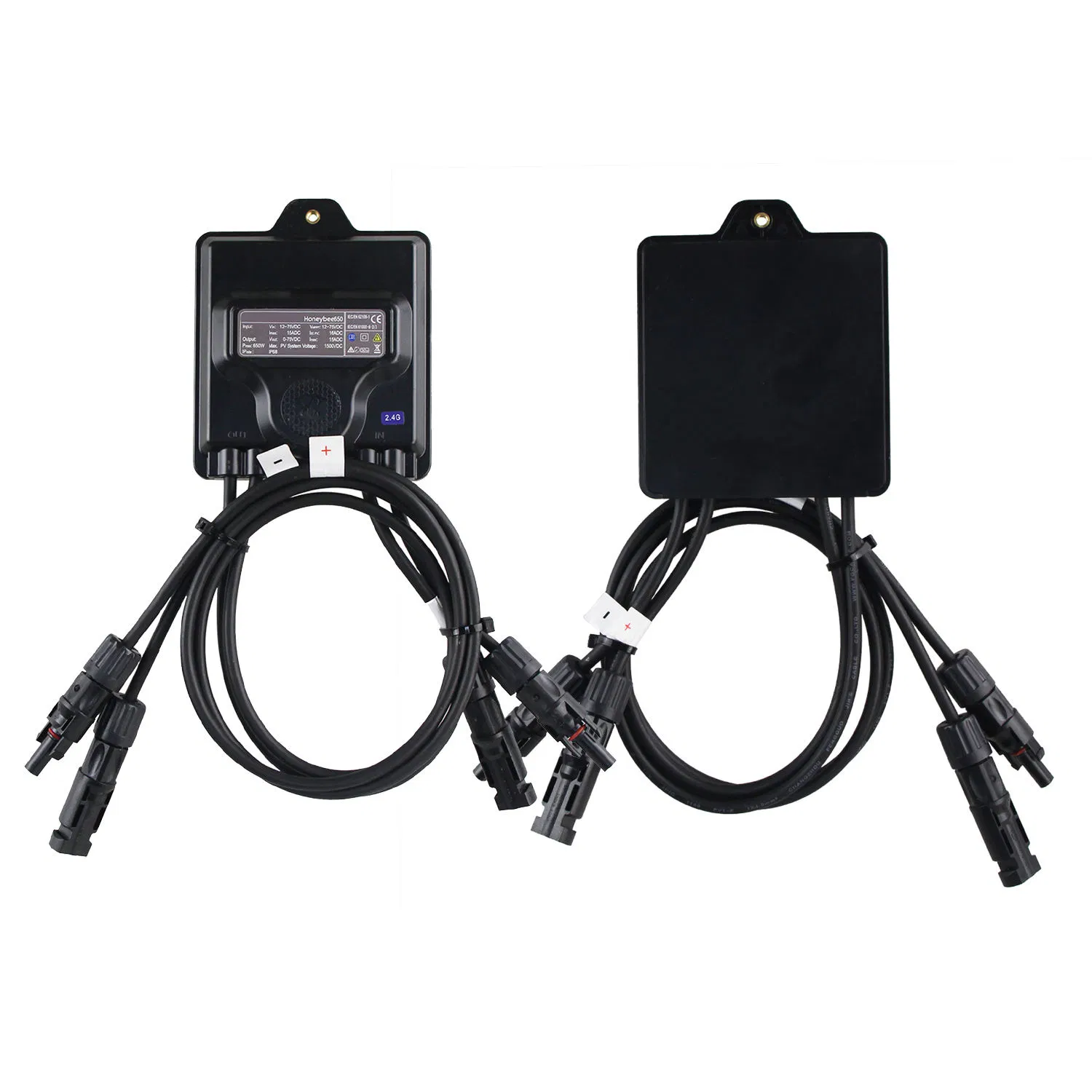

MPPT PV Solar Panel Dual Power Optimizer Gne Honeybee 800/1600 Solar Optimizer
MPPT PV Solar Panel Dual Power Optimizer Gne Honeybee 800/1600 Solar Optimizer
MPPT PV Solar Panel Dual Power Optimizer Gne Honeybee 800/1600 Solar Optimizer
MPPT PV Solar Panel Dual Power Optimizer Gne Honeybee 800/1600 Solar Optimizer
MPPT PV Solar Panel Dual Power Optimizer Gne Honeybee 800/1600 Solar Optimizer
1 / 5
MPPT PV Solar Panel Dual Power Optimizer Gne Honeybee 800/1600 Solar Optimizer
MPPT PV Solar Panel Dual Power Optimizer Gne Honeybee 800/1600 Solar Optimizer
MPPT PV Solar Panel Dual Power Optimizer Gne Honeybee 800/1600 Solar Optimizer
MPPT PV Solar Panel Dual Power Optimizer Gne Honeybee 800/1600 Solar Optimizer
MPPT PV Solar Panel Dual Power Optimizer Gne Honeybee 800/1600 Solar Optimizer

MPPT PV Solar Panel Dual Power Optimizer Gne Honeybee 800/1600 Solar Optimizer

Customization: Available
Warranty: 10years
Max Input Power: 800W
Send Inquiry

Product Description

🚀 Basic Information
Model NO.Honybee 1600
Product NameSolar Power Optimizer
Related Humidity0~100%
Ingress ProtectionIP67
Max Efficiency99.6%
Max Input Current13A
Max Input Voltage75VDC
Weight800g
Communication915m/2.4G/PLC
Mechanical Load5400PA / 2400PA
📝 Product Description

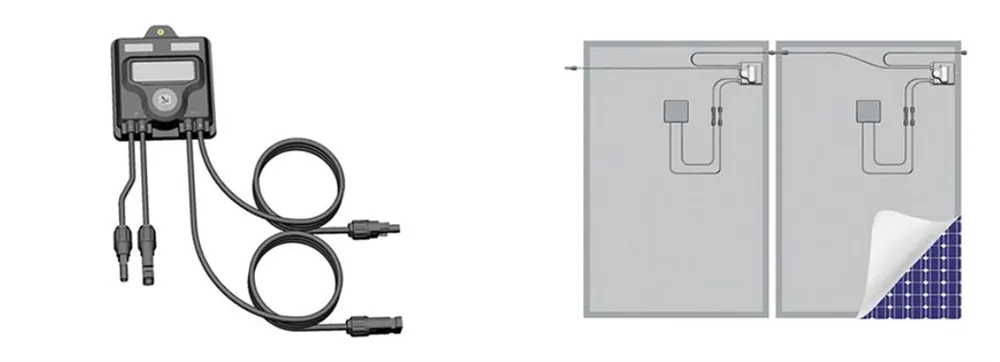

Solar Power Optimizer
Honeybee Series Product Features:
  • 1
    Module-level shutdown to shut off the source of string high voltage, completely reduce the risk of personal shock.
  • 2
    Default shutdown state to ensure the personal safety of installation and maintenance personnel.
  • 3
    PLC communication, no need for additional communication cables, making installation highly convenient.
  • 4
    Safe and reliable with output short circuit protection, eliminating risk of high temperature from component failure.
  • 5
    25 years lifespan, perfectly matching the longevity of solar modules.
📊 Honeybee 800/1600 Specification
Parameter Honeybee 800 Honeybee 1600
Support Modules2pcs2pcs
Max. Input Power2*450W2*800W
Operating Voltage Range13~75VDC14~60VDC
MPPT Voltage Range13~70VDC14~60VDC
Max Input Current13A/13A18A/18A
Max Output Power900W1600W
Max Efficiency99.6%99.5%
Ingress ProtectionIP67IP68
Size130*132*24.5mm130*132*24.5mm
📊 Honeybee 400/650/850 Specification
Product Code Honeybee 400 Honeybee 650 Honeybee 850
Max Input Power450W650W850W
Max Input Voltage75VDC75VDC60VDC
Max. Efficiency99.6%99.6%99.5%
Max. System Voltage1000VDC/1500VDC
Ingress ProtectionIP67IP68IP68
Communication915M/2.4G/PLC
Weight588g
🛠️ Installation & Monitoring Solution

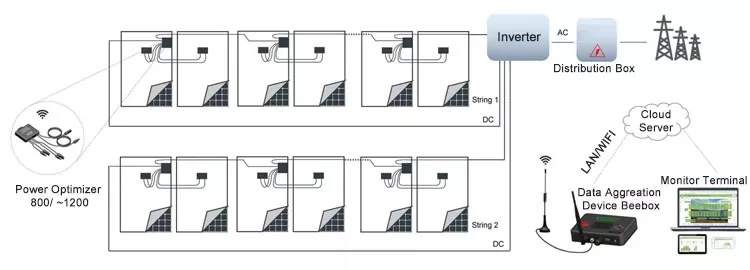

PV Module Level Optimization & Monitoring Solution (Add-on Optimizer, Wireless Communication)

Optimization Solution

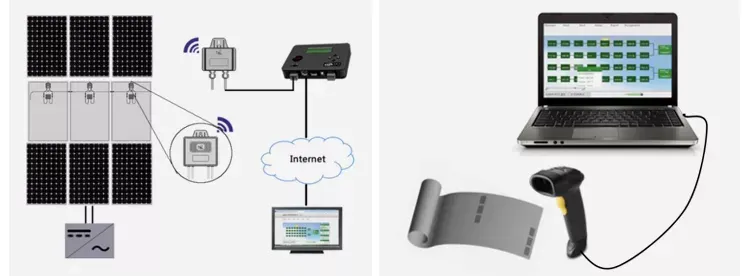

Step 1 & 2: Smart Diagram & Registration
Step 1-2

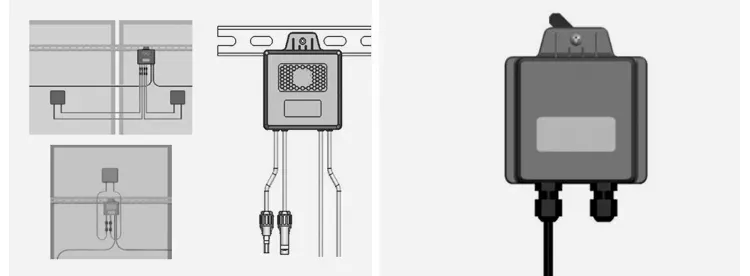

Step 3 & 4: Optimizer & Data Unit Installation
Step 3-4

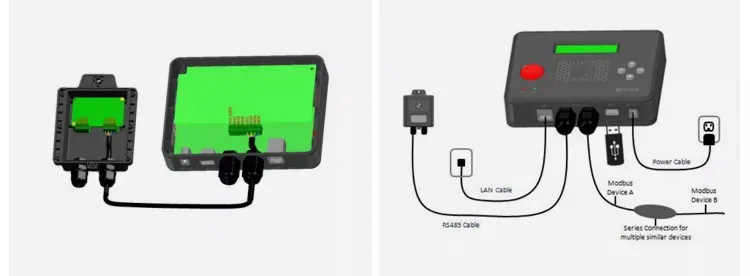

Step 5 & 6: Connection & Aggregation
Step 5-6

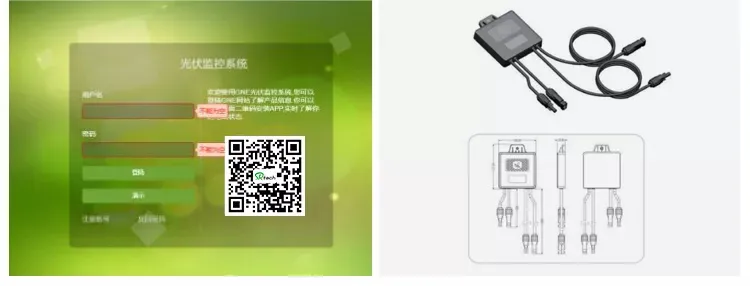

Step 7 & 8: Cloud Setup & Specification
Step 7-8
📦 Packing & Delivery

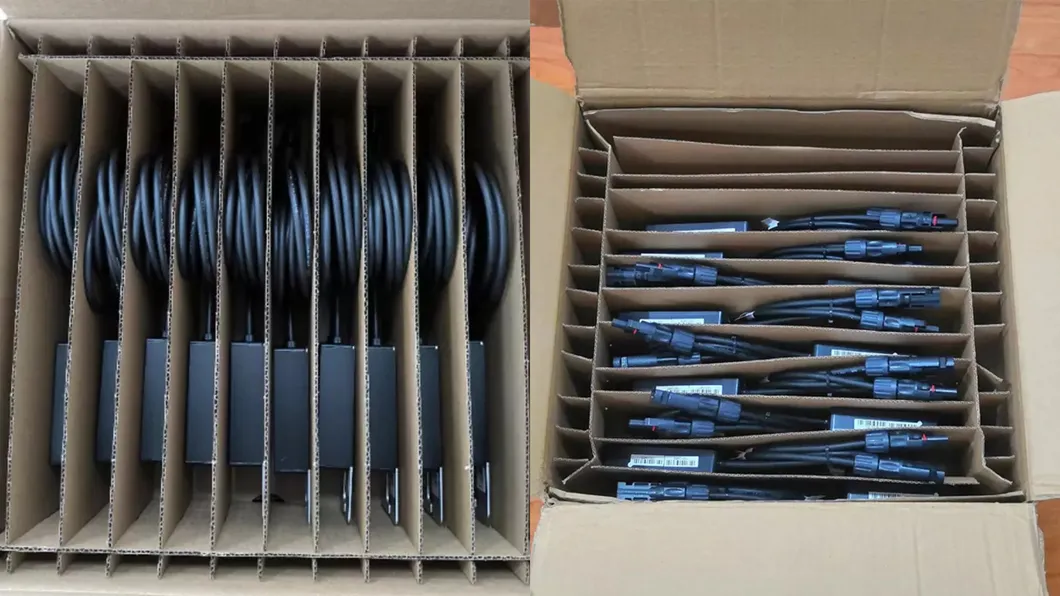

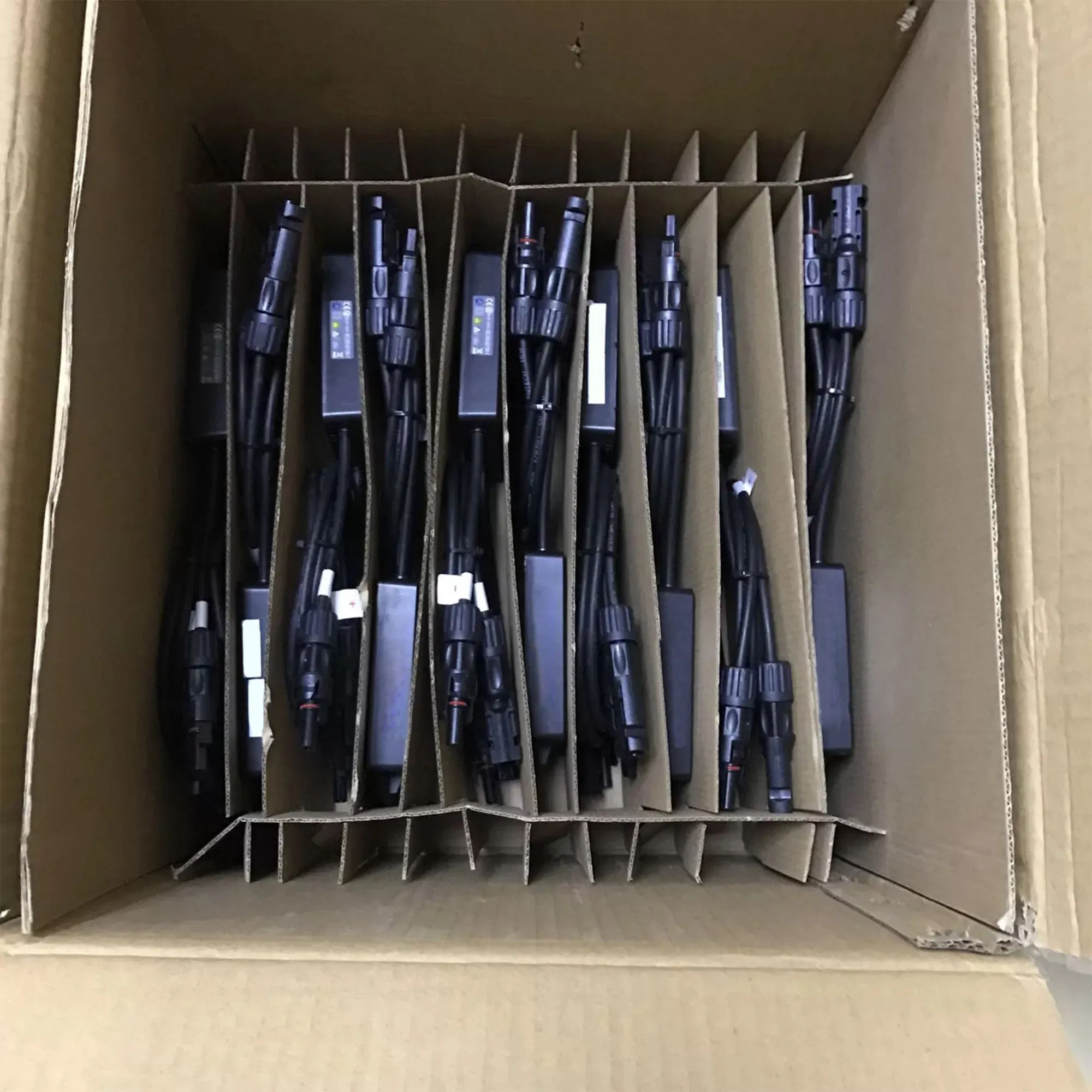

Packing
🌎 Global Project Installation

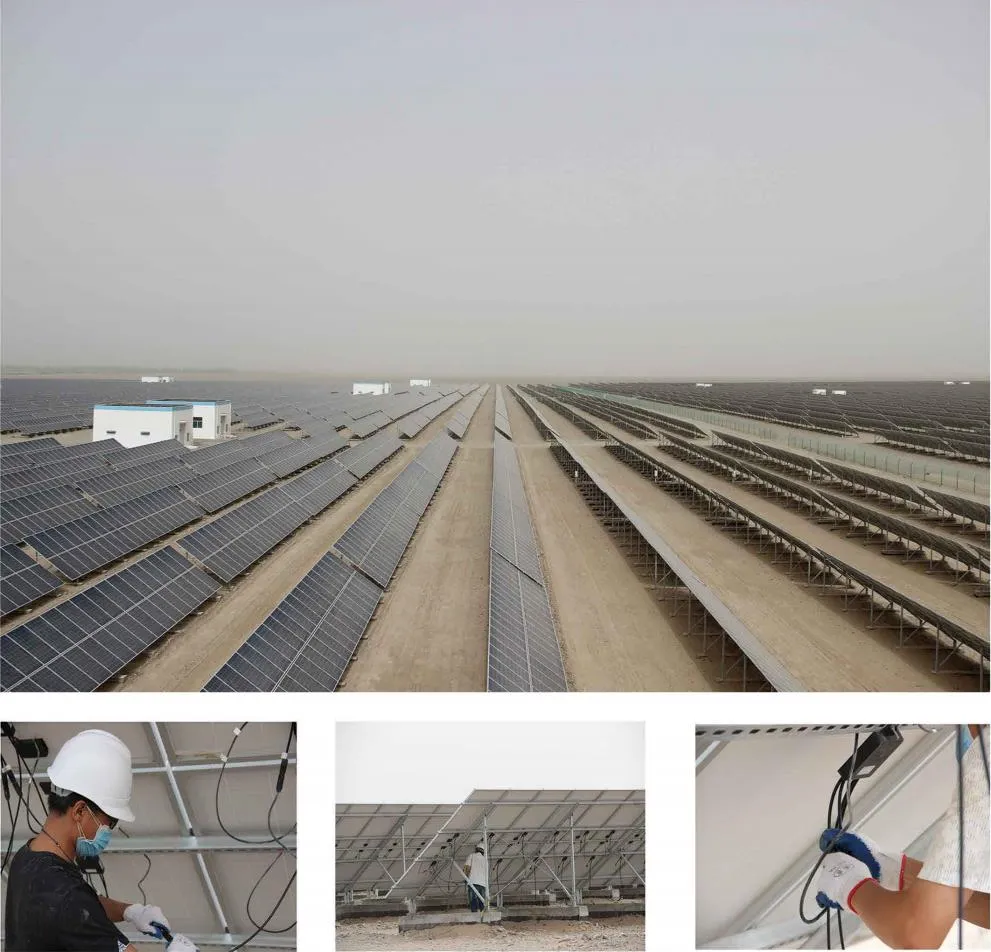

Project China

PV Station in Xinjiang, China

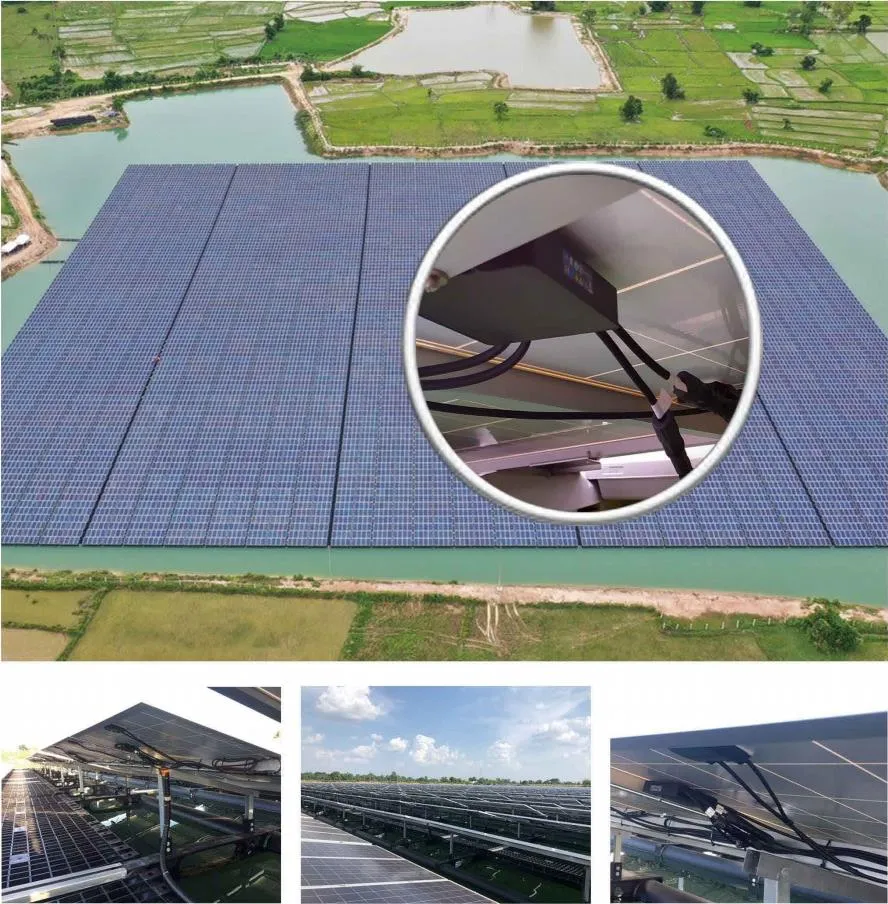

Project Laos

Floating Project in Laos

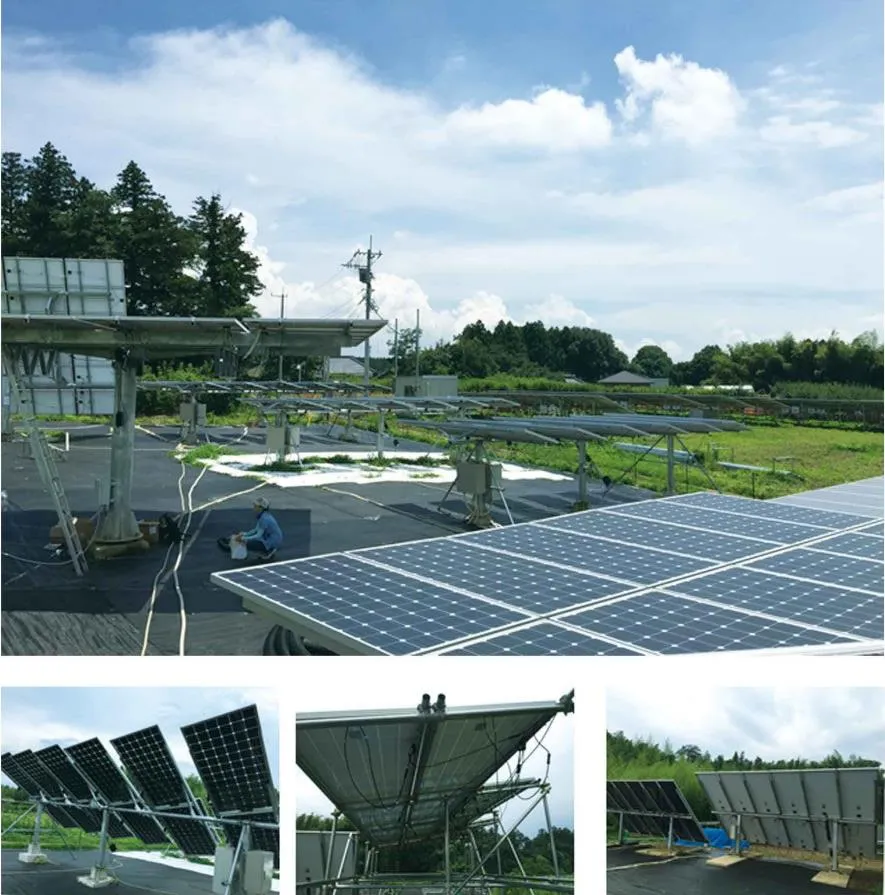

Project Japan

50KW Station in Ibaraki, Japan

❓ Frequently Asked Questions
What are your primary advantages?
We provide factory direct sales, a professional support team, guaranteed delivery times, high-quality products, and full customization services.
How can I obtain a product sample?
After price confirmation, you can request samples to check quality. Samples are typically ready for delivery within 3-7 days after payment of sample and shipping costs.
What is the lead time for mass production?
It depends on the order quantity and season. For a standard MOQ of 1000pcs, the lead time is approximately 30-35 days.
Do you support customized designs?
Yes, our professional engineering team has extensive manufacturing experience and can customize products according to your specific requirements.
What are the accepted payment methods?
T/T (Telegraphic Transfer) is preferred. Our standard terms are 30% advance payment and the remaining 70% before delivery.
Is the optimizer compatible with all solar modules?
Yes, our Honeybee series is designed with a 25-year lifespan to perfectly match and optimize standard solar modules in the market.
