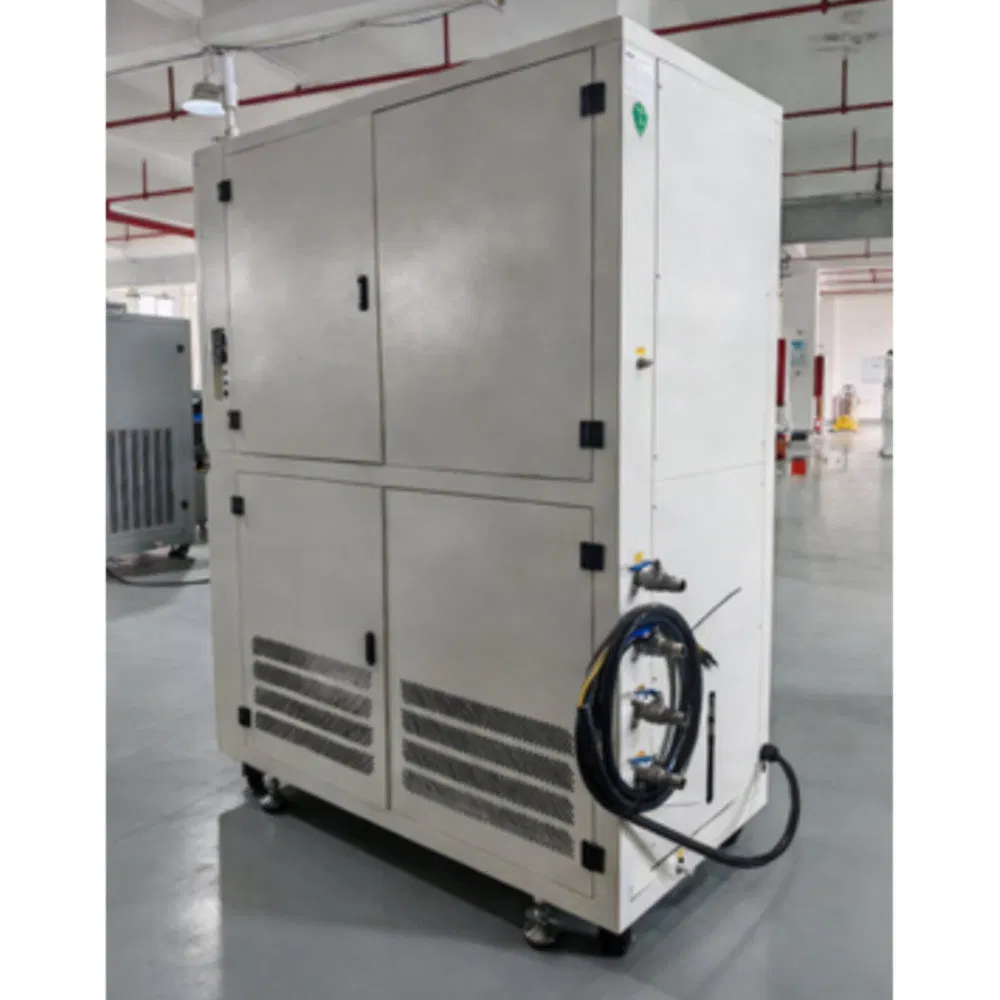

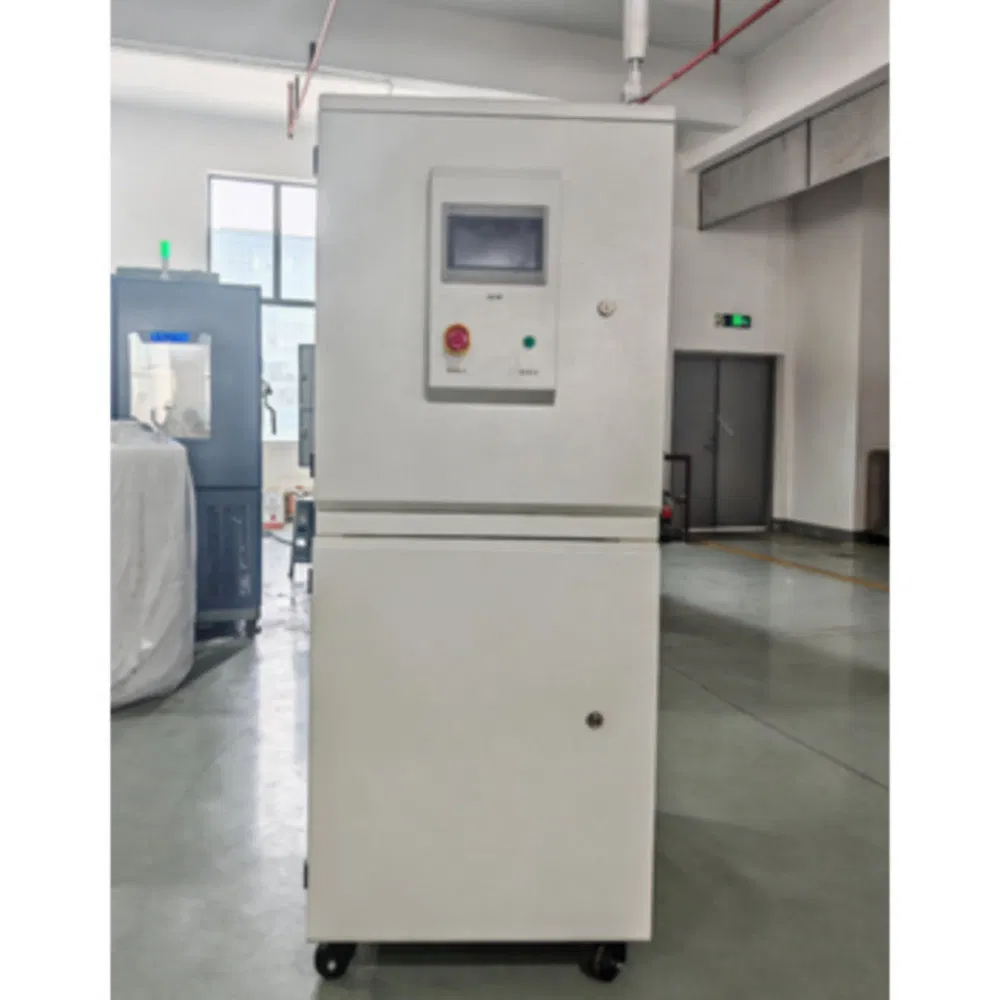

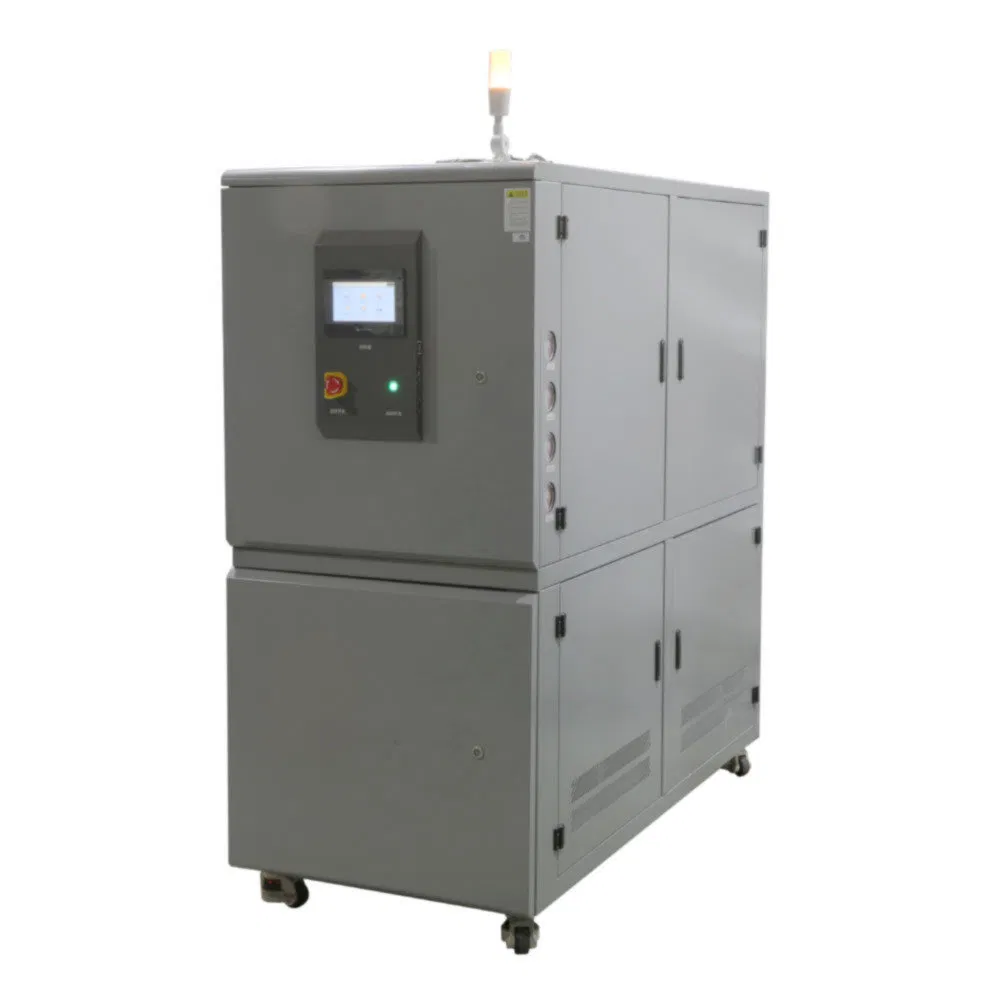

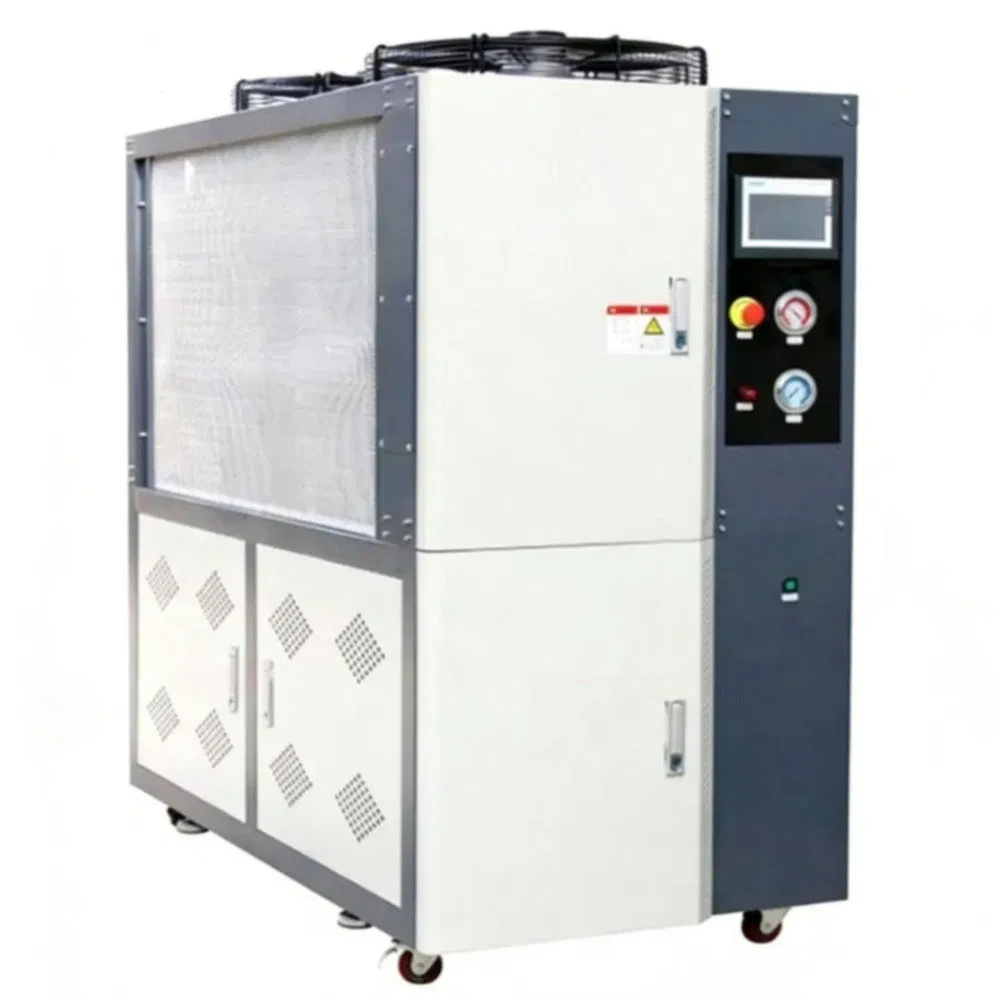

Mentek Remote Monitoring Can/RS485 Environmental Test Chamber Cooling System for Automotive and Battery Pack Labs

Customization:	Available
Certification:	CE, TUV, ISO
Channel:	Single Channel/Multi Channel

Basic Information

Model NO.

MLC

Media

Water, Ethylene Glycol, etc

Temperature

-40℃ to +100℃

Flow Range

1-100L/Minute

Pressure Control

0-300kpa

Production

1000 Units/Year

Origin

Guangdong, China

Package

Wooden Box

Product Description

PRECISION LIQUID COOLING MACHINE

Discover our high-performance Liquid Cooling Test Chamber, engineered to deliver precise temperature control through efficient liquid medium circulation and heat exchange.

This advanced liquid cooling machine supports flexible configurations, including single-channel and multi-channel options, accommodating same-temperature/same-flow, same-temperature/different-flow, or different-temperature/different-flow setups.

With a wide temperature range from -40°C to +100°C, customizable flow rates up to 50L/min, and accurate pressure control up to 300KPa, this system is ideal for demanding industrial testing and thermal conditioning applications. Compatible with water, ethylene glycol, and other cooling media, it ensures reliable and repeatable thermal performance for your critical processes.

Technical Specifications

Model	MLC-5	MLC-7.5	MLC-10	MLC-15	MLC-20	MLC-30
Flow Range	1-15L/min	1-25L/min	1-25L/min	2-40L/min	2-40L/min	1-25L/min
Temp Range	-40°C~100°C
Temp Accuracy	±0.5°c
Cooling Medium	Ethylene Glycol Antifreeze (Freezing Point Below -45°C)
Pressure Display	0-300kPa
Heating Power	5kW	6kW	10.5kW	10.5kW	15kW	15kW
Communication	CAN / RS485 / LAN

Functional Advantages

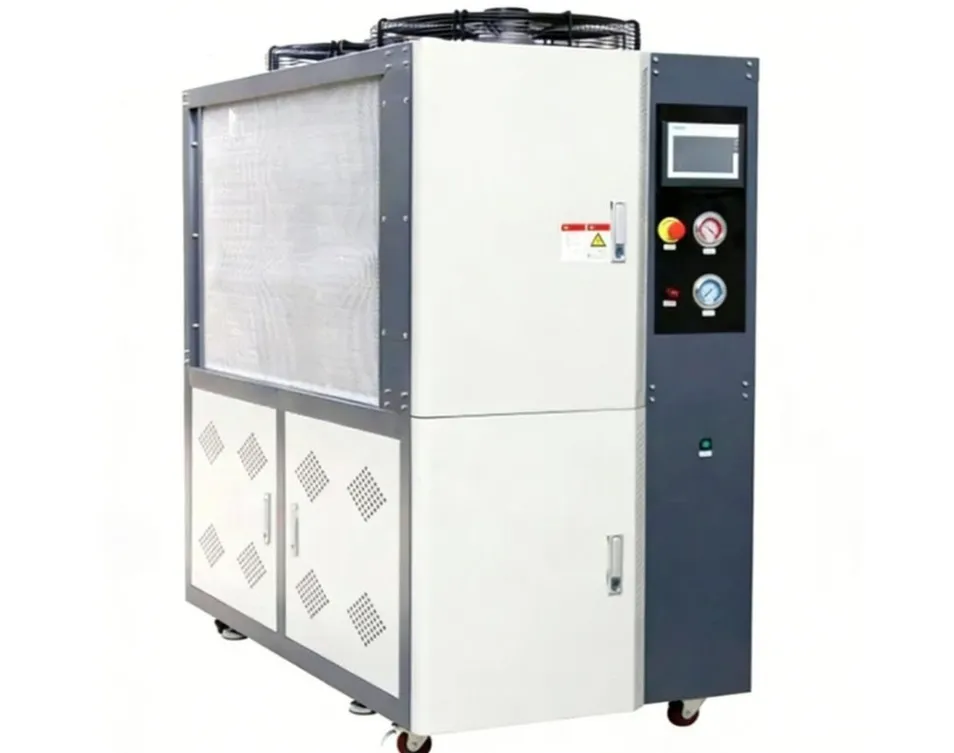

VERSATILE CHANNEL CONFIGURATION

Supports single-channel and multi-channel modes with flexible options: same temperature & same flow, same temperature & different flow, or different temperature & different flow — adapting to diverse testing requirements.

WIDE TEMPERATURE RANGE

Operates across an extensive range from -40°C to +100°C, enabling comprehensive thermal testing for both extreme cold and high-heat conditions.

ADJUSTABLE FLOW RATE

Offers customizable flow rates between 1 to 50 L/min, allowing users to select the optimal setting based on specific application demands.

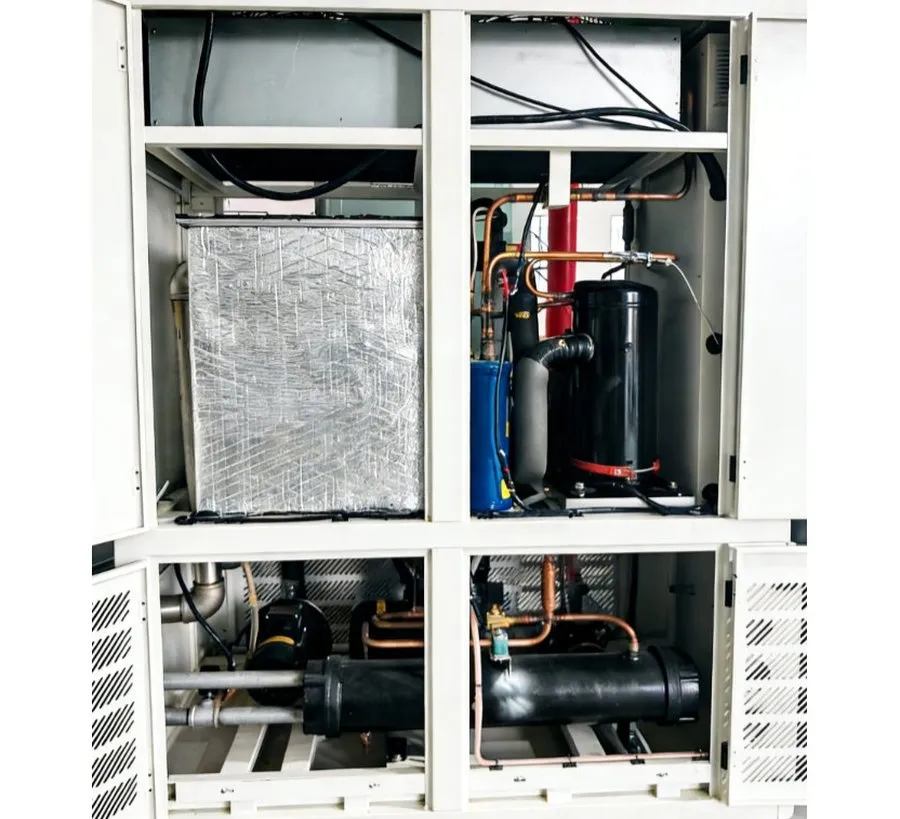

PRECISE PRESSURE CONTROL

Features a pressure control range of 0 to 300 KPa, ensuring stable and accurate system performance throughout testing cycles.

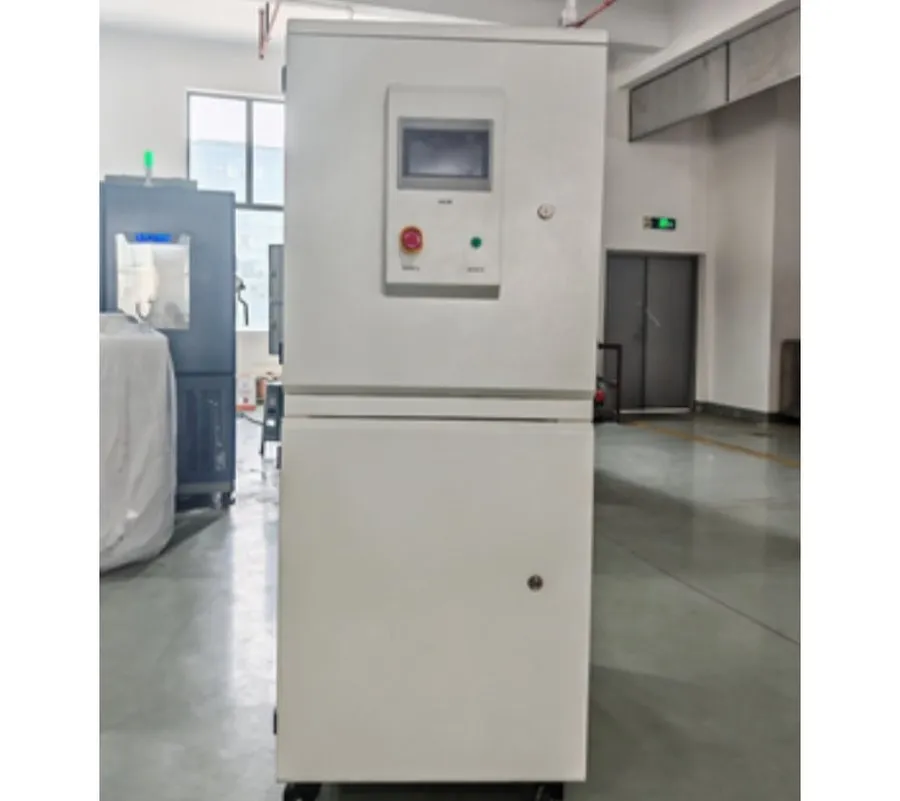

MULTIPLE COOLING MEDIA COMPATIBILITY

Works seamlessly with various liquid media, including water and ethylene glycol, providing flexibility for different thermal management scenarios.

Core Applications

ELECTRIC VEHICLE BATTERY TESTING
Ideal for EV battery pack thermal cycling and conditioning tests, simulating real-world temperature variations.

AUTOMOTIVE COMPONENT VALIDATION
Used in testing automotive electronic modules, motors, and powertrain components under controlled environments.

SEMICONDUCTOR & ELECTRONICS
Provides precise thermal management for semiconductor devices, PCBs, and high-power electronics.

AEROSPACE & DEFENSE
Meets stringent requirements for testing avionics and sensors exposed to extreme temperature fluctuations.

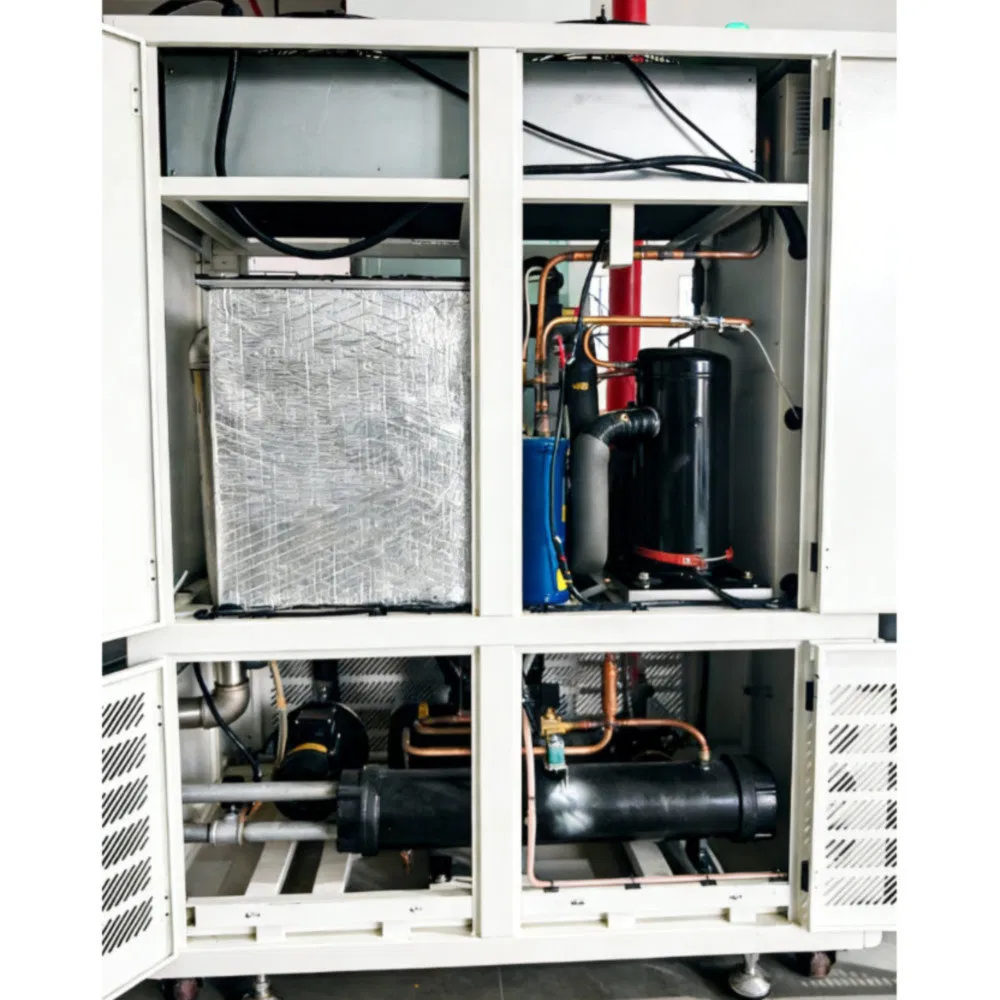

System Overview

Frequently Asked Questions

What is the lead time for your products?

A: 50 days after receiving the deposit.

How about the after-sales service and warranty policy?

A: We offer a 12-month warranty for all our products from the date of delivery.

How about your product quality control?

A: We have our QC department empowered with a professional QC team. We implement Incoming, In-process, and Outgoing Quality Control throughout our factory operations.

Why should I buy this product?

A: This product offers excellent quality, a reasonable price, and professional after-sales support with comprehensive quality assurance.

What is the minimum order quantity (MOQ)?

A: The minimum order quantity is 1 set.

Do you accept customization service?

A: Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services.
