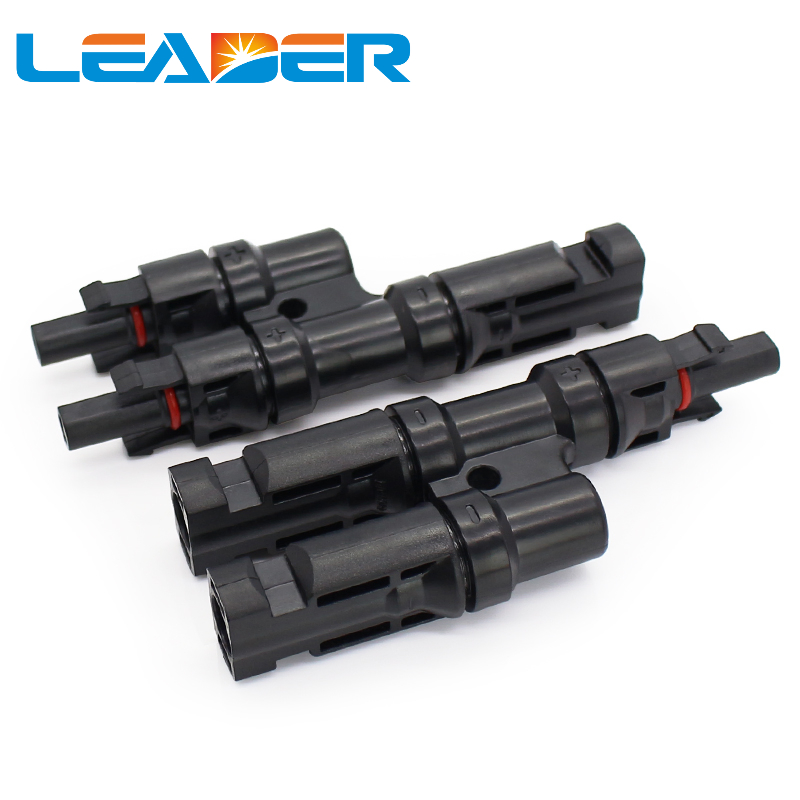

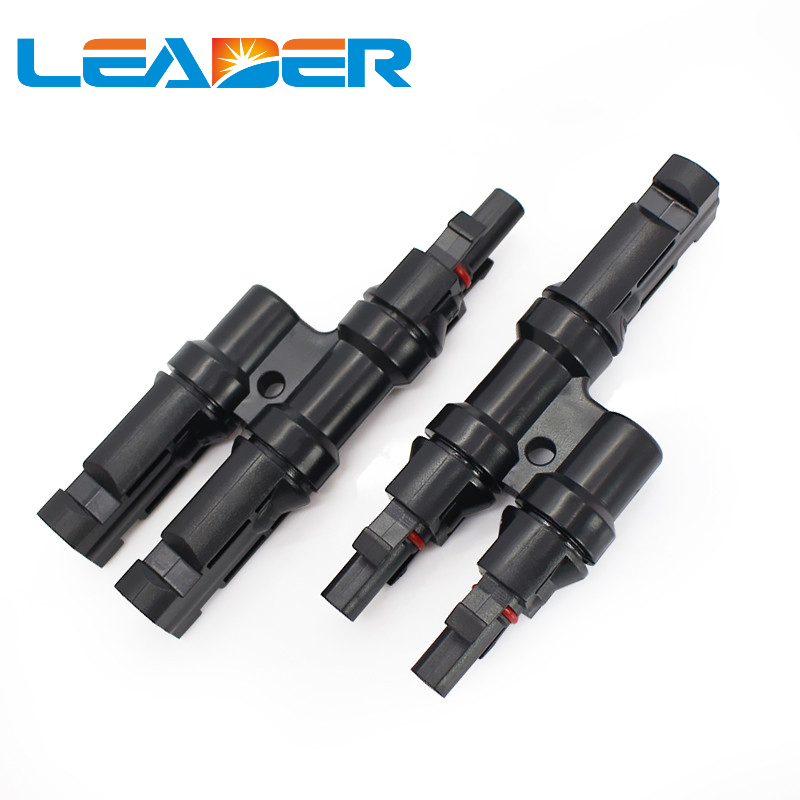

Leader 2 to 1 High Voltage 1000V 2t Mc4 IP68 T Branch Solar Panels Connector
Leader 2 to 1 High Voltage 1000V 2t Mc4 IP68 T Branch Solar Panels Connector
Leader 2 to 1 High Voltage 1000V 2t Mc4 IP68 T Branch Solar Panels Connector
Leader 2 to 1 High Voltage 1000V 2t Mc4 IP68 T Branch Solar Panels Connector
Leader 2 to 1 High Voltage 1000V 2t Mc4 IP68 T Branch Solar Panels Connector
1 / 5
Leader 2 to 1 High Voltage 1000V 2t Mc4 IP68 T Branch Solar Panels Connector
Leader 2 to 1 High Voltage 1000V 2t Mc4 IP68 T Branch Solar Panels Connector
Leader 2 to 1 High Voltage 1000V 2t Mc4 IP68 T Branch Solar Panels Connector
Leader 2 to 1 High Voltage 1000V 2t Mc4 IP68 T Branch Solar Panels Connector
Leader 2 to 1 High Voltage 1000V 2t Mc4 IP68 T Branch Solar Panels Connector

Leader 2 to 1 High Voltage 1000V 2t Mc4 IP68 T Branch Solar Panels Connector

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.
SY-BB21-AB
Application
Solar Panel System
Character
Male and Female
Species
Housing
Production Process
Tin-Plated Copper
Shape
T
Interface Type
DC/DC
Certification
UL, CE, TUV
Transport Package
Ploy Bag + Carton
Specification
100% GE PPO
Origin
China
HS Code
8536901900
Capacity
50,000,000 pairs/Year

Product Description

2 to 1 High Voltage 1000V 2T MC4 IP68 T Branch Solar Panels Connector

Contact MaterialTin-plated copper
Waterproof RatingIP68
Housing Material100% GE PPO
Rated VoltageTUV 1000V DC
Pin Dimension4.0mm
Temperature Range-40°C ~ +90°C
Flame ClassUL94V-0
Resistance≤5mΩ
Pollution Degree2
Protection ClassClass II
High Voltage Solar Connector

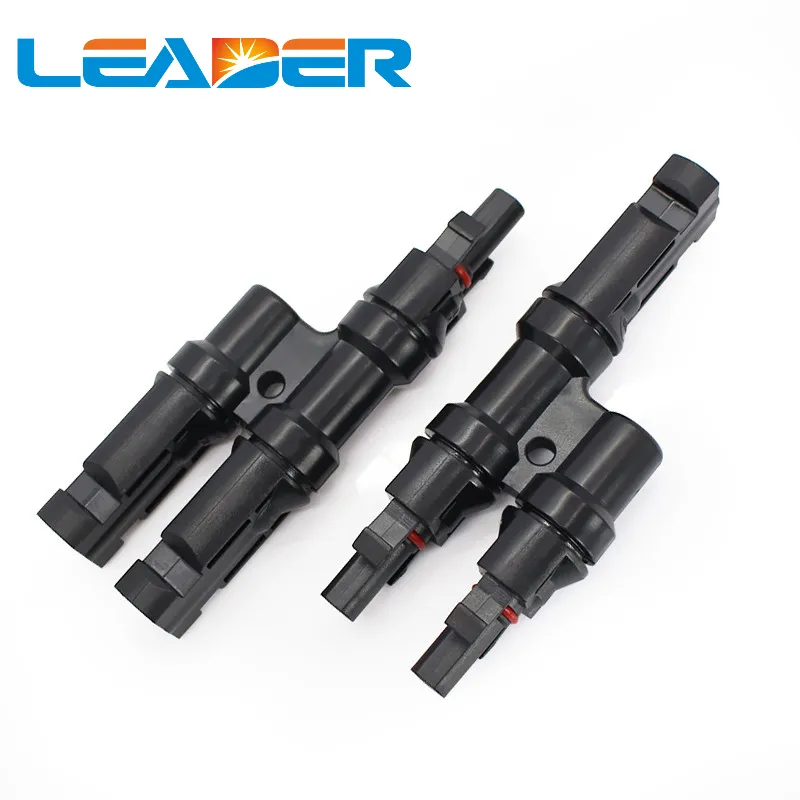

Solar Connector Detail 1

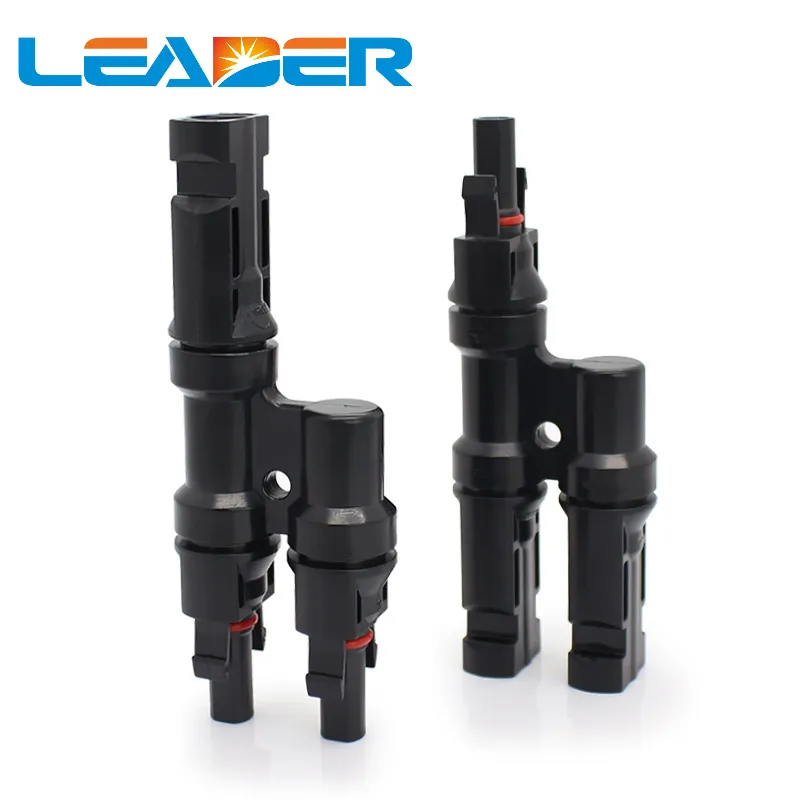

Solar Connector Detail 2

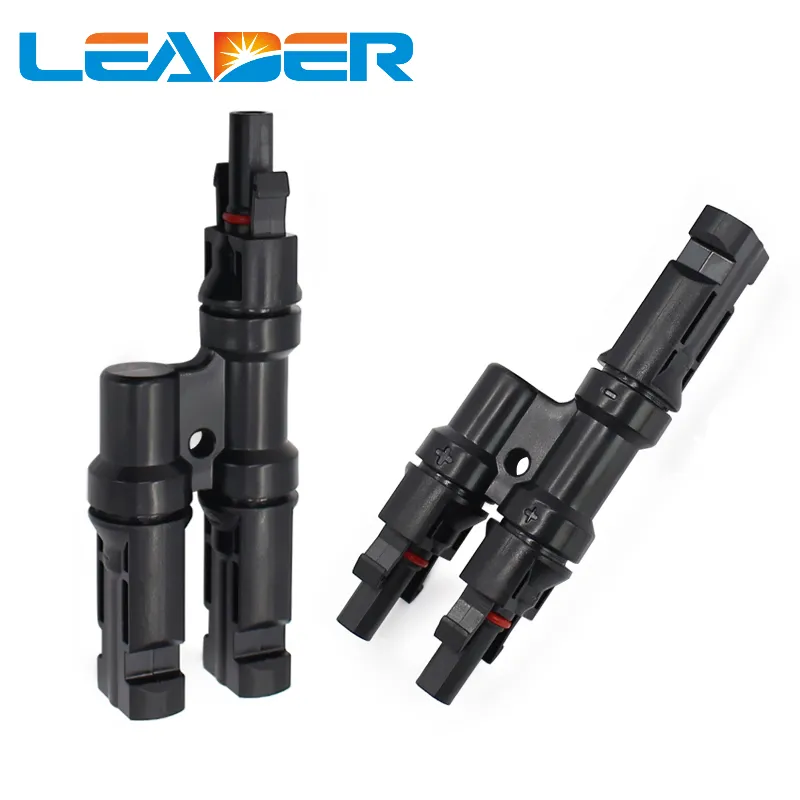

Solar Connector Detail 3
Solar Connector Detail 4

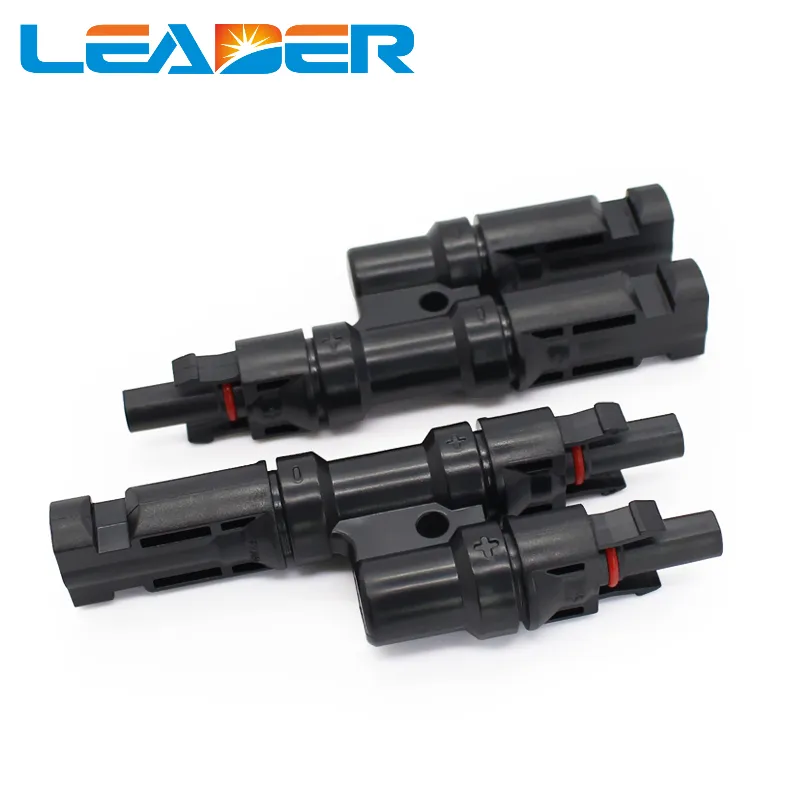

Solar Connector Detail 5

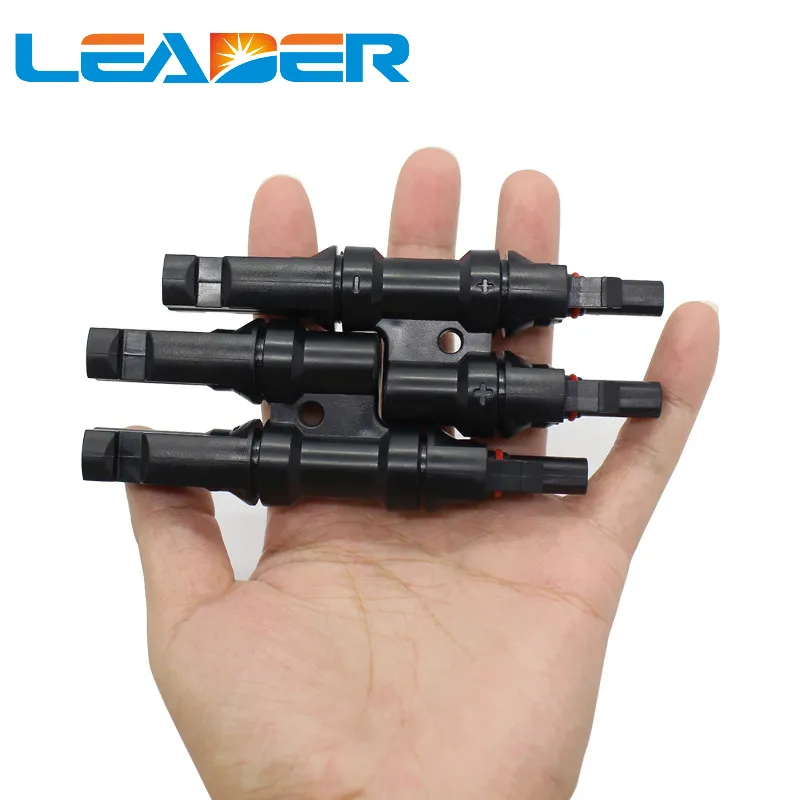

Solar Connector Detail 6

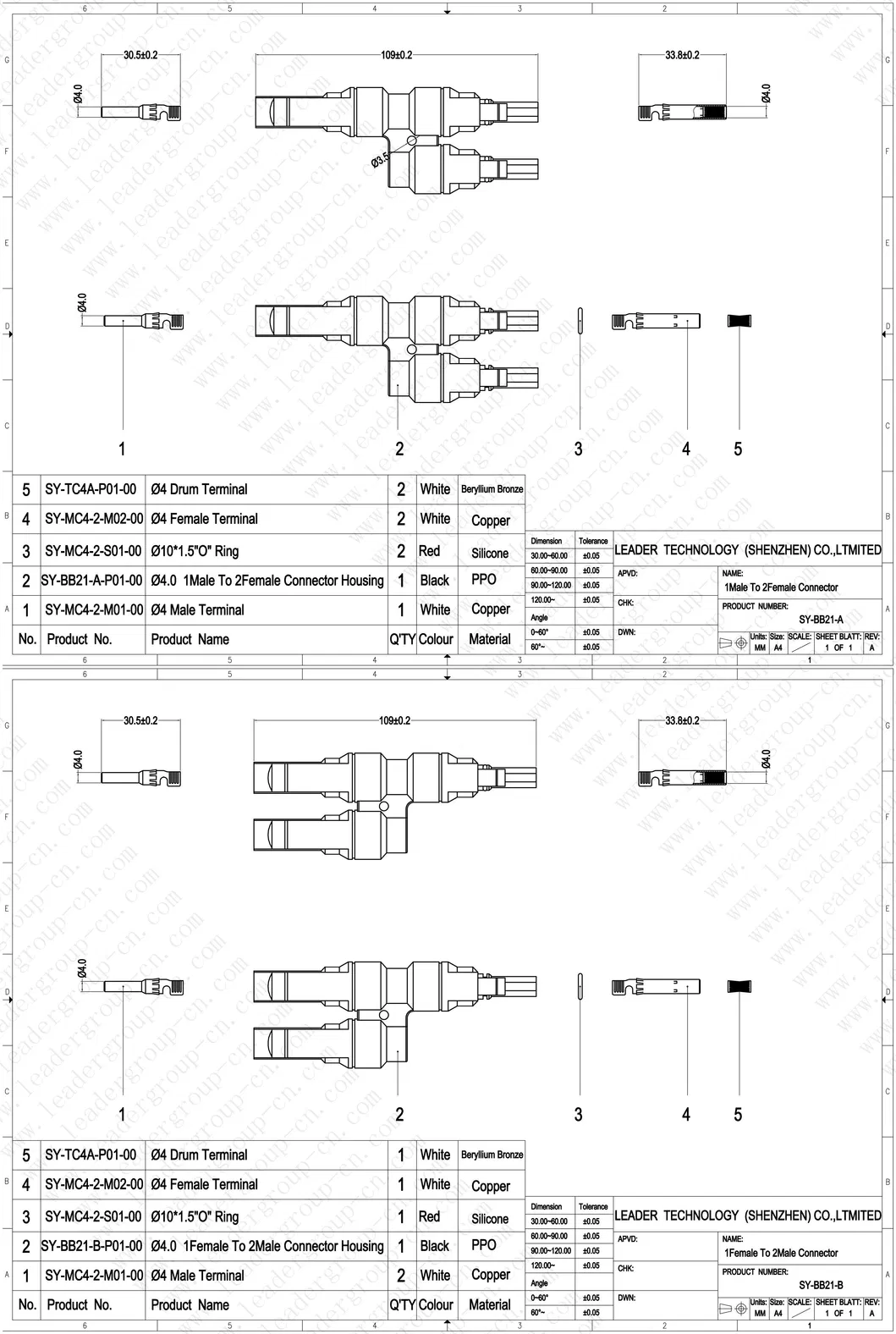

Dimension Diagram
Application View
Testing Certification

Our Excellence & Commitment

⏱ Rapid Response

Receive a prompt response to your inquiry within 24 hours with detailed information.

🛡 Quality Assurance

Experience commitment to quality with standard return policies for intact original packaging.

🚀 Safe Logistics

Benefit from freight forwarders that are faster, safer, and more convenient for global shipping.

💡 Expert Solutions

Specializing in R&D, mold design, and production of PV connectors and junction boxes.

Frequently Asked Questions

What is the waterproof rating of this T Branch connector?
The connector features an IP68 waterproof rating, ensuring high reliability and safety in outdoor solar installations.
What materials are used in the construction?
The housing is made from 100% GE PPO for excellent UV resistance, and the contacts are made of high-quality tin-plated copper for optimal conductivity.
What is the maximum voltage this connector can handle?
It is rated for TUV 1000V DC, making it suitable for high-voltage solar panel systems.
What is the operating temperature range?
The connector is designed to perform reliably in extreme environments ranging from -40°C to +90°C.
Does the product meet fire safety standards?
Yes, it carries a UL94V-0 flame class rating, providing the highest level of fire retardancy for solar components.
Are these connectors compatible with standard 4.0mm pins?
Yes, the pin dimension is exactly 4.0mm, ensuring compatibility with standard solar PV cable assemblies.
