Large-Scale Farm PV Ground Mounting Structure with Zn-Al-Mg Coating

1 / 5

Large-Scale Farm PV Ground Mounting Structure with Zn-Al-Mg Coating

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info

Model NO.	JCHX-M00538	Certification	GB, ISO, TUV, CE, RoHS
Application	Commercial	Material	Steel
Type	Ground Bracket	Coating	Hot DIP Galvanized or Zinc Al Mg Coating
Steel Grade	Q235/355, S250/S350.etc.	Wind Load	0-60m/S
Snow Load	0-3kN/M²	Design	Free

Product Description

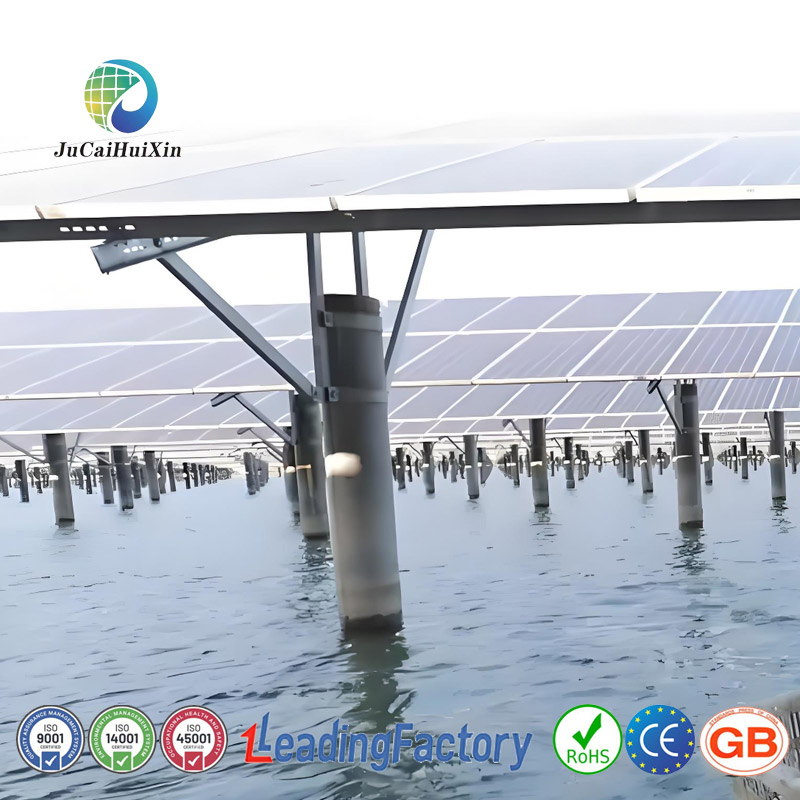

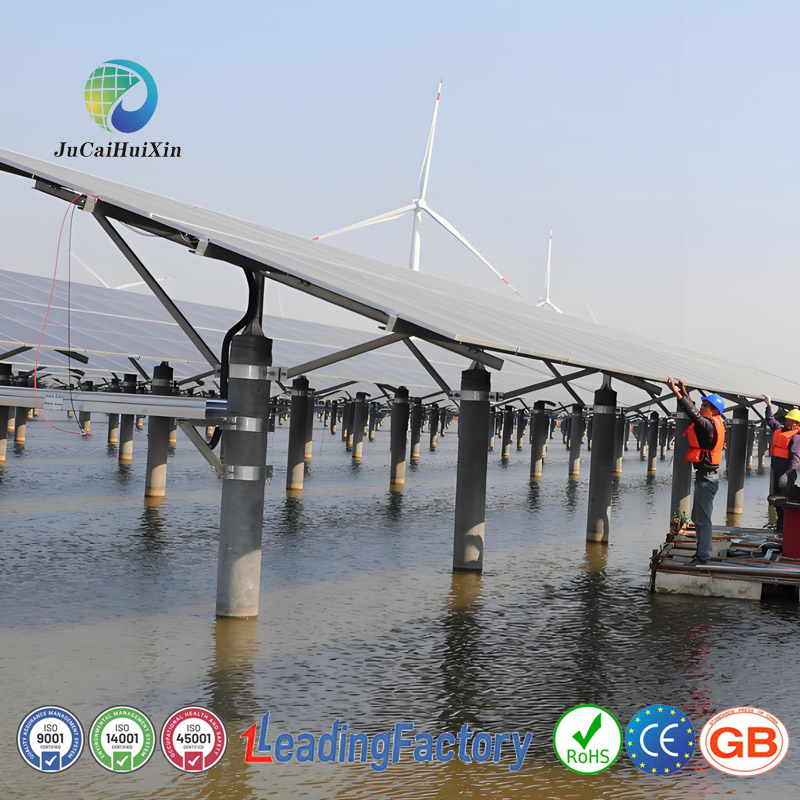

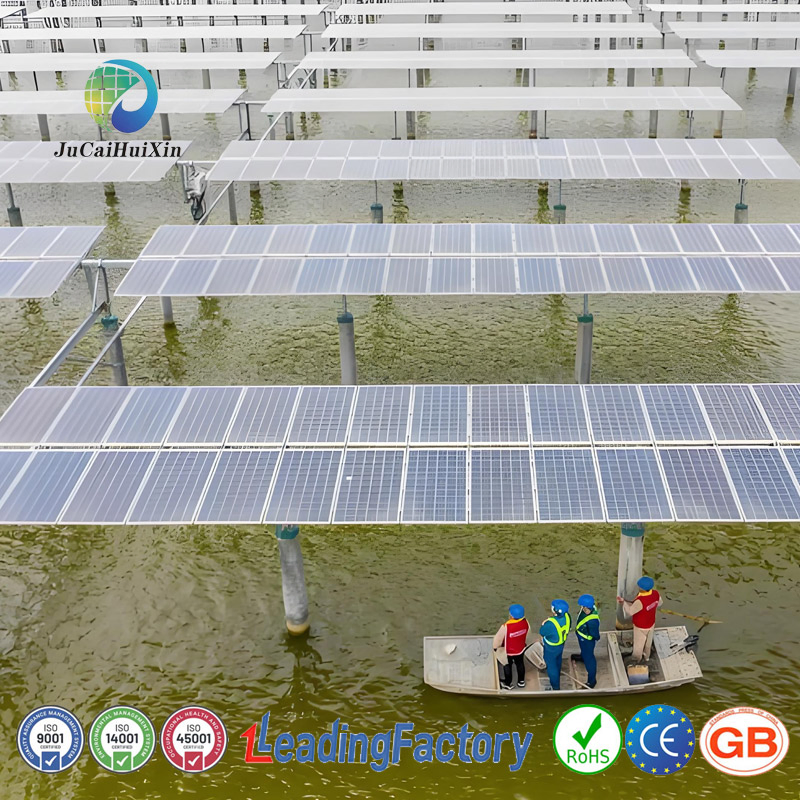

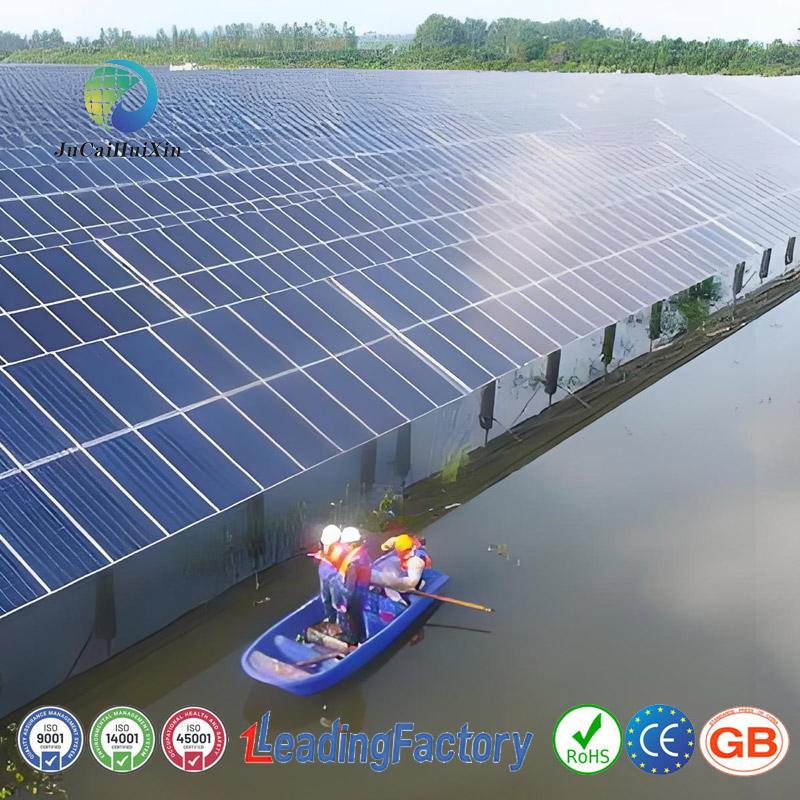

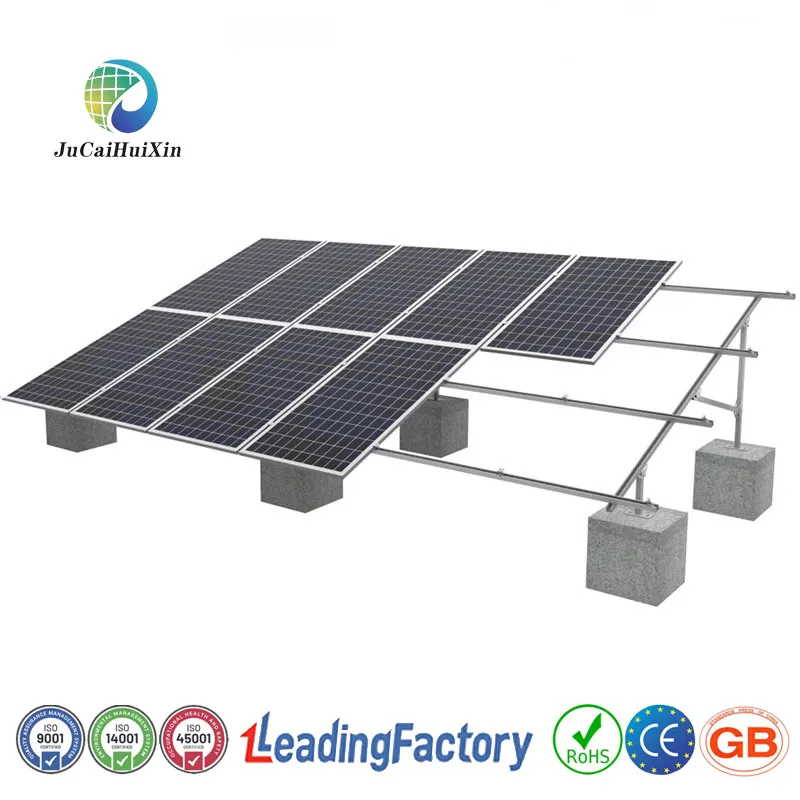

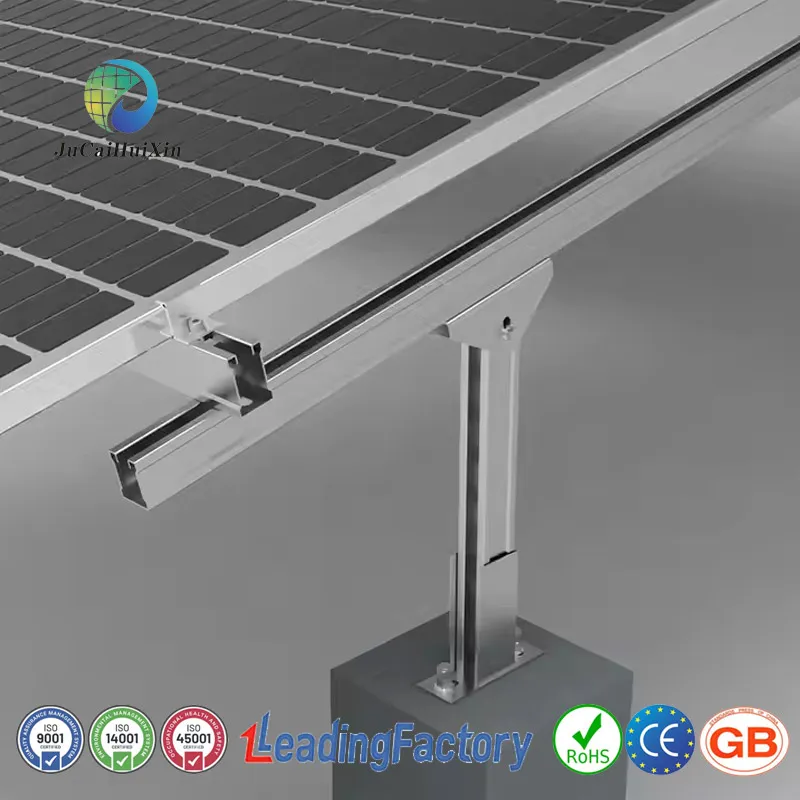

Large-Scale Farm PV Ground Mounting Structure with Zn-Al-Mg Coating

This highly corrosion-resistant photovoltaic bracket variety offers excellent yield and tensile strength alongside superior wear resistance. The thick hot-dip galvanized protective layer allows it to adapt to harsh climates including drought, high humidity, salt spray, rain, and snow. It is particularly well-suited for coastal environments.

Material	Steel	Grade	Q235/355, S250/350.etc
Wall Thickness	1.8-2.5mm	Service Life	Over 25 years
Annual Capacity	1,000,000 Tons per year	Corrosion Resistance	Very Strong

Product Advantages

Highly corrosion-resistant: Excellent weather, fatigue, and corrosion resistance ensuring component safety in harsh conditions.
High structural strength: Made of carbon steel with hot-dip galvanizing, providing stability against earthquakes and high wind/snow loads.

Certifications

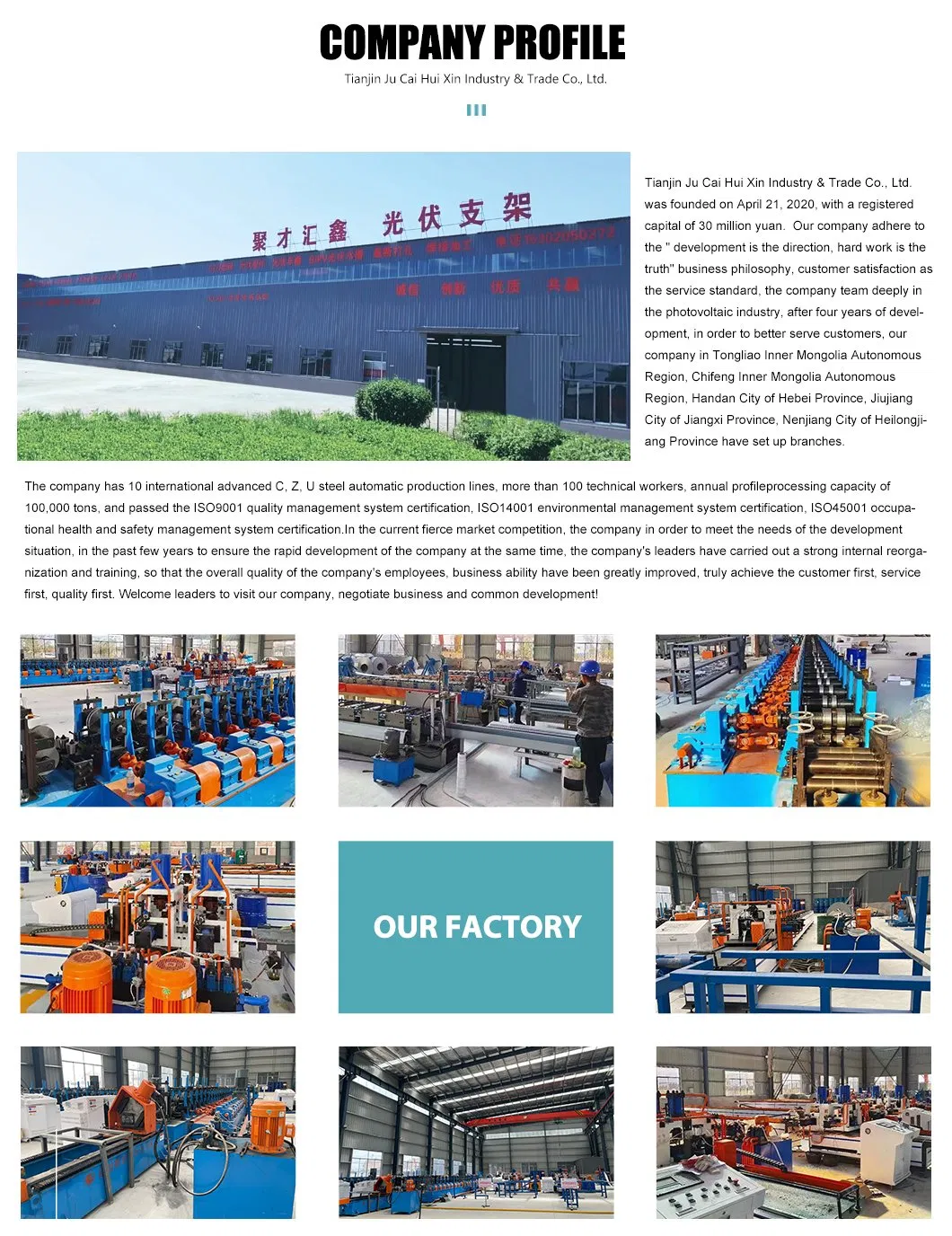

Factory Excellence

Global Expert in Intelligent Photovoltaic Bracket Manufacturing

10,000 square meter Intelligent Manufacturing Base.
10 advanced CZU steel automated production lines, 200,000 tons annual profile output.
International authoritative certifications including ISO triple system, CE, and Rohs.

Core Product Systems

• Hot-dip Galvanized Series: Super corrosion resistance for 25+ years.

• Zinc-Aluminum-Magnesium Series: Self-repairing technology for harsh environments.

• Aviation Aluminum Series: Lightweight and high-strength for rooftops.

• Single-axis Tracking System: Increases power generation by up to 30%.

Frequently Asked Questions

1. What is Ground Mount PV Racking? It is a structural system designed to support solar panels on the ground, optimized for sunlight absorption in large-scale power stations or agricultural scenarios.

2. What are the main materials used? We primarily use hot-dip galvanized steel for its high load-bearing capacity and aluminum alloy for its rust-resistant, lightweight properties.

3. How weatherproof are these brackets? They are designed to resist winds up to 120km/h and snow loads of 1.4kN/m², with a salt-spray resistant coating for a service life exceeding 25 years.

4. What maintenance is required? Regularly checking bolt tightness, inspecting the anti-corrosion coating, and ensuring the foundation's stability are recommended for optimal performance.

5. Can the angle of the support be adjusted? Yes, we offer adjustable stands for seasonal inclination (15°-40°) and tracking stands that follow the sun automatically to boost power generation by 10-30%.

6. How is safety ensured in high-wind areas? Safety is ensured through structural reinforcement, optimized foundation depth, and calculations based on international standards like AS/NZS 1170.
