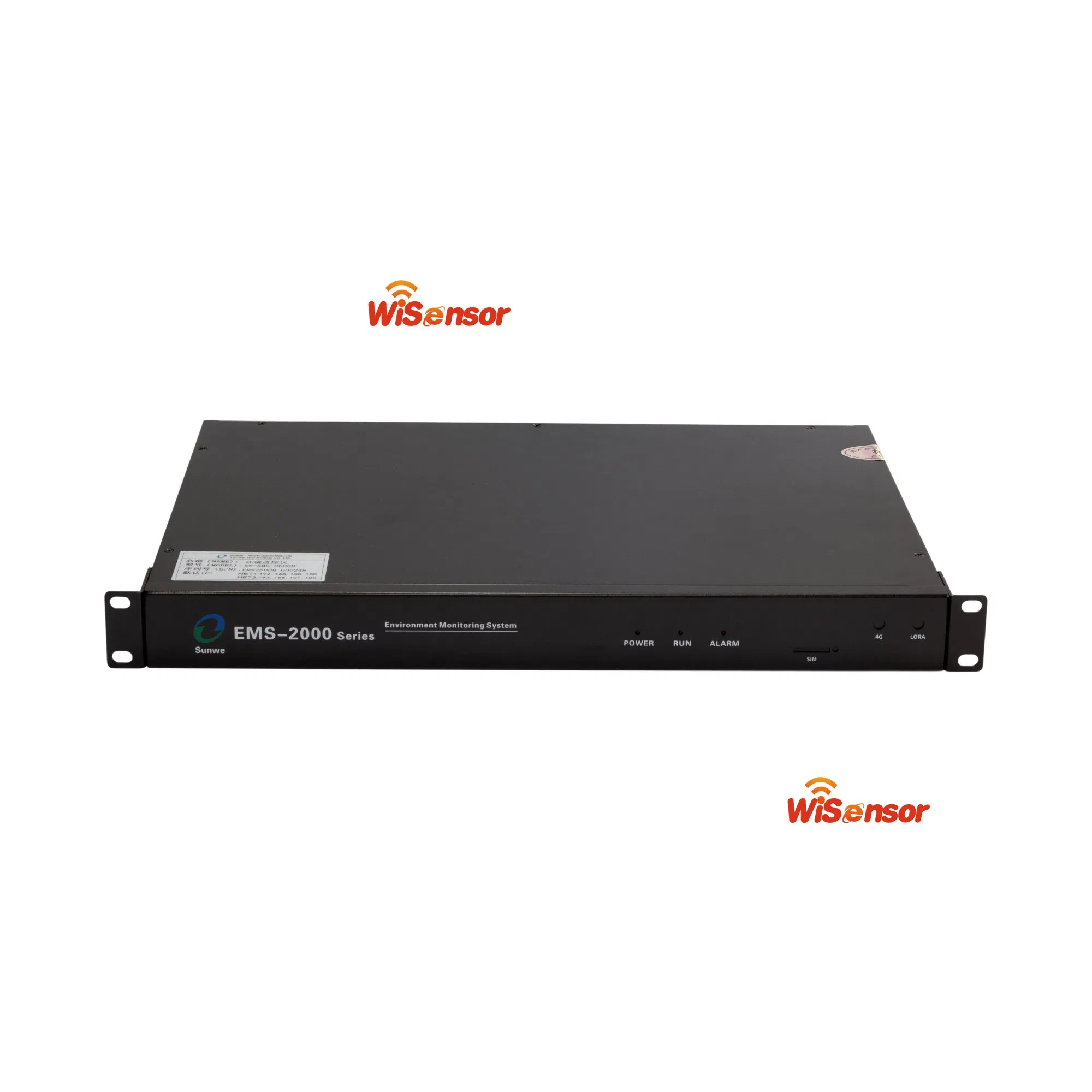

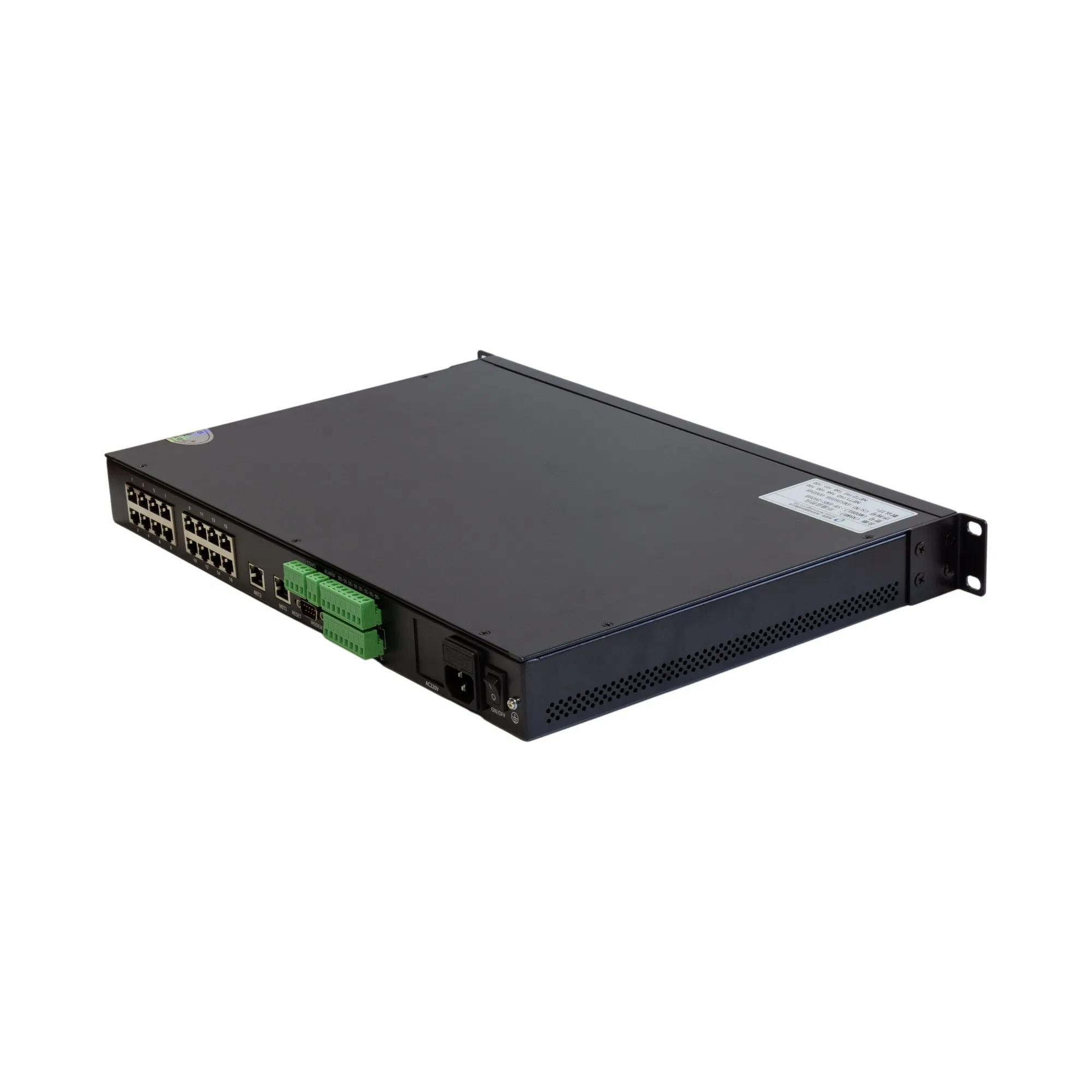

Industrial-Grade Power & Environment Monitoring System - Remote Environmental Monitoring for Government Data Centers

1 / 5

Industrial-Grade Power & Environment Monitoring System - Remote Environmental Monitoring for Government Data Centers

Customization:	Available
Installation Type:	Cabinet Installtion
Sensing Type:	Environmental Monitoring System

Send Inquiry

Product Description

📊

Basic Information

Model NO.	EMS-2600
Contact	Contactless
Output Signal Type	Digital Type
Production Process	Integration
Material	Iron Shell
IP Rating	IP30
Certification	ISO
OEM/ODM	Yes
Protocol	Proprietary Protocol
Communication	RS485, Ethernet
Temperature Range	-30°C to 80°C
Specification	1U

🛡️

Monitoring Capabilities

Monitor Item	Detailed Parameters
Mains Power	Phase voltages (Va, Vb, Vc), phase currents (Ia, Ib, Ic)
UPS Monitoring	Real-time UPS rectifier, inverter, battery, bypass, and load status
Temp & Humidity	Real-time and accurate monitoring inside the equipment room
Water Leakage	Real-time detection of water immersion
AC Control	Supports infrared control for over 95% of common air conditioners
Precision AC	Monitoring return air temp, humidity, heaters, and compressor alarms
Fire Detection	Real-time monitoring of smoke or fire alarm host signals
Security	Infrared monitoring for personnel entry alarms
Network	Online status monitoring for servers and switches

💡

Feature Overview

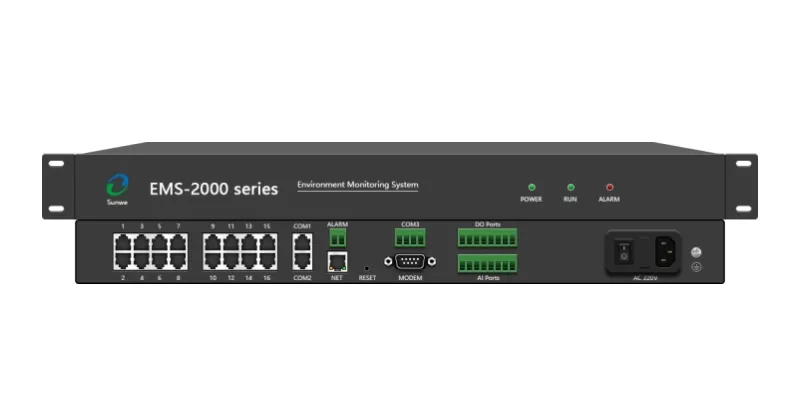

EMS-2600 Data Center Power and Environmental Monitoring System

Provides centralized monitoring for distribution, UPS, AC, leakage, fire alarms, and security. It enables remote measurement, signaling, control, and viewing. Utilizing embedded technology, it ensures data acquisition even during network disconnection, facilitating precise fault localization and efficient management.

🌐

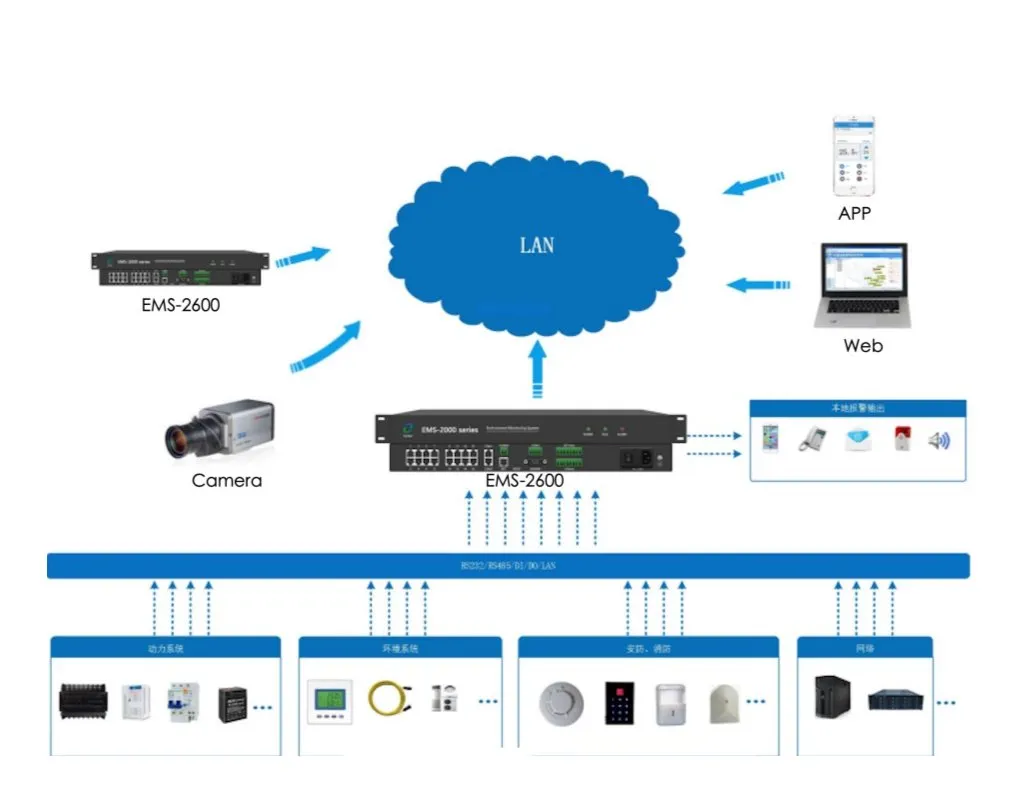

System Topology

⚙️

Key Features

Hardware-level write protection to prevent Trojans and viruses.
Industrial-grade low-power design (typical 5W consumption).

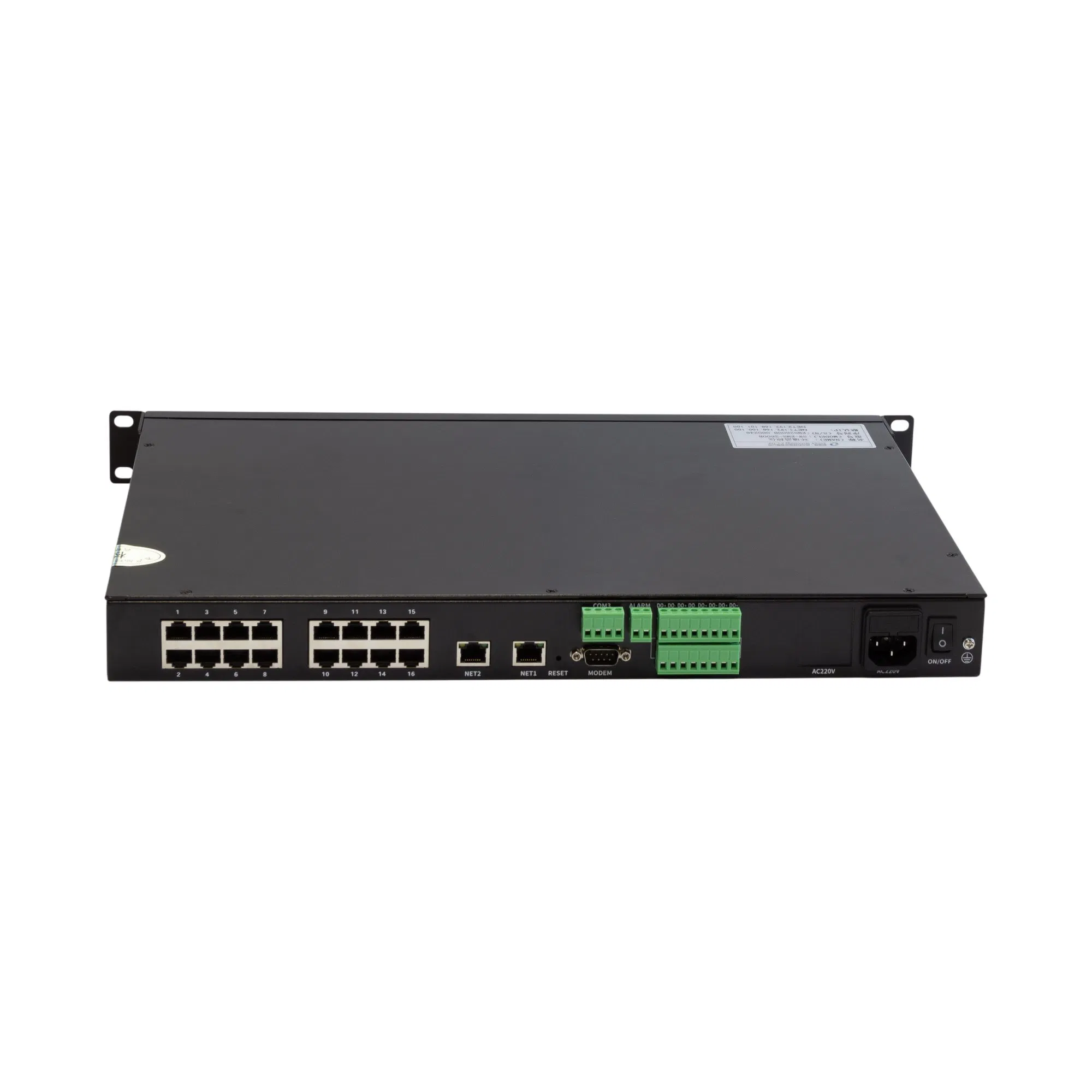

1 × 10/100M Base-T adaptive Ethernet port for switch/router connection.
High-precision real-time clock with network time synchronization.

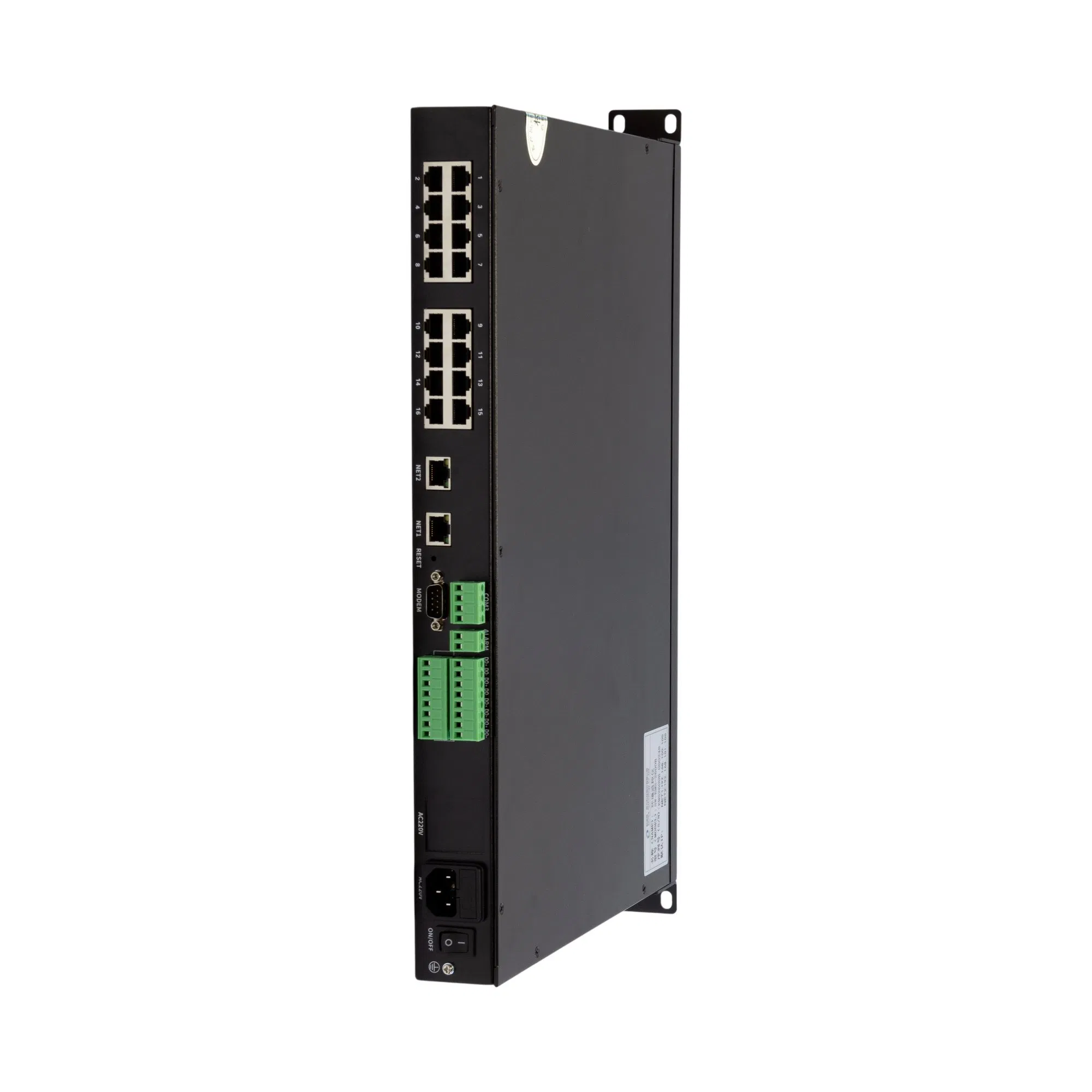

16 multi-function sensor interfaces (standard RJ45) supporting RS485/DI.
Dedicated ALARM interface (DC 12V) and Modem interface for SMS alerts.
Quick reset button to restore factory settings.
Wide power supply range: 90–264 VAC (AC 220V input).

🏢

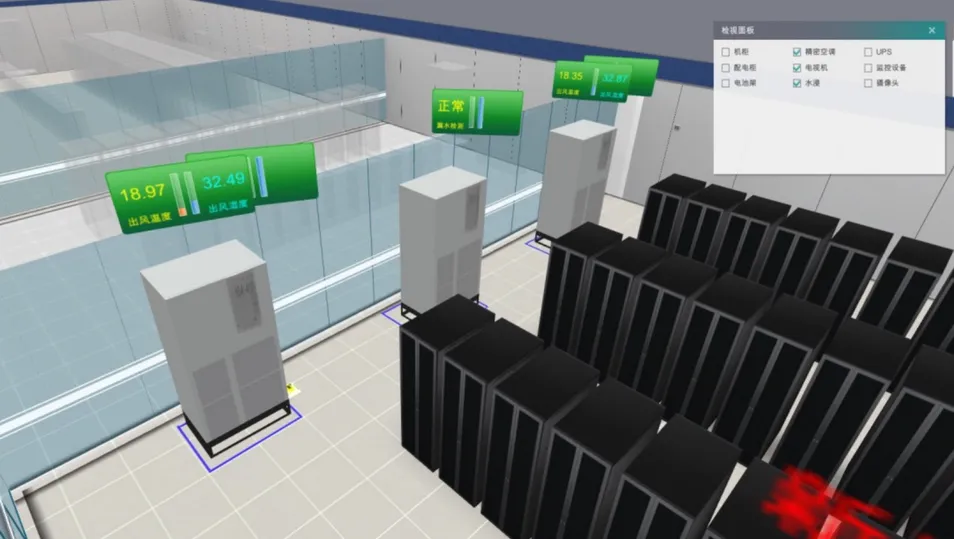

Applications

Data Center Monitoring Systems
Medical Cold Storage Monitoring
Food & Beverage Cold Storage
Greenhouse Environmental Control
HVAC System Monitoring
Oil & Natural Gas Infrastructure

🖥️

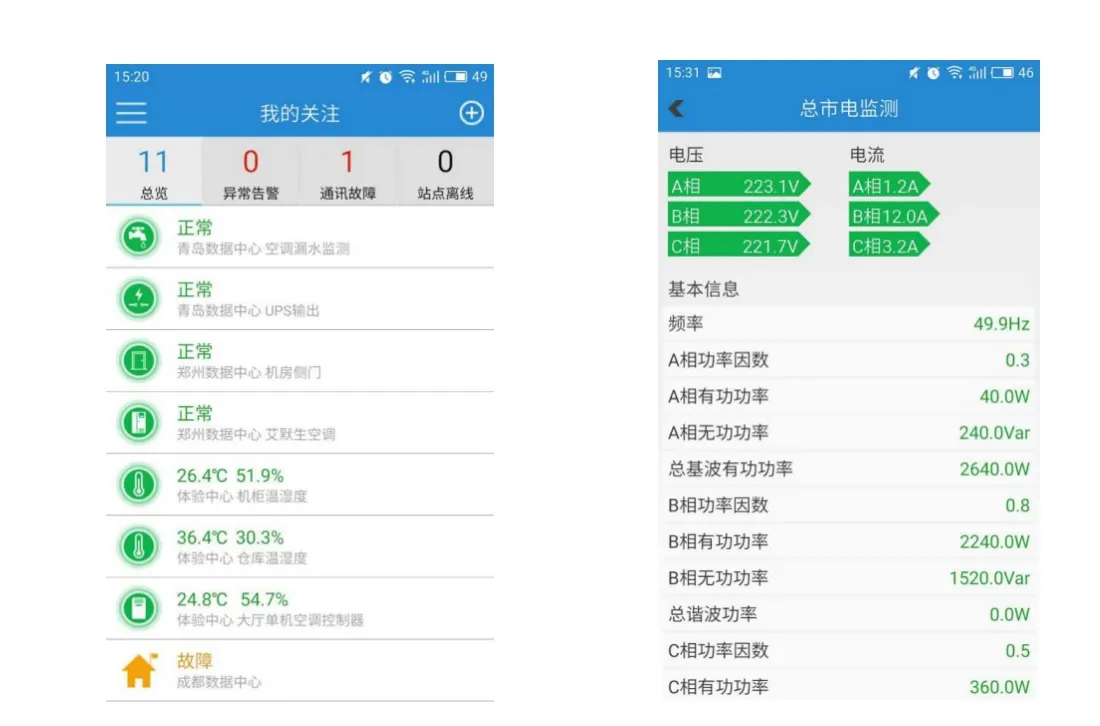

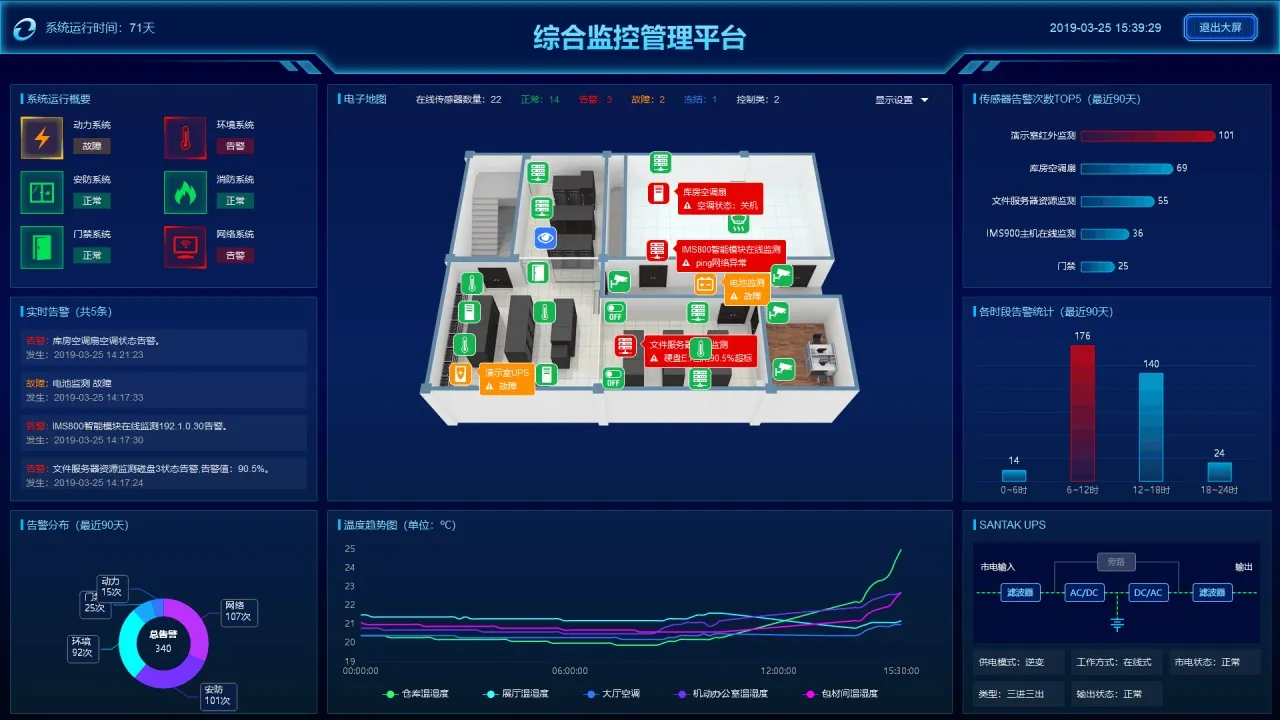

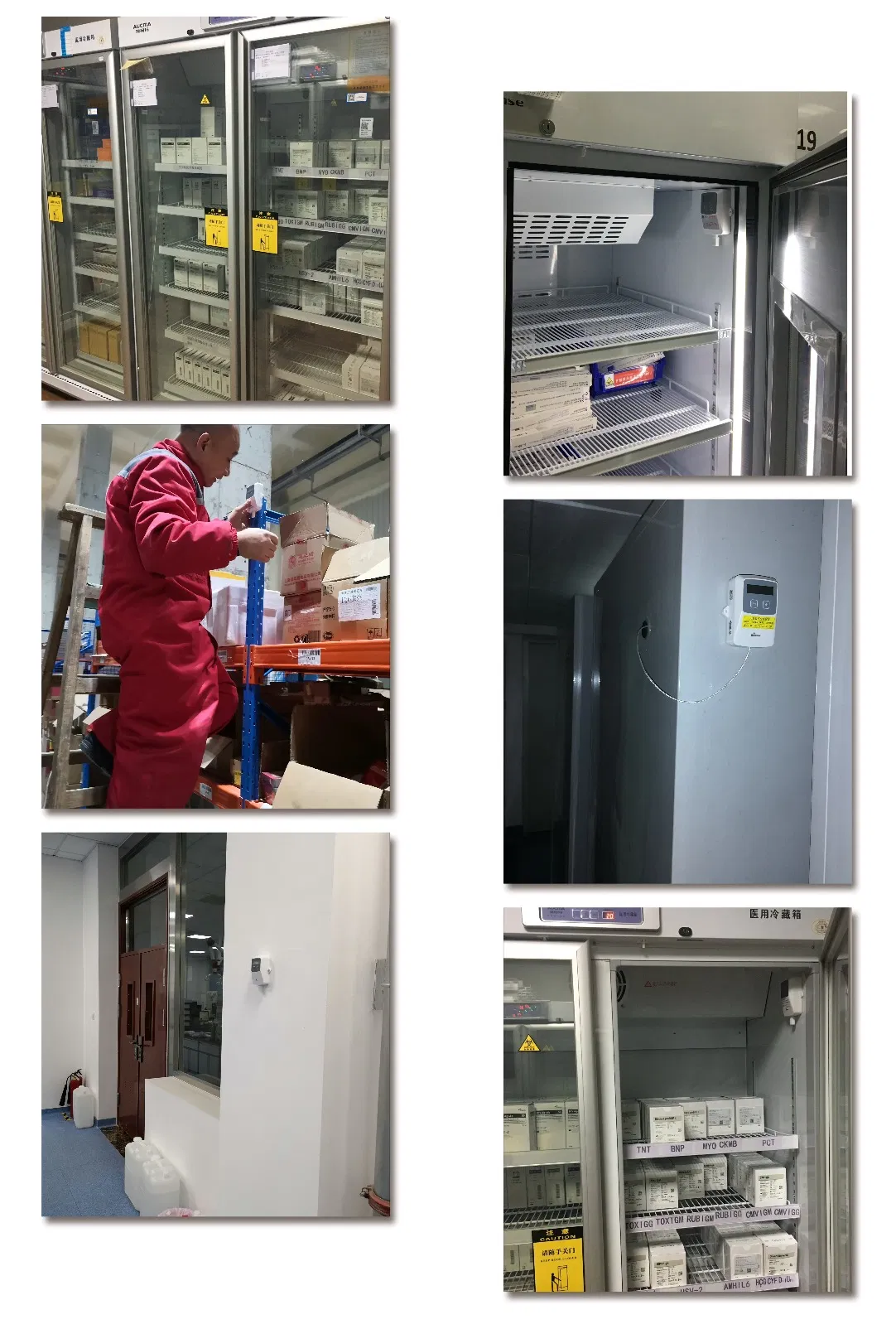

Display Interface & Cases

📜

Certifications

❓

Frequently Asked Questions

What is the EMS-2600 designed for?

It is designed for centralized monitoring of power and environmental conditions in data centers, server rooms, and industrial storage facilities.

Can the system control air conditioners remotely?

Yes, it supports infrared remote control for over 95% of common air conditioning units available on the market.

How does the system handle network disconnections?

The system uses embedded monitoring technology, ensuring that the host retains data acquisition and alarm functions even if the network is disconnected.

Is the device protected against cyber threats?

Yes, it features hardware-level write protection to prevent Trojans and viruses from compromising data integrity.

What type of sensors can be connected?

It supports up to 16 multi-function sensor interfaces using standard RJ45 connectors for RS485 or DI signal sensors.

What is the power consumption of the monitoring host?

It features an industrial-grade low-power design with a typical consumption of only 5W.
