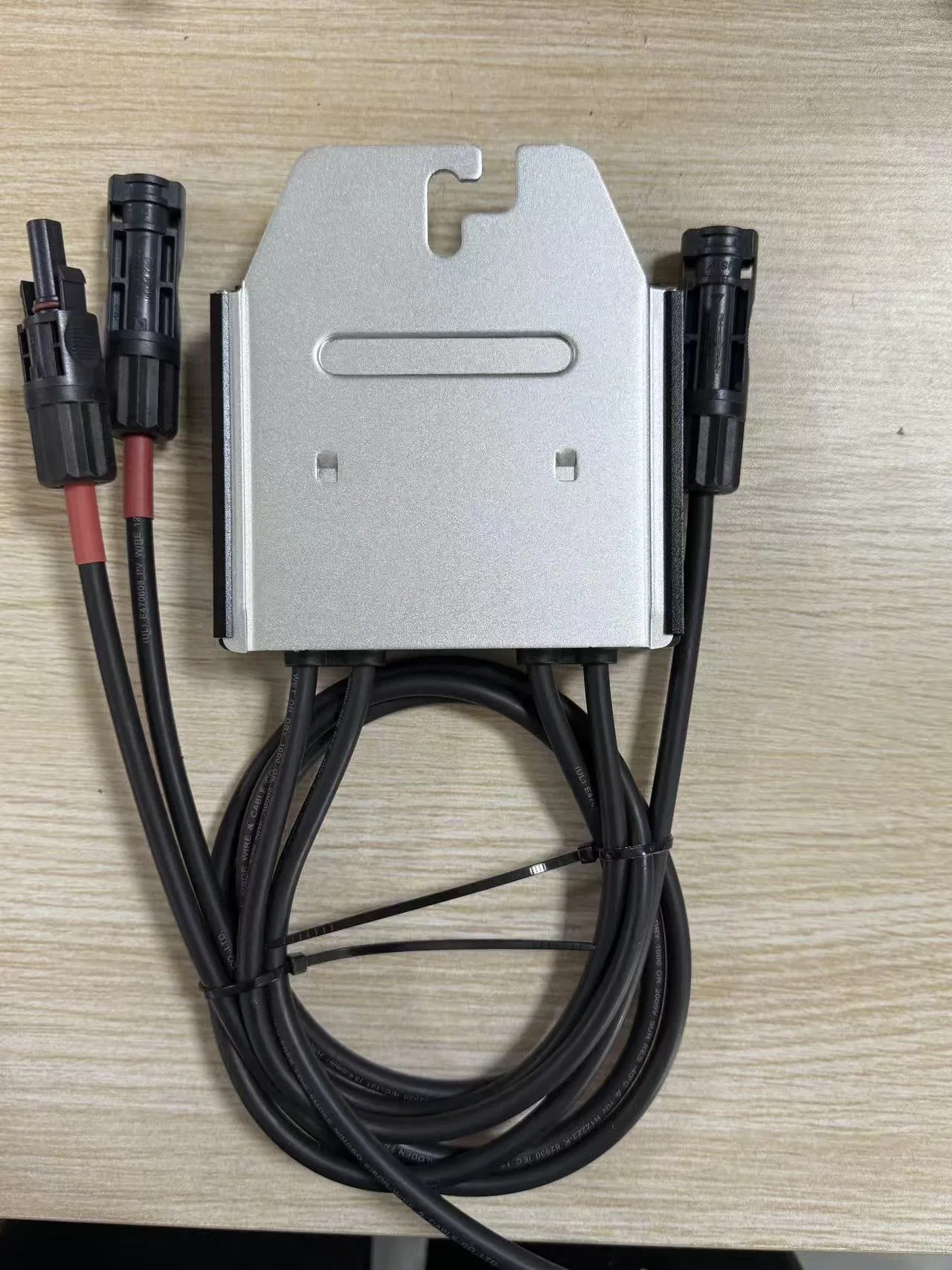

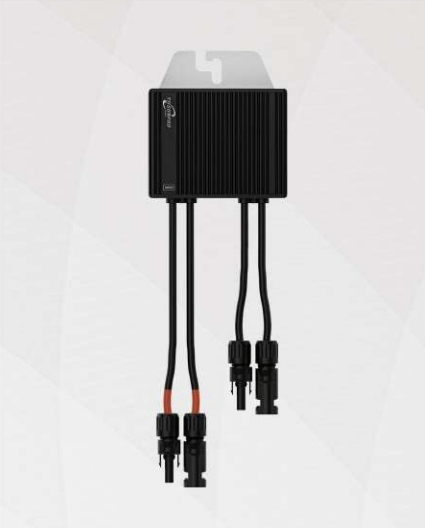

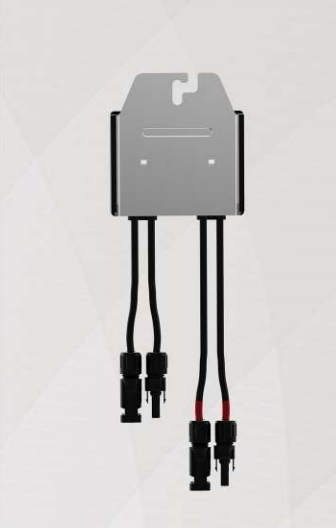

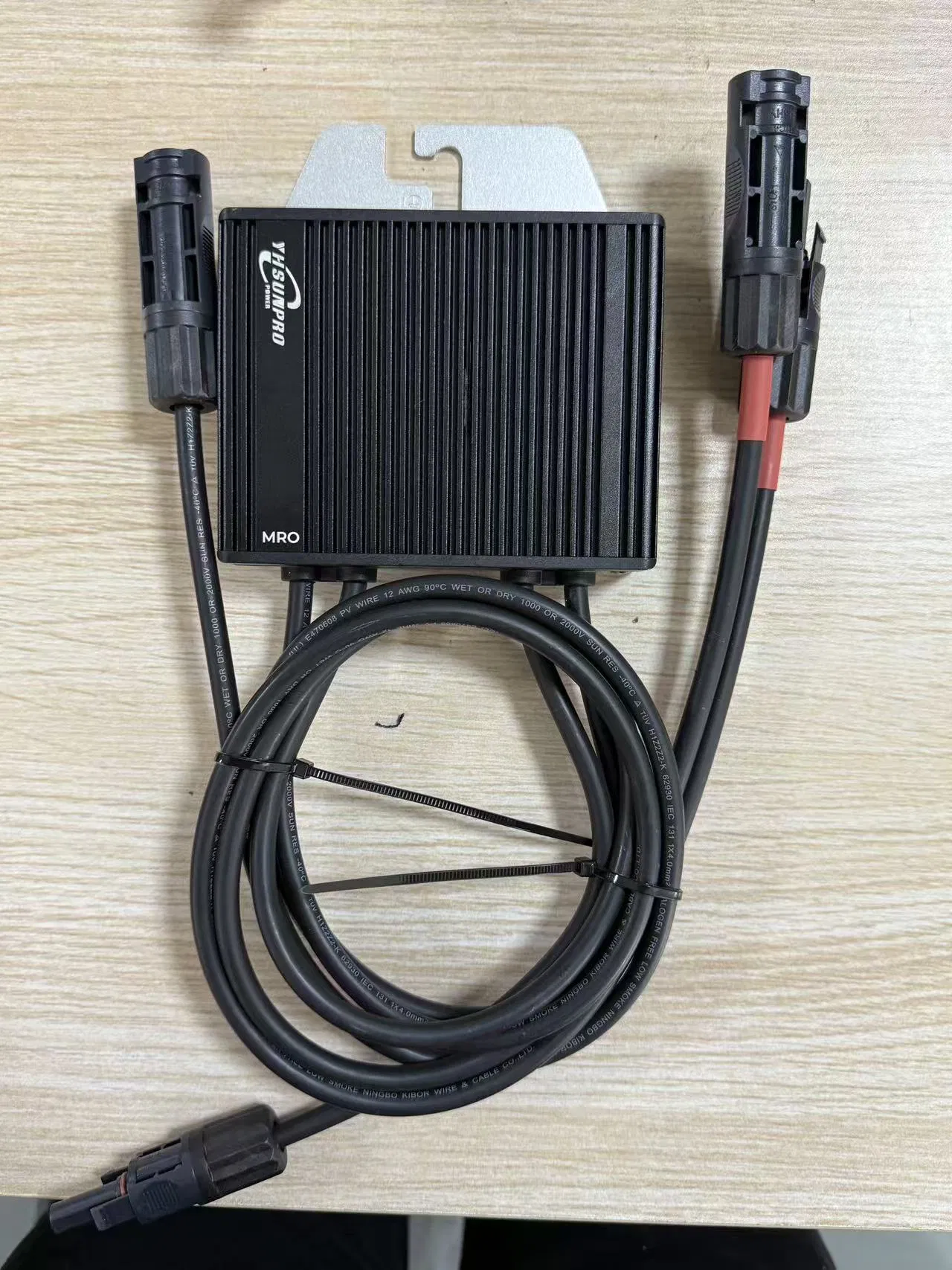

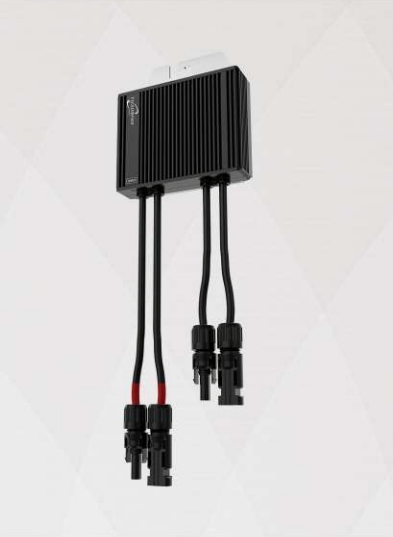

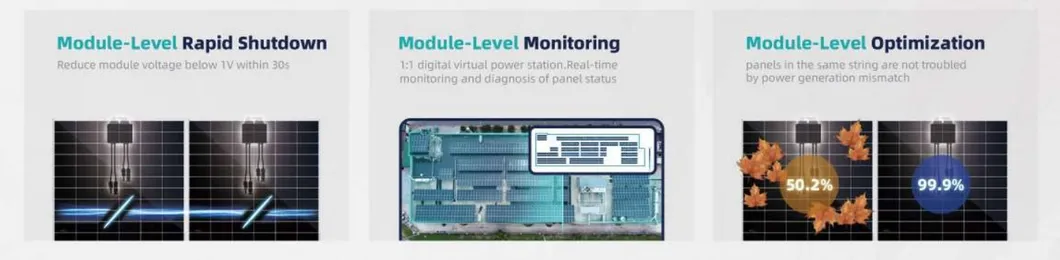

The MRO Series is a module-level micro-controller that integrates three core functions: Module-Level Rapid Shutdown, Real-Time Monitoring, and MPPT Power Optimization. It acts as an intelligent brain for each solar panel, transforming conventional PV systems into digitally controllable and observable power plants.
The optimization function ensures the optimal power output of each module in the solar system. The new PLC has efficient dual-channel communication, no additional communication wiring is required, and the instability of wireless communication is avoided, so that the system always runs in an efficient and stable state.

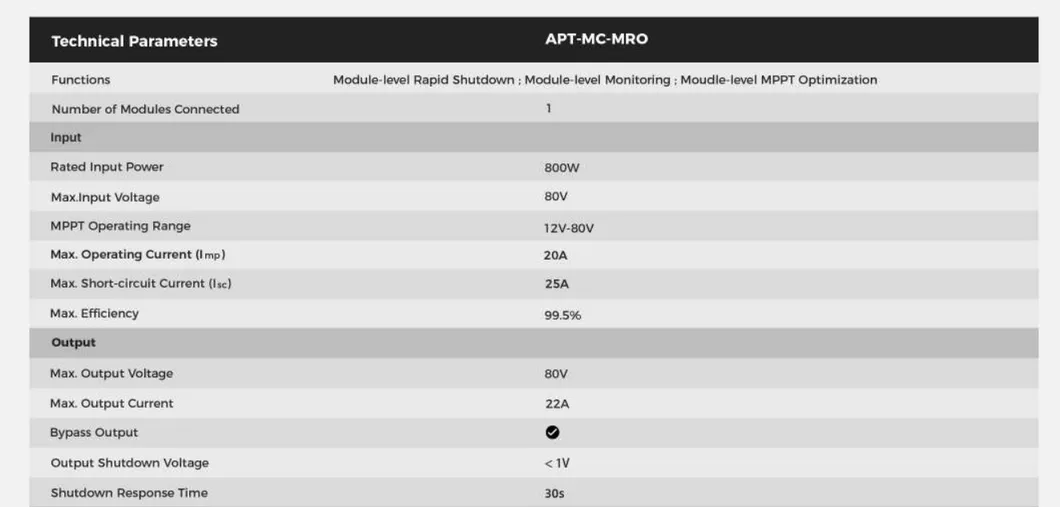

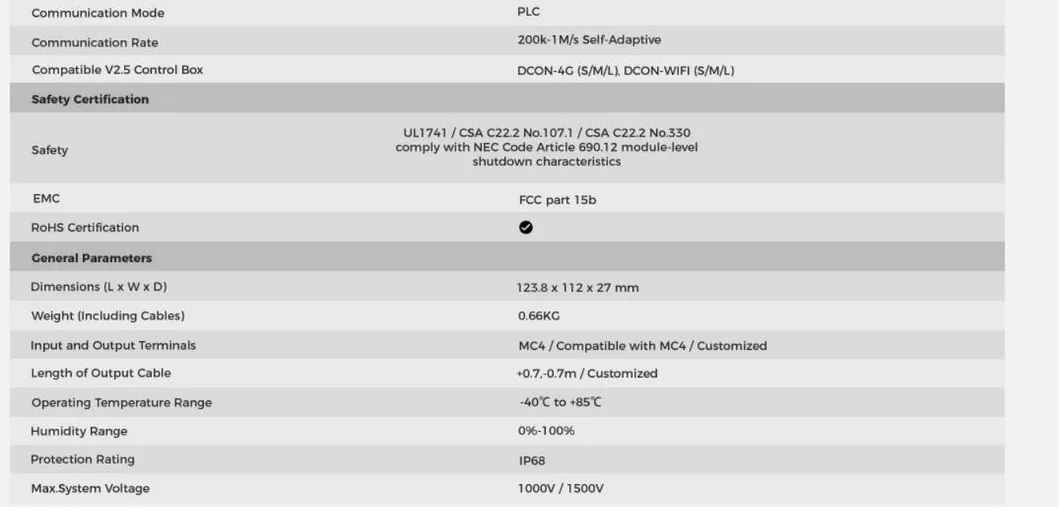

| Model NO. | APT-MC-MRO |
| Certification | ISO, UL1741, CSA C22.2 No.107.1, CSA C22.2 No.330 |
| Safety Compliance | NEC Code Article 690.12 Module-Level Shutdown |
| Application | Home, Industrial, Commercial |
| Dimensions | 123.8 * 112 * 27MM |
| Weight | 0.66kg |
| Rated Input Power | 800W |
| Max Efficiency | 99.5% |
| Protection Rating | IP68 |
| Max System Voltage | 1000V/1500V |
By minimizing mismatch losses, annual energy generation can be increased by up to 30% or more, significantly shortening the payback period.
Built-in rapid shutdown meets mandatory safety regulations. IP68 protection rating makes it resistant to extreme temperatures (-40°C to +85°C).
Unaffected by partial shading or complex roof orientations. Allows up to 30% more installed capacity and is compatible with third-party PV inverters.

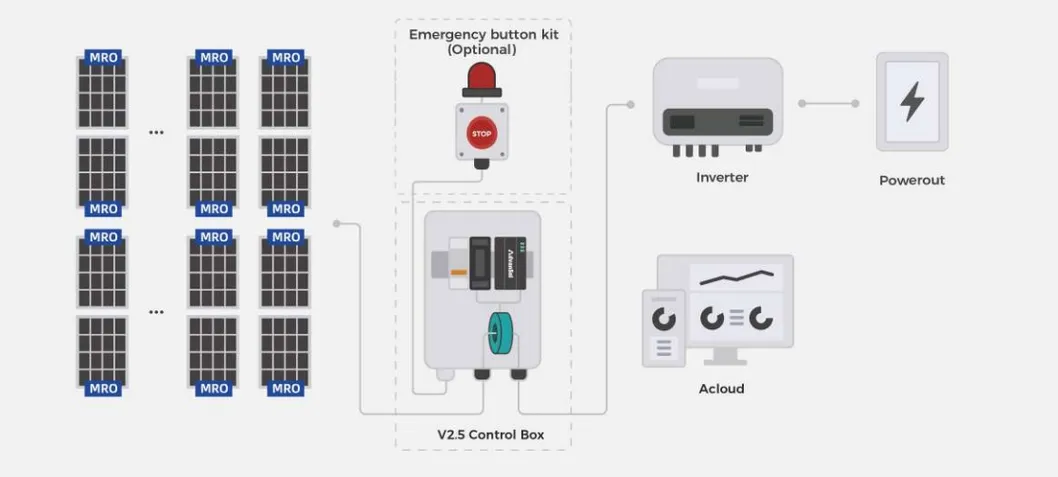

Uses Power Line Communication (PLC) technology via existing DC cables. No extra wiring needed, ensuring high reliability and low maintenance cost.
