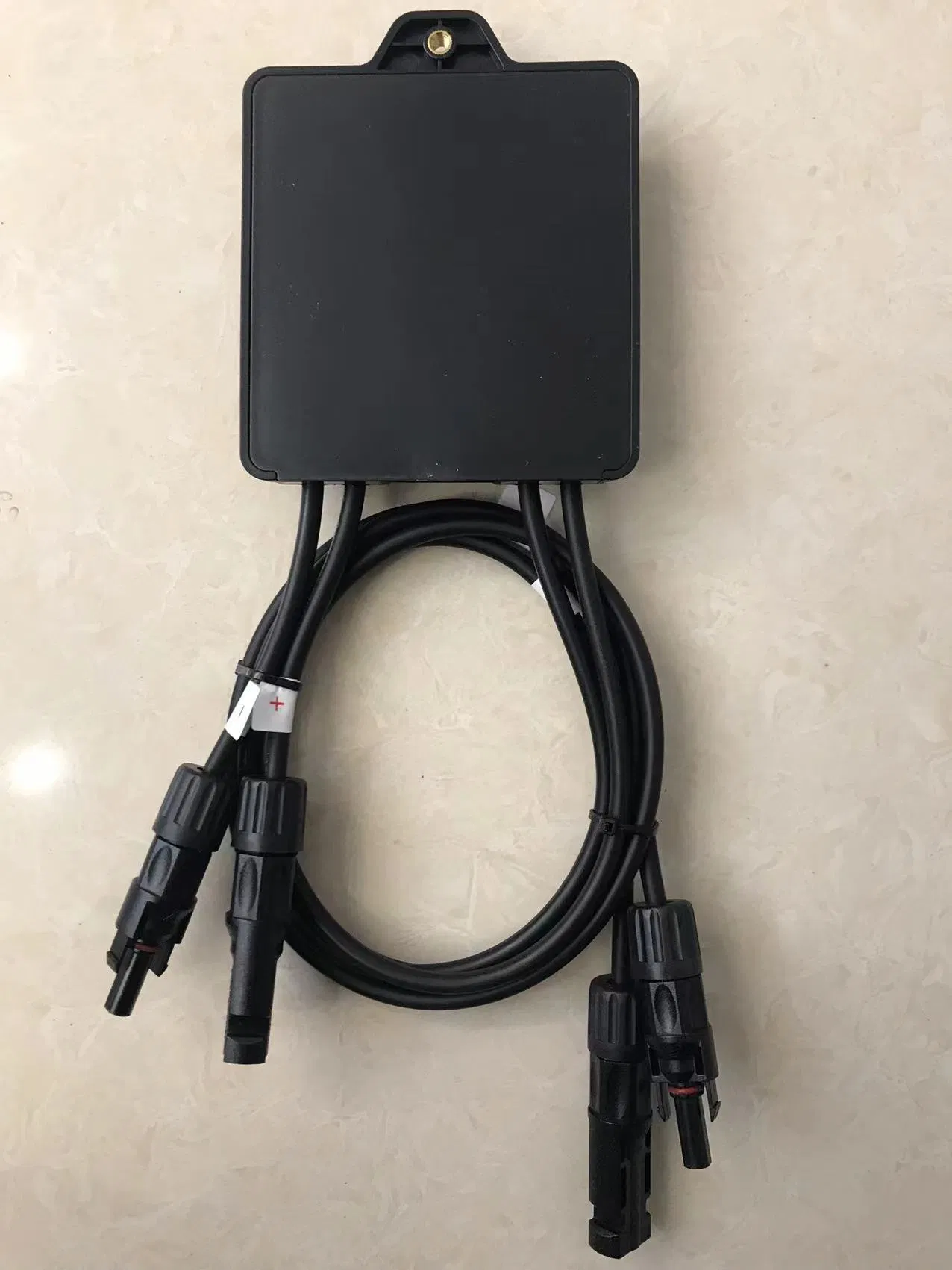

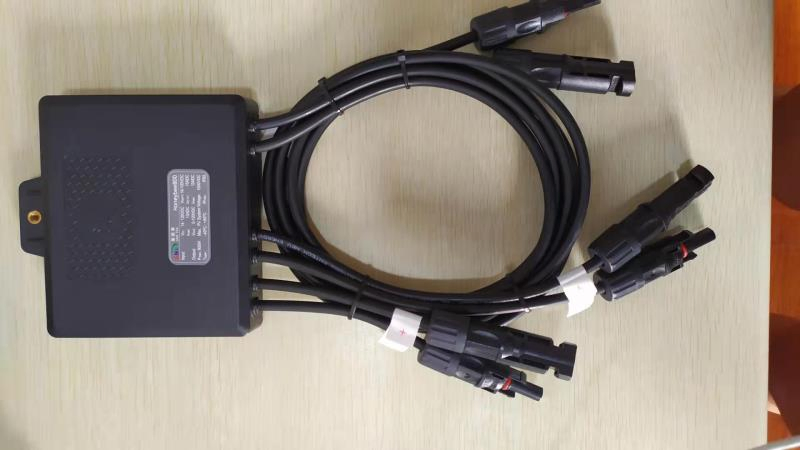

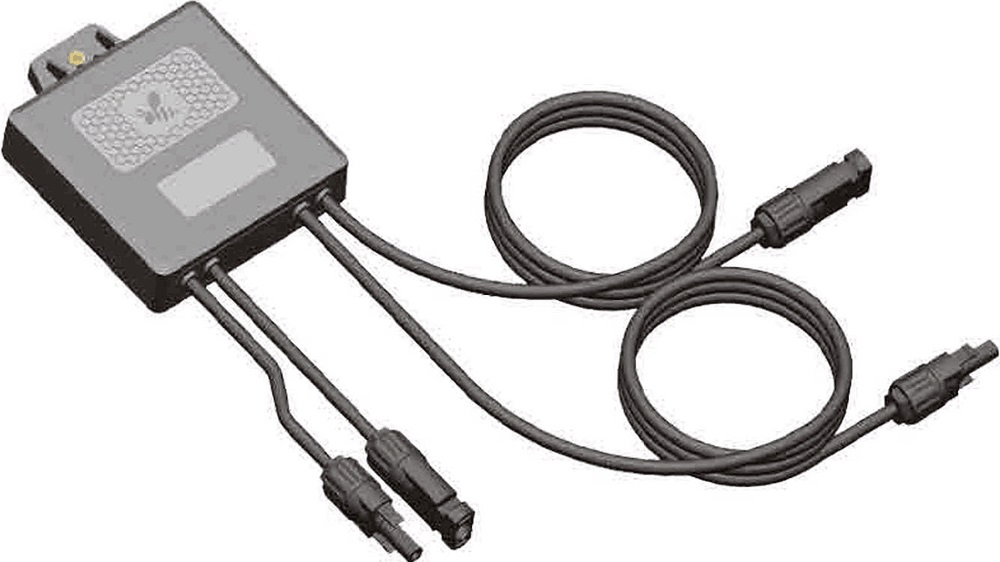

New Design Honeybee 850 Solar Optimizer for Panel Power
New Design Honeybee 850 Solar Optimizer for Panel Power
New Design Honeybee 850 Solar Optimizer for Panel Power
New Design Honeybee 850 Solar Optimizer for Panel Power
New Design Honeybee 850 Solar Optimizer for Panel Power
1 / 5
New Design Honeybee 850 Solar Optimizer for Panel Power
New Design Honeybee 850 Solar Optimizer for Panel Power
New Design Honeybee 850 Solar Optimizer for Panel Power
New Design Honeybee 850 Solar Optimizer for Panel Power
New Design Honeybee 850 Solar Optimizer for Panel Power

New Design Honeybee 850 Solar Optimizer for Panel Power

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊

Basic Specifications

Model NO.
HONEYBEE 800
Condition
New
Certification
CE, CQC TUV LVD Aus VDE
Single Limit Input Voltage
90V
Max MPPT Voltage
75V
Max Output Power
900W
Weight
765g
Max Efficiency
96.5%
Dimensions
130*132*24.5mm
Origin
China
💡

Solar Optimizer Technology

HONEYBEE 400/650/800/850 Series - Data Processing 12V/22V

The power optimizer uses a unique software algorithm that tracks the maximum power point of a single module in real-time. It solves problems caused by shading or component electrical specification differences, ensuring maximum power output and system efficiency.

⚡
Higher Yield: Module level MPPT increases power yield by 5% - 25%.
🔍
Real-time Monitoring: Panel-level monitoring with timely alerts.
🛡️
Safety First: Remote shutdown features eliminate high voltage dangers.
🔄
Compatibility: Add-on design, compatible with third-party inverters.
🏗️
Flexible Design: Maximum space utilization for various installations.
⏳
Long Lifespan: 25-year lifespan matching the solar module.
📝

Technical Parameters

Product Name Honeybee 350 Honeybee 400
Max Input Power350W450W
Max Input Voltage60V75V
Max Input Current10A13A
Min MPPT Voltage16V12V
Max Efficiency99.50%99.50%
IP RatingIP65IP67
Product Name Honeybee 700 Honeybee 800
Limit Input Voltage90V90V
Max Input Voltage60V75V
Max Output Power350W*2450W*2
Communication-Wireless
Weight810g765g
Max Efficiency99.50%99.60%

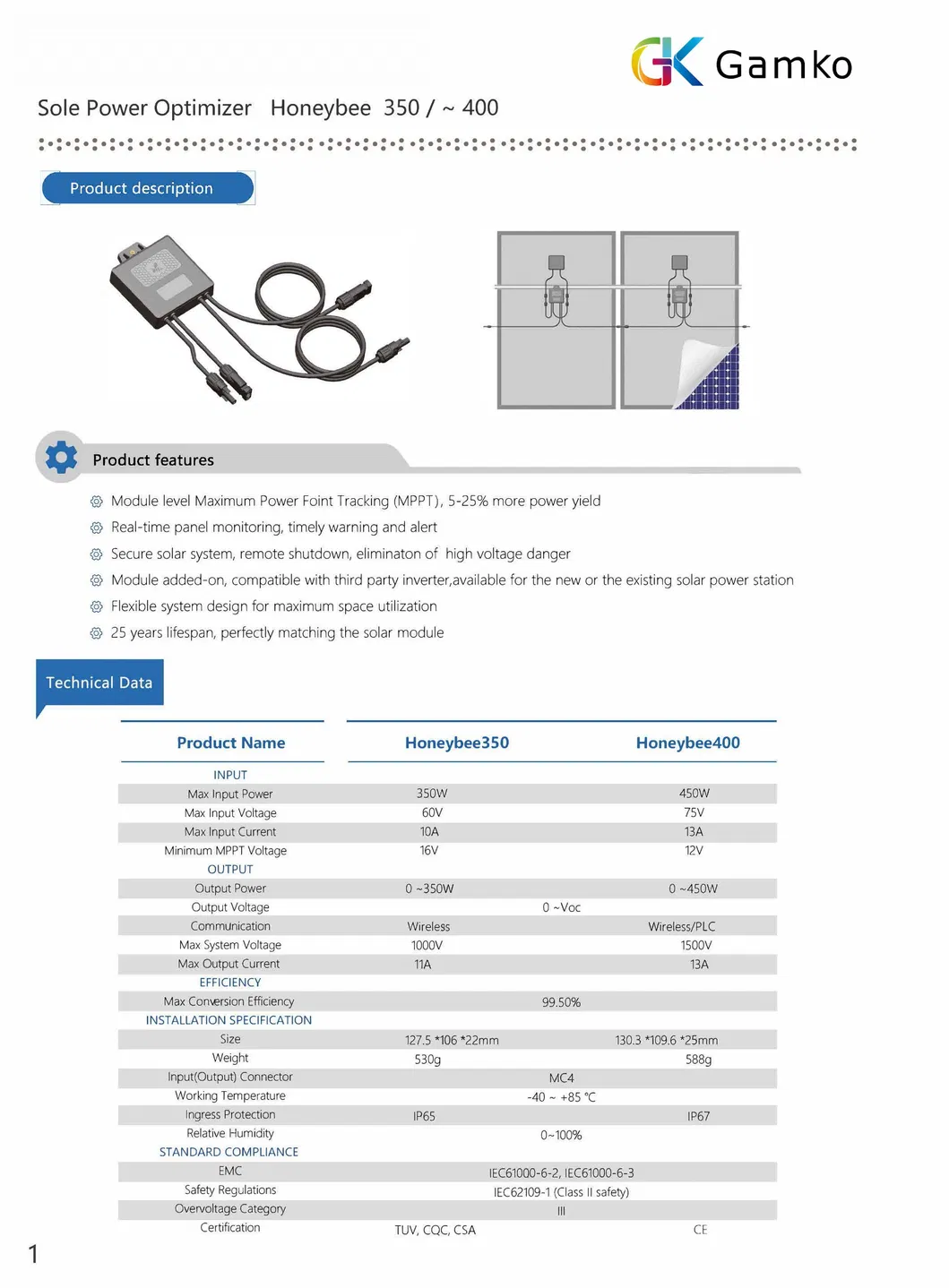

Honeybee Solar Optimizer Design

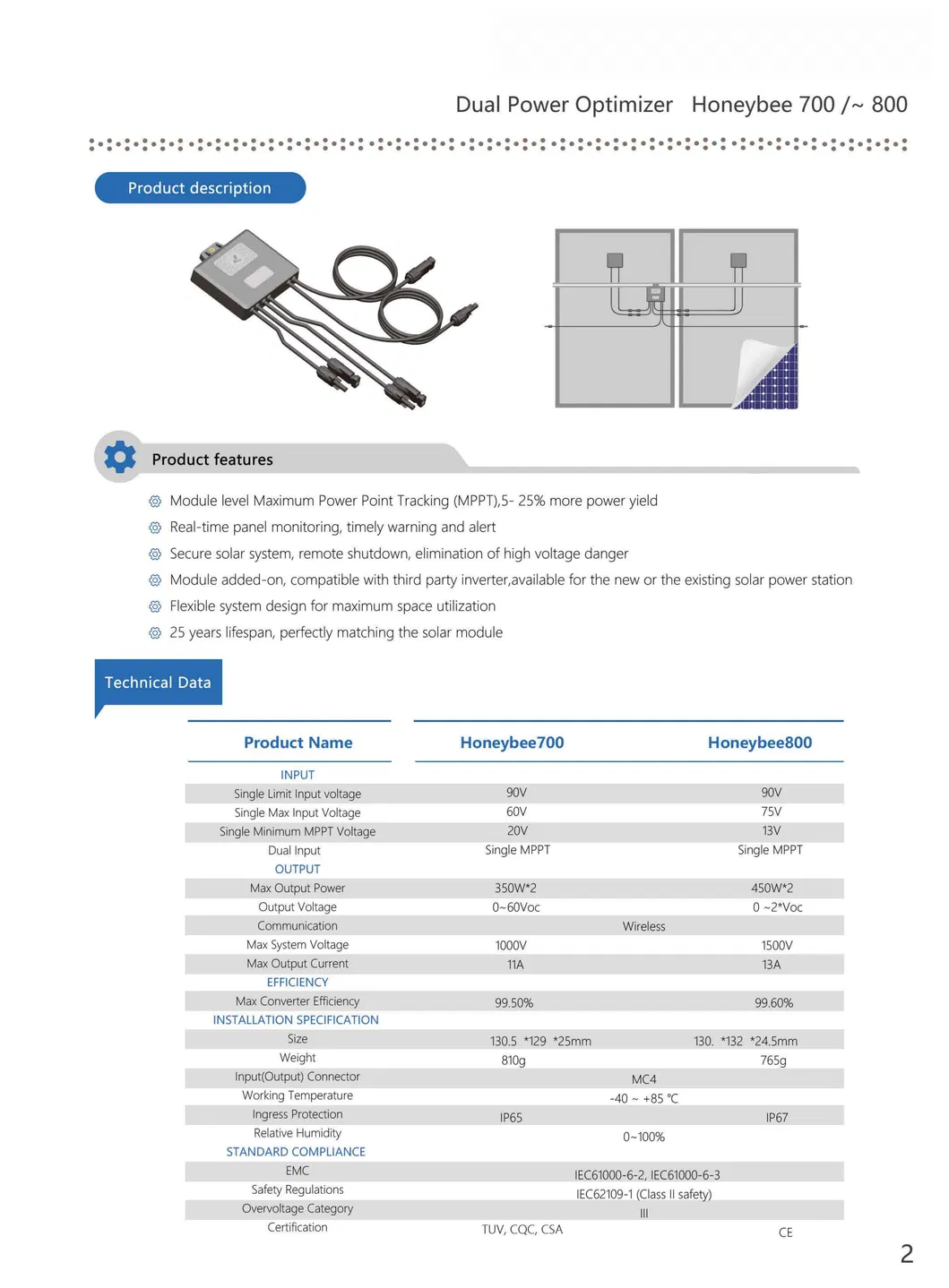

Honeybee Solar Optimizer Power

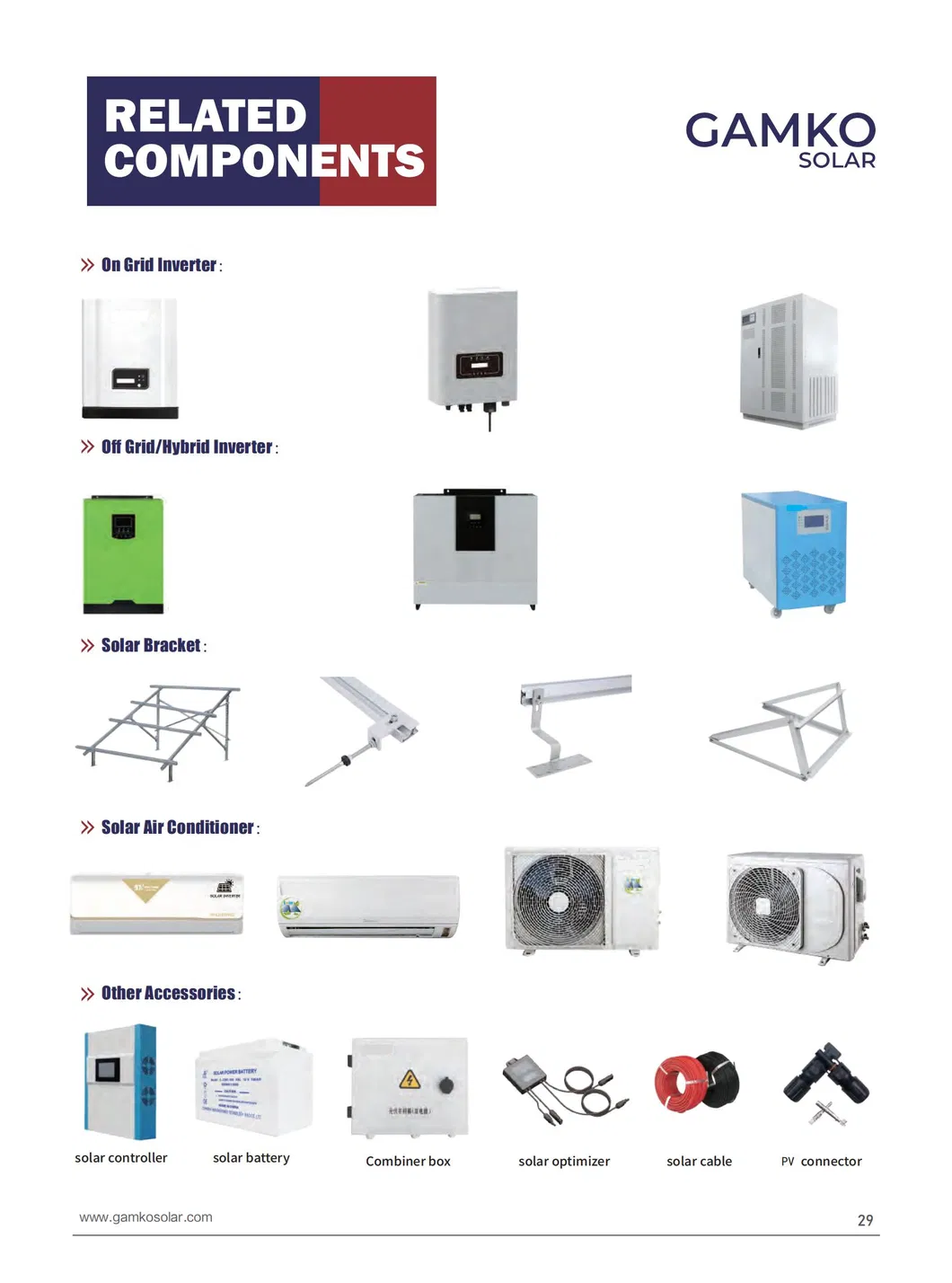

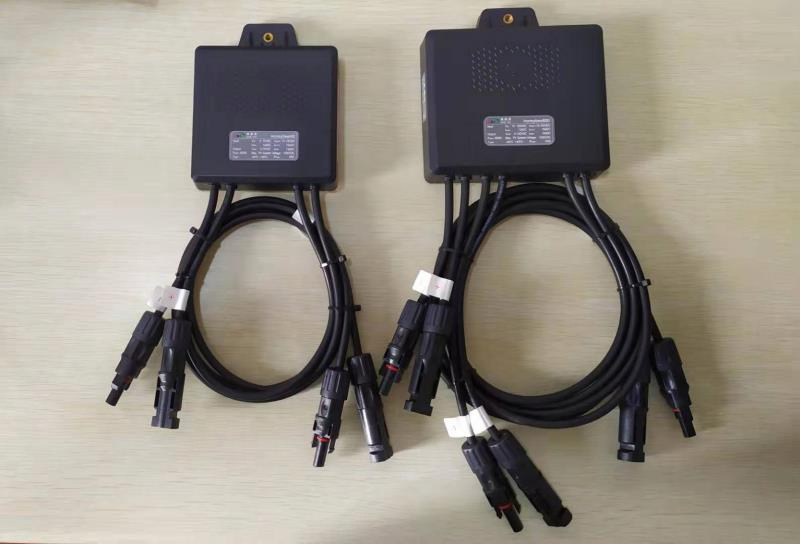

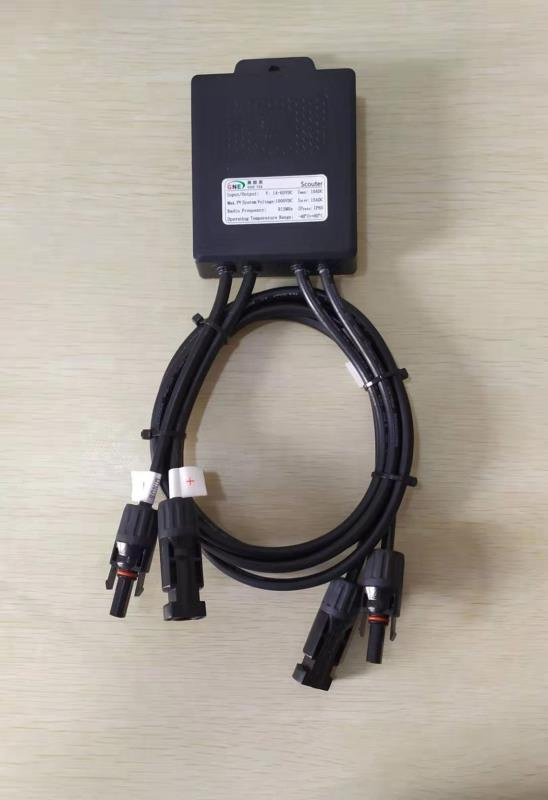

Detailed Solar Optimizer View

Factory & Quality Display

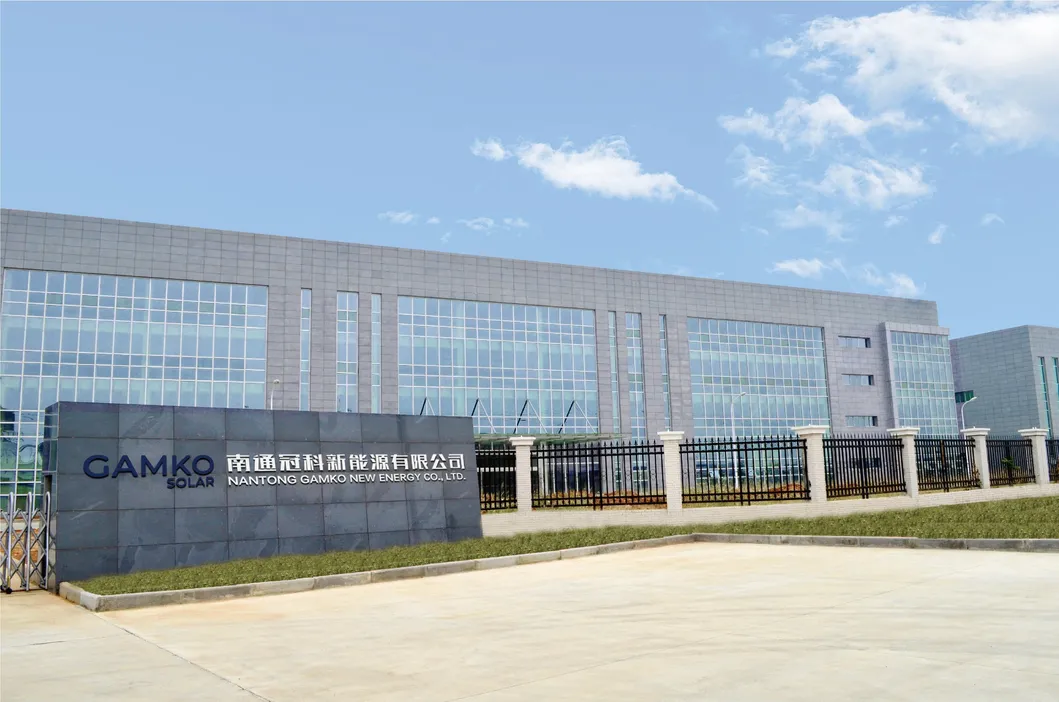

Company Profile View

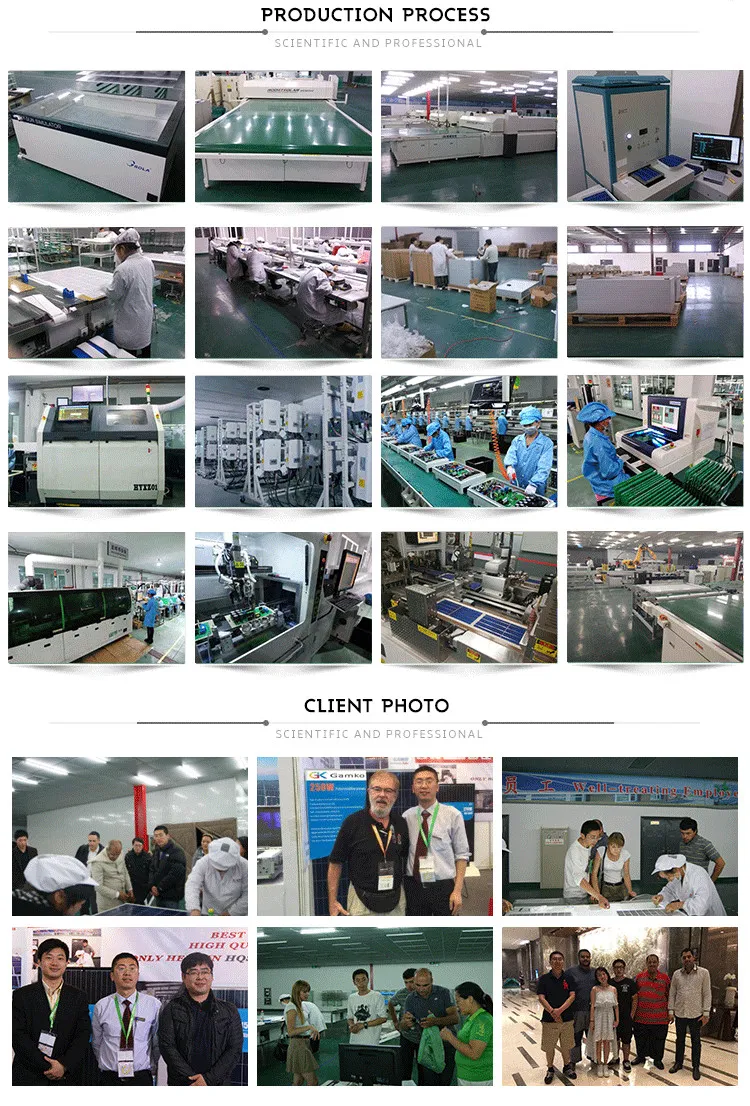

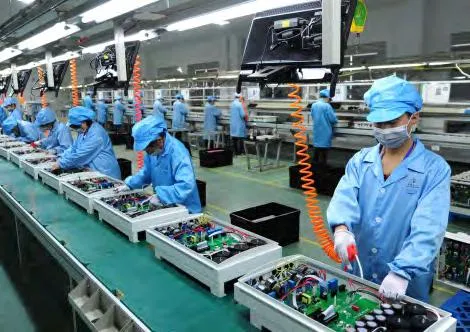

Production Facility

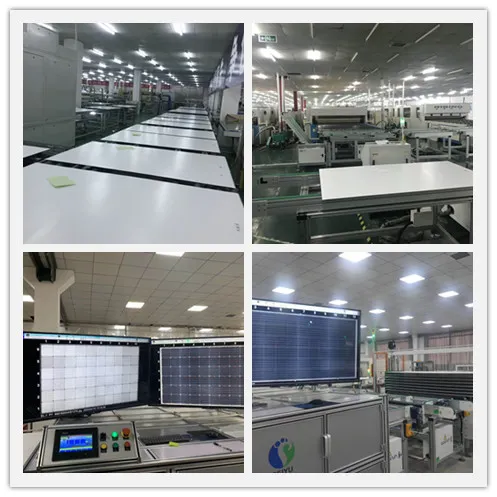

Quality Control

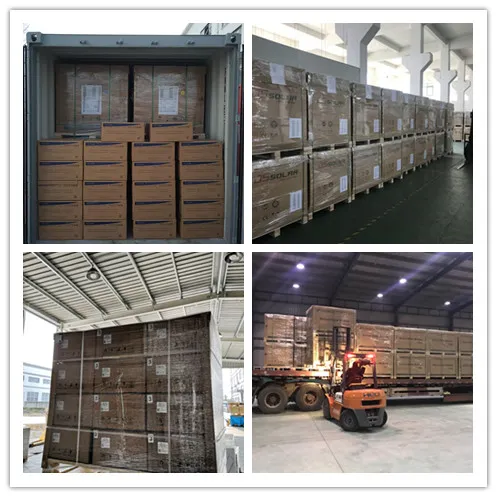

Testing Lab
Solar Testing

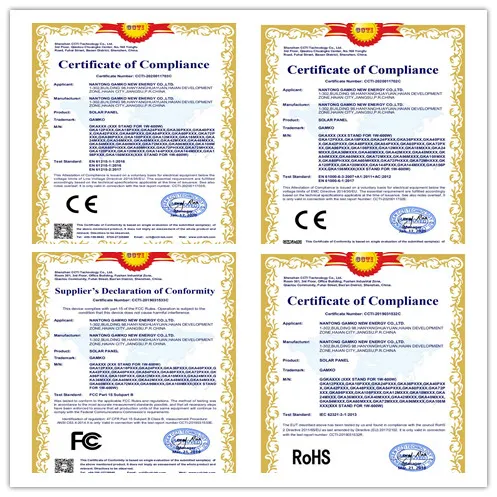

Certification and Compliance

Professional Services

  • OEM Welcomed (orders over 100pcs)
  • Warranty: Standard 5 years, extension to 10 years available
  • Full Certification support provided
  • Samples available for testing and evaluation
  • 24-Hour Hot Line for Consultancy and Technical Support
  • Fast delivery: 15 working days for container orders
❓

Frequently Asked Questions

How can I ensure payment security?
We support Trade Assurance payments to ensure 100% security for both parties throughout the transaction.
How do I request support if a product fails under warranty?
Please email us the PI number, serial number (S/N), and a description of the failure with photos or video. Our after-sales department will provide a solution within 24 hours.
Is the optimizer compatible with all solar panel brands?
Yes, our optimizers are designed with standard MC4 connectors and flexible electrical specifications to be compatible with most third-party PV modules and inverters.
What is the main benefit of using a solar optimizer?
It performs module-level MPPT, which significantly reduces power loss caused by shading, dust, or aging of specific panels, increasing overall system yield by up to 25%.
Does the optimizer require special maintenance?
No, with an IP67/IP65 rating and a 25-year design lifespan, it is built to be maintenance-free and weather-resistant for long-term outdoor operation.
Can I monitor each panel individually?
Yes, the optimizer supports real-time panel-level monitoring, allowing you to see the performance of every single module and receive alerts for any issues.
