Customization: Available
Warranty: 10years
Condition: New
Send Inquiry

Product Description

⚡ Basic Information
Model NO.
Solar Panel Optimizer
Max Input Power
600W
MPPT Voltage Range
7 ~ 60V
Max Input Current
16A
Ingress Protection
IP67
Size
103*105.3*21.3mm
Weight
0.65kg
Related Humidity
0~100%
📦 Product Description

Note: The standard configuration is focused on efficiency and management. Please inquire for additional specific functional requirements.

Solar Panel Optimizer
🌟 High Efficiency Module-level MPPT ensures 5%~25% more power generation by optimizing each panel's performance individually.
🛡️ Proactive Protection Parallel arc and leakage detection features proactively protect the system and help locate faults quickly.
⏳ Long Service Life Designed for a 25-year lifespan, matching the typical service life of high-quality PV modules.
🔧 Easy Installation Compatible with PV stations under construction or already in operation. Simplified mounting process.

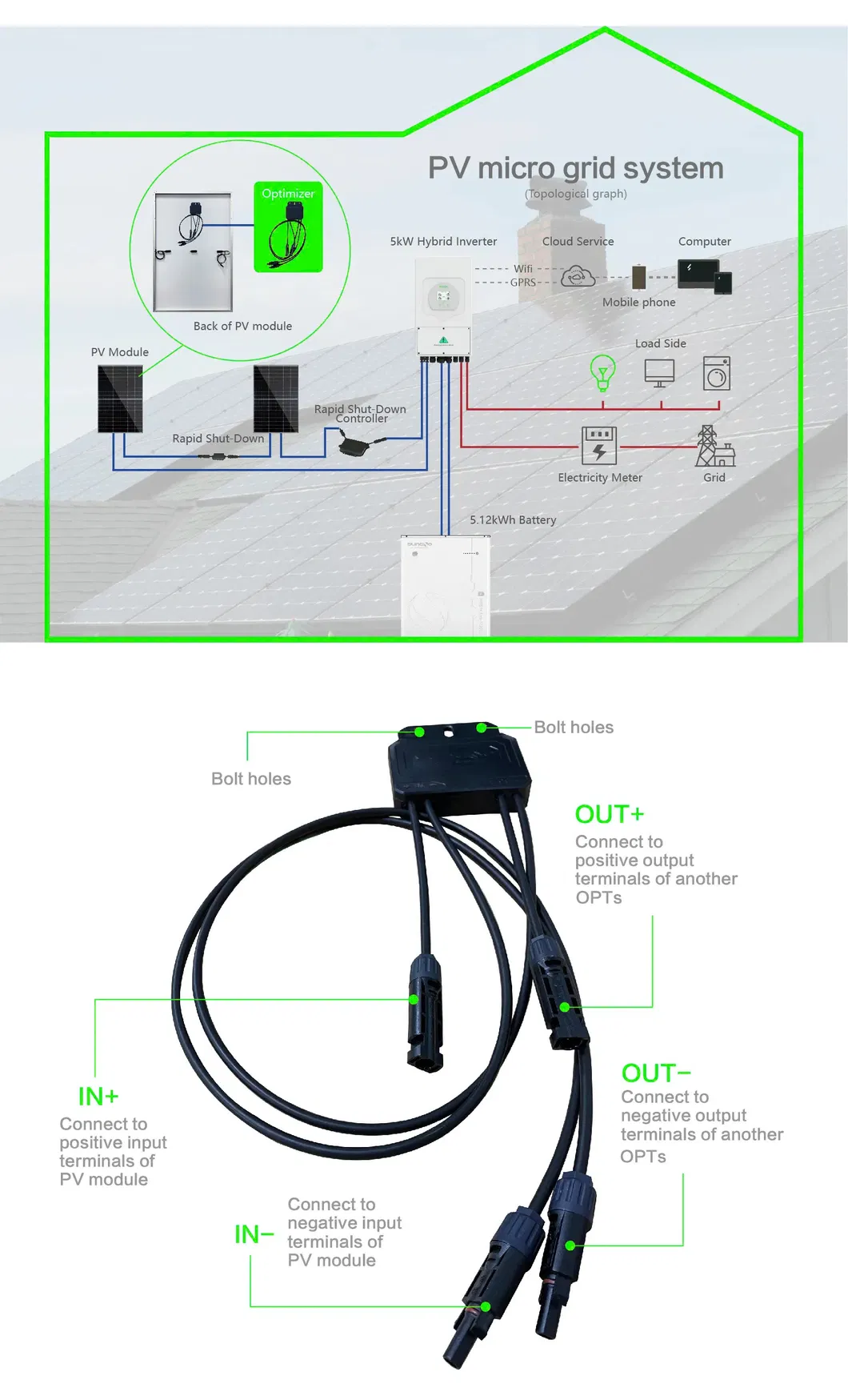

Product Technical Details
Optimizer Detail 1

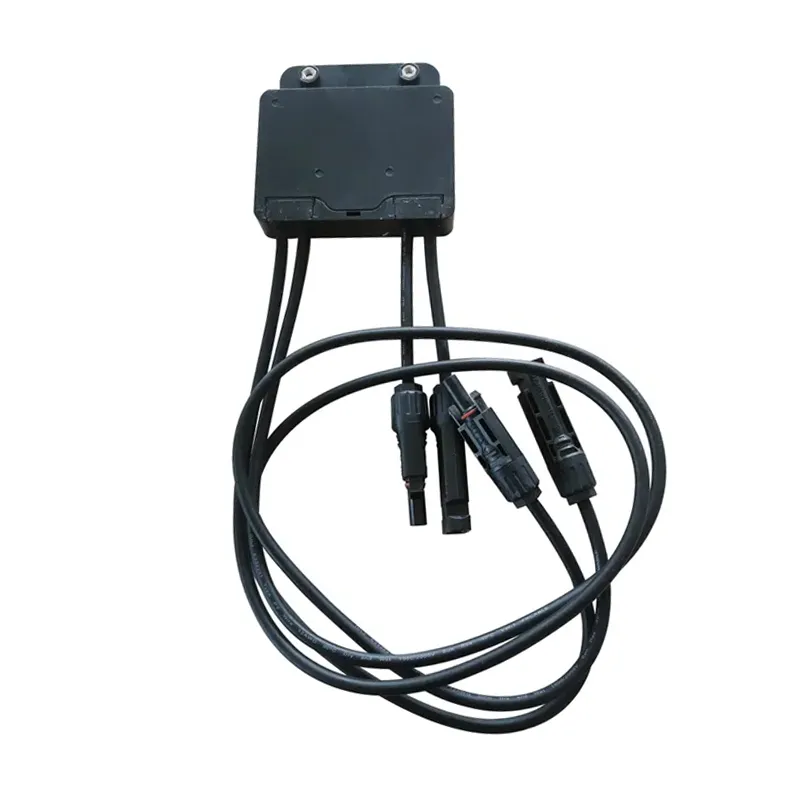

Optimizer Detail 2
📊 Specifications
DC Input & Output Data
Max Input Power600W
Operation Voltage Range7 ~ 60V
Max Input Current16A
Max Output Current16A
Output Voltage Limit42V
Max System Voltage1500V
Efficiency & General Data
Peak Efficiency99.5%
Power Loss @12A2.9W
Dimensions (L*W*H)103*105.3*21.3mm
TerminalsMC-4 (Compatible)
Environmental ProtectionIP67 / NEMA6
Operating Temperature-40~+65°C (Natural cooling)
🚚 Packing & Project Installation

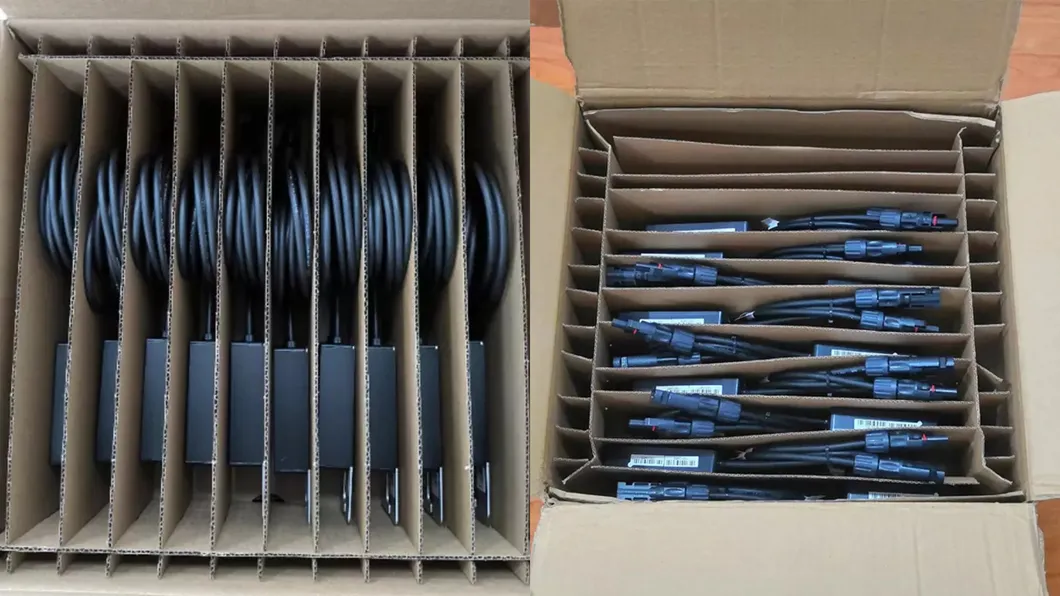

Packing Information

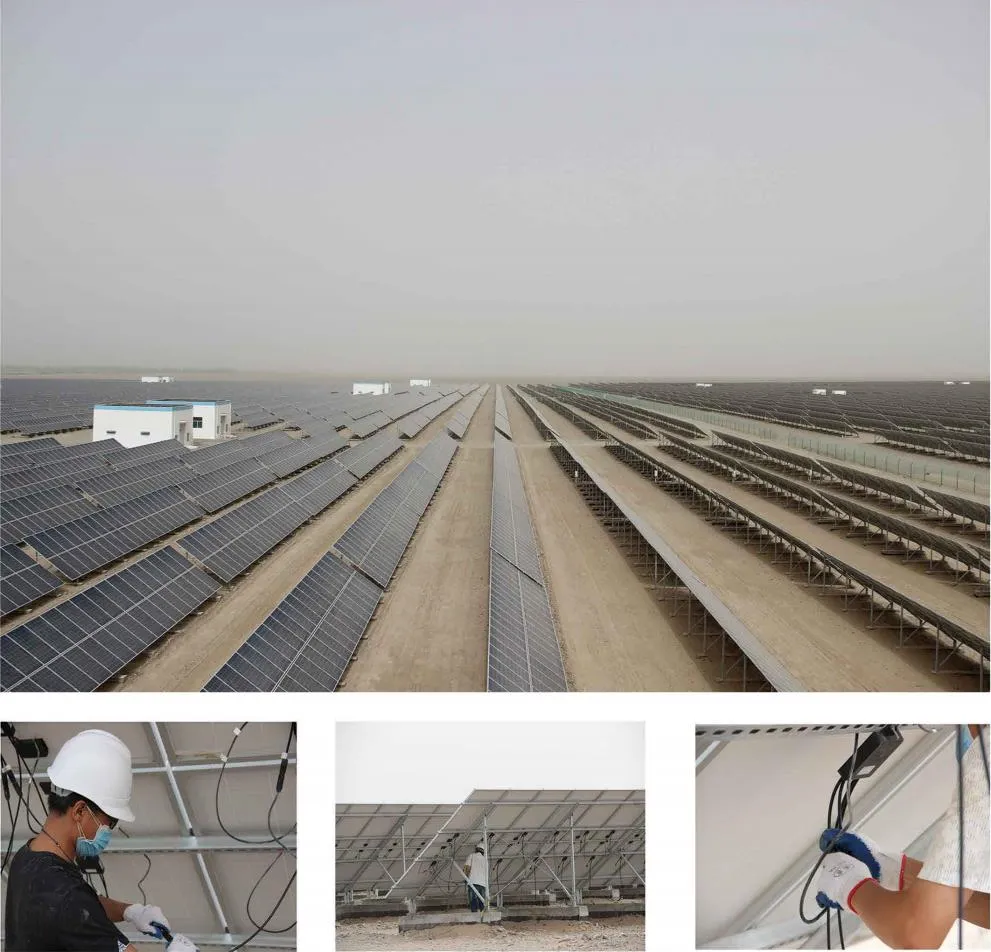

Installation 1

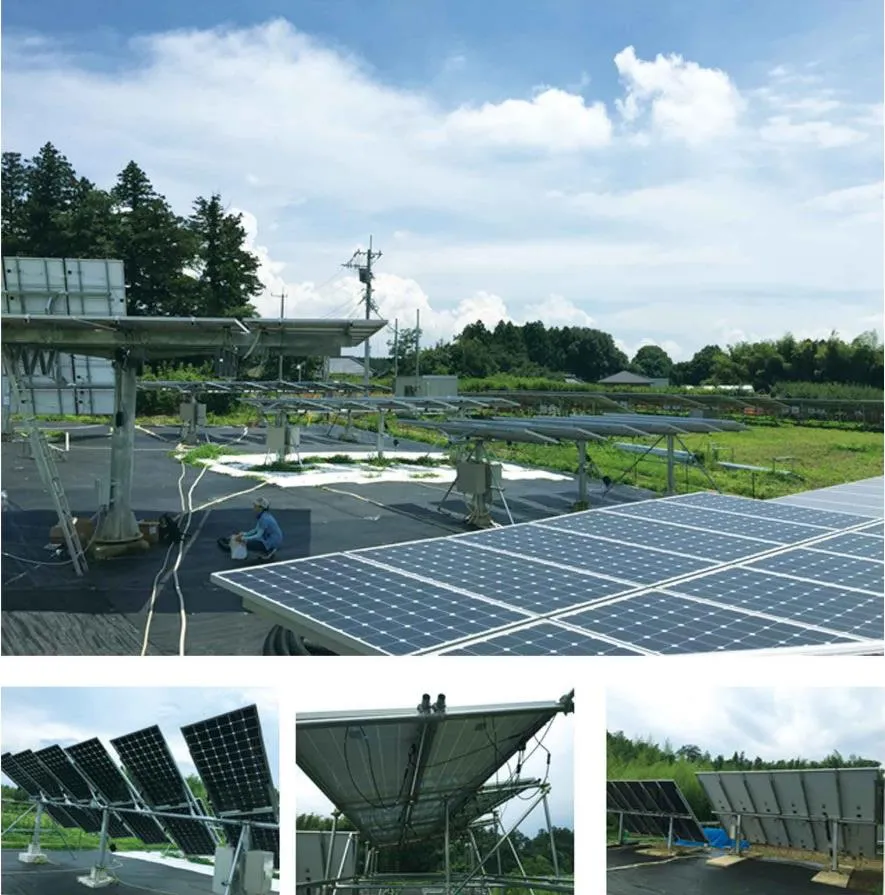

Installation 2
❓ Frequently Asked Questions
What are the main advantages of this solar optimizer?
We offer factory-direct solutions with a professional technical team, ensuring timely delivery, high-quality components, and customizable services to meet specific project needs.
How can I obtain a sample for testing?
Samples are available for quality verification once pricing is confirmed. Samples are typically ready for delivery within 3-7 days; shipping and sample costs apply.
What is the typical lead time for mass production?
Lead times depend on order quantity and seasonal demand. For a standard MOQ of 1000 pieces, the lead time is approximately 30-35 days.
Do you support customized designs?
Yes, our engineering team has extensive experience in manufacturing and can adapt product specifications to fulfill your unique technical requirements.
What is the standard payment method?
T/T (Telegraphic Transfer) is preferred for efficiency and lower bank fees. The standard term is 30% in advance and 70% before delivery.
Is this optimizer compatible with existing PV systems?
Yes, it is designed for both new installations and retrofitting existing PV power stations to improve overall energy yield and system safety.
