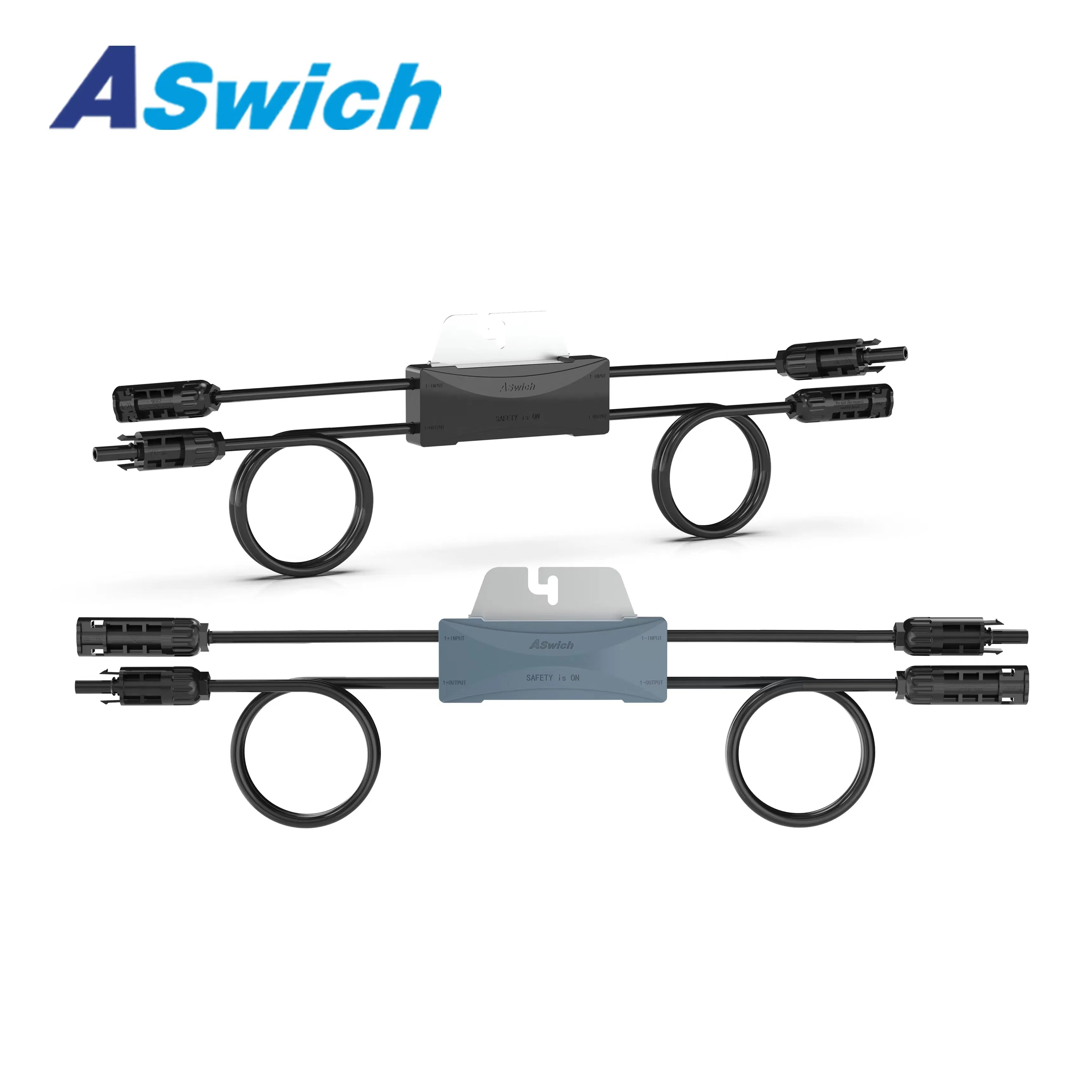

High Efficiency PV Optimizer Photovoltaic Solar Professional Power Optimizer with Rapid Shutdown
High Efficiency PV Optimizer Photovoltaic Solar Professional Power Optimizer with Rapid Shutdown
High Efficiency PV Optimizer Photovoltaic Solar Professional Power Optimizer with Rapid Shutdown
High Efficiency PV Optimizer Photovoltaic Solar Professional Power Optimizer with Rapid Shutdown
High Efficiency PV Optimizer Photovoltaic Solar Professional Power Optimizer with Rapid Shutdown
1 / 5
High Efficiency PV Optimizer Photovoltaic Solar Professional Power Optimizer with Rapid Shutdown
High Efficiency PV Optimizer Photovoltaic Solar Professional Power Optimizer with Rapid Shutdown
High Efficiency PV Optimizer Photovoltaic Solar Professional Power Optimizer with Rapid Shutdown
High Efficiency PV Optimizer Photovoltaic Solar Professional Power Optimizer with Rapid Shutdown
High Efficiency PV Optimizer Photovoltaic Solar Professional Power Optimizer with Rapid Shutdown

High Efficiency PV Optimizer Photovoltaic Solar Professional Power Optimizer with Rapid Shutdown

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i
Basic Information
Model NO.
ERP
Voltage Ui
1500V
Rated Current
40A
Ithe
55A
Connector
Glands/Mc4/Knock Outs
String
2-String
Pole
4p
Certificate
CE TUV CB SAA
Production Capacity
1,000,000 PC/Year
Origin
China
★
Product Description

Rooftop type resident photovoltaic systems have been widely used globally. However, due to loose module joints, poor contact, wire dampness, or insulation rupture, DC arc drawing can occur, potentially resulting in fire. On the DC side, as long as there is light, high voltage exists. This makes fire fighting extremely dangerous as firefighters cannot safely approach the scene.

The ERP Series Panel Level Firefighter Safety Switches provide a reliable rapid shutdown solution according to NEC 2017/2020 690.12 regulations for rooftop PV system safety.

✔ Meets NEC 2017/2020 690.12 regulations
✔ Comply with SUNSPEC protocol
✔ PLC communication control
✔ Match LVRT feature of the inverter
✔ Fire retardant V-0 / UV resistant materials
✔ Clasp design for simple installation
📷
Detailed Photos

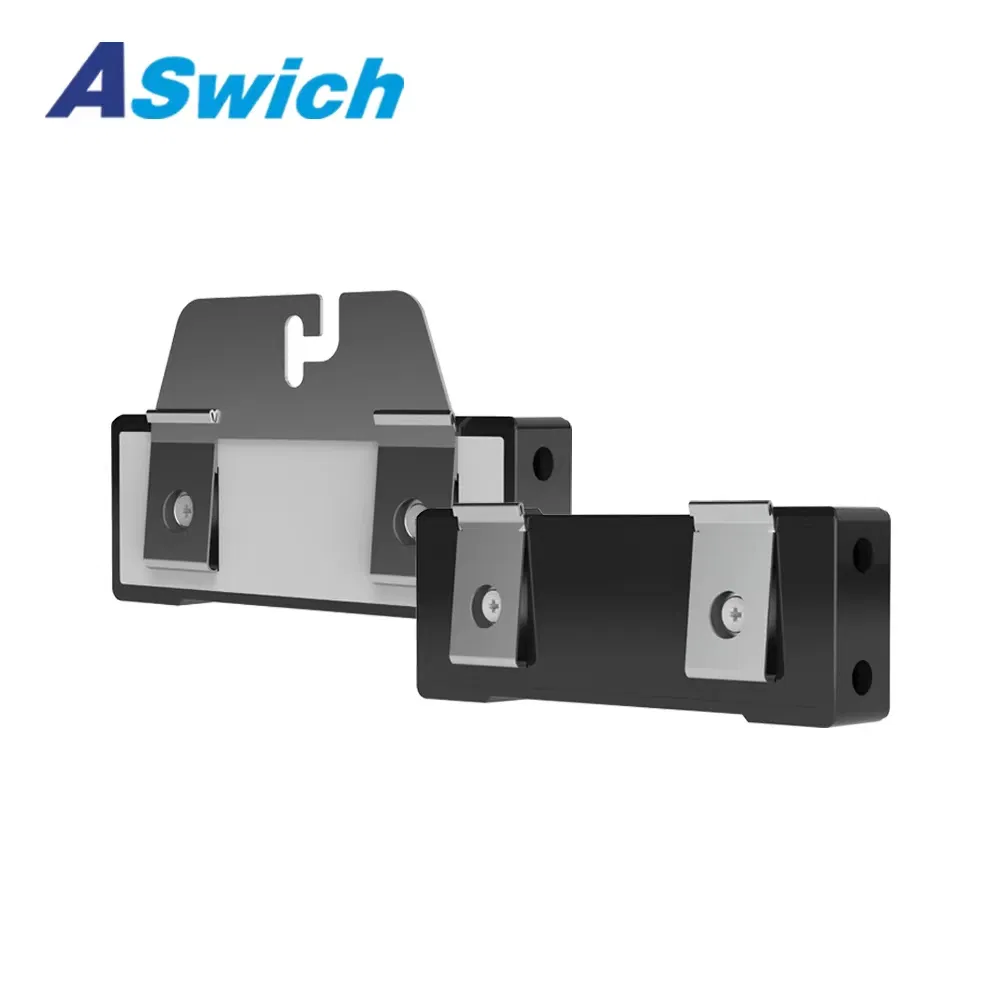

Detailed View 1
Detailed View 2
Detailed View 3
📋
Product Parameters
Parameter Item Specifications
TypeStandard Solar Panel / Rapid Shutdown
MaterialPolycrystalline Silicon / Fire Retardant V-0
Warranty Period60 months
ComplianceNEC 2017/2020 690.12, SUNSPEC Protocol
Control MethodPLC Communication Control
InstallationClasp design, labor-saving

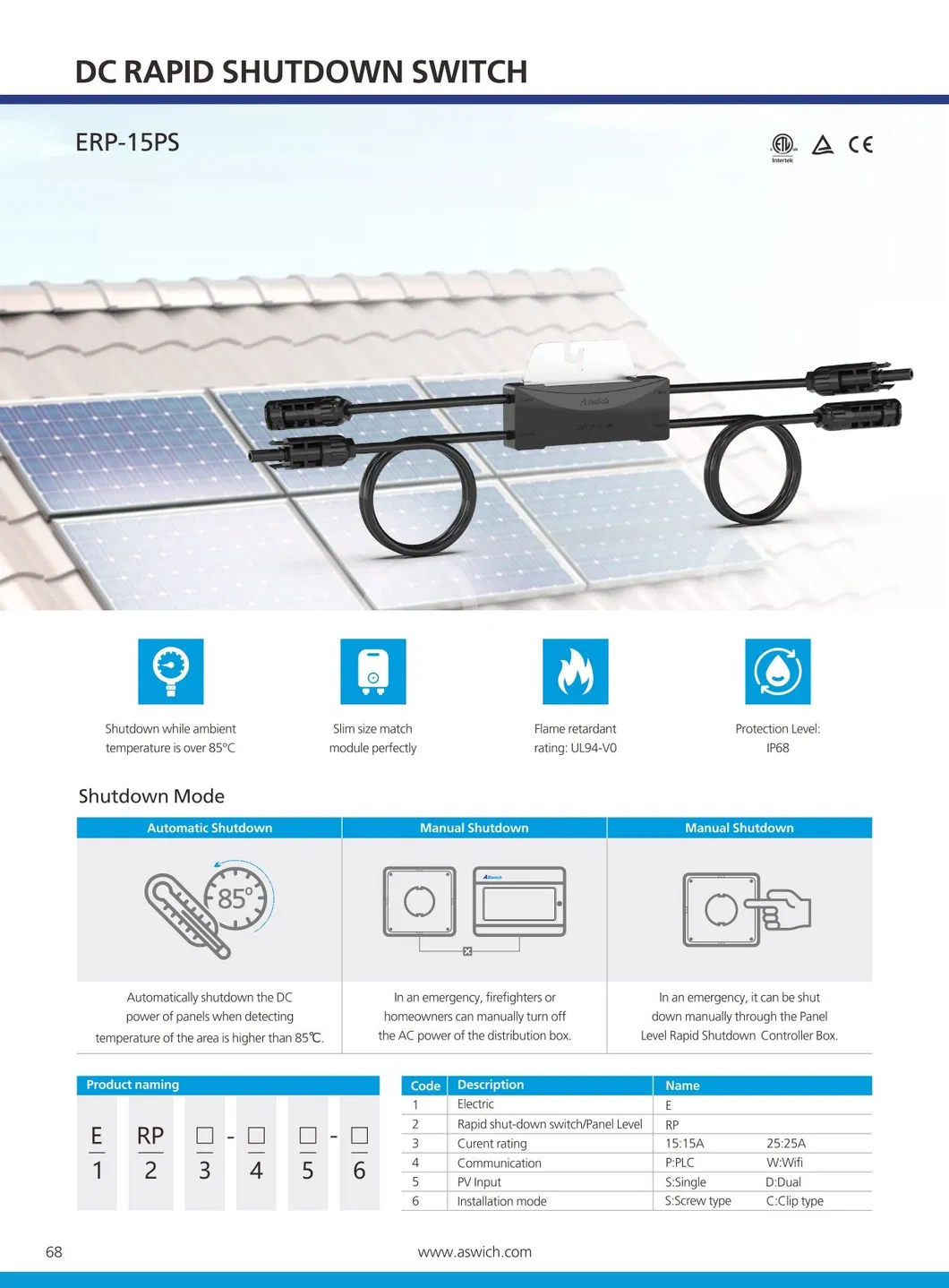

Feature Diagram 1
Feature Diagram 2
Feature Diagram 3
Feature Diagram 4
👍
10 Reasons to Choose ERS Series
Reasons Overview
01Applicable to 600V~1500V, 9A~55A systems; single switch handles up to 10 strings.
02Wider AC voltage range: 100~270Vac.
03Internal motor drive for remote or AC switch disconnection.
04LED indicators for easy status identification (ON/OFF).
05IP66 level protection, fully suitable for outdoor installation.
06Equipped with a breathing valve to prevent internal condensation.
07Low noise during operation, maintaining a quiet environment.
08Built-in temperature sensor; automatic shutdown above 70°C.
09Multiple connection options: Knock outs, Cable glands, or MC4 connectors.
10Modular component design for fast and convenient maintenance.
Application 1
Application 2
?
Frequently Asked Questions
FAQ Support
Q: When can I receive a quotation and detailed information after an enquiry?
A: All enquiries will be replied to within 24 hours.
Q: What is the difference between your DC Isolator and cheaper alternatives?
A: Our units are IP66 rated and high-quality customized. For solar systems, quality should be compared before price for long-term safety.
Q: Can I get a sample before placing a regular order?
A: Yes, sample orders are the best way to verify quality and build trust.
Q: What is the delivery timeframe for urgent orders?
A: Sample orders typically take 3-7 days, while regular orders are promised within 15 days.
Q: What is the warranty period for the DC Isolator?
A: We offer a 2-5 year warranty depending on the specific product model.
Q: How do I choose the correct Rapid Shutdown model for my system?
A: It depends on your PV panel voltage. For example, if a panel is 39V and the switch is 1000V, one route can handle about 22 panels (1000/39/1.15). Ensure the current rating is higher than your string current.
