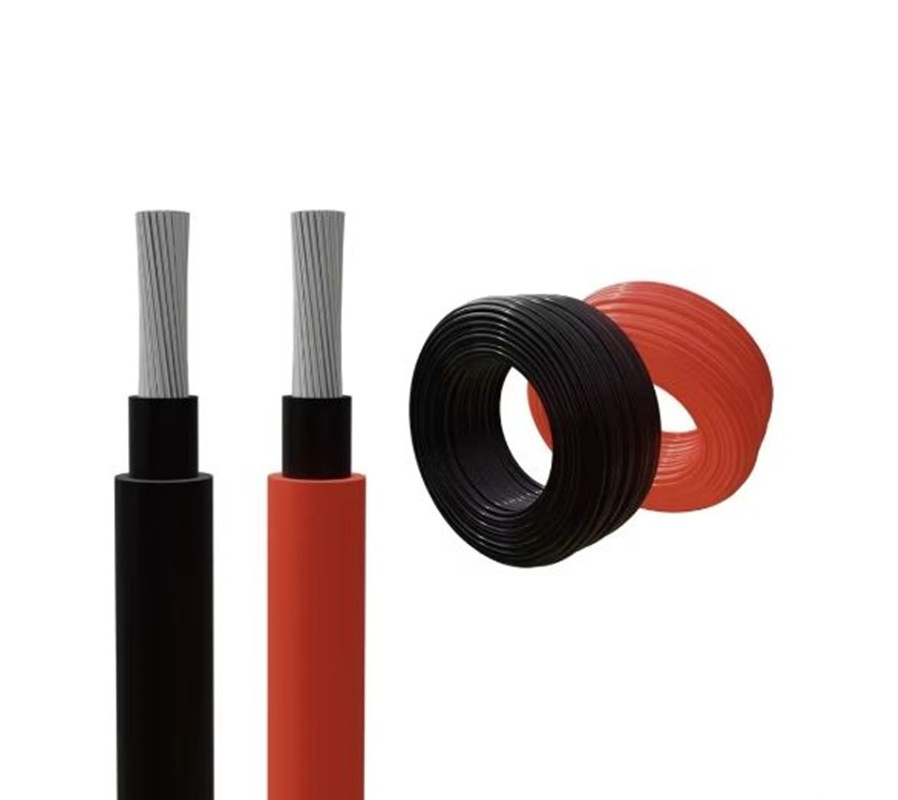

Manufacturer H1z2z2-K TUV UL Approval 4mm2 6mm 10mm 6mm2 Tinned Copper Photovoltaic DC PV1-F Electrical Photovoltaic PV Solar Panel Cable

1 / 5

Manufacturer H1z2z2-K TUV UL Approval 4mm2 6mm 10mm 6mm2 Tinned Copper Photovoltaic DC PV1-F Electrical Photovoltaic PV Solar Panel Cable

Customization:	Available
Application:	Construction
Voltage:	Low and Medium Voltage Cable

Send Inquiry

Product Description

📋 Basic Info.

Model NO.

PV1-F

Current

DC Cable

Insulation Material

Xlpo

Sheath Material

Xlpo

Material Shape

Round Wire

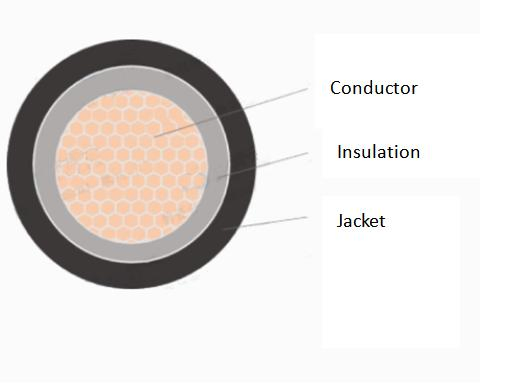

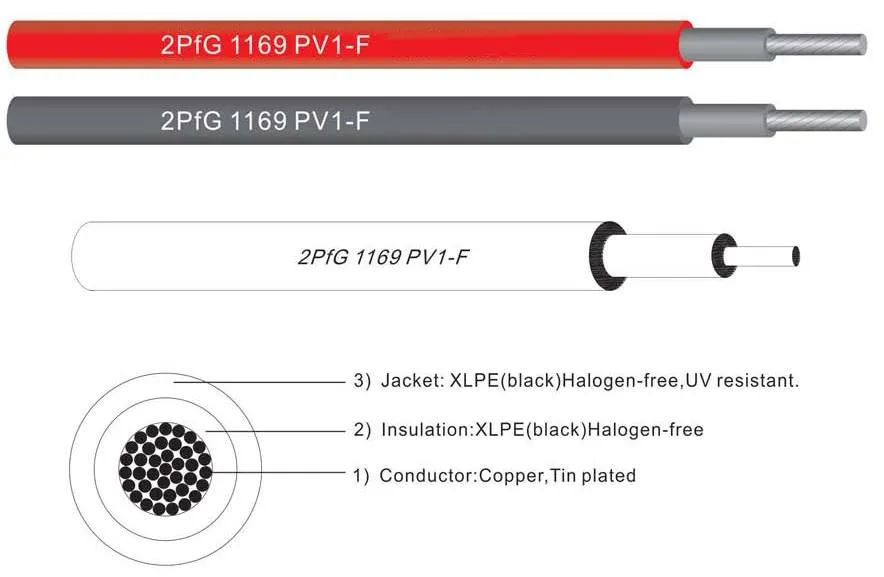

Wire Core Material

Stranded Tinned Annealed Copper Wire

Certification

ISO, CCC, CE, RoHS, VDE

Rated Voltage

D.C. 1.5/1.5 Kv a.C. 1.0/1.0 Kv

Standard

TUV/En50618

Origin

China

HS Code

8544492100

🔍 Product Description

Scope of Application System: This product is suitable for photovoltaic power generation systems.

Occasion: Designed for harsh environments, including ozone resistance, acid and alkali resistance, salt spray resistance, and varied environmental climate requirements.

Product Characteristics

Specialized for solar photovoltaic module systems.
Excellent weather resistance, high temperature resistance, and friction resistance.
Long service life for outdoor installations.

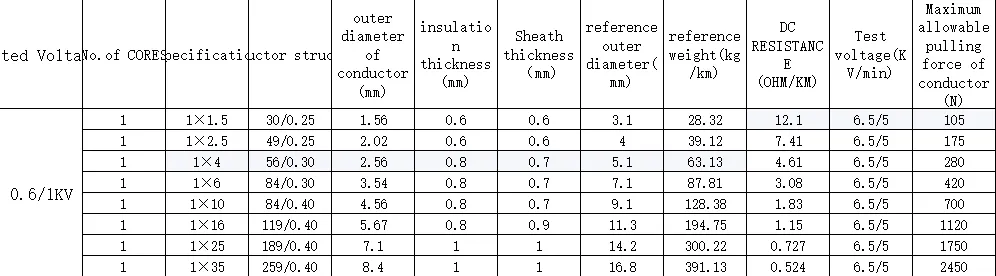

Technical Specifications

Rated Voltage: AC 0.6/1kV (Max 1.2kV); DC System 1.8kV.
Operating Temperature: Highest conductor temperature 120 ºC for long-term use.
Ambient Temperature: Minimum operating temperature down to -40 ºC.
Laying Temperature: Should not be lower than 0ºC.
Bending Radius: Minimum 15 times the cable diameter.

📊 Product Parameters

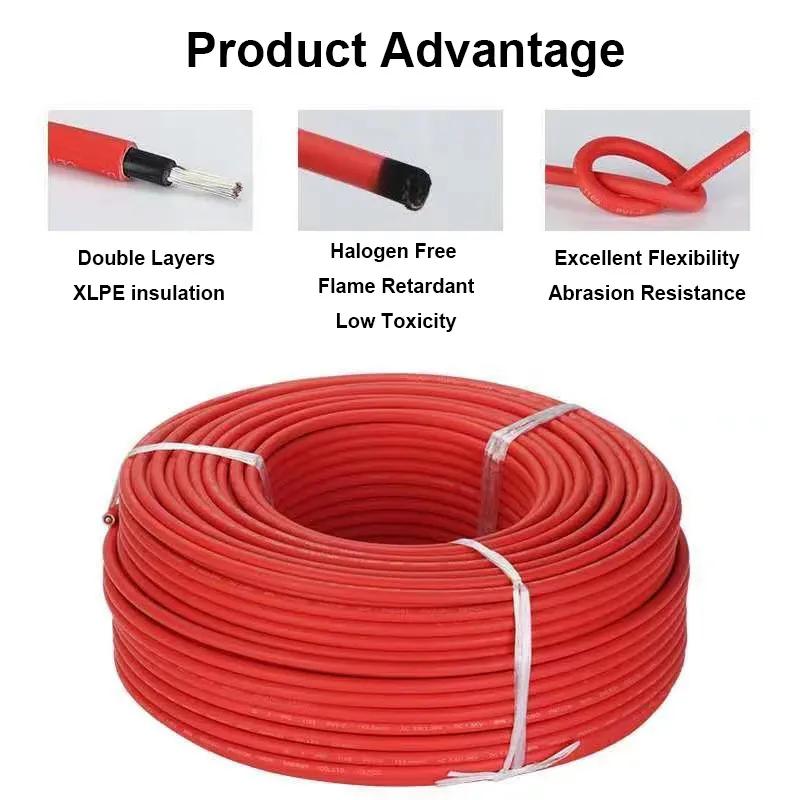

Solar Cable Features
1. Service Life	25 years of working Life
2. Resistance	Excellent resistance to U.V, oil, greases, oxygen and ozone.
3. Durability	Excellent resistance to abrasion.
4. Safety	Halogen free, flame retardant, low toxicity.
5. Performance	Excellent flexibility and stripping performance.
6. Compliance	Comply with TUV, EN, IEC certification standards.

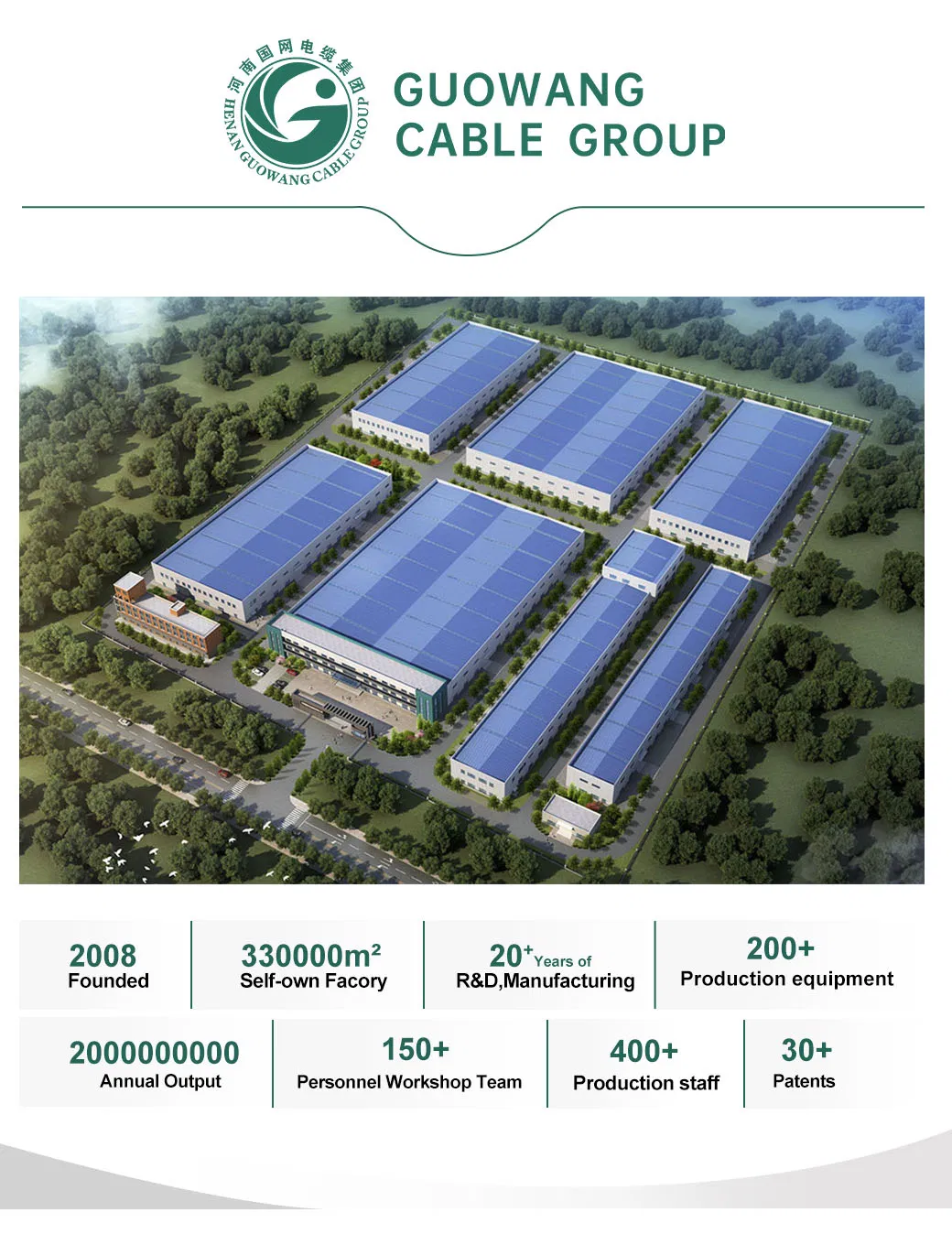

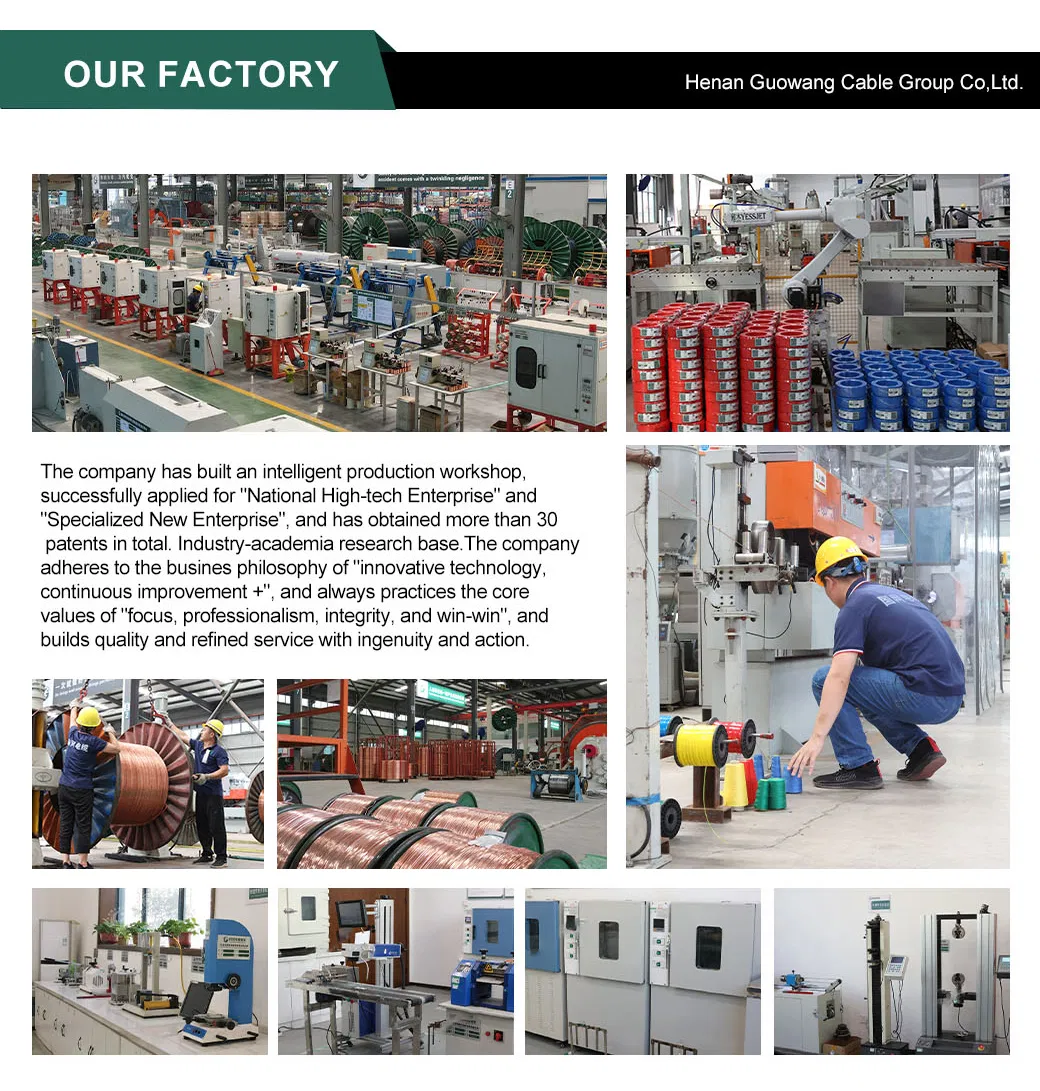

🏭 Production & Facility

📦 Packaging & Shipping

📜 Certifications

❓ Frequently Asked Questions

What is the expected service life of these solar cables?

The cables are designed for a long-term working life of up to 25 years in outdoor solar environments.

Can these cables withstand extreme temperatures?

Yes, the cables allow for a highest conductor working temperature of 120°C and can operate in ambient temperatures as low as -40°C.

Are the cables resistant to UV and ozone?

Absolutely. They offer excellent resistance to UV, ozone, oxygen, oils, and greases, making them ideal for harsh outdoor conditions.

What safety certifications do these products hold?

The cables comply with TUV, EN, IEC, CE, RoHS, and VDE standards to ensure high safety and quality.

What is the material used for the wire core?

The core is made of stranded tinned annealed copper wire, providing excellent conductivity and corrosion resistance.

Is the cable insulation flame retardant?

Yes, the insulation is halogen-free, flame retardant, and has low toxicity for enhanced safety during operation.
