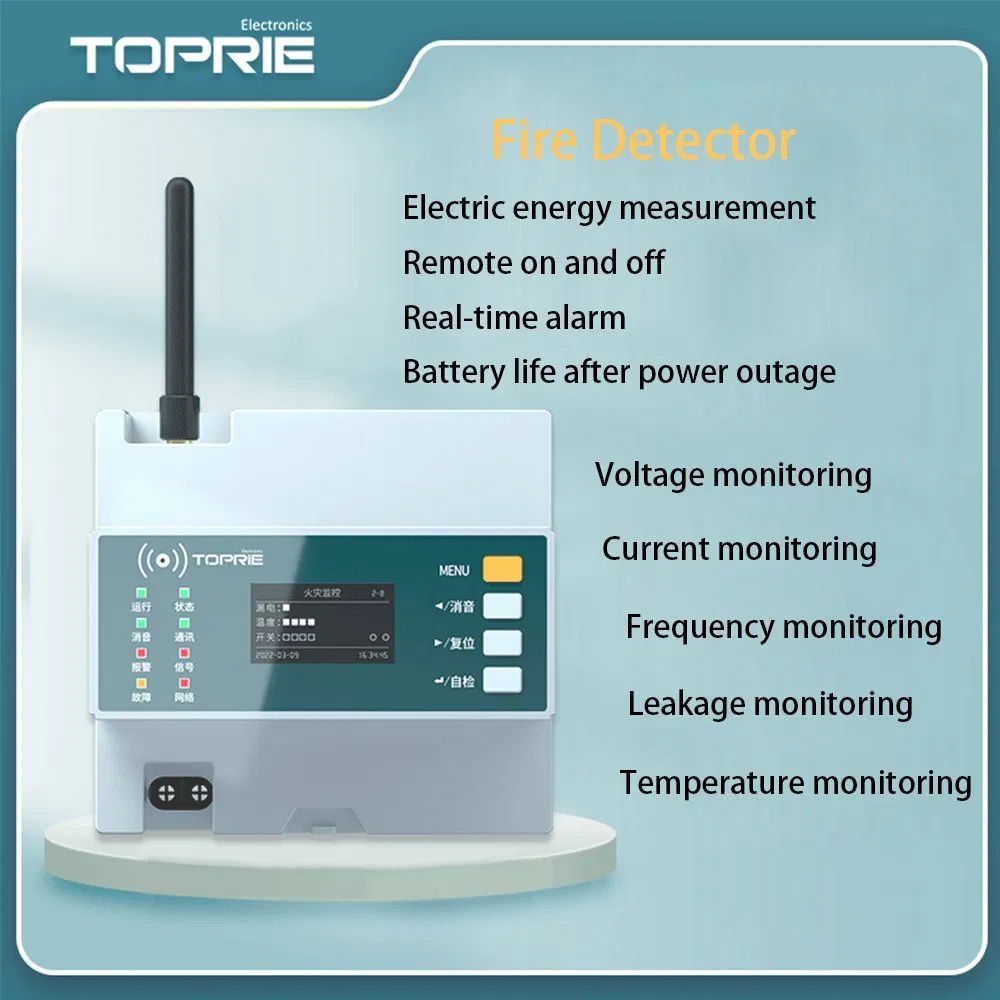

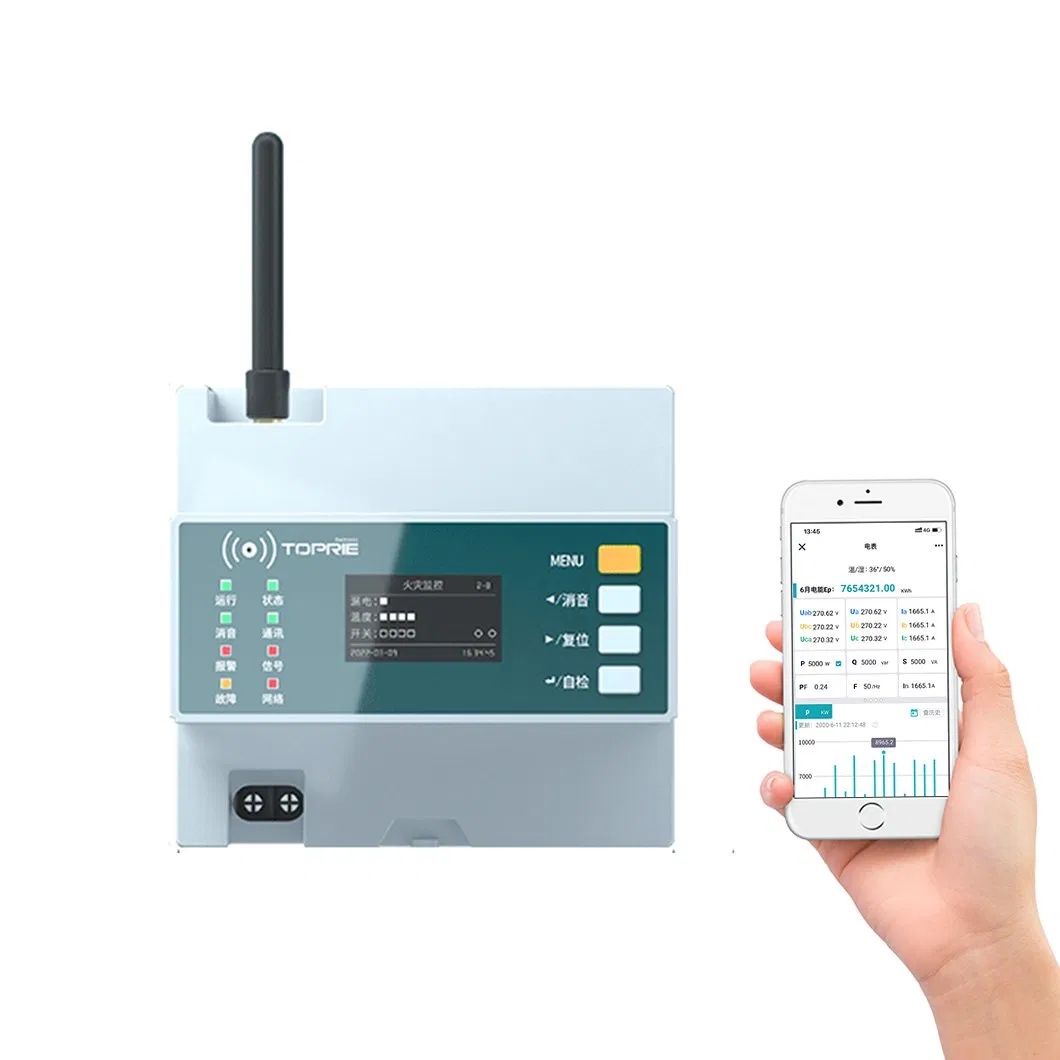

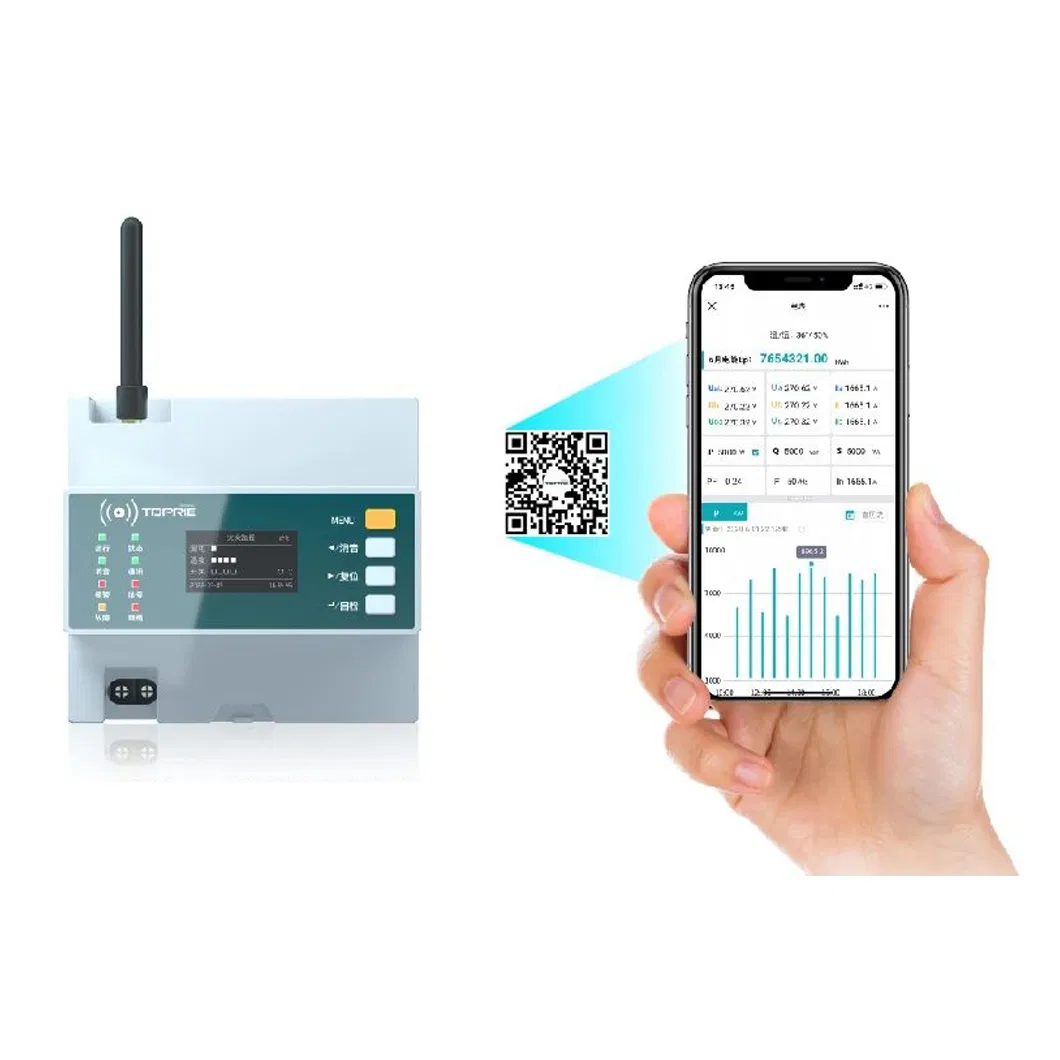

Energy Consumption System- Temperature, Speed Sensor Power Electric Meter for Smart Factory

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Basic Information

Model NO.TP643
DisplayDigital
InstallationDIN Rail Type
EquipmentThree-phase Four-wire
TheoryElectronic Meter
CertificationRoHS, ISO, CE
ProtocolModbus RTU, Mqtt, 645-2007,TCP/Tp
AccuracyVoltage/Current 0.1, Power 0.2

Product Parameters

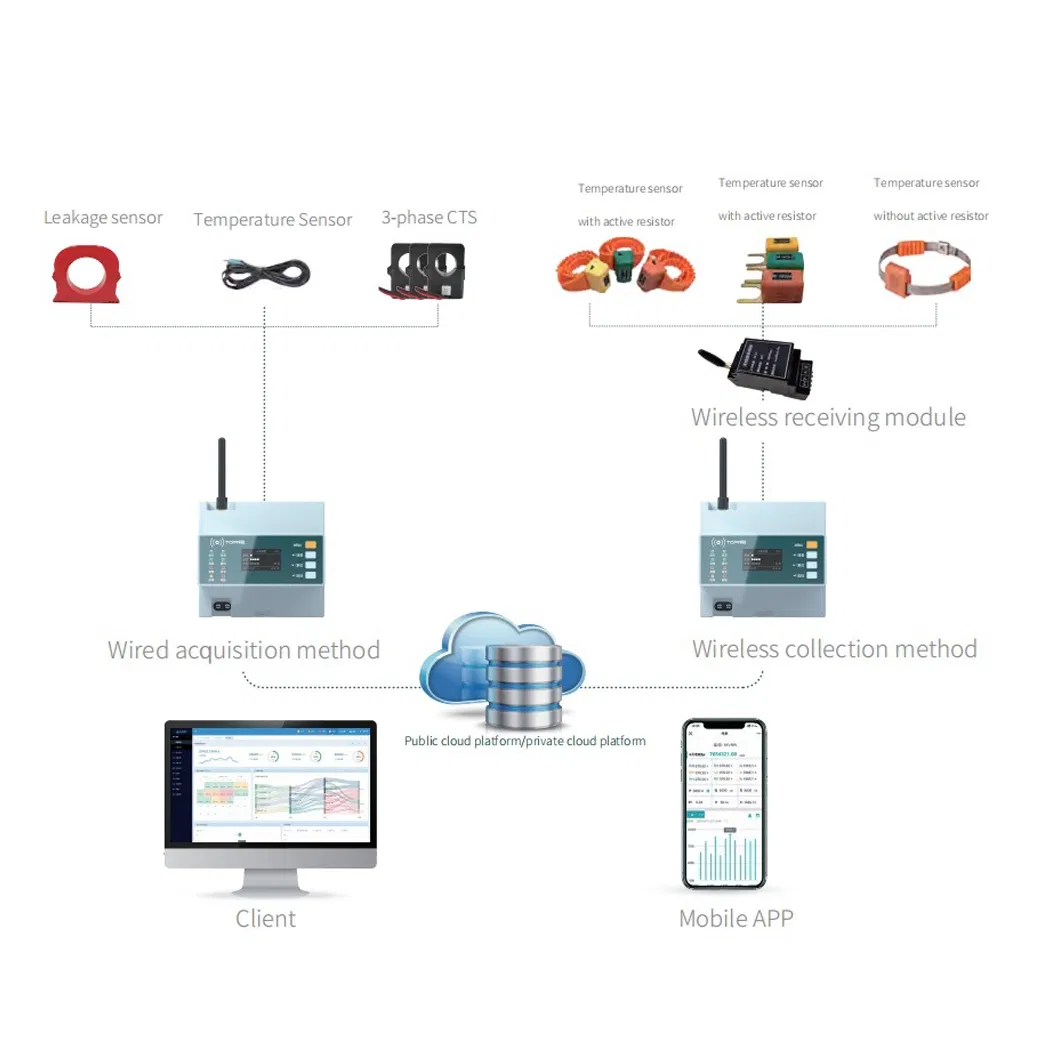

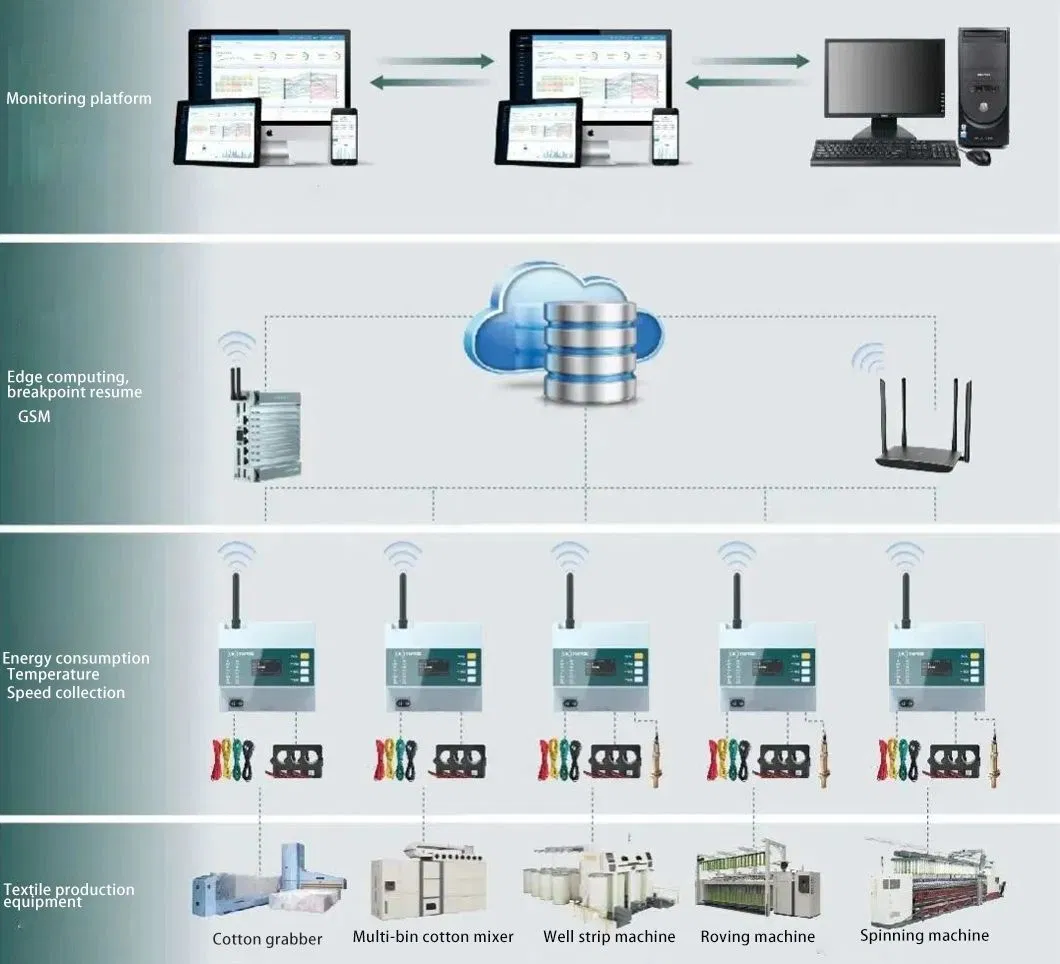

Monitor the consumption of various energy sources such as electricity, water, gas, steam, compressed air and equipment. Through data analysis and trend mining, help enterprises conduct energy consumption statistics analysis, including energy quality, product energy consumption per unit, and energy utilization evaluation.
Specification Item Detail Parameters

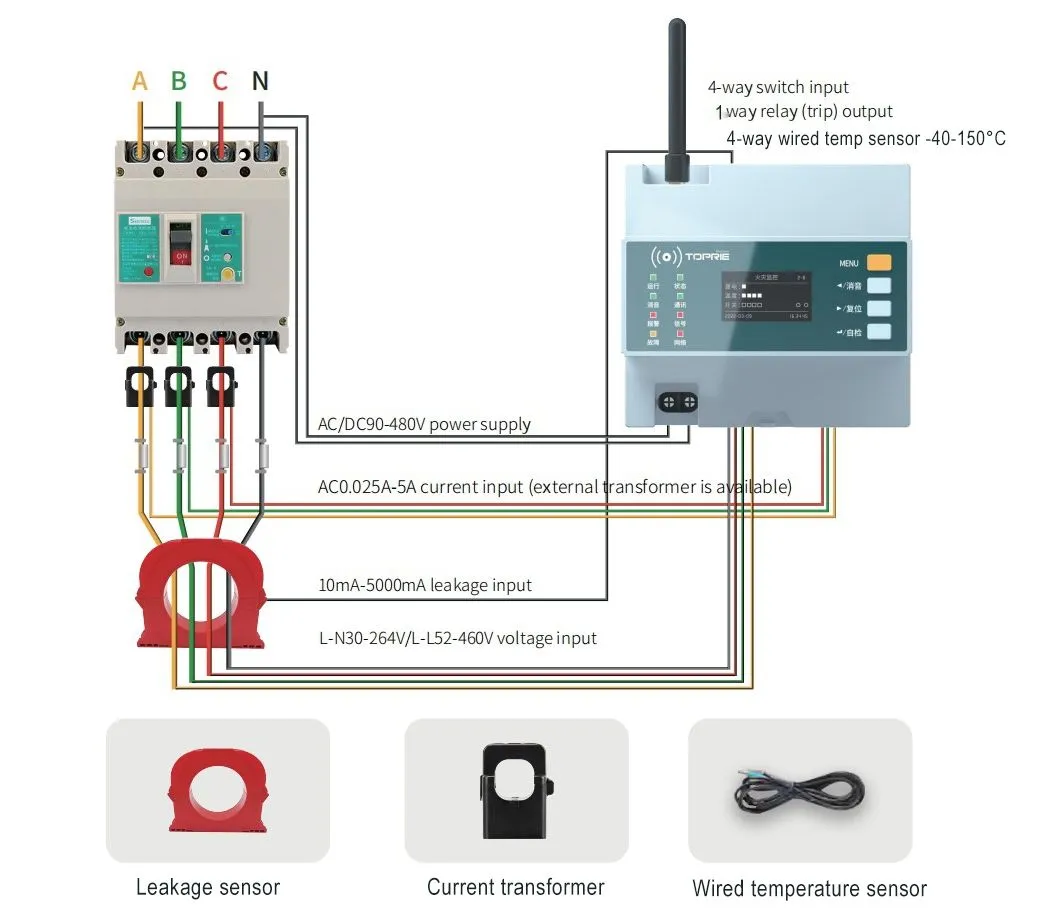

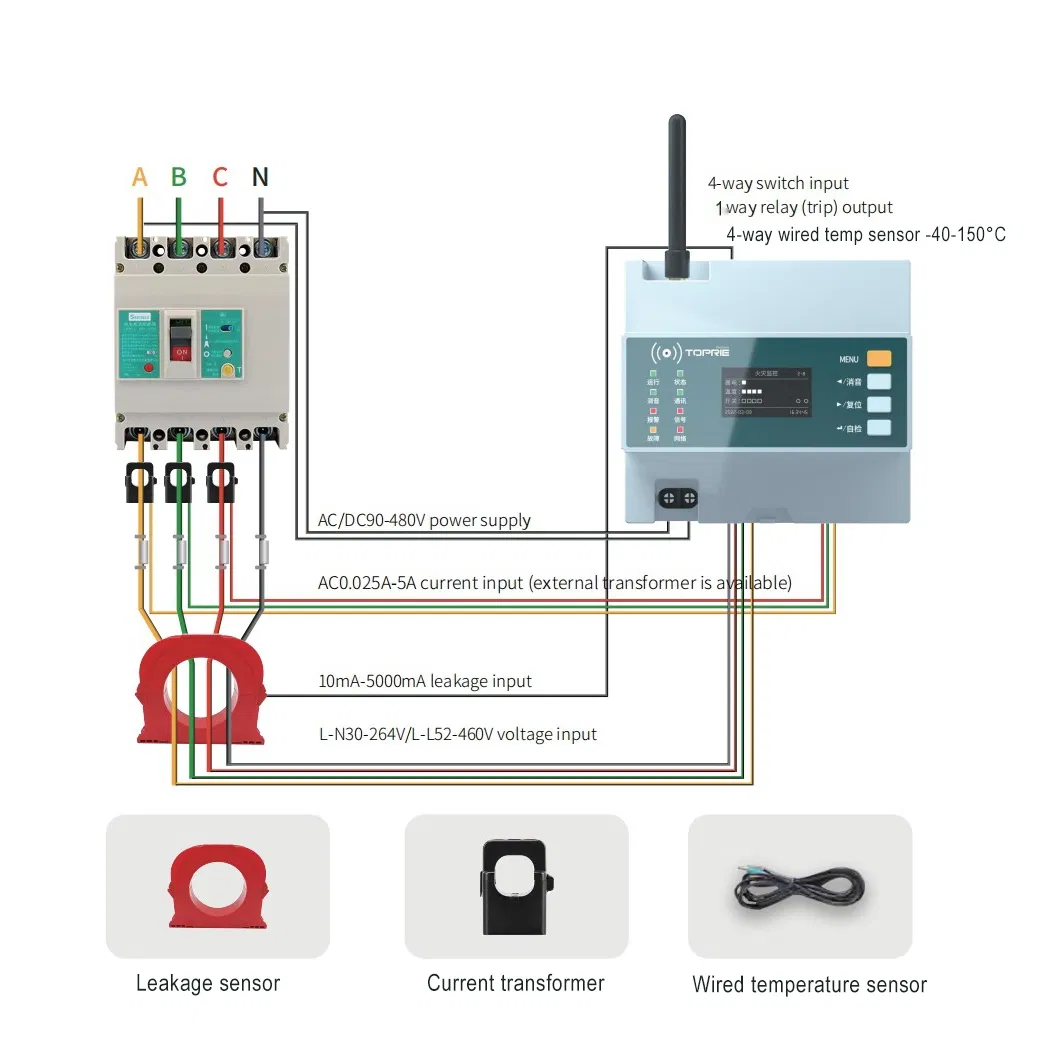

Power supply Rated voltage AC90-380V
Power consumption Normal monitoring state ≤5VA
Monitoring alarm Leakage 10-5000mA, ±1% full scale
Temperature -40-150°C, Accuracy: ±2°C
Current detection Overcurrent detection
Voltage detection Phase error, overvoltage, undervoltage
Display OLED display
Input current AC 0.025A-5A
Input voltage L-N 30-264V / L-L 52-480V

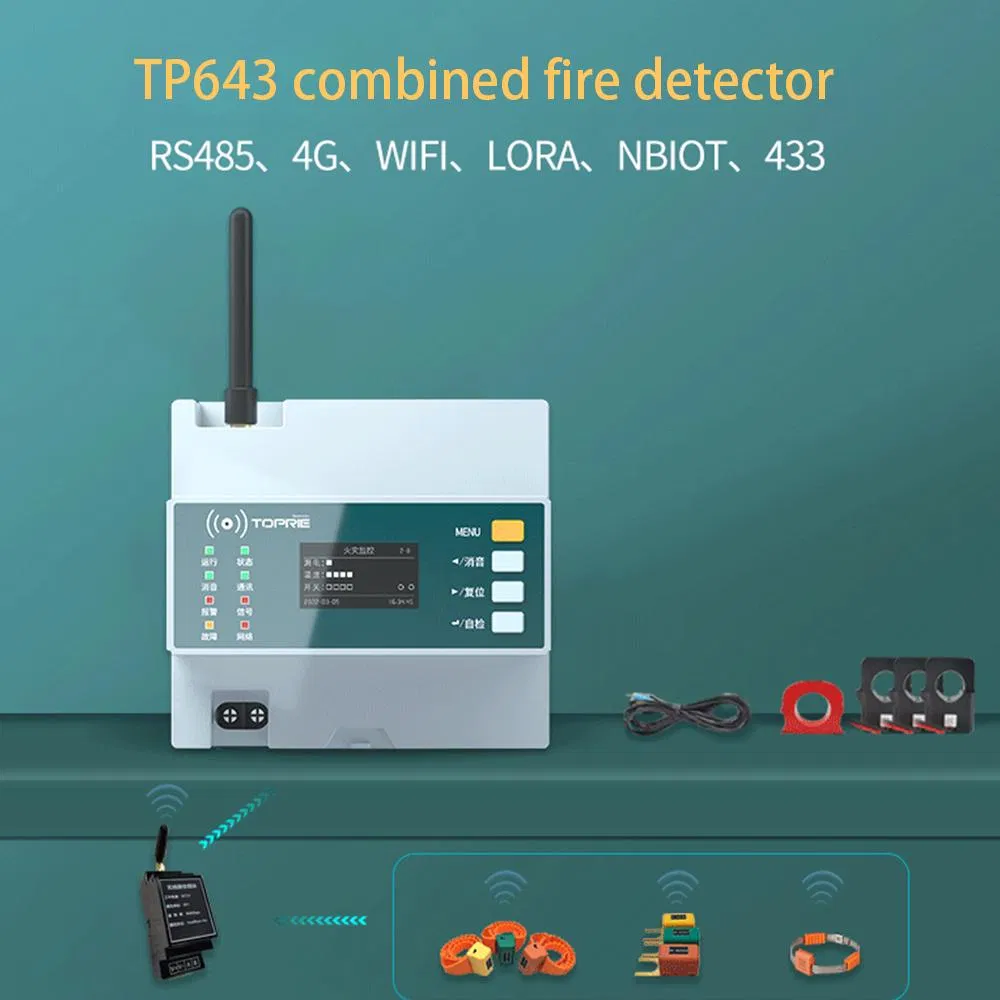

Communication 485, Modbus-RTU, 4G, WIFI, LoRa

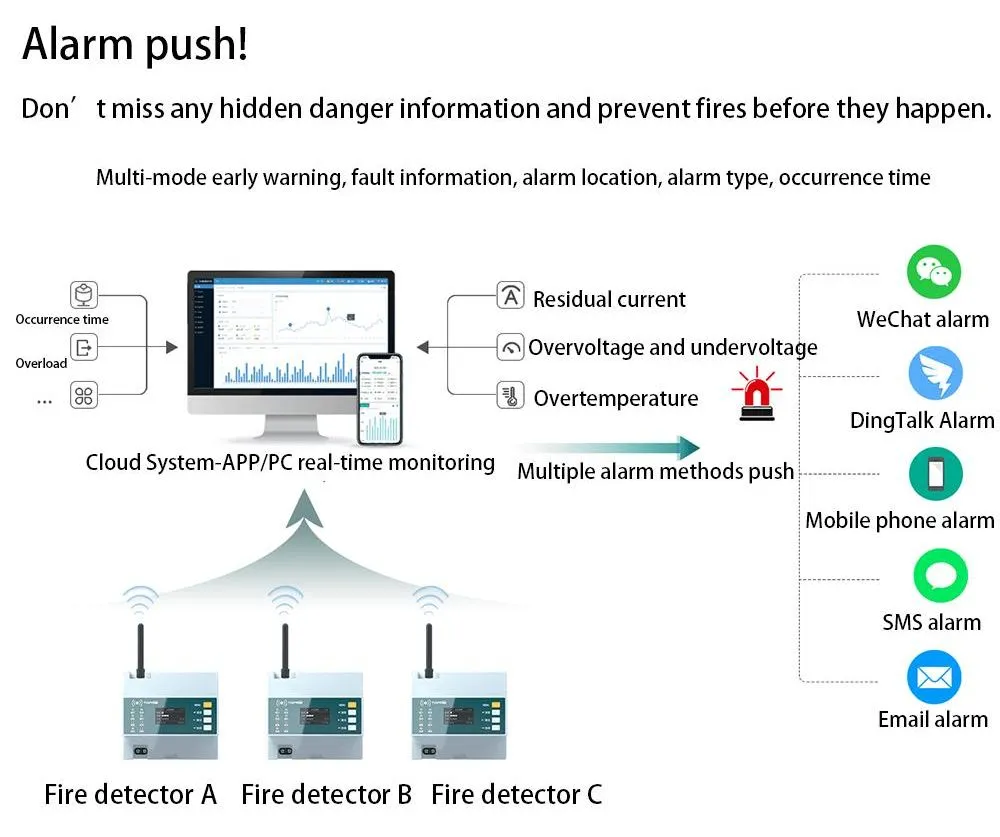

Alarm mode Phone, email, and light alarm

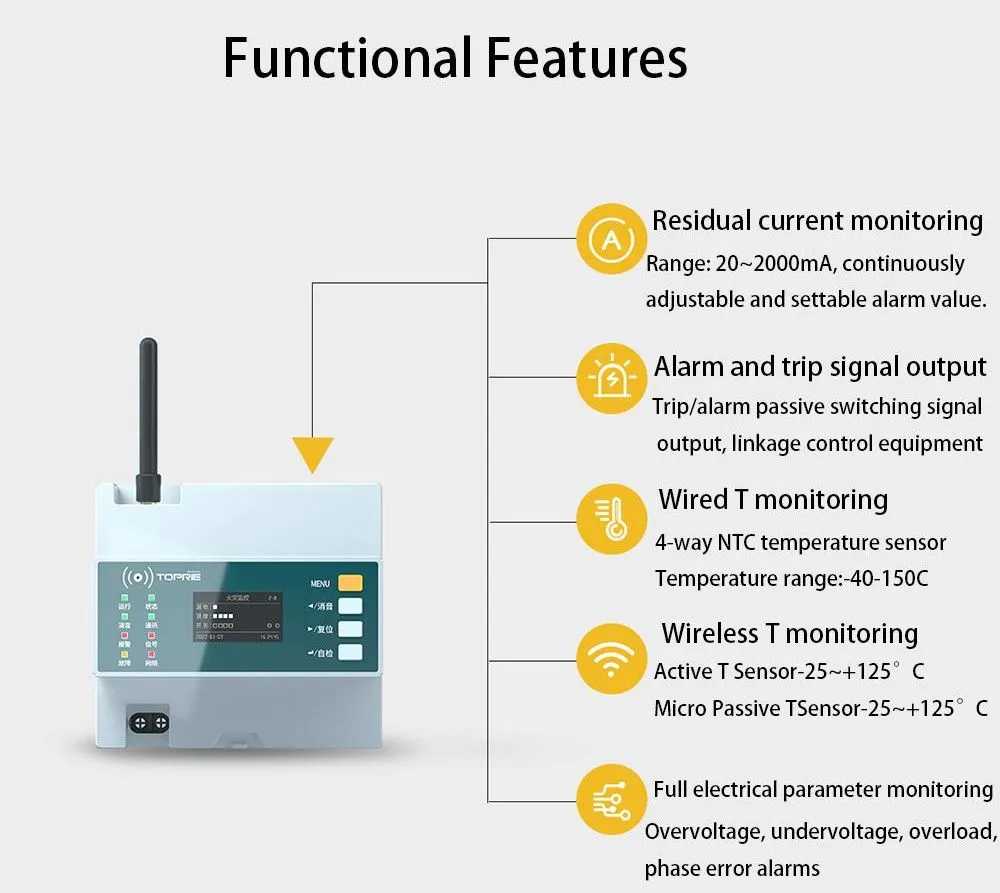

Monitoring Functions Protection Applications
Real-time monitoring of residual current, temperature (4 channels), current, voltage, power, and harmonic analysis. Residual current protection, temperature protection, overvoltage/undervoltage protection, and alarm reset.

Product Description

🏢

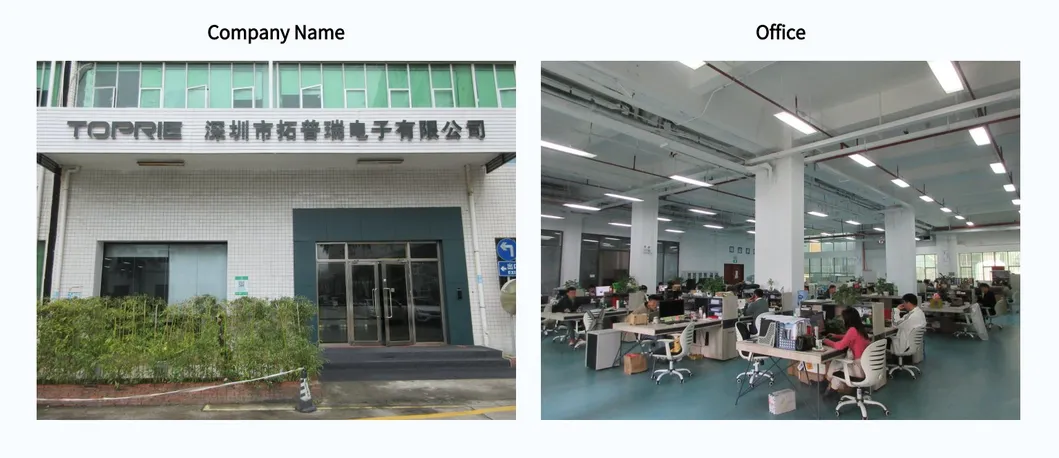

Profile

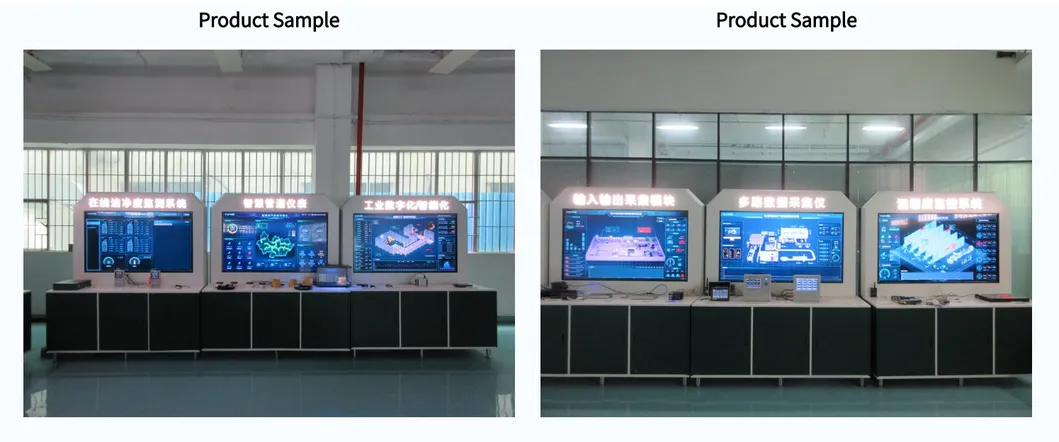

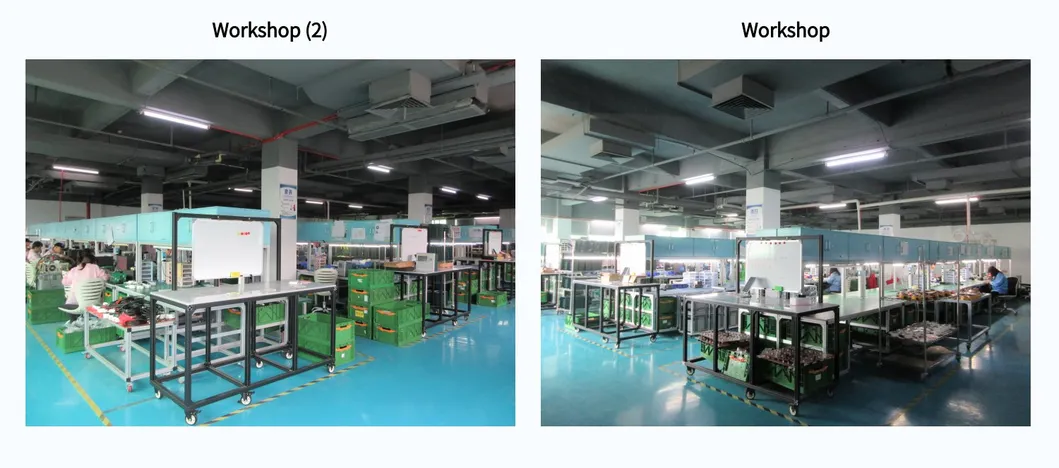

Specializing in the development and manufacturing of environmental monitoring and data acquisition solutions. Operating a state-of-the-art facility spanning over 3,000 square meters, the commitment to research, design, and precision manufacturing ensures top-tier quality.
Core Business Portfolio:
  • Multi-Channel Data Loggers & Paperless Recorders
  • Humidity & Temperature Sensors and Loggers
  • Smart Wireless Pressure & Temperature Sensors
  • Electric, Power, and Energy Meters / Power Quality Analyzers
  • Smart IoT Gateways & Edge Computing Gateways
?

Frequently Asked Questions

Are you a factory or manufacturer?
Yes, we are a professional manufacturer of data loggers, humidity & temperature sensors, gas detectors, IoT gateways, and power energy meters.
Can I customize my logo and communication methods?
Yes, logo customization is available with a small MOQ. We support multiple communication methods including GPRS, 4G, Wi-Fi, LoRa, and LoRaWAN.
What is the typical lead time for orders?
Standard products typically ship within 3-5 days after payment. Custom orders depend on specific requirements and quantity.
What payment methods do you accept?
We accept T/T (bank transfer), Western Union, PayPal, and other standard payment options.
What is the after-sales service policy?
We offer a 12-month warranty and lifetime maintenance. Our support team provides technical assistance within 24 hours.
What packaging and shipping methods are used?
We use standard carton packaging and ship via express (door-to-door), air, or sea as per customer requirements.
