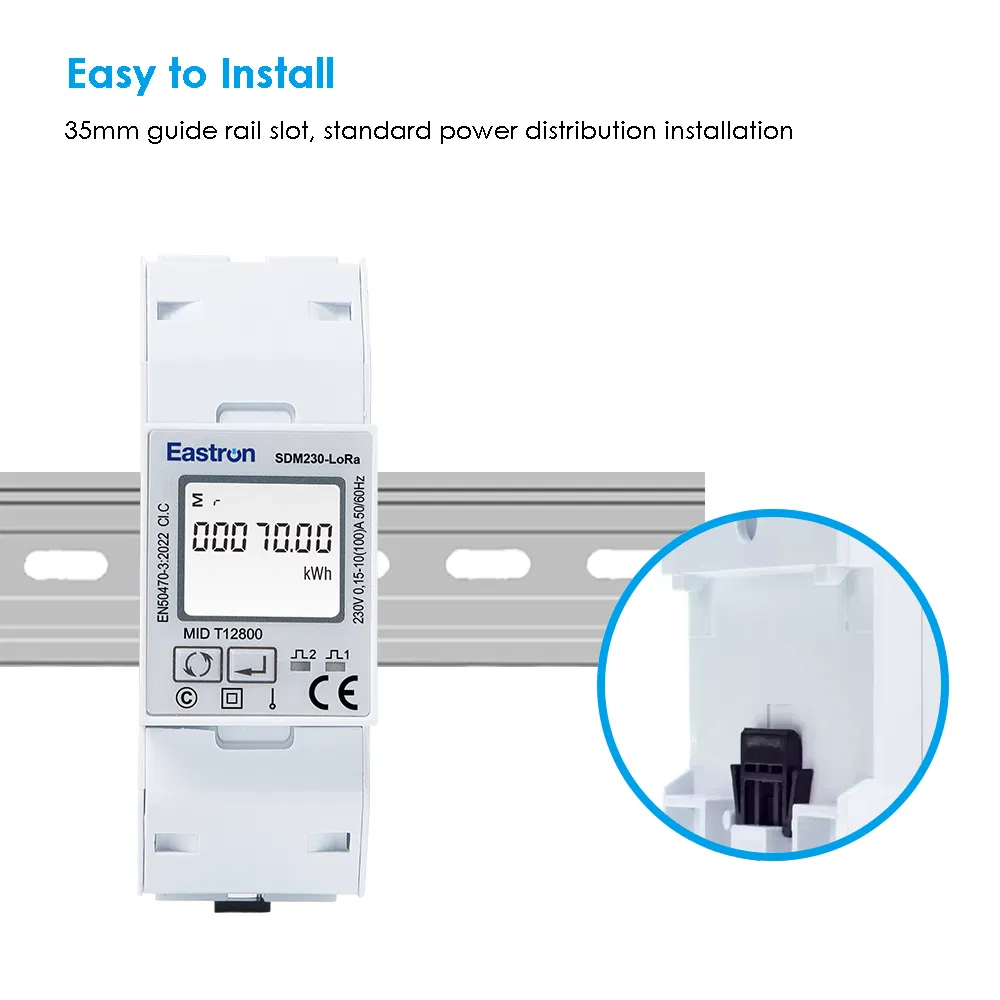

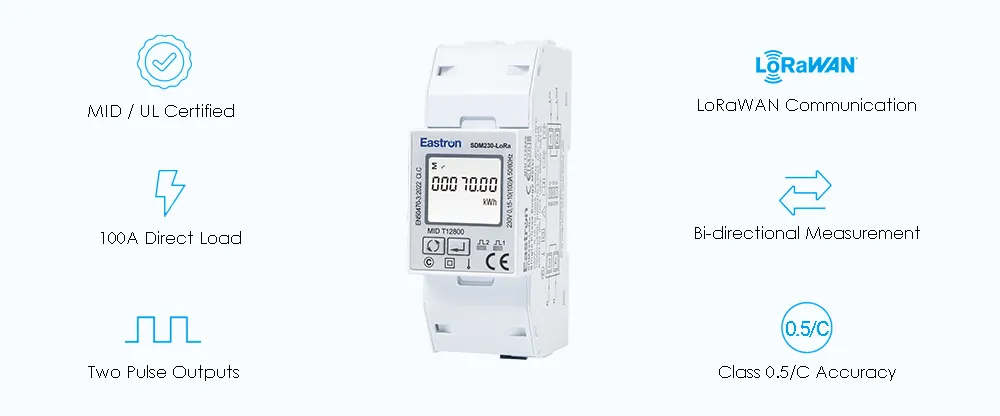

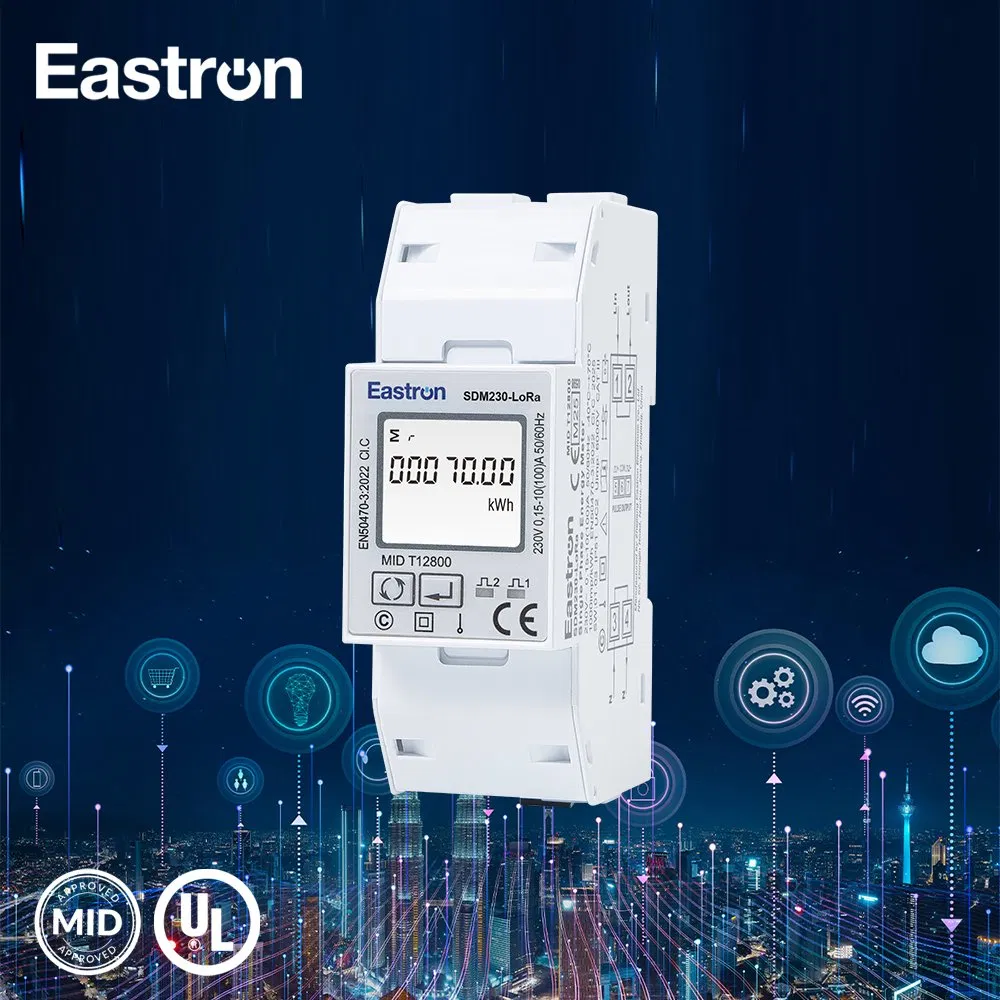

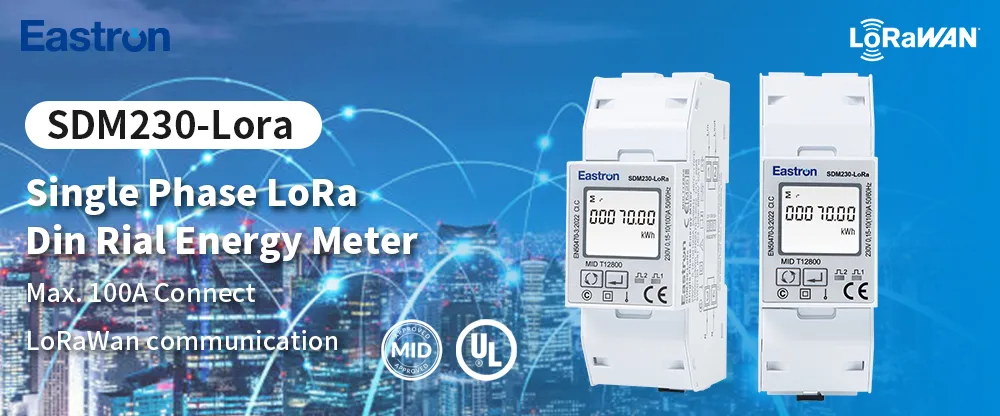

SDM230-LoRa measures and displays the characteristics of single phase two wire (1p2w), including voltage, frequency, current, power, active and reactive energy, imported or exported.

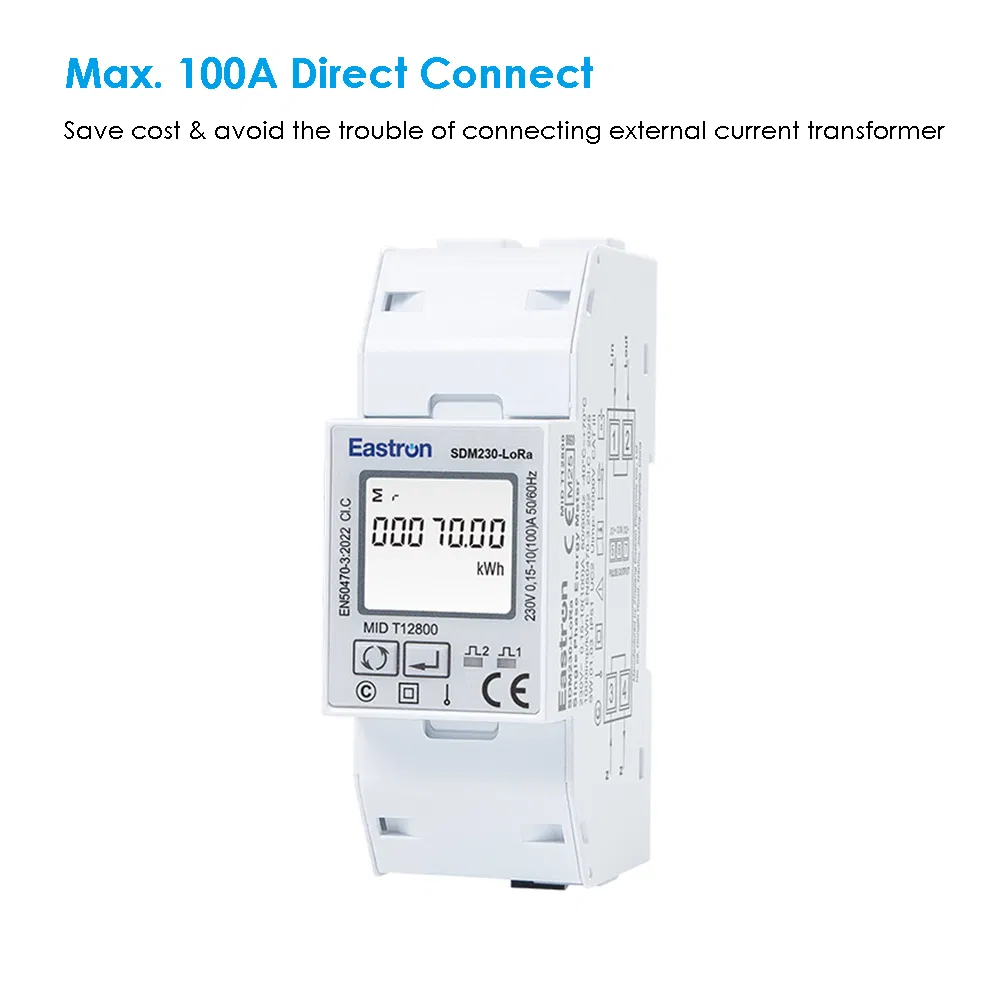

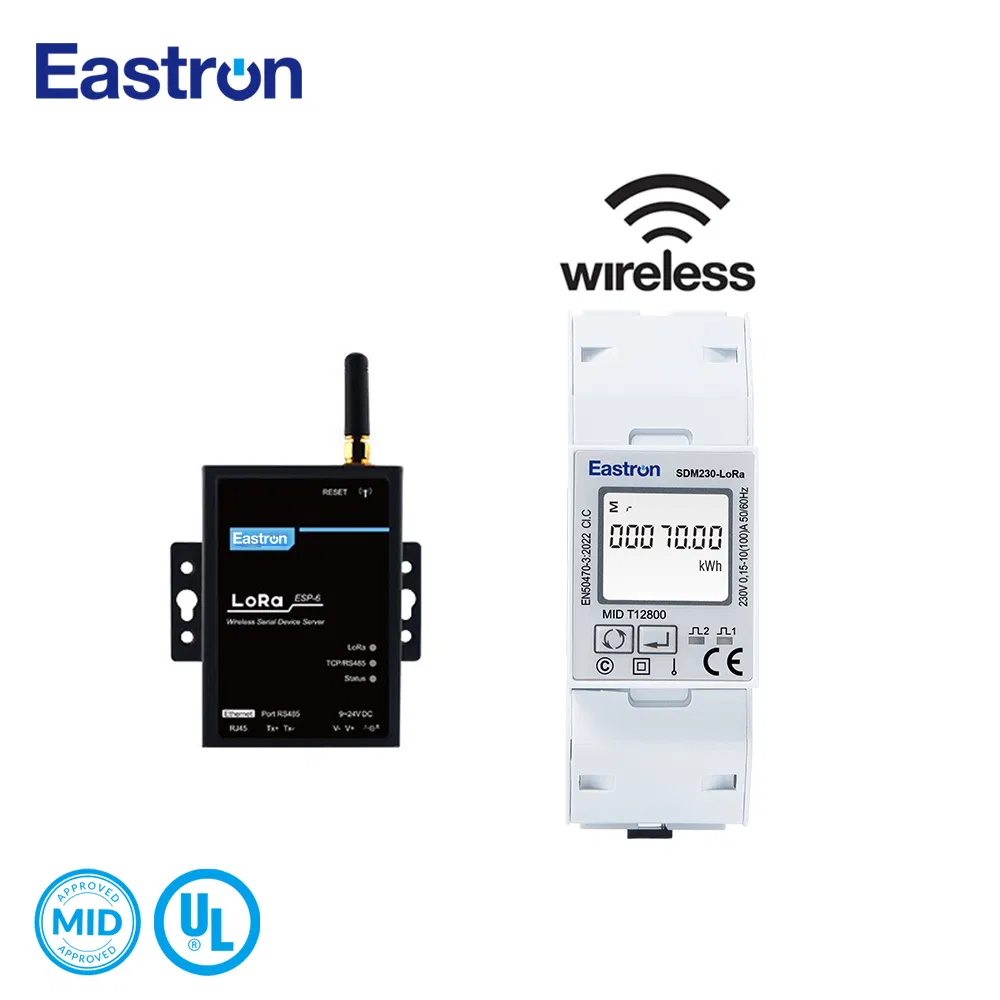

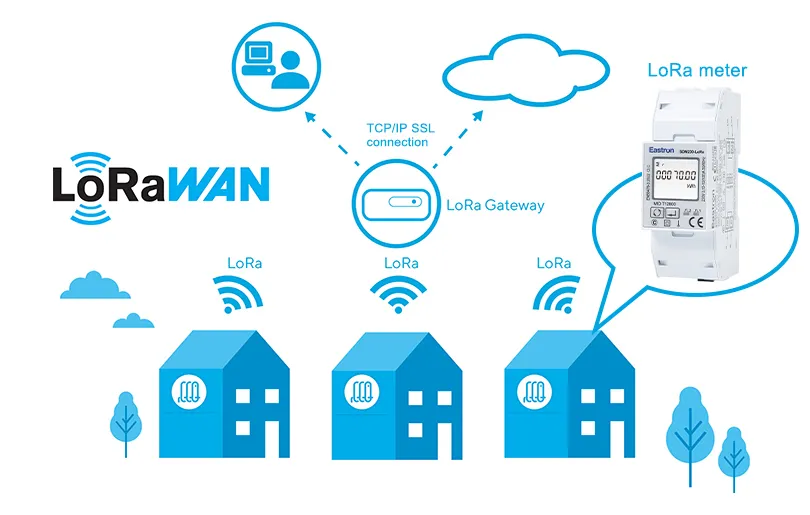

Energy is measured in terms of kWh, kVArh. Maximum demand current can be measured over preset periods of up to 60 minutes. The meter is Max. 100A direct connected and do not need to connect with external current transformers(CT). LoRa communication is available on the meter for long distance wireless data transmission.
| Electrical Characteristics | ||
|---|---|---|
| Type of Measurement | RMS on single phase AC system (1P+N) | |
| Measurement Accuracy | Active Energy | Class 0.5 IEC62053-22 / Class C EN50470-3 |
| Reactive Energy | Class 2 IEC62053-23 | |
| Frequency / Current / Voltage | ±0.2% / ±0.5% / ±0.5% | |
| Power Factor | 1% of unity (0.01) | |
| Input & Output | ||
|---|---|---|
| Current | Rated Current (Ib/Iref) | 10A |
| Max Current(Imax.) | 100A | |
| Voltage | Rated Voltage (Un) | 230V AC |
| Operational Voltage | 100~277V AC(L-N) | |
| Output | 2 Pulse Outputs + LoRaWAN | |
| Communication Specs | |
|---|---|
| Interface Standard | LoRaWAN Specification 1.0.2 |

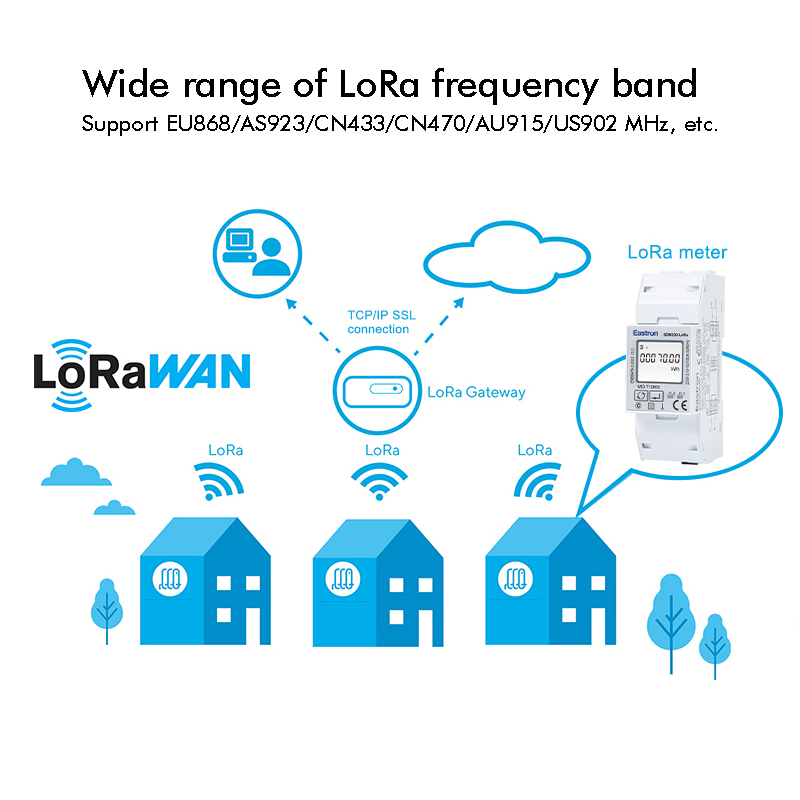

| Frequency Bands | EU868/AS923/CN433/CN470/AU915/US915 MHz |
| LoRaWAN Classes | Class C |
| Activation Way | OTAA or ABP |
We are a leading high-tech manufacturer of electricity products and energy measurement solutions. Over the years, we have developed a wide range of electricity meters, sensors, communication modules, and management systems.
To ensure product reliability, we operate professional labs that perform EMC, LVD, accuracy, and environment tests according to IEC, EN, GB, and UL standards. Holding over 280 patents, we operate under ISO 9001 and have SGS MID approval and UL certification.
