📋 Basic Information
Model NO.
DC male to female, male to male
Plug Type
5.5*2.1mm / 5.5*2.5mm
Production Capacity
500,000 Per Day
📦 Packaging & Delivery
Package Size
10.00cm * 5.00cm * 5.00cm
Lead Time
10 days (1 - 1000 Pieces); To be negotiated (> 1000 Pieces)
🔍 Technical Specifications

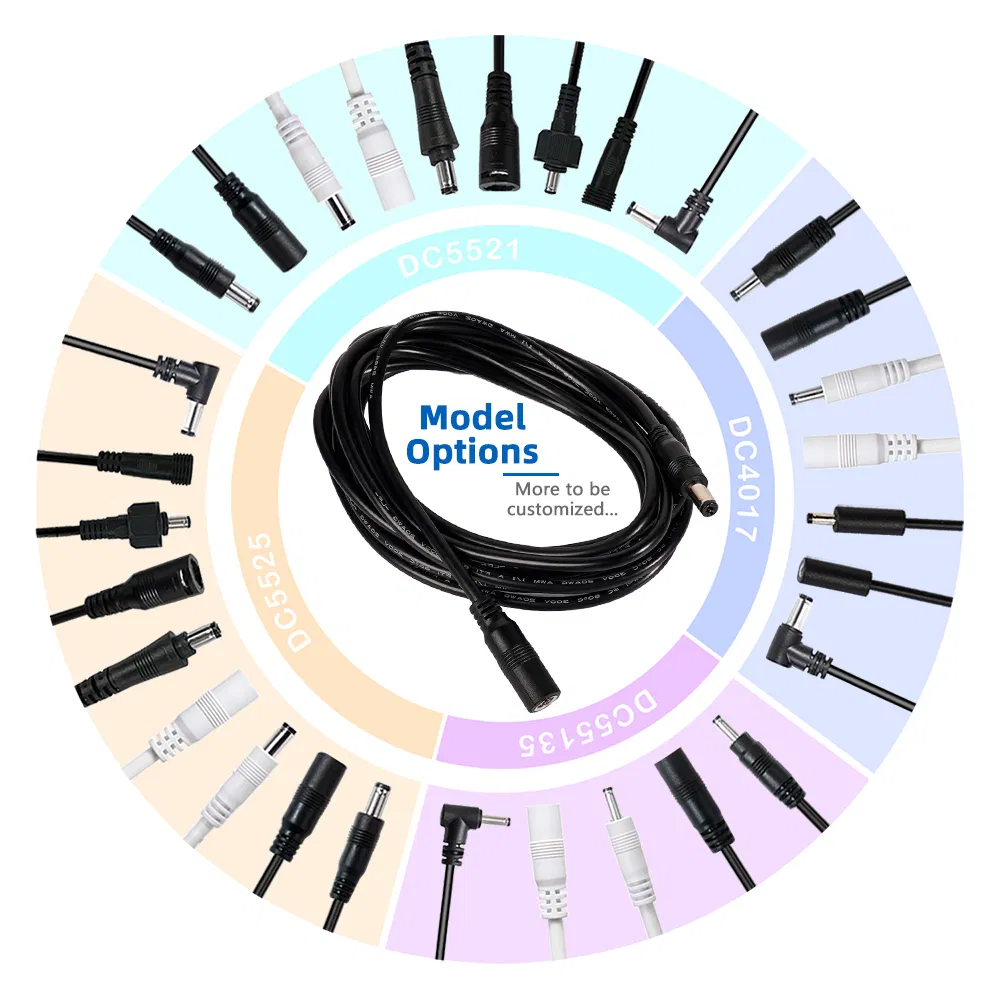

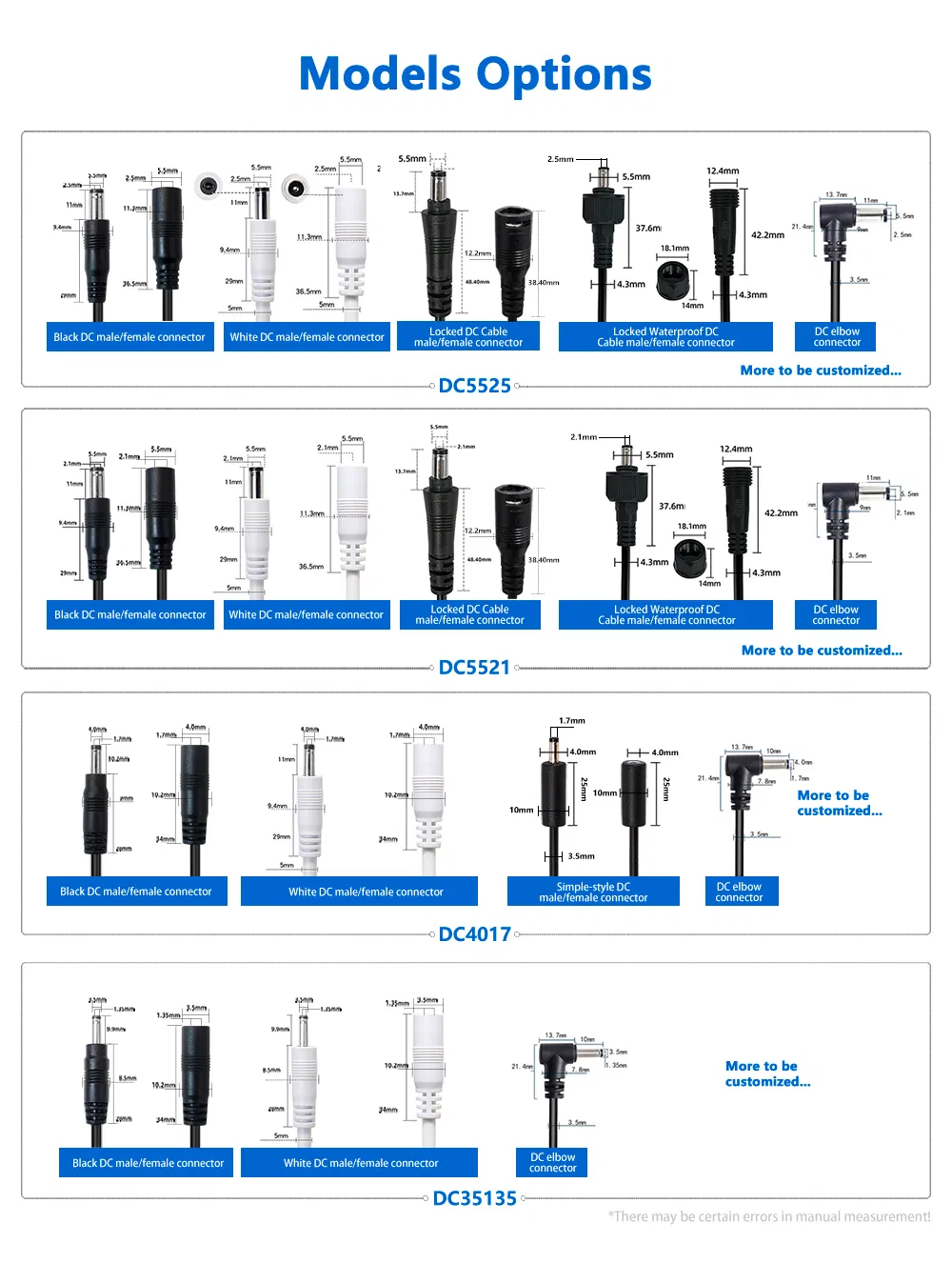

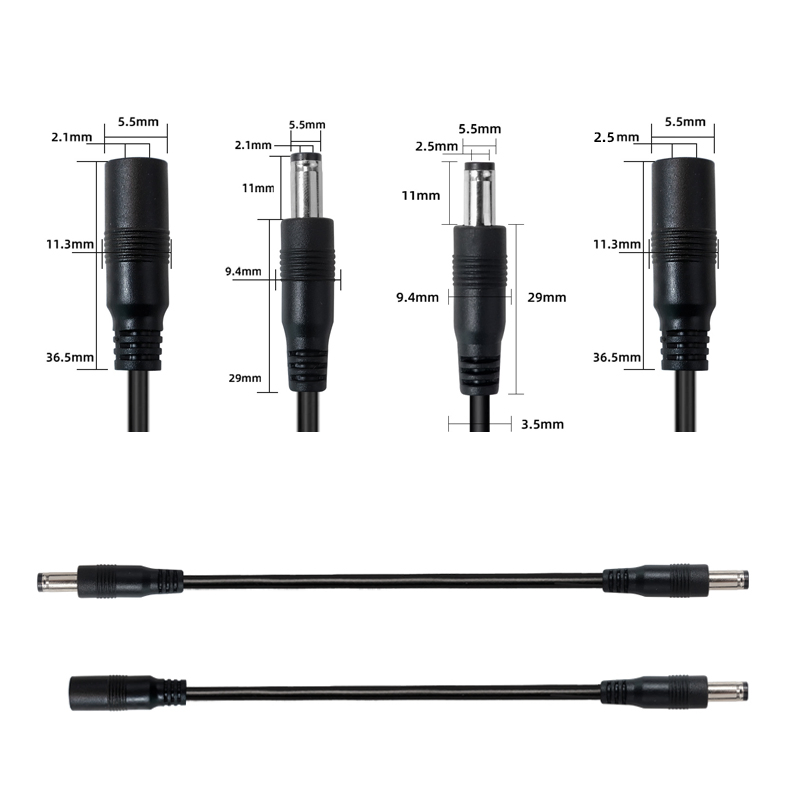

| DC Plug Size |
DC5525 Male-to-Male, Male-to-Female; DC5521 Male-to-Male, Male-to-Female |

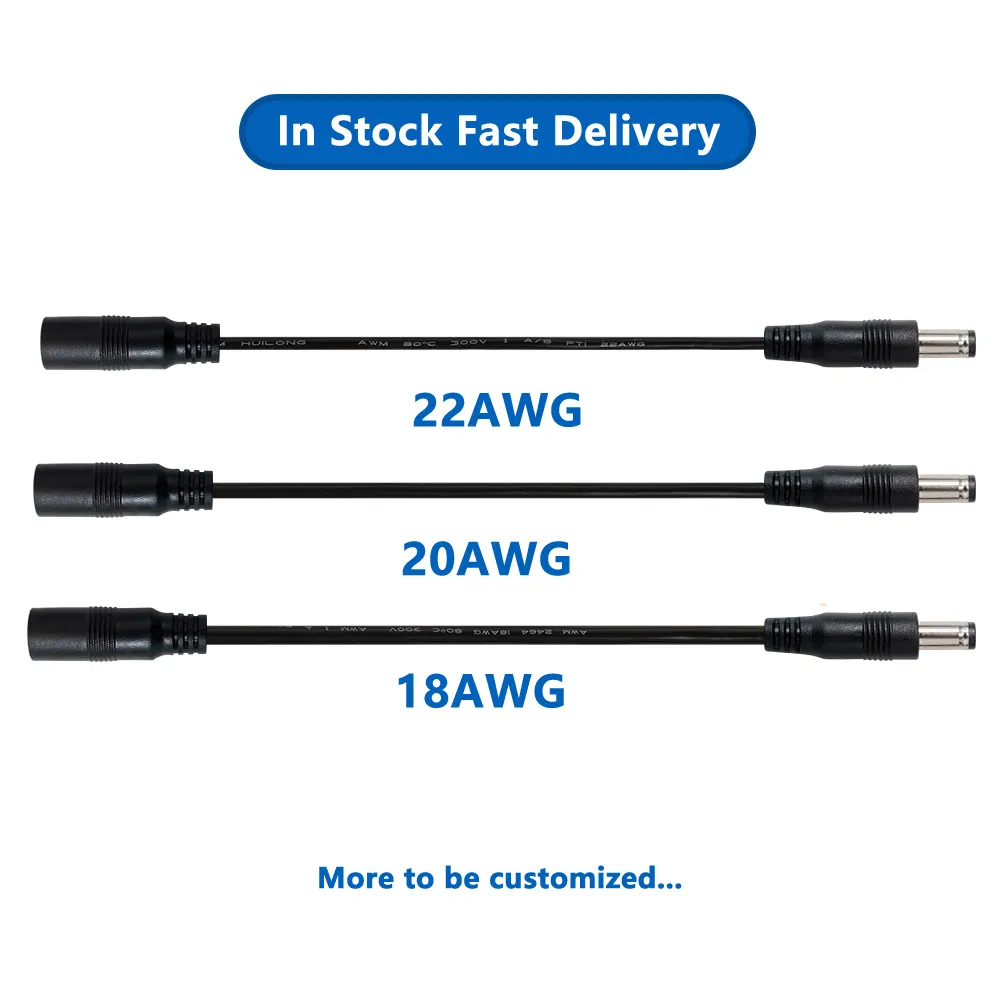

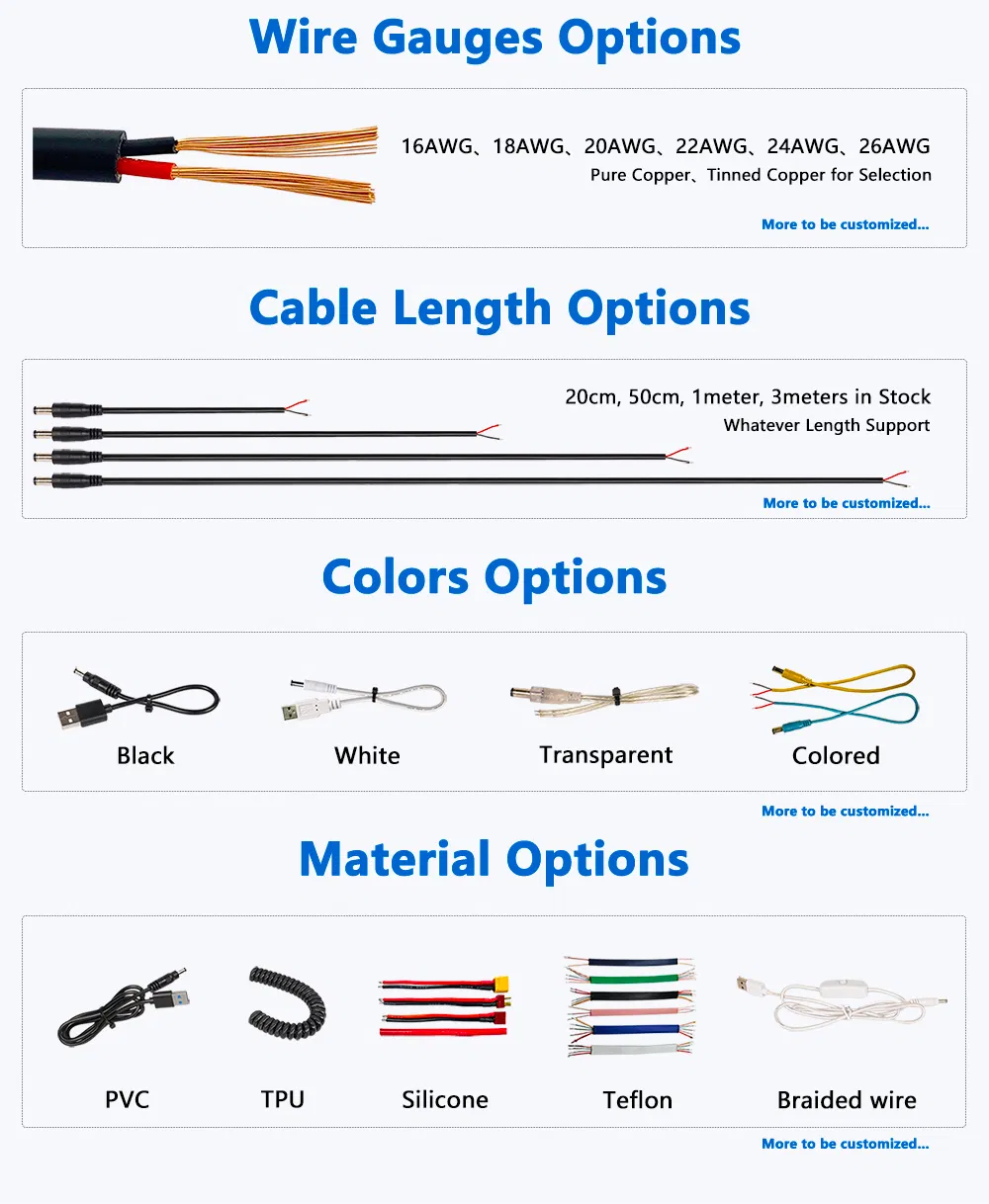

| Cable Gauge |
2464-22AWG (17/0.15BC*2C=0.3²)
2464-20AWG (28/0.15BC*2C=0.5²) |
| Cable OD |
3.5mm / 4.3mm or Customized |

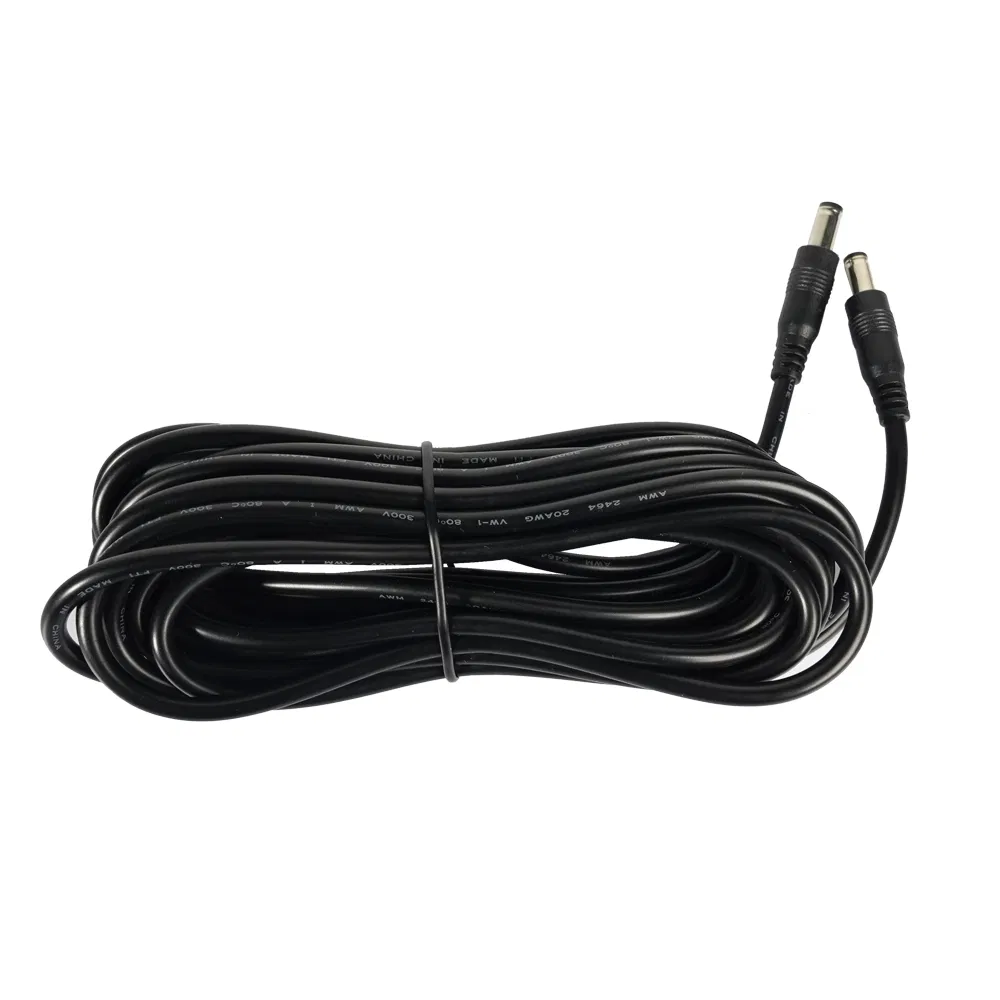

| Cable Length |
100CM / 200CM / 300CM / 500CM or Customized |
| Voltage Rating |
300V |
| Temperature Rating |
-20℃ to +80℃ or -40℃ to +80℃ |
| Current Rating |
5A |
| Color |
Black or Customized |

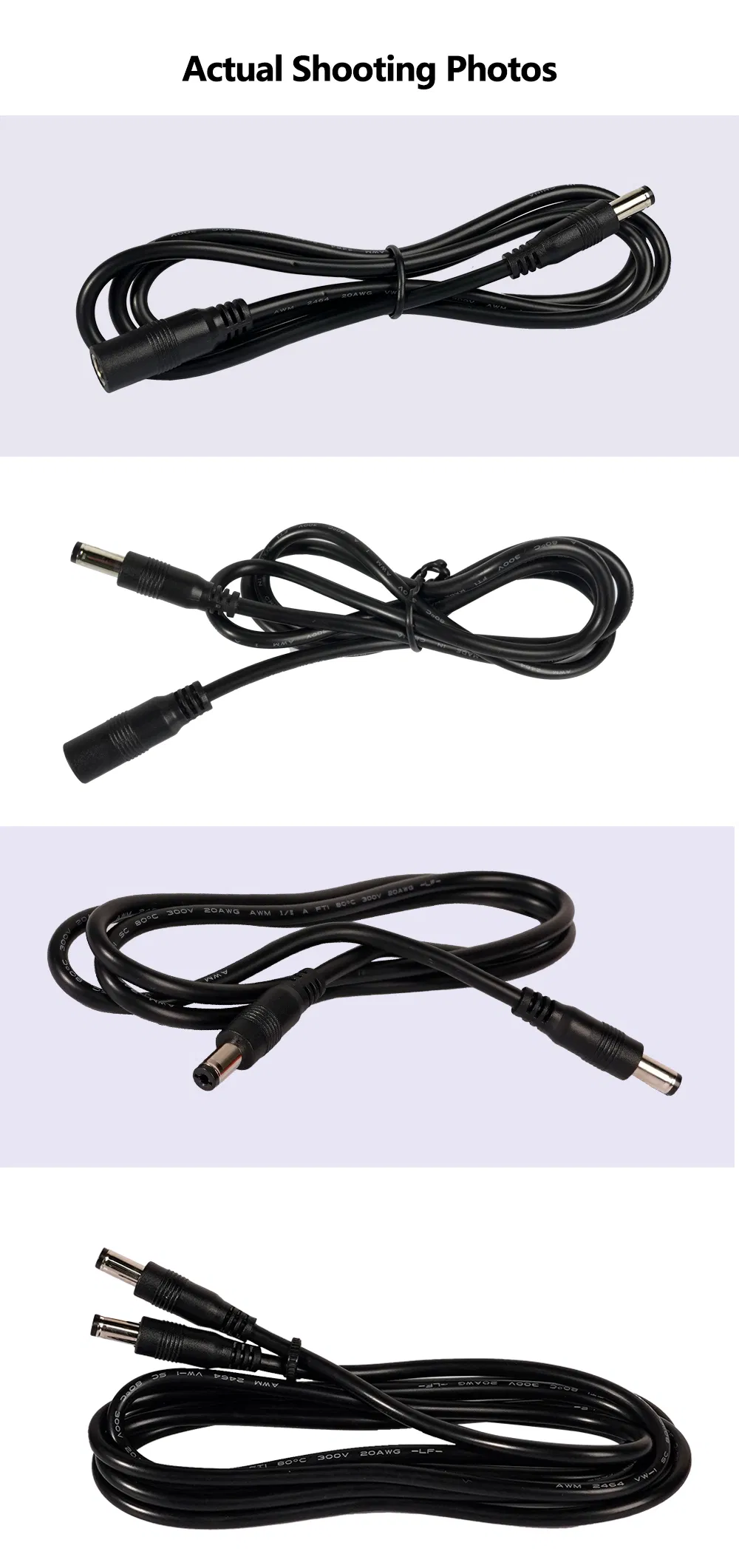

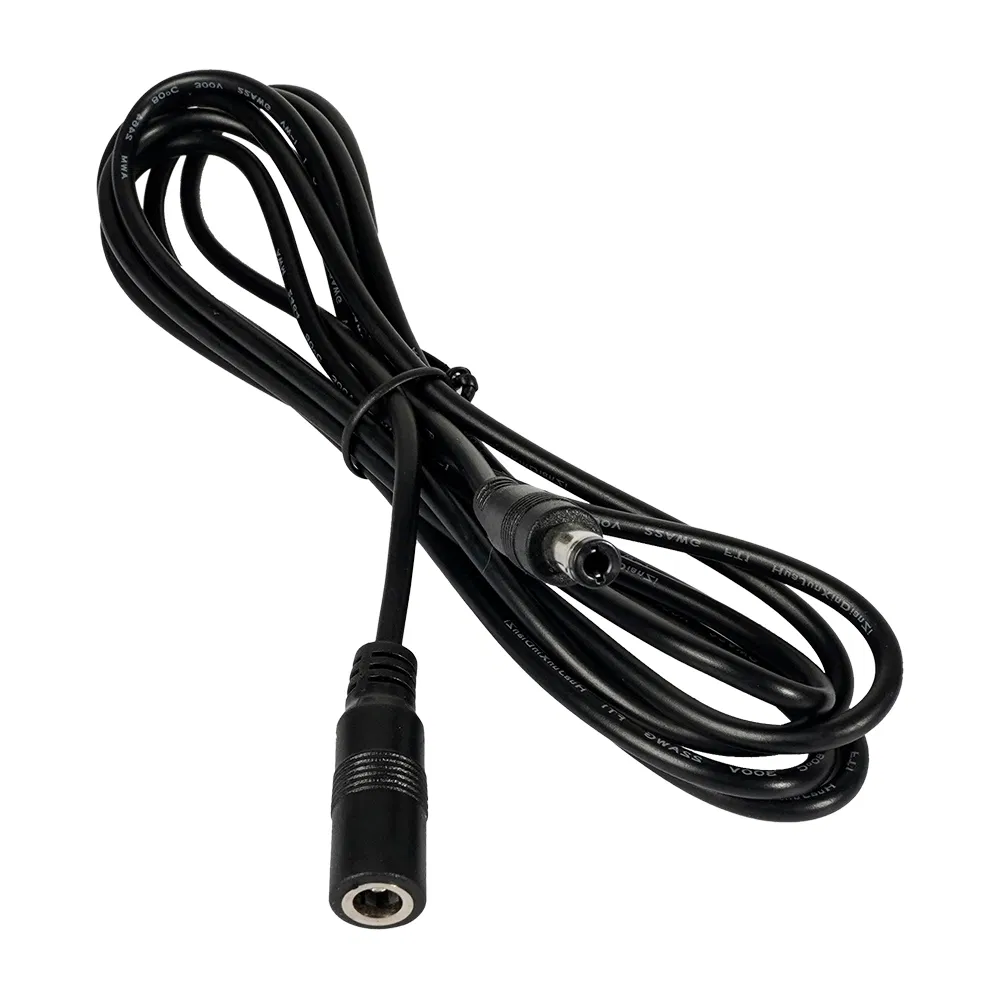

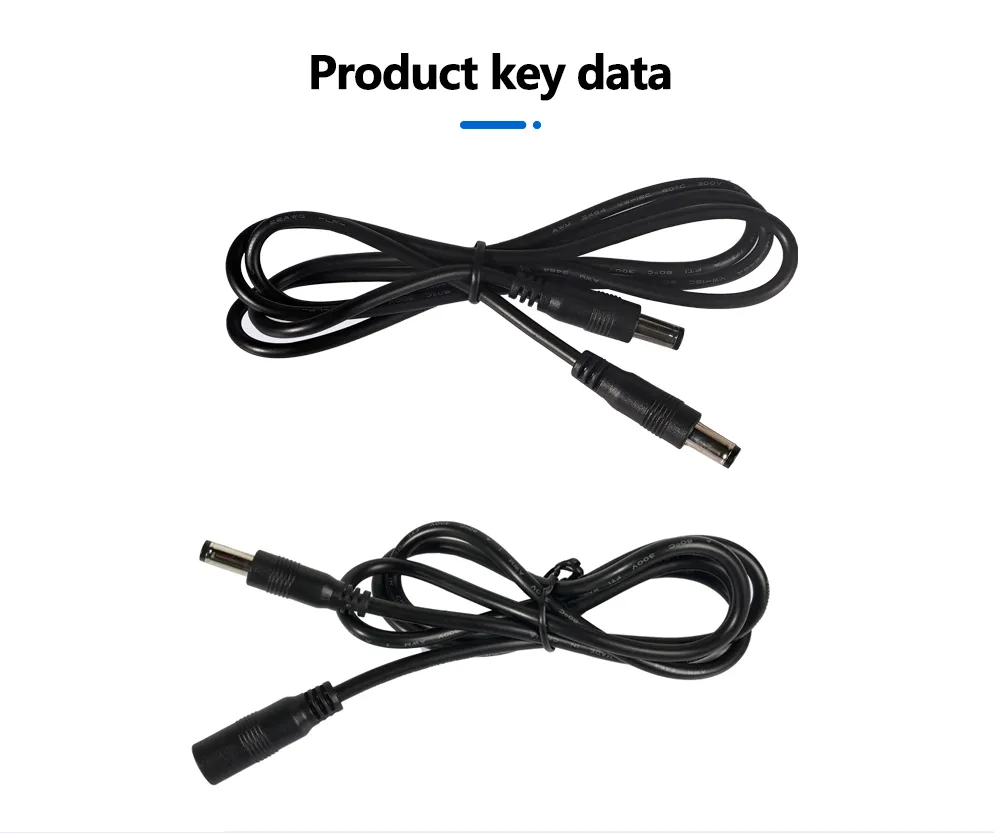

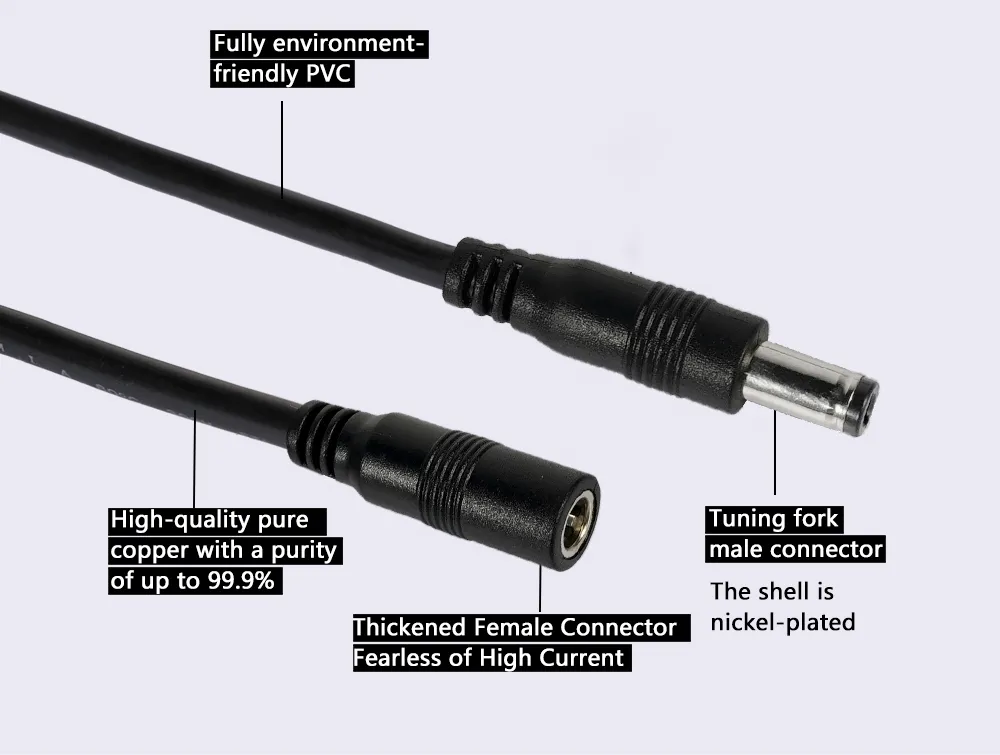

🖼️ Product Visuals
💡 FAQ
How to choose between male-to-male and male-to-female connectors?
Selection depends on your usage requirements. Choose male-to-male for direct power connections between devices and power supplies. Choose male-to-female for extending power distance or adapting mismatched interfaces. Always confirm your device's DC interface size (e.g., 5.5*2.1mm) to avoid incompatibility.
Why does the cable get extremely hot during use?
Main causes include: The cable's rated current is lower than the device's operating current (e.g., a 3A cable used with a 5A device), or poor contact at the connector (oxidized or dirty contacts). Clean the contacts or replace the cable with a higher current model.
Can these cables be used for high voltage DC equipment?
No. This series is designed only for low voltage applications, with a maximum rated voltage of 36V DC. Using them on high voltage equipment may cause insulation breakdown, electric leakage, or safety hazards.
Should I choose PVC or PUR for outdoor use?
PUR is strongly recommended for outdoor use as it is UV resistant, anti-aging, and wear-resistant. PVC is better suited for indoor dry environments and may crack or age if used outdoors long term.
How to fix stiff or loose connectors?
If stiff: Check for debris in the connector and clean it. If loose: Usually caused by deformed spring clips; replace the connector or gently adjust the clips. Ensure the connector locks fully when inserted.
What is the product warranty policy?
We offer a 3-year warranty against non-human damage, covering issues like poor contact, cracked insulation, and conductor oxidation. Free replacement or repair is provided within the warranty period with a 24-hour response time.
