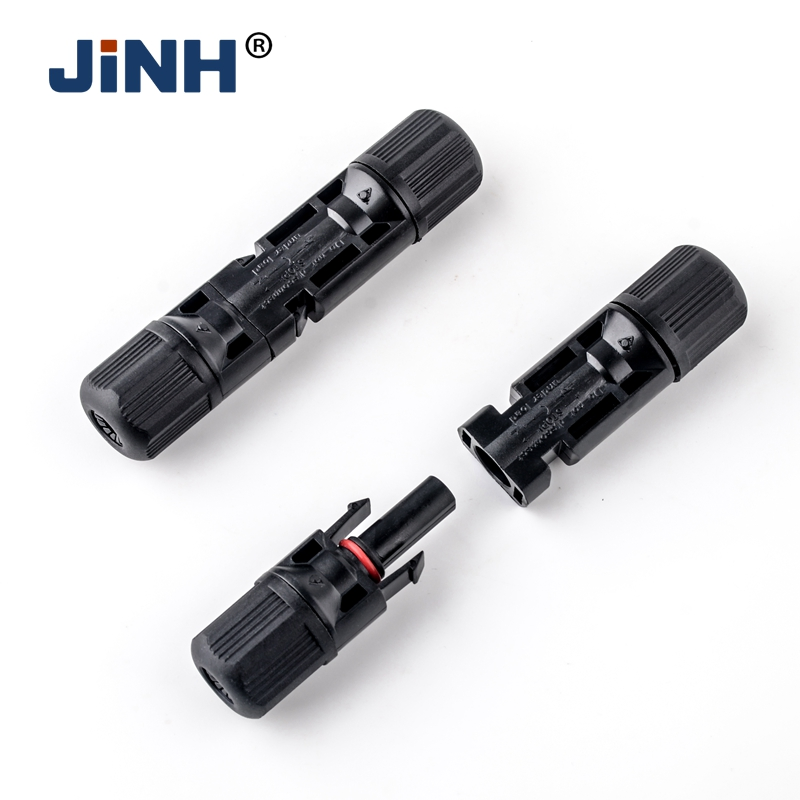

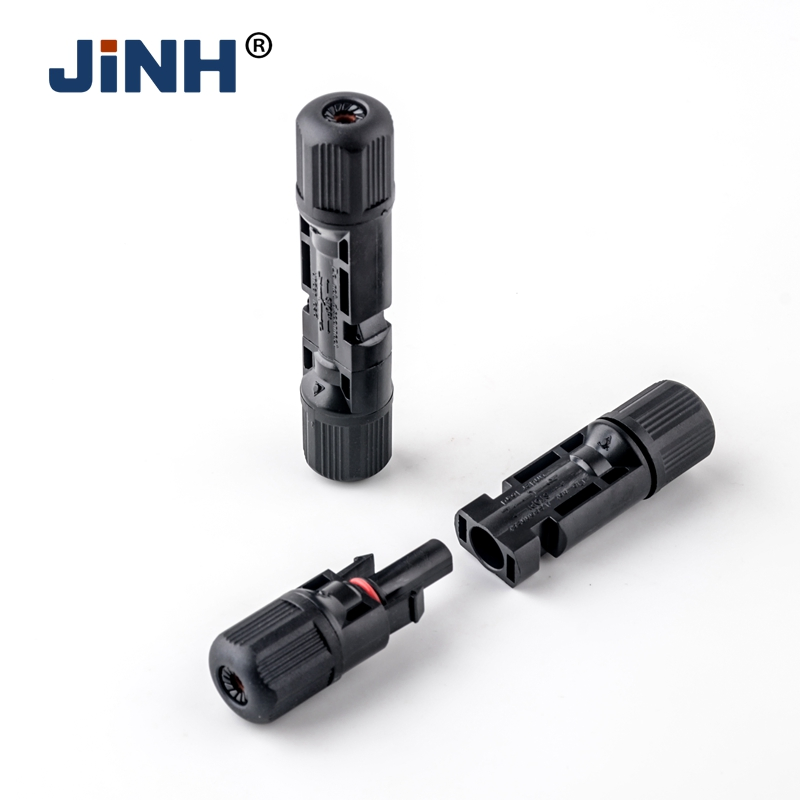

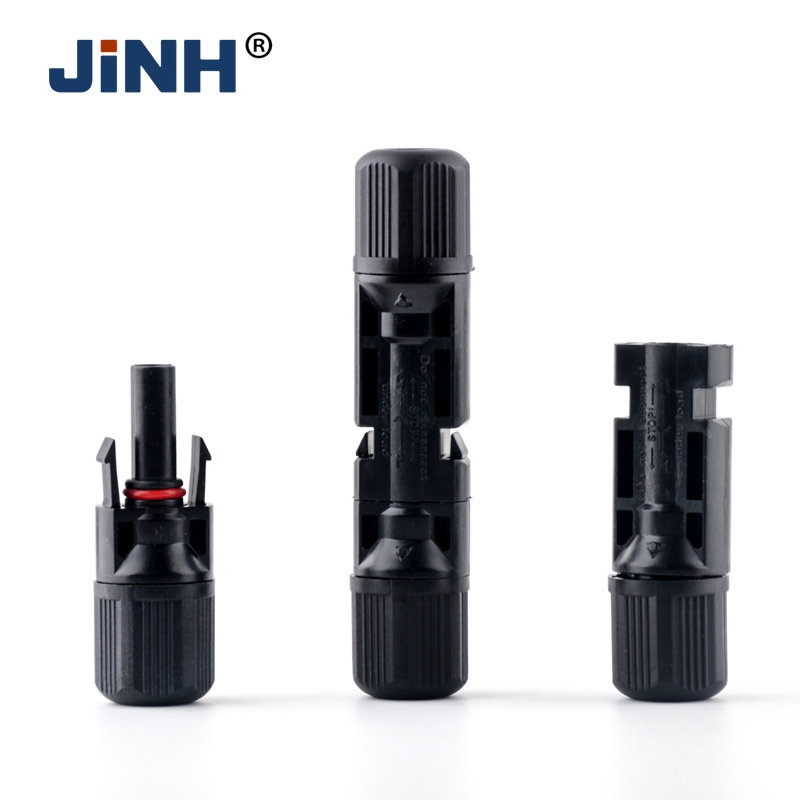

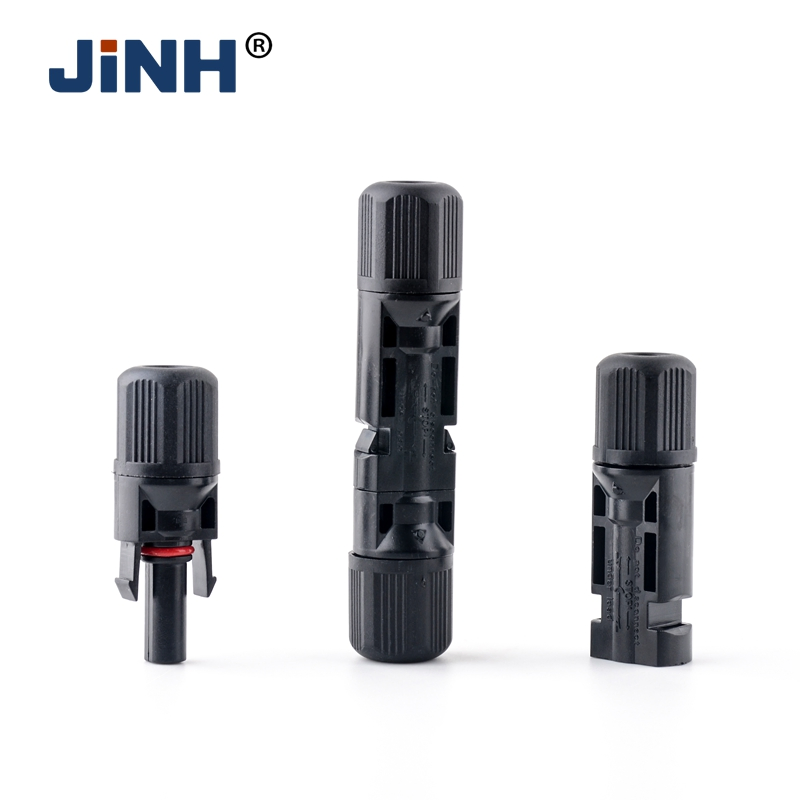

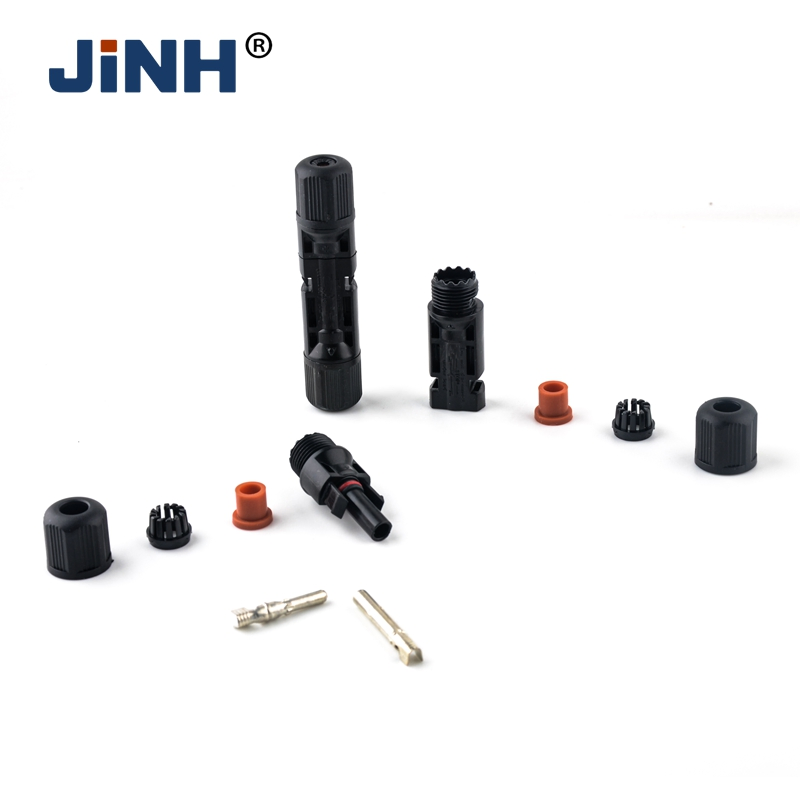

CE IP67 2.5mm2~6.0mm2 Male/Female DC 1000V Mc4 Solar Cable Connector

1 / 5

CE IP67 2.5mm2~6.0mm2 Male/Female DC 1000V Mc4 Solar Cable Connector

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info.

Model NO.MC4-30A 1000V

ApplicationIndustrial

Contact MaterialCopper, Silver Plated

safety ClassII of Mc4 Solar Cable Connector

Suit Cable2.5/4/6mm2 (14/12/10AWG)

Temperature Range-40~+125

Insulation MaterialPPO

Rated VoltageDC1000

FlameUL94-Vo&UL94-5va

Transport Package50 Pairs Per Cartoon Box

SpecificationIP67

HS Code853669000

Production Capacity300000/Week

Packaging & Delivery

Package Size20.00cm * 15.00cm * 15.00cm

Package Gross Weight2.500kg

Product Description

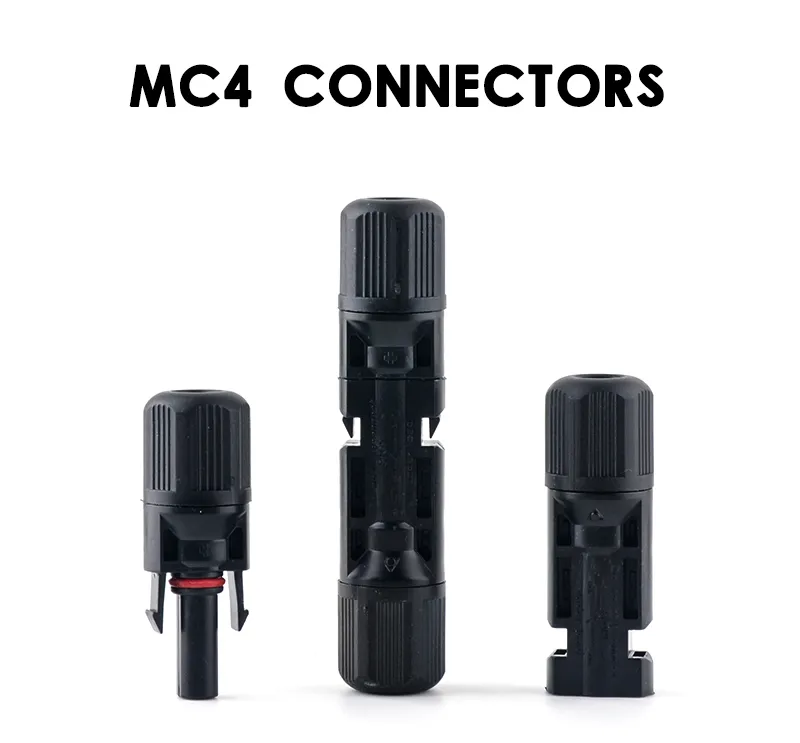

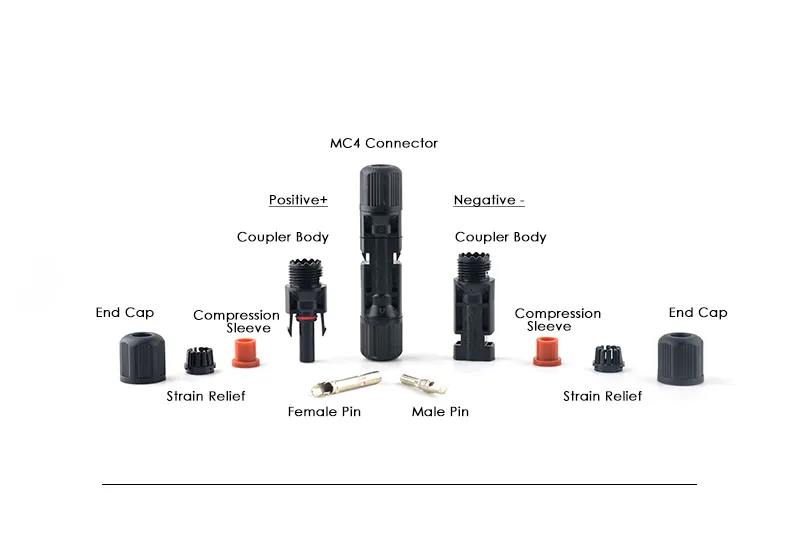

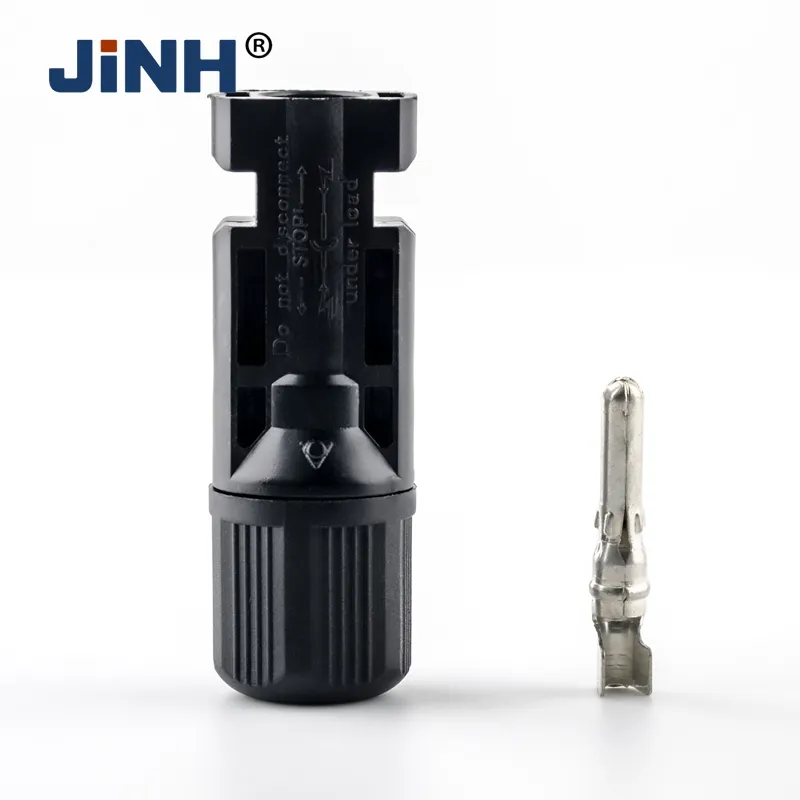

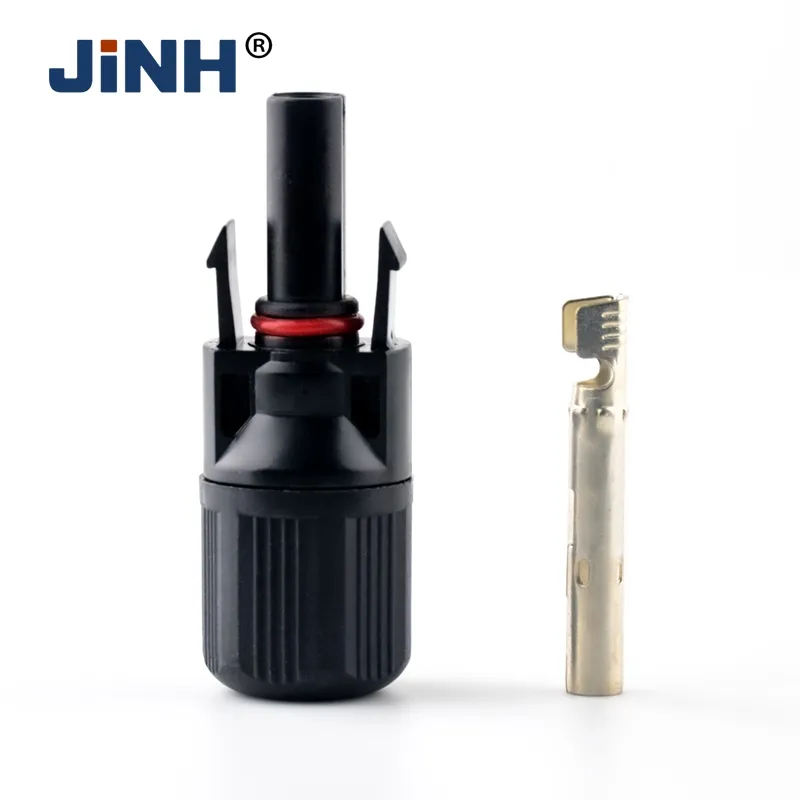

Solar Connector MC4

Advantages of Solar Connector:

Simple, quick, safe and effective field assembly
Innovative design, adaptive to solar connector directly
High mechanical endurance with low transition resistance
Innovative sealed, waterproof, and dust resistance design: IP68
Excellent plastic material, UL 94-V0, wide temperature range: -40°C to 90°C
Weather and UV resistant for long-time outdoor application
Approved by TUV

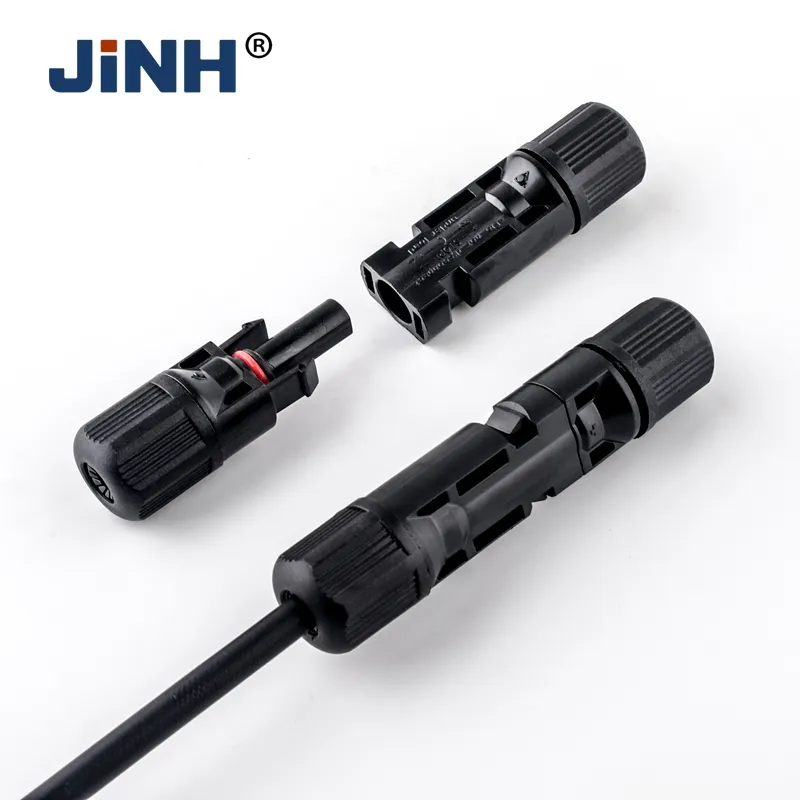

⚠️ Assembly Instructions & Safety Warnings

Ensure compliance with technical instructions to guarantee safety.
For protection against electric shock, PV Connectors must be isolated from the power supply while being assembled or disassembled.
The end product must provide protection from electric shock.
Unplugging under load: PV plug connections must not be unplugged while under load.
Disconnected connectors should be protected from dirt and water with sealing caps.
Plugged parts are watertight IP68.

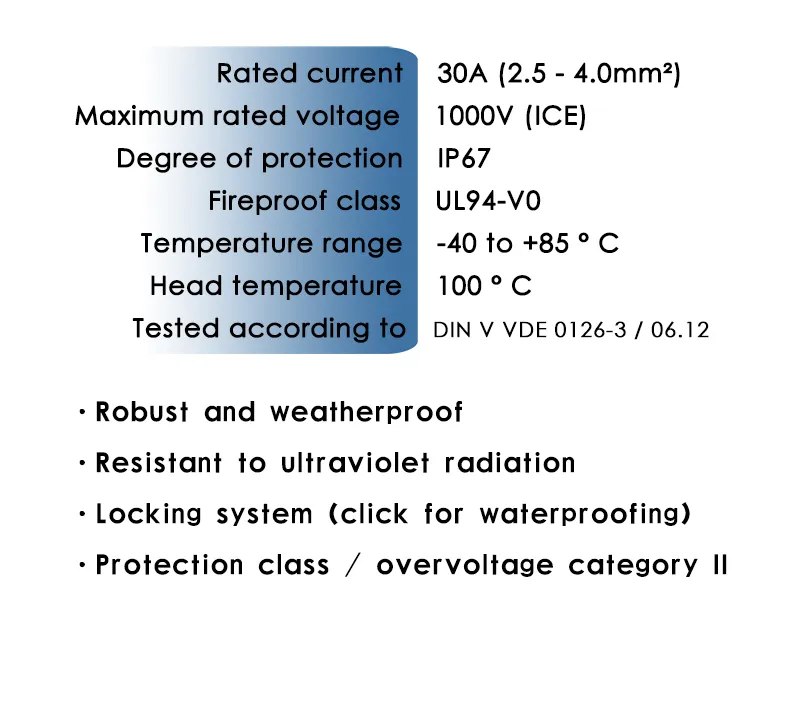

Feature	Specification Data
Protection	Touch Protection, mated/unmated IP68/IP2X
Rated Current	22A(2.5mm²), 35A(4mm²), 40A(6mm²)
Ambient Temperature	-40°C ~ 85°C
Rated Voltage	1000V DC
Safety Class	Class II
Type	mm²	AWG
PV-R4C/F-1 / PV-R4C/M-1	2.5 / 4.0	14 / 12
PV-R4C/F-2 / PV-R4C/M-2	4.0 / 6.0	12 / 10

Frequently Asked Questions

What cable sizes are compatible with these MC4 connectors?

These connectors are compatible with solar cables of 2.5mm², 4mm², and 6mm² (equivalent to 14AWG, 12AWG, and 10AWG).

What is the waterproof rating of the product?

The product features an innovative sealed design with IP67/IP68 protection rating, making it highly resistant to water and dust.

Can I disconnect the connectors while the solar panels are generating power?

No, MC4 plug connections must not be unplugged while under load. You must switch off the DC/AC converter or break the circuit first to ensure safety.

What is the temperature range for these connectors?

The connectors are designed to operate in extreme environments with a temperature range of -40°C to +125°C.

Are these connectors UV resistant for outdoor use?

Yes, they are made from high-quality PPO insulation material which is weather and UV resistant, specifically designed for long-term outdoor applications.

What is the maximum rated voltage?

The connectors are rated for a maximum voltage of DC 1000V.
