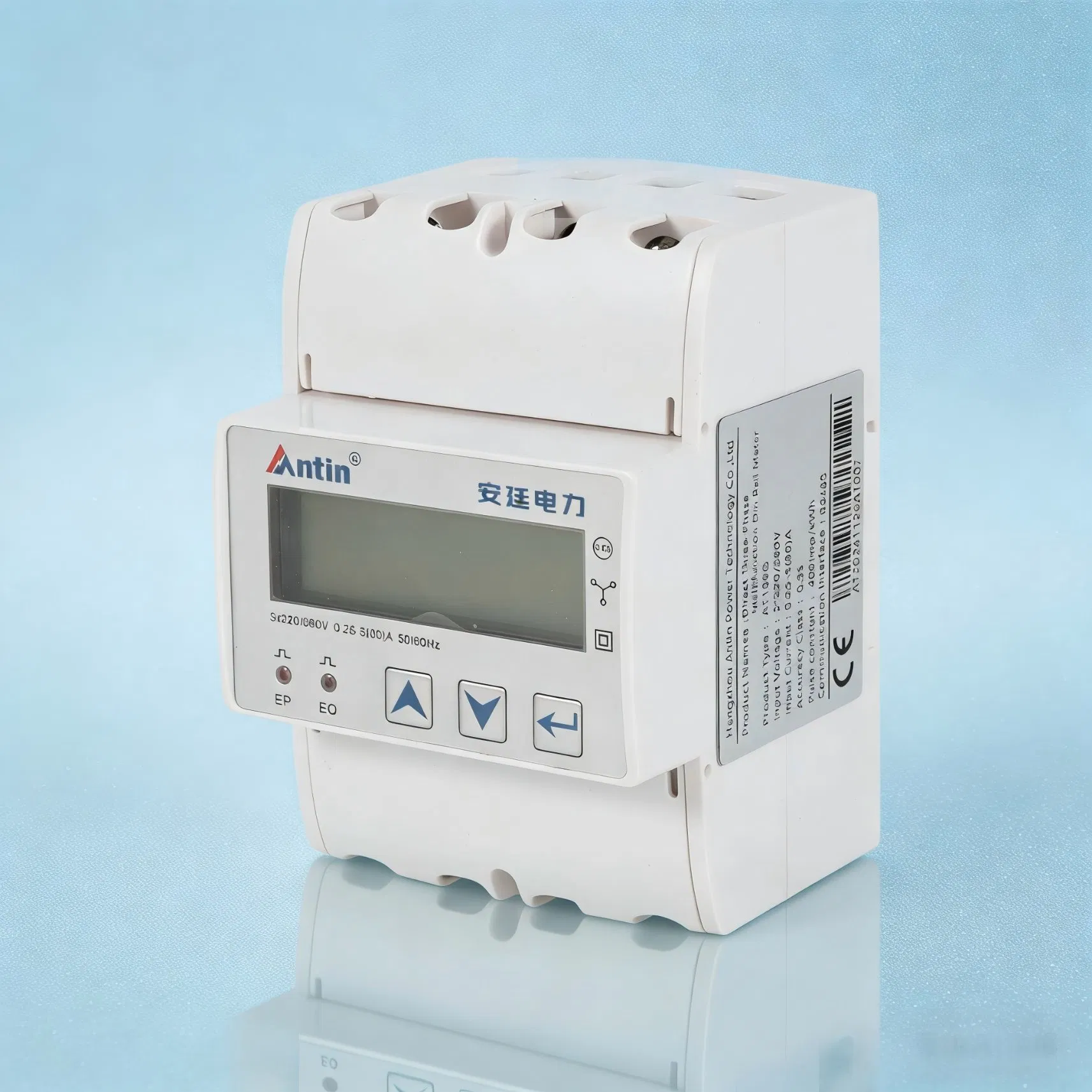

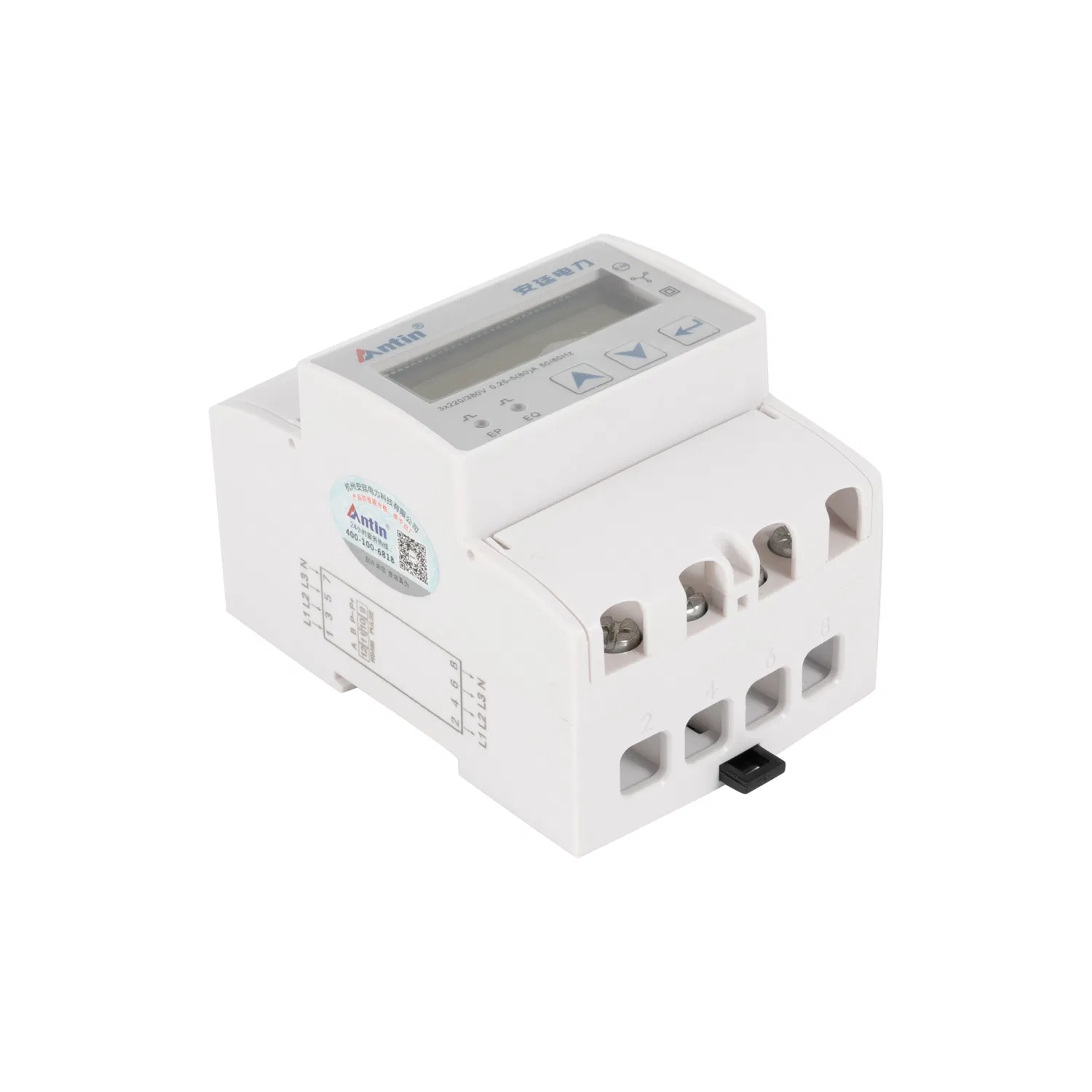

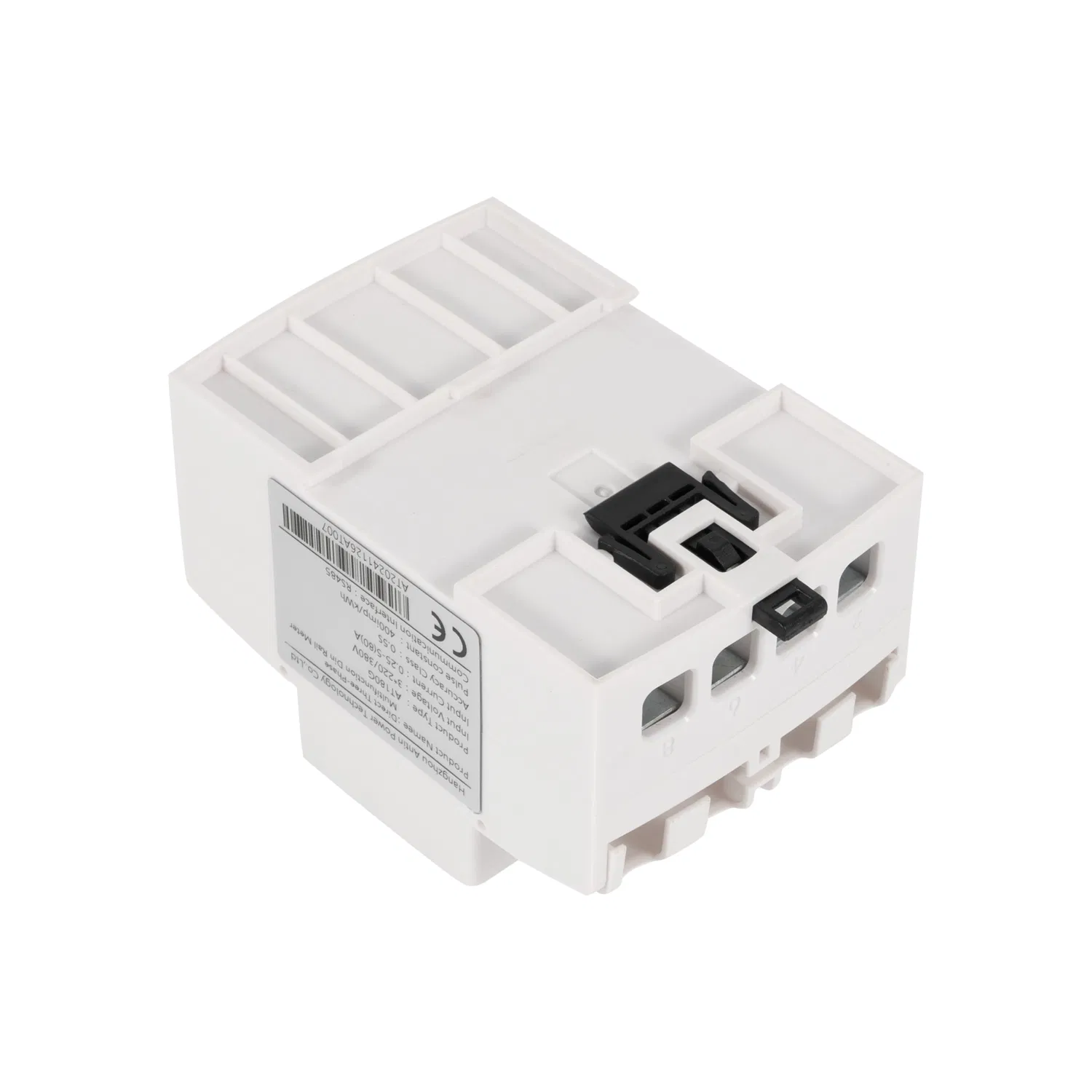

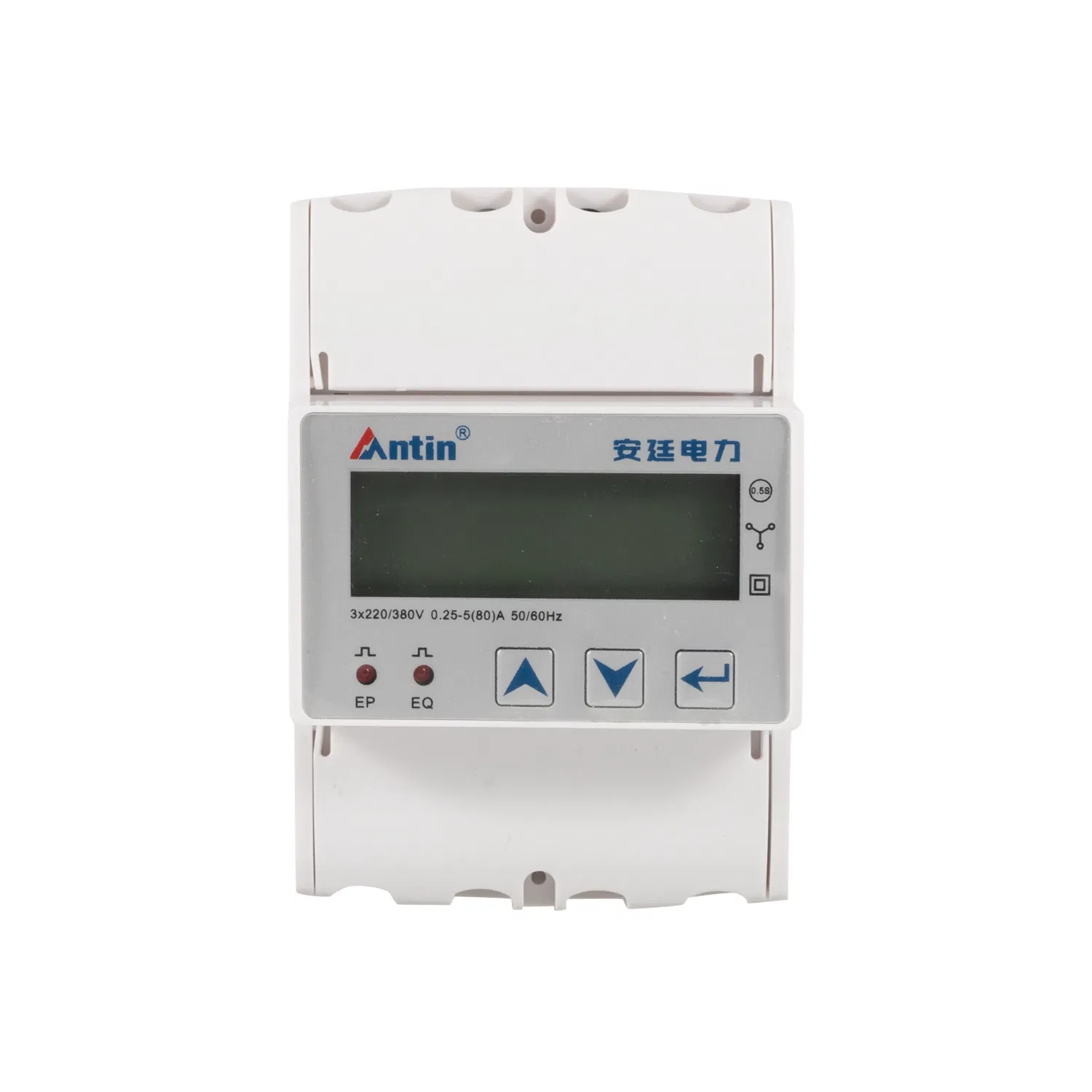

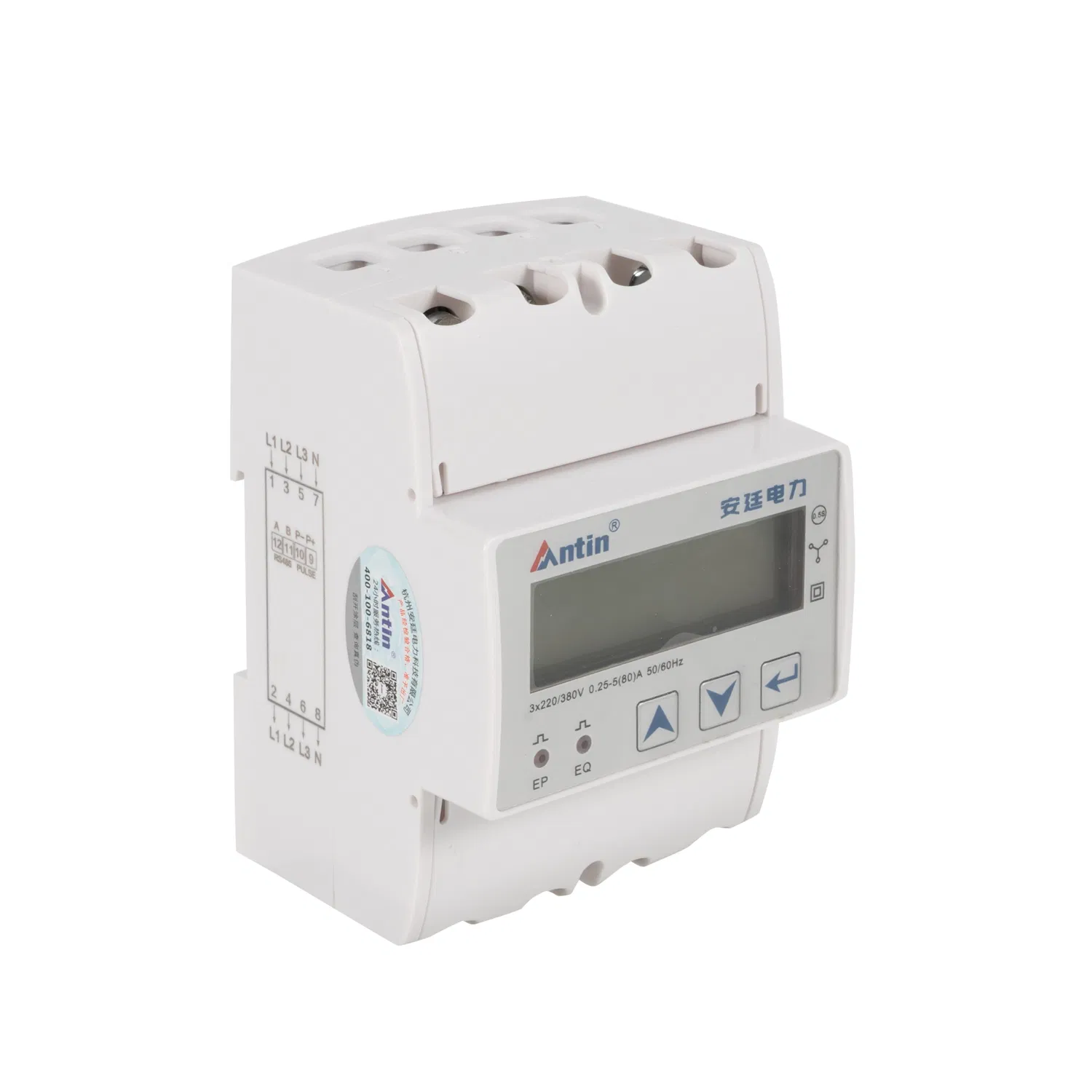

AT180G Three Phase Din Rail Electronic Multimeter Smart Energy Meter
AT180G Three Phase Din Rail Electronic Multimeter Smart Energy Meter
AT180G Three Phase Din Rail Electronic Multimeter Smart Energy Meter
AT180G Three Phase Din Rail Electronic Multimeter Smart Energy Meter
AT180G Three Phase Din Rail Electronic Multimeter Smart Energy Meter
1 / 5
AT180G Three Phase Din Rail Electronic Multimeter Smart Energy Meter
AT180G Three Phase Din Rail Electronic Multimeter Smart Energy Meter
AT180G Three Phase Din Rail Electronic Multimeter Smart Energy Meter
AT180G Three Phase Din Rail Electronic Multimeter Smart Energy Meter
AT180G Three Phase Din Rail Electronic Multimeter Smart Energy Meter

AT180G Three Phase Din Rail Electronic Multimeter Smart Energy Meter

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

⚙️ Basic Information
Model NO.
AT180G
Display
Digital
Electric Equipment
Three-phase Four-wire
Type
Energy Meter
Certification
ISO, CE
Voltage
AC100/220/230/400V
IP Class
IP51
Communication
Modbus
Temperature
-25℃~55℃
Power Consumption
≤5W
Frequency
45Hz~65Hz
Accuracy Class
Active: Class1; Reactive: Class0.5
📝 Product Description

AT180G Direct Type Three Phase Din Rail Energy Meter series are designed to collect, analyze and measure power parameters. This series can support the measurement and analysis of various power parameters, such as voltage, current, four-quadrant power parameters, power factor, bi-directional active and reactive power etc.

Equipped with RS485 communication interface (up to 38400bps), it supports Modbus, DLT645 and other protocols for remote data reading. The LCD display allows for local viewing and configuration with password protection to ensure data security.

⭐ Main Features
  • Multifunctional parameter measurement
  • Support bi-directional power metering
  • Support direct access type, CT variable ratio access
  • 1-channel pulse optocoupler output interface
  • RS485 communication (Modbus RTU protocol)
  • Standard 4-mode digital width, TH35-7.5 din rail mounting
  • Large LCD display with adjustable white backlight
  • 1-second LCD refresh time with manual/auto page rotation
📊 Technical Parameters
Category Details
Measured Voltage Phase voltage, line voltage, Frequency
Power Parameters Active/Reactive/Apparent Total & Phase Power
Monitoring Split-phase contact temperature, ambient temperature, Residual current
Working Power Voltage range: AC/DC85~265V; Consumption: <5VA
Accuracy Voltage/Current: ±0.5%; Power/Electricity: ±1%
EMC Test Electrostatic discharge/Surge immunity: Level 4
📷 Product Gallery
Smart Energy Meter 1
Smart Energy Meter 2
Smart Energy Meter 3
Smart Energy Meter 4
Smart Energy Meter 5
Smart Energy Meter 6
Smart Energy Meter 7
Smart Energy Meter 8
Smart Energy Meter 9
❓ Frequently Asked Questions
What communication protocols does the AT180G support?
The meter supports RS485 communication with Modbus RTU and DLT645 protocols, supporting baud rates up to 38400bps.
Can this meter measure bi-directional energy?
Yes, it supports the measurement of bi-directional active and reactive power, making it suitable for systems with energy inflow and outflow.
How is the AT180G installed?
It uses a standard 4-mode digital width design for TH35-7.5 type DIN rail mounting, which is compatible with most industrial and residential distribution boards.
What is the accuracy class for power measurement?
The AT180G provides high precision with Class 1 accuracy for active power and Class 0.5 for reactive power.
What are the environmental operating limits?
The meter operates reliably in temperatures ranging from -25℃ to 55℃ and humidity levels up to 90%Rh at altitudes below 2000m.
Is the display easy to read in dark environments?
Yes, it features a large LCD display with a white backlight. The backlight lighting time is also adjustable to suit your needs.
