Product Description

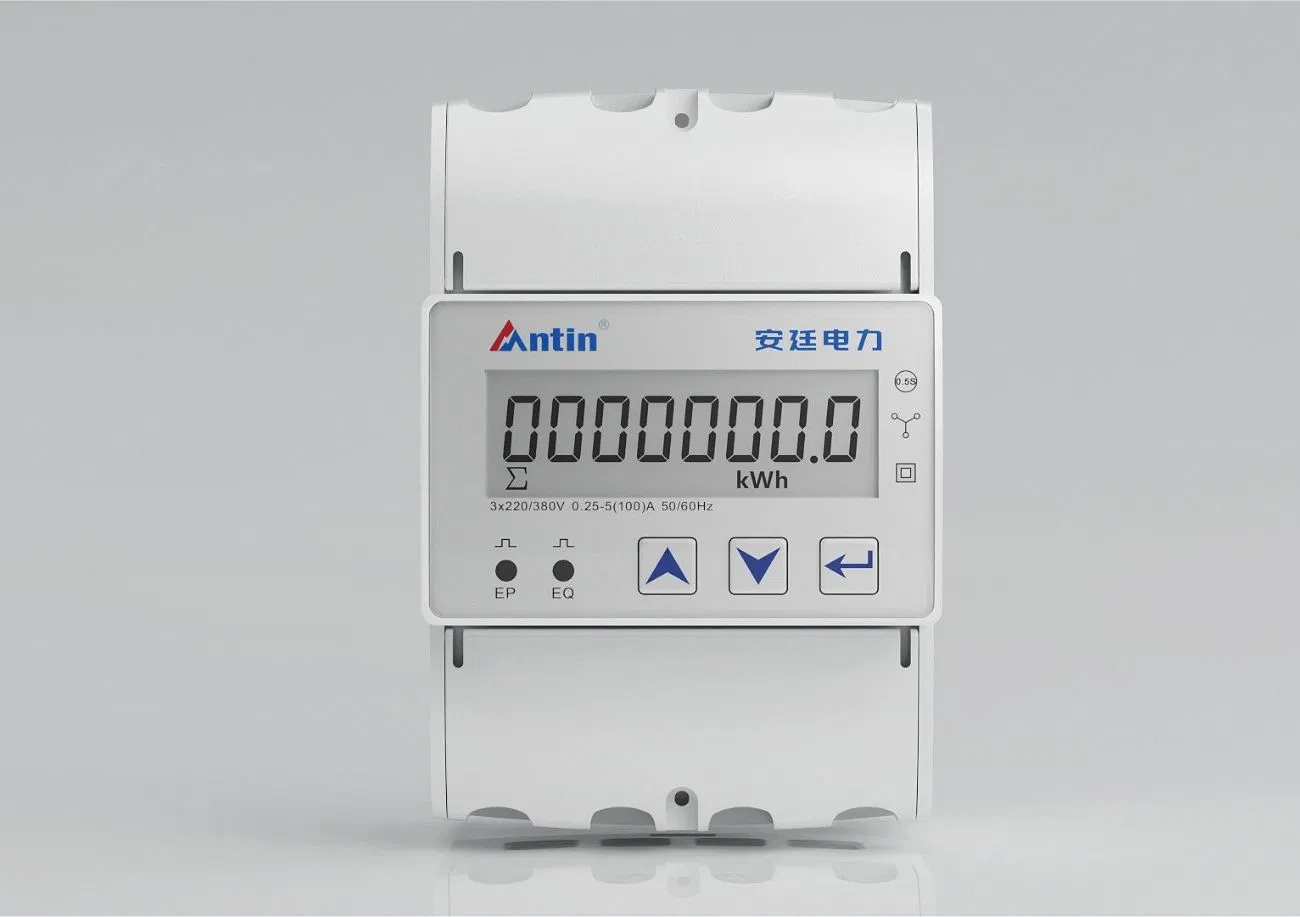

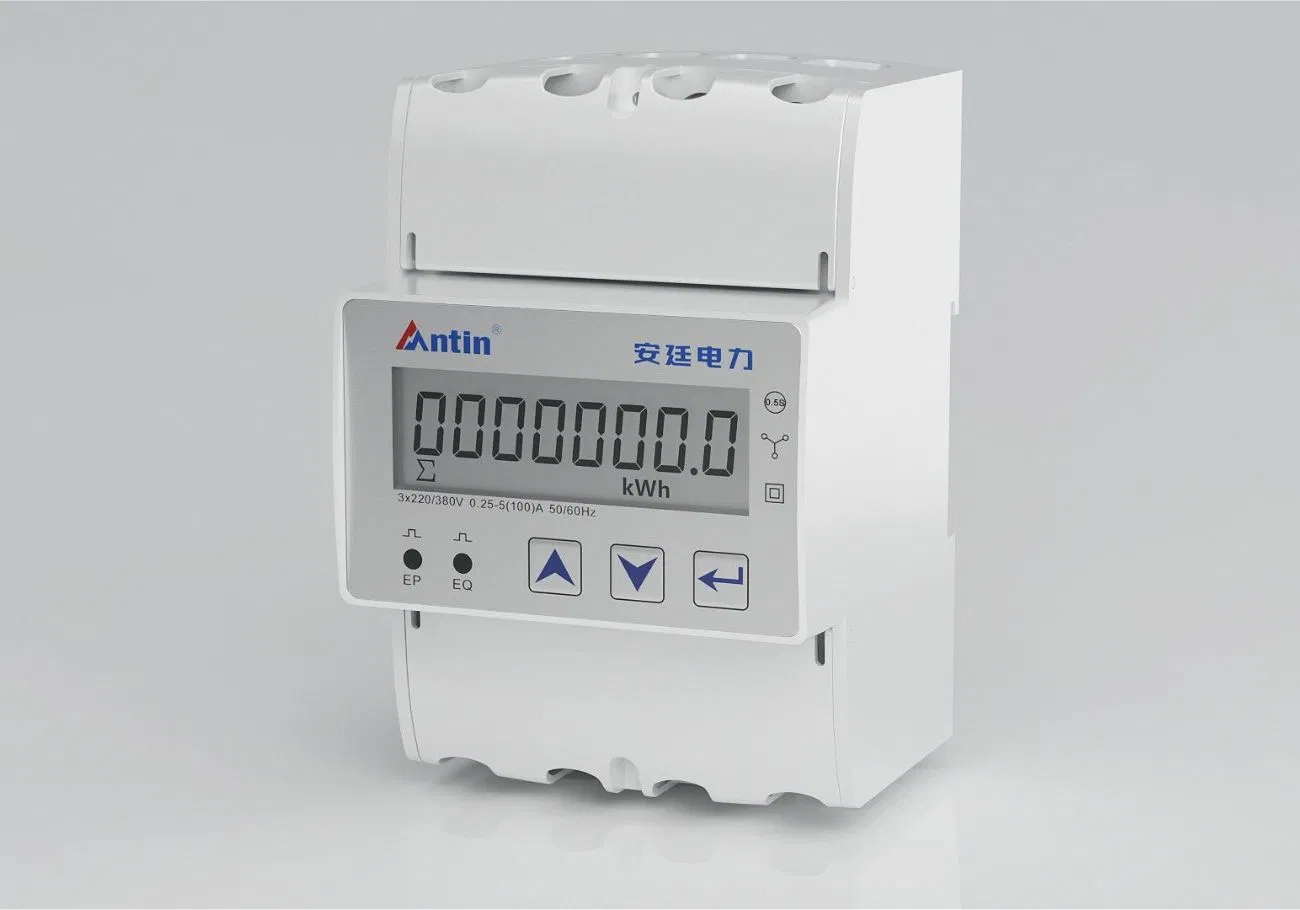

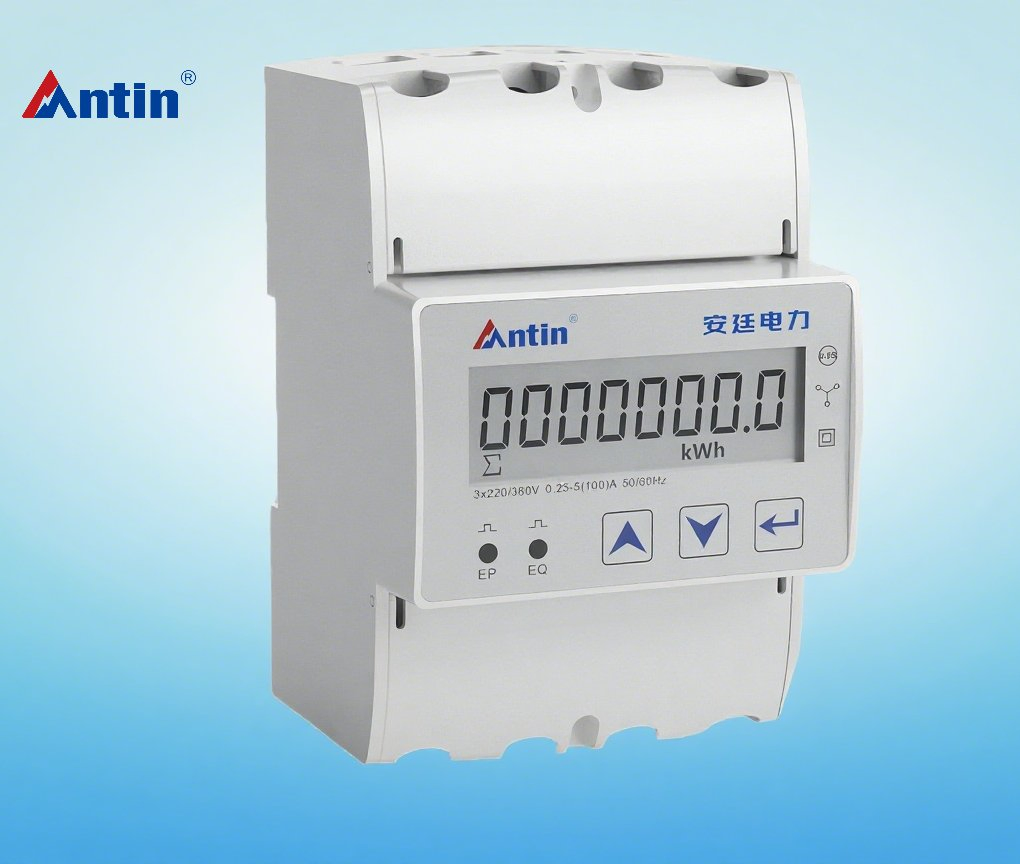

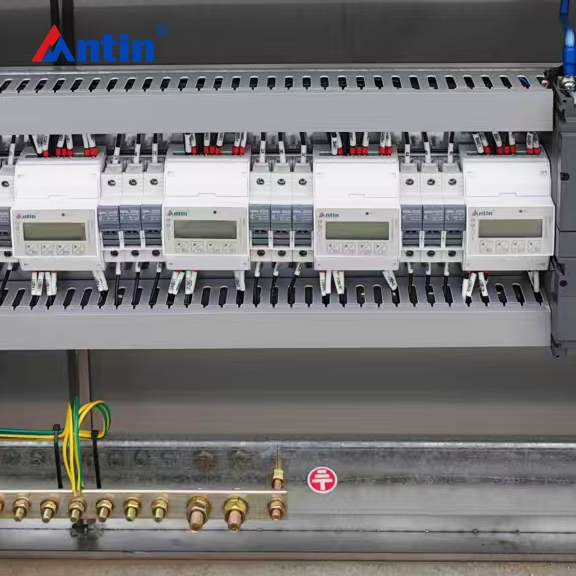

AT180G Direct Type Three Phase Din Rail Energy Meter series are designed to collect, analyze and measure power parameters. AT180G series single-phase din rail energy meter can support the measurement and analysis of various power parameters, such as voltage, current, four-quadrant power parameters, power factor, bi-directional active and reactive power etc. This series of products have RS485 communication interface, the highest baud rate support 38400bps, support Modbus, DLT645 and other communication protocols, can easily realize remote data reading. Meanwhile, it adopts LCD display, which can view and set various measurement parameters locally, and the product has password protection function to ensure the data security of the product.
⚡
Main Features
Multifunctional parameter measurement
Support bi-directional power metering
Support direct access type, CT variable ratio access
Support 1-channel pulse optocoupler output interface
Support RS485 communication (Modbus RTU protocol)

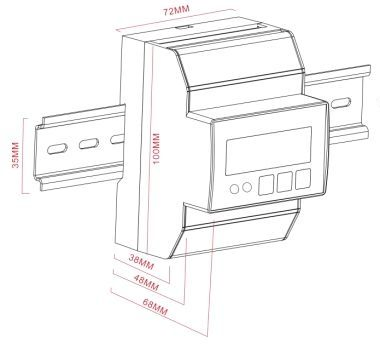

Standard 4-mode digital width, TH35-7.5 din rail mounting
Large LCD display with adjustable white backlight
LCD refresh time: 1 second with auto-rotation display
❓
Frequently Asked Questions
1. What are the primary functions of the AT180G energy meter?
The AT180G is designed for collecting, analyzing, and measuring power parameters including voltage, current, four-quadrant power, and bi-directional active and reactive power.
2. Does the meter support remote data monitoring?
Yes, it features an RS485 communication interface supporting Modbus RTU and DLT645 protocols, allowing for easy remote data reading with baud rates up to 38400bps.
3. What kind of installation is required for this model?
The device supports standard TH35-7.5 type DIN rail mounting, featuring a compact 4-mode digital width for easy integration into electrical cabinets.
4. Is the data on the display protected?
Yes, the product includes a password protection function to ensure data security and prevent unauthorized changes to the measurement settings.
5. What is the accuracy level of the AT180G?
The meter provides high precision with Class 1 accuracy for active power and Class 0.5 for reactive power measurement.
6. Can I view parameters manually on the device?
Yes, it is equipped with a large LCD display with a white backlight. It supports both manual page turning and automatic display rotation for convenient local viewing.
