Aluminum Mini Rail Solar PV Structure for Quick Installation for Commercial Roof Mounting

Basic Info.

Model NO.sys-1211

CertificationGB, ISO, CE

ApplicationCommercial

MaterialAluminum Alloy

TypeRoof Bracket

SampleFree Sample

Wind Speedup to 60m/S

Snow Loadup to 1.4 kN/M^2

Port of LoadingXiamen Port

OEMAcceptable

ColorSilver/Black

Surface TreatmentMill Finish or Clear Anodized or Black Anodized

Lead Time7-21 Days

Supply CapacityOver 100000 Set Per Week

OriginXiamen

HS Code76169990

Packaging & Delivery

Package Size27.00cm * 21.00cm * 21.00cm

Package Gross Weight10.000kg

Product Description

Solar Mount System Aluminum Quick Installation Mini Rail for Mounting Solar Racking. Our quick release rails are made of material AL6005-T5 for corrosion resistance and high strength.

Customisable length 100~500mm, economical and easy to transport.

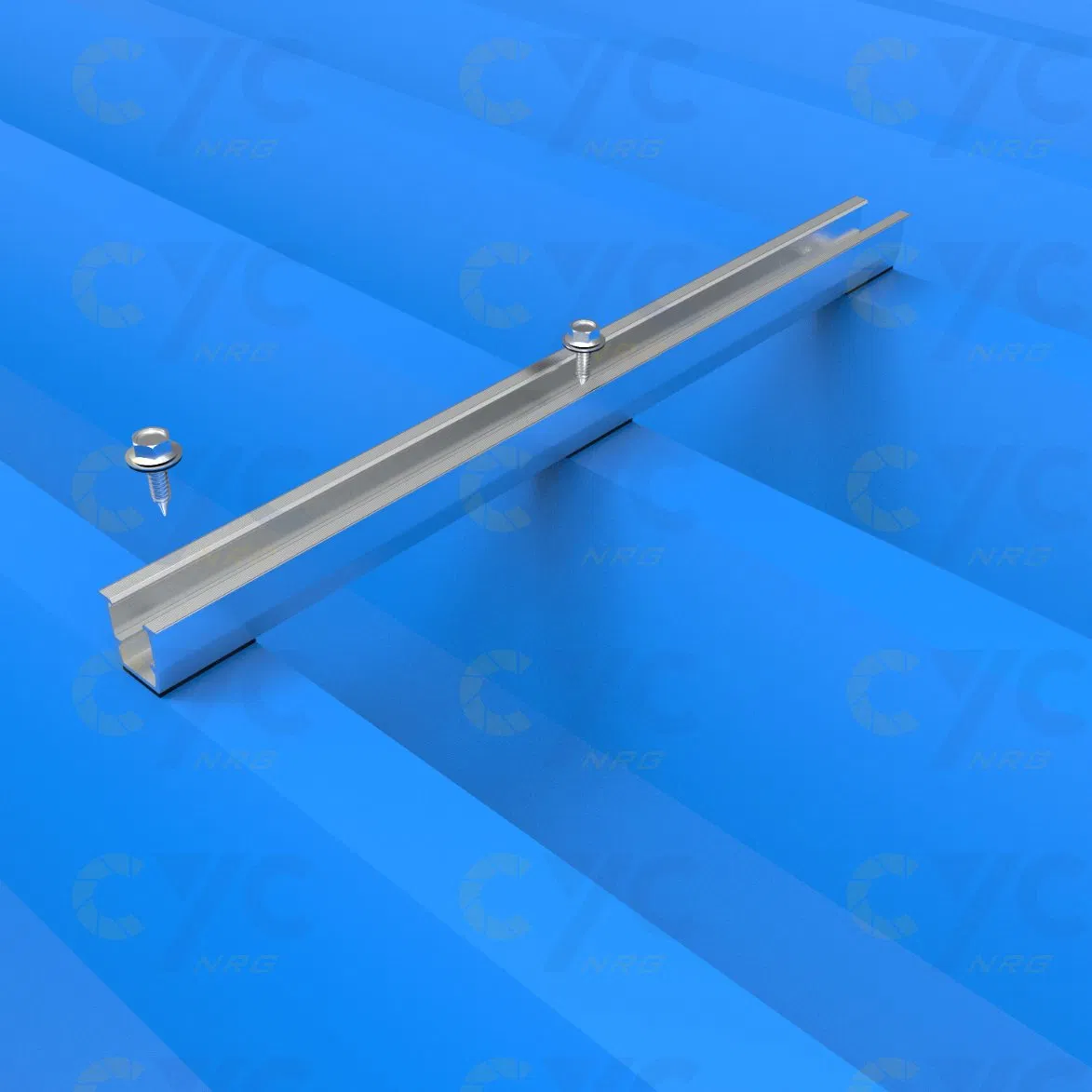

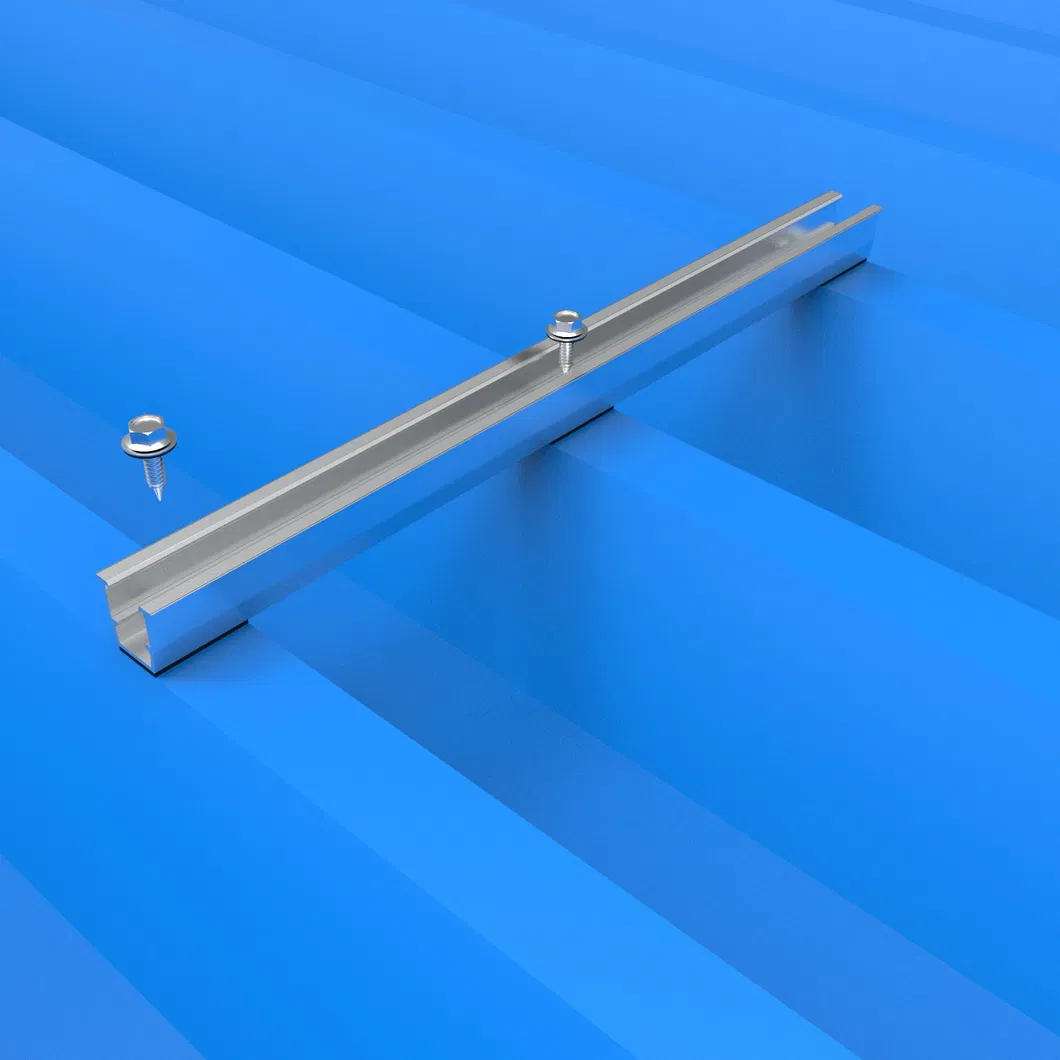

Wooden beam with wood screws. Steel beams with drilled screws and EPDM gaskets to prevent water leakage.

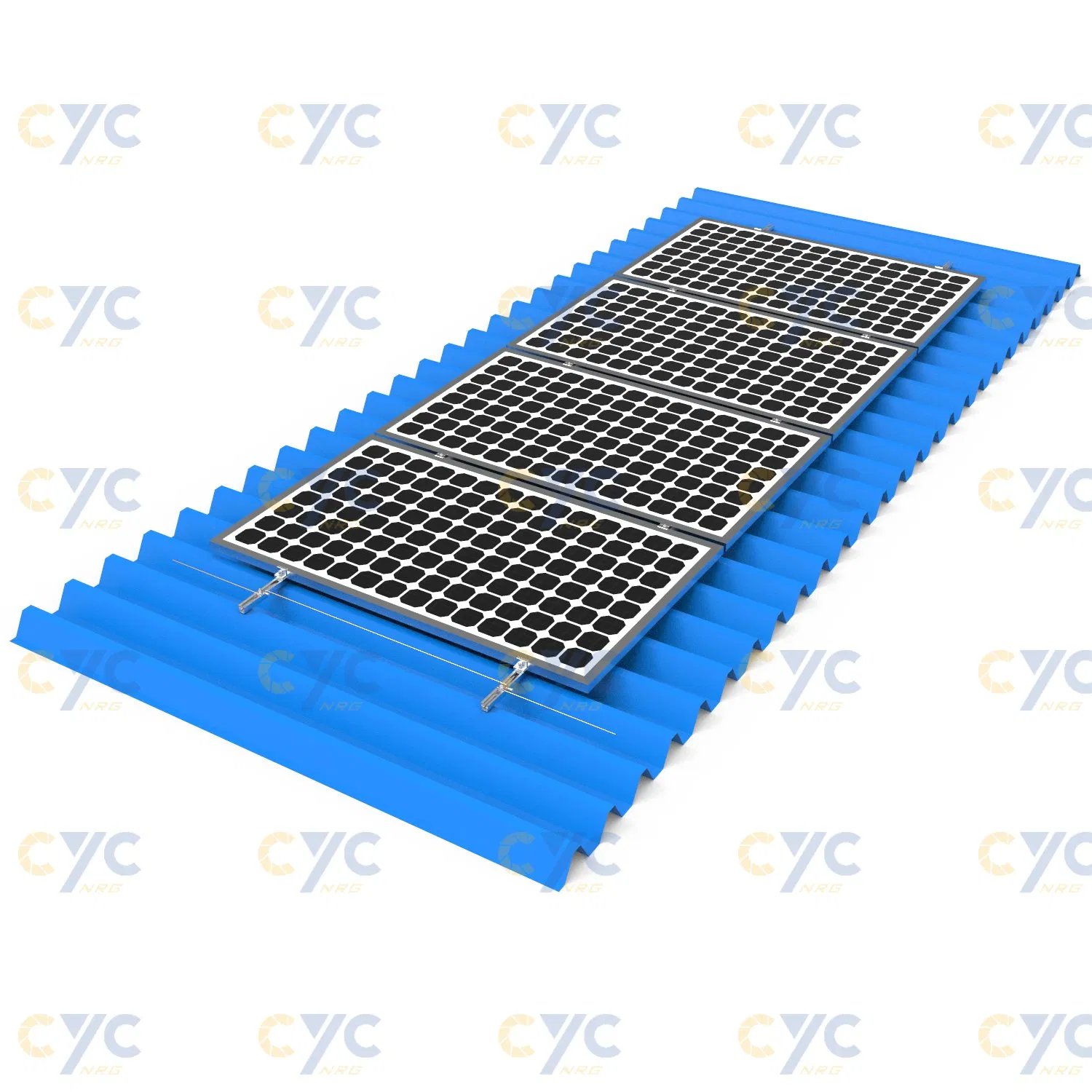

Suitable for solar panels to be placed horizontally and vertically.
Comply with European, American and Japanese design standards.

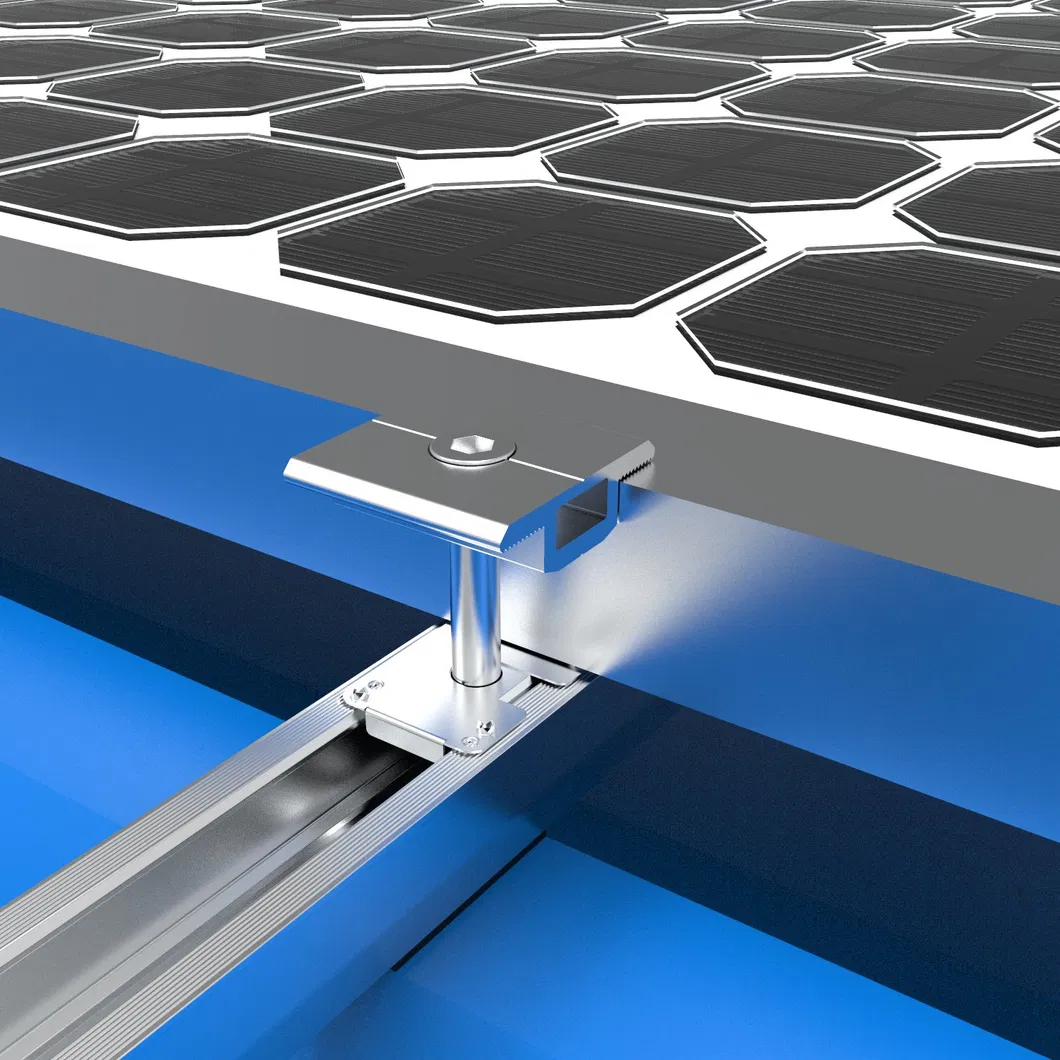

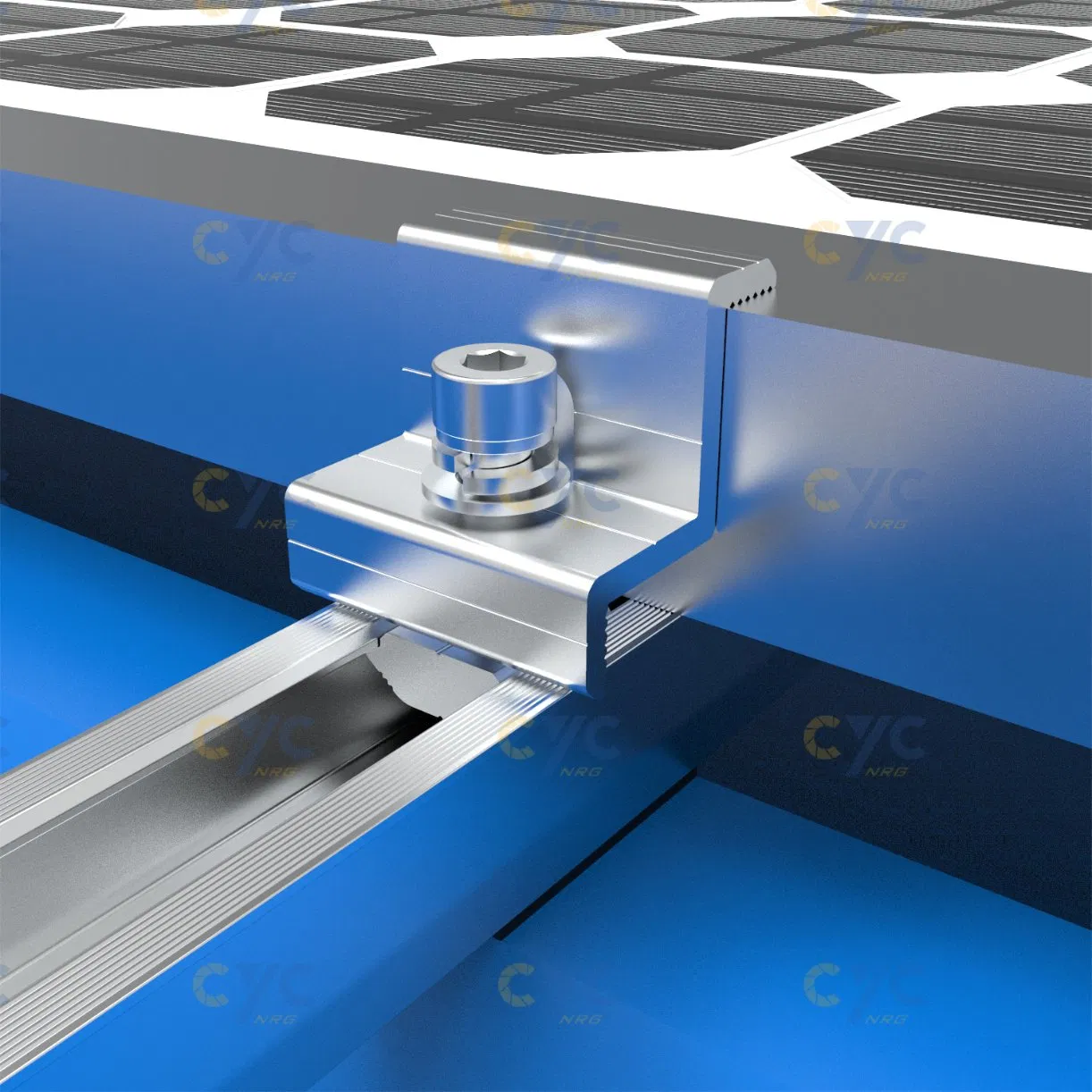

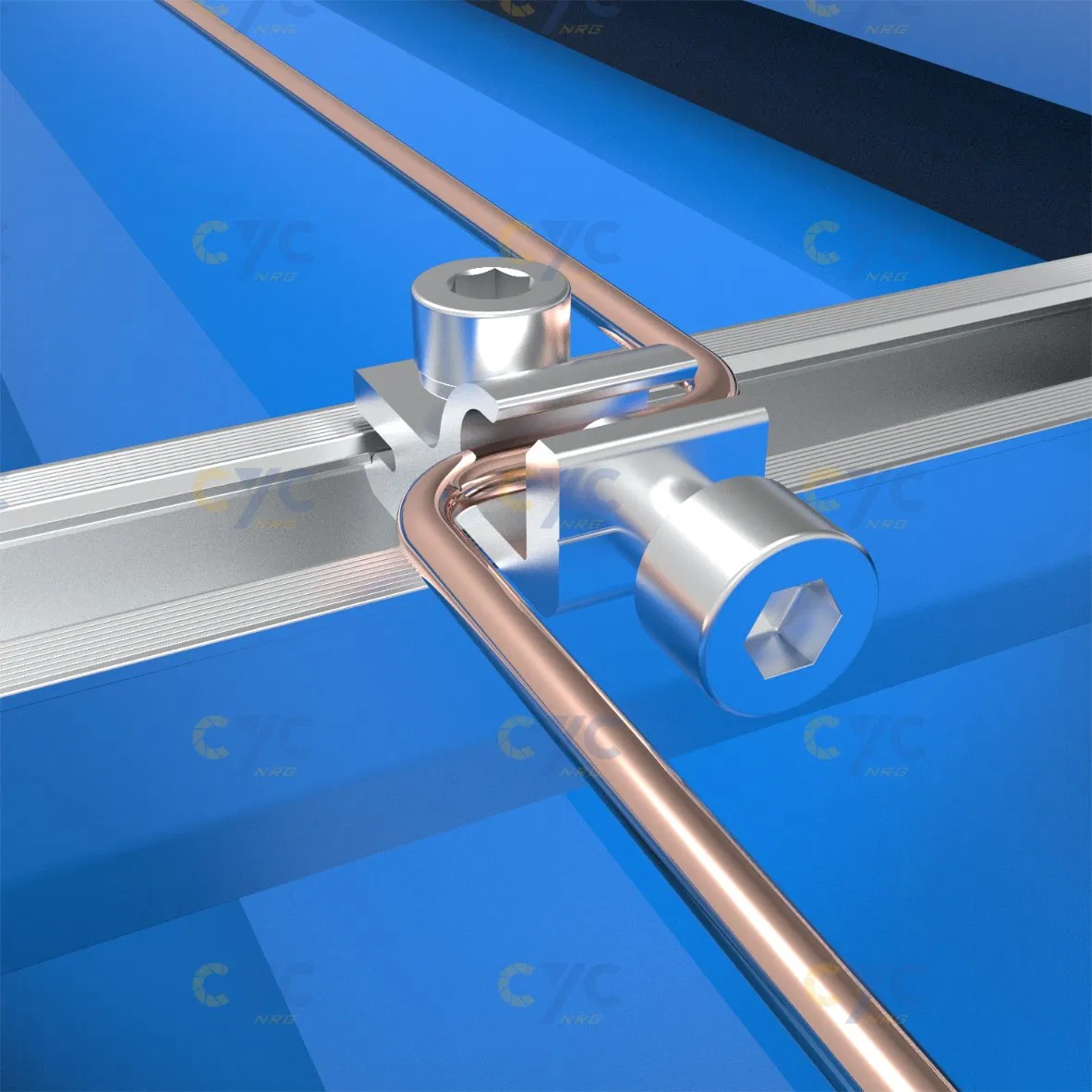

Detailed Photos

Product Parameters

Installation location	Metal Roof
Installation angle	Parallel
Wind load	60m/s (216kmh/133mph)
Snow load	1.4KN/m²
Applicable module type	Mono-crystalline, Poly-crystalline, Double wave and Thin film
Module Orientation	Horizontal, Vertical
Design standard	AS/NZS1170, JIS C 8955-2017, ASCE7-16
Bracket material	AL6005-T5 (Anodized Oxidation)
Fastener Material	SUS304
Warranty & Duration	15 years & More than 20 years

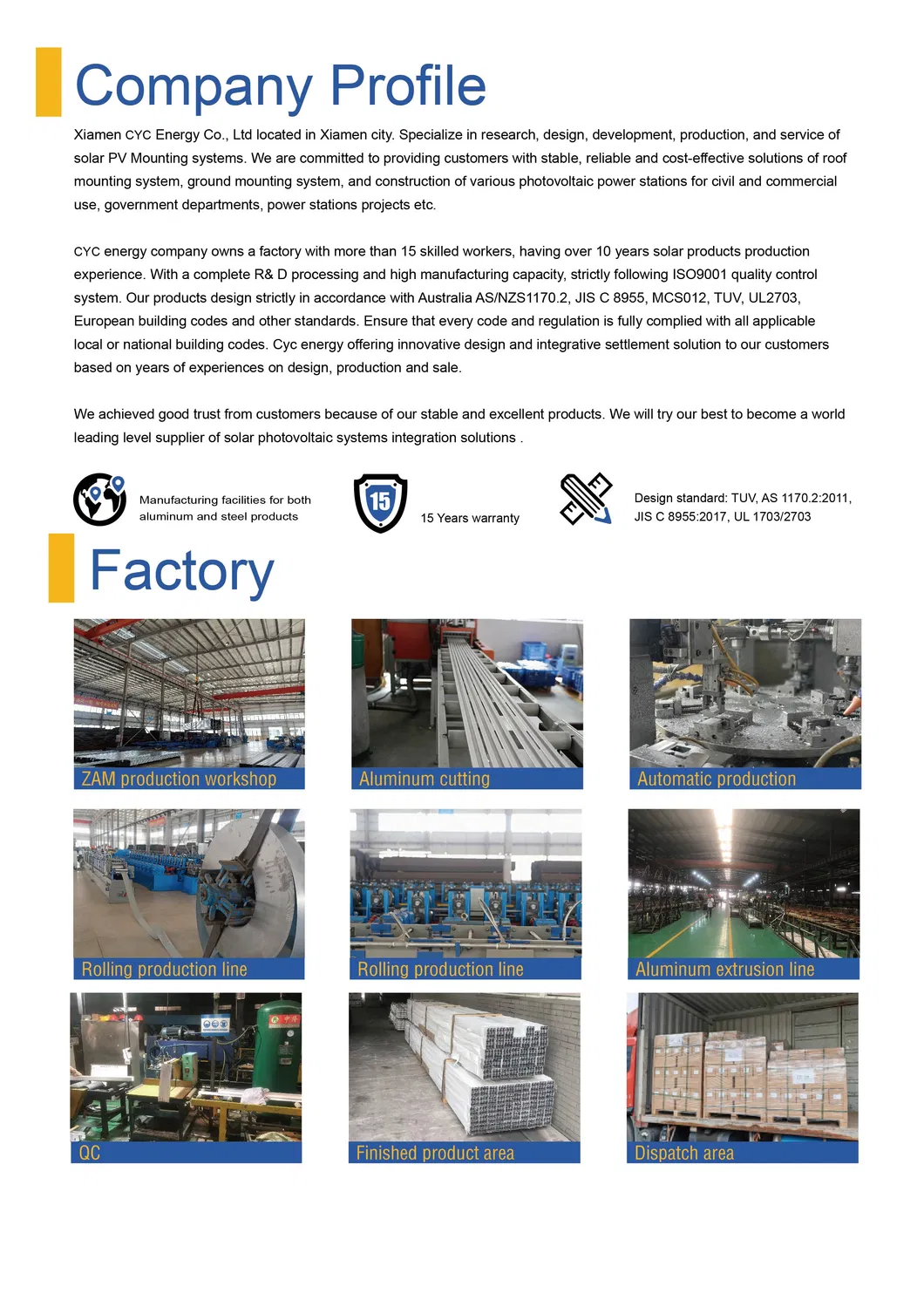

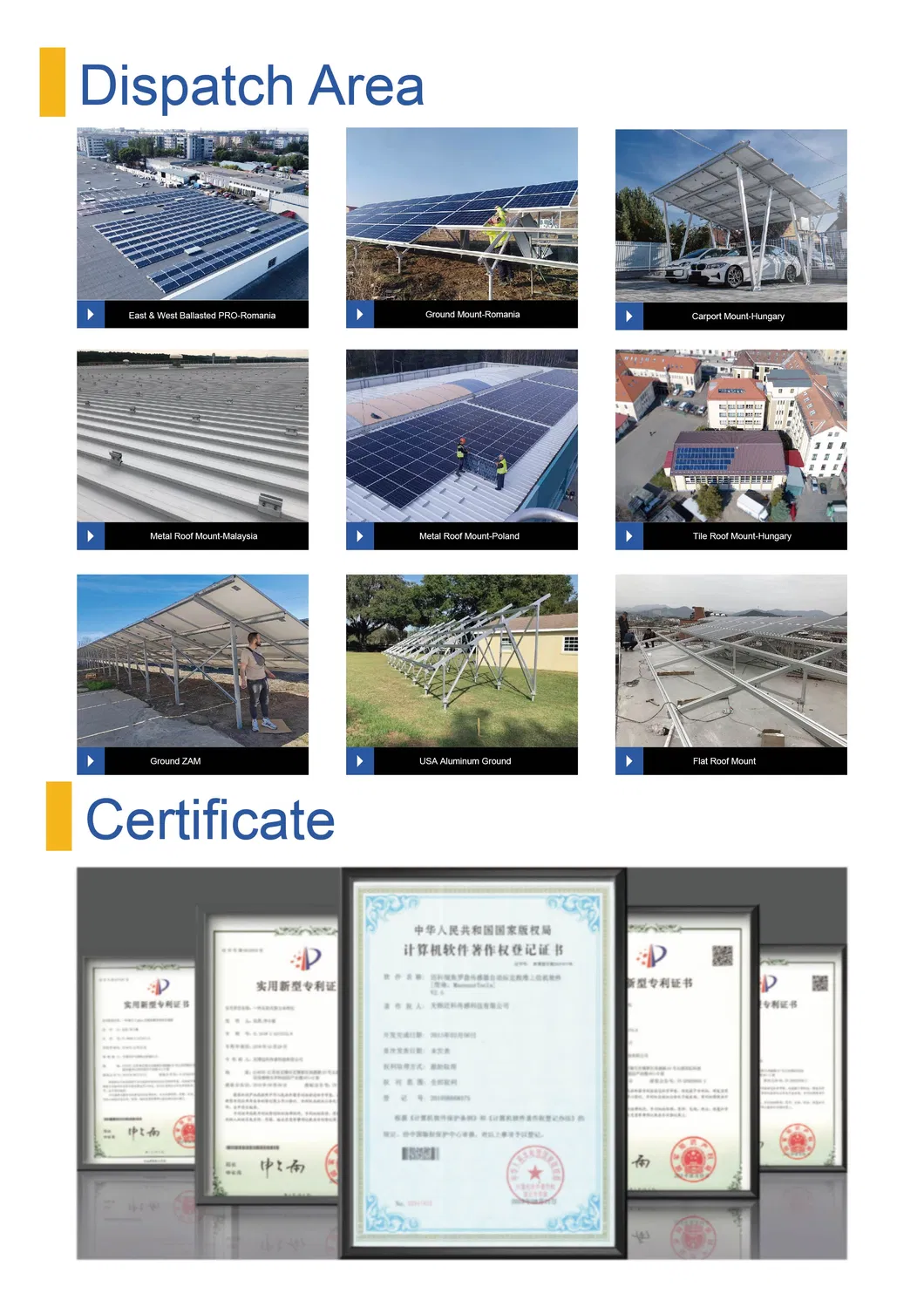

Production Showcase

We offer a variety of products to meet your diverse needs. Our organization integrates R&D, production and marketing of residential and commercial solar mounting systems. Accepting ODM orders, we adhere to the management principles of quality first and customer satisfaction.

Frequently Asked Questions

Can I have a free sample?

If you need similar samples from our showroom, it is free, but you need to cover the courier freight. For customized samples, a charge applies. Welcome to test our quality.

What is the estimated lead time?

Samples typically take 1-2 days. Mass production requires approximately 7 to 15 days depending on the specific order quantity.

Do you have any MOQ limits?

We do not have a minimum order quantity for our standard current products. However, for ODM and OEM products, a specific MOQ request will be applied.

How do you ship the goods and how long does it take?

Samples are usually shipped via DHL or FedEx (3-5 days). Large orders are shipped by sea, taking 7 to 30 days depending on the destination distance.

What is your after-sales service policy?

We respond to all customer inquiries and complaints immediately (typically within 3 hours) and are dedicated to solving any installation or product issues encountered.

What materials are used for durability?

Our products utilize high-grade Aluminum Alloy AL6005-T5 and SUS304 stainless steel fasteners to ensure a lifespan of over 20 years.
