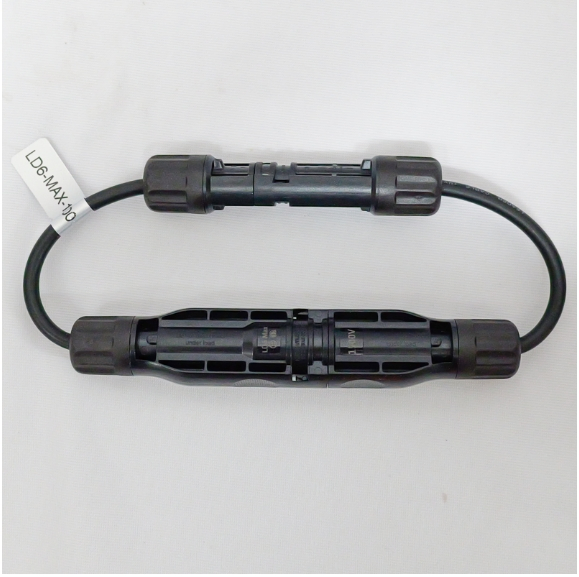

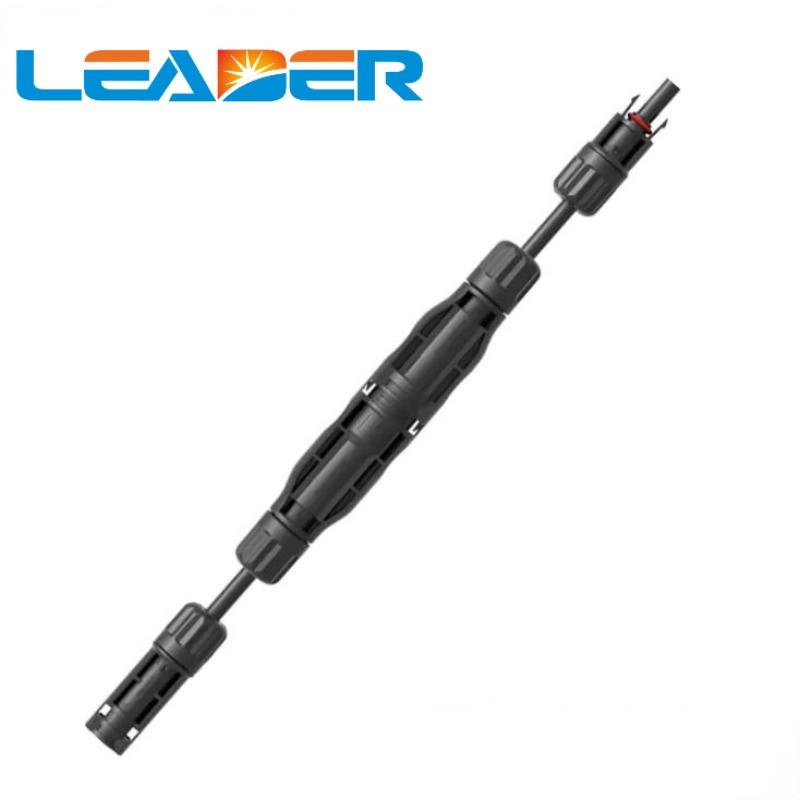

Leader TUV Cetificated 1500V IP68 Solar Fuse Connector Holder Fuse Inline Mc4 Connector for Solar Panel
Leader TUV Cetificated 1500V IP68 Solar Fuse Connector Holder Fuse Inline Mc4 Connector for Solar Panel
Leader TUV Cetificated 1500V IP68 Solar Fuse Connector Holder Fuse Inline Mc4 Connector for Solar Panel
Leader TUV Cetificated 1500V IP68 Solar Fuse Connector Holder Fuse Inline Mc4 Connector for Solar Panel
Leader TUV Cetificated 1500V IP68 Solar Fuse Connector Holder Fuse Inline Mc4 Connector for Solar Panel
1 / 5
Leader TUV Cetificated 1500V IP68 Solar Fuse Connector Holder Fuse Inline Mc4 Connector for Solar Panel
Leader TUV Cetificated 1500V IP68 Solar Fuse Connector Holder Fuse Inline Mc4 Connector for Solar Panel
Leader TUV Cetificated 1500V IP68 Solar Fuse Connector Holder Fuse Inline Mc4 Connector for Solar Panel
Leader TUV Cetificated 1500V IP68 Solar Fuse Connector Holder Fuse Inline Mc4 Connector for Solar Panel
Leader TUV Cetificated 1500V IP68 Solar Fuse Connector Holder Fuse Inline Mc4 Connector for Solar Panel

Leader TUV Cetificated 1500V IP68 Solar Fuse Connector Holder Fuse Inline Mc4 Connector for Solar Panel

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
LD6-MAX-1500
Rated Voltage
1500V DC
Standard
UL / TUV
Protection Degree
IP68
Insulation Material
PPO
Contact Material
Copper, Tin Plated
Test Voltage
6kv(50Hz, 1min)
Flame Class
UL94-V0
Contact Resistance
Less Than 0.5 M Ohm
Temperature Range
-40℃ ~ +90℃
Fusing Speed
FF (Very Fast)
Protection Class
Class II

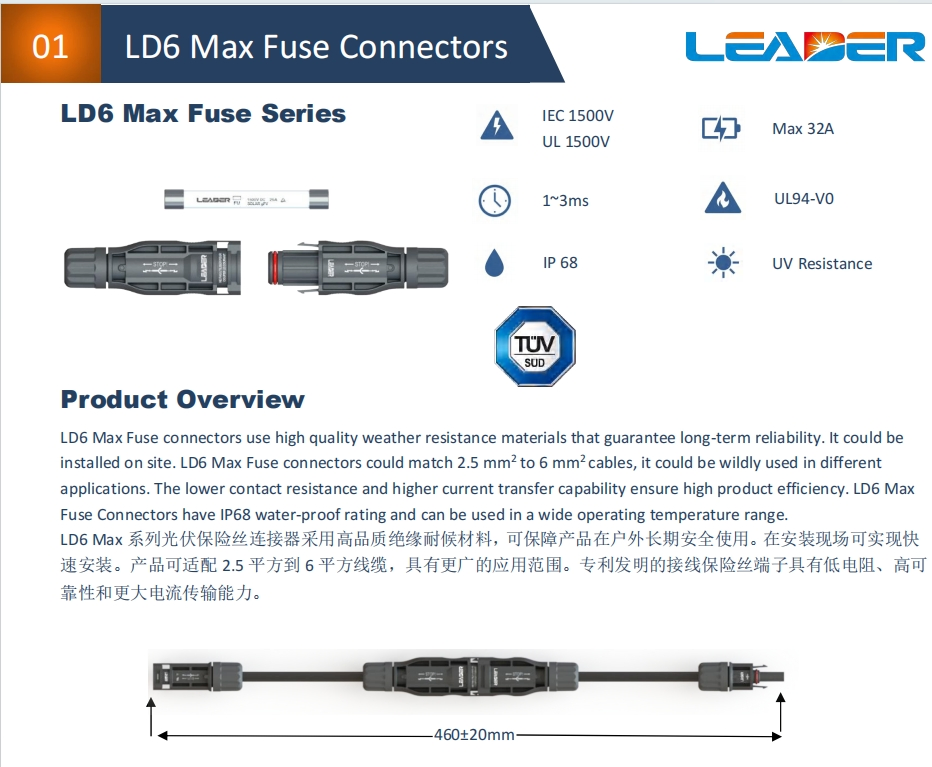

Product Overview
TUV Certificated 1500V IP68 Solar Fuse Connector Holder
Solar Fuse Connector 1

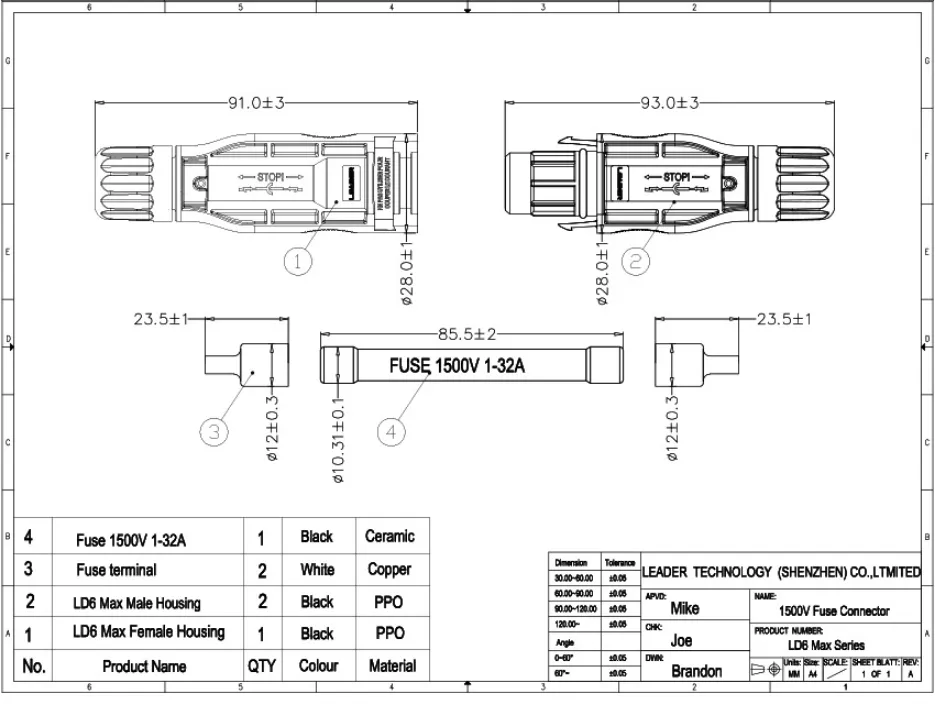

Solar Fuse Connector 2

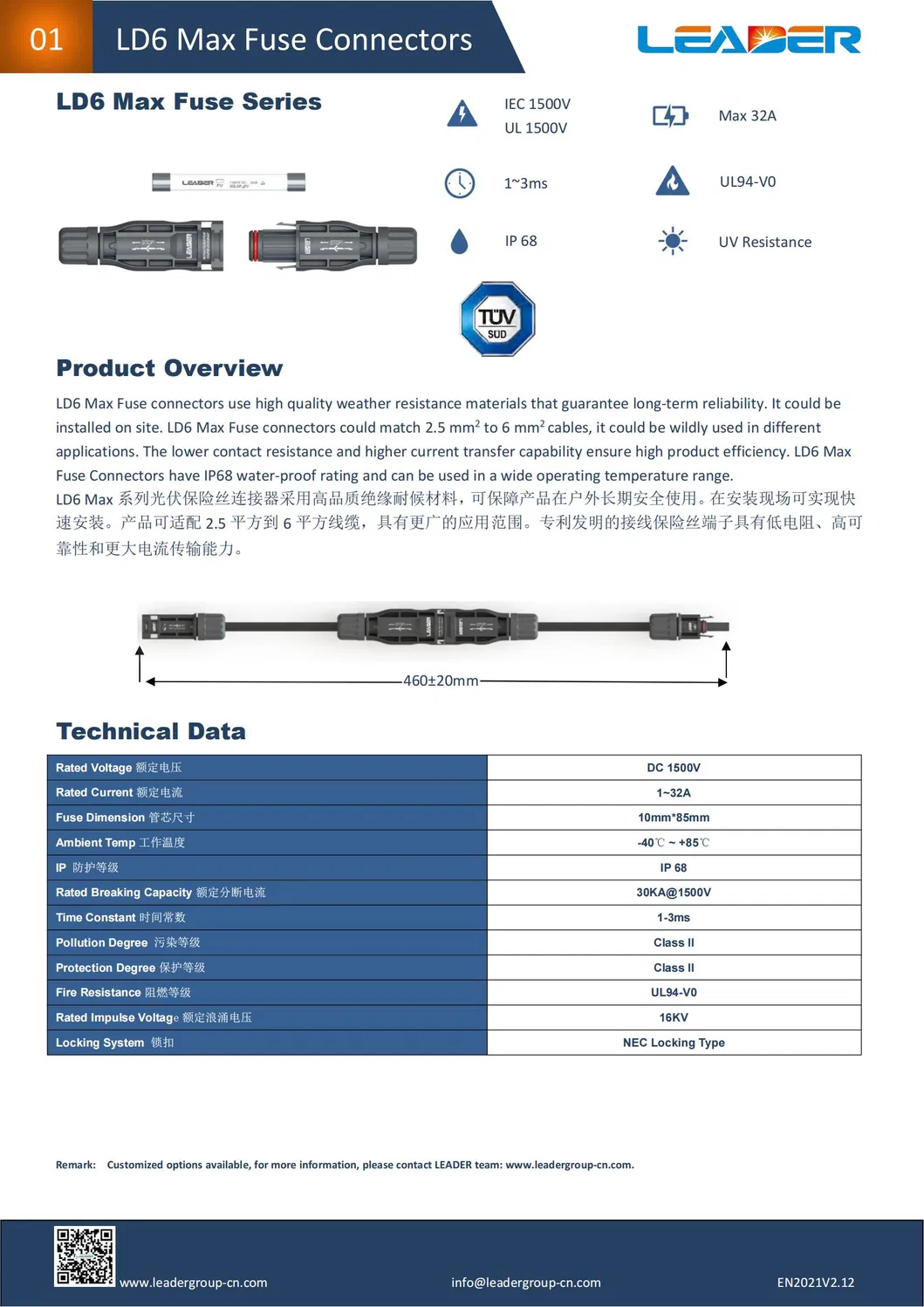

Detailed Dimensions 1

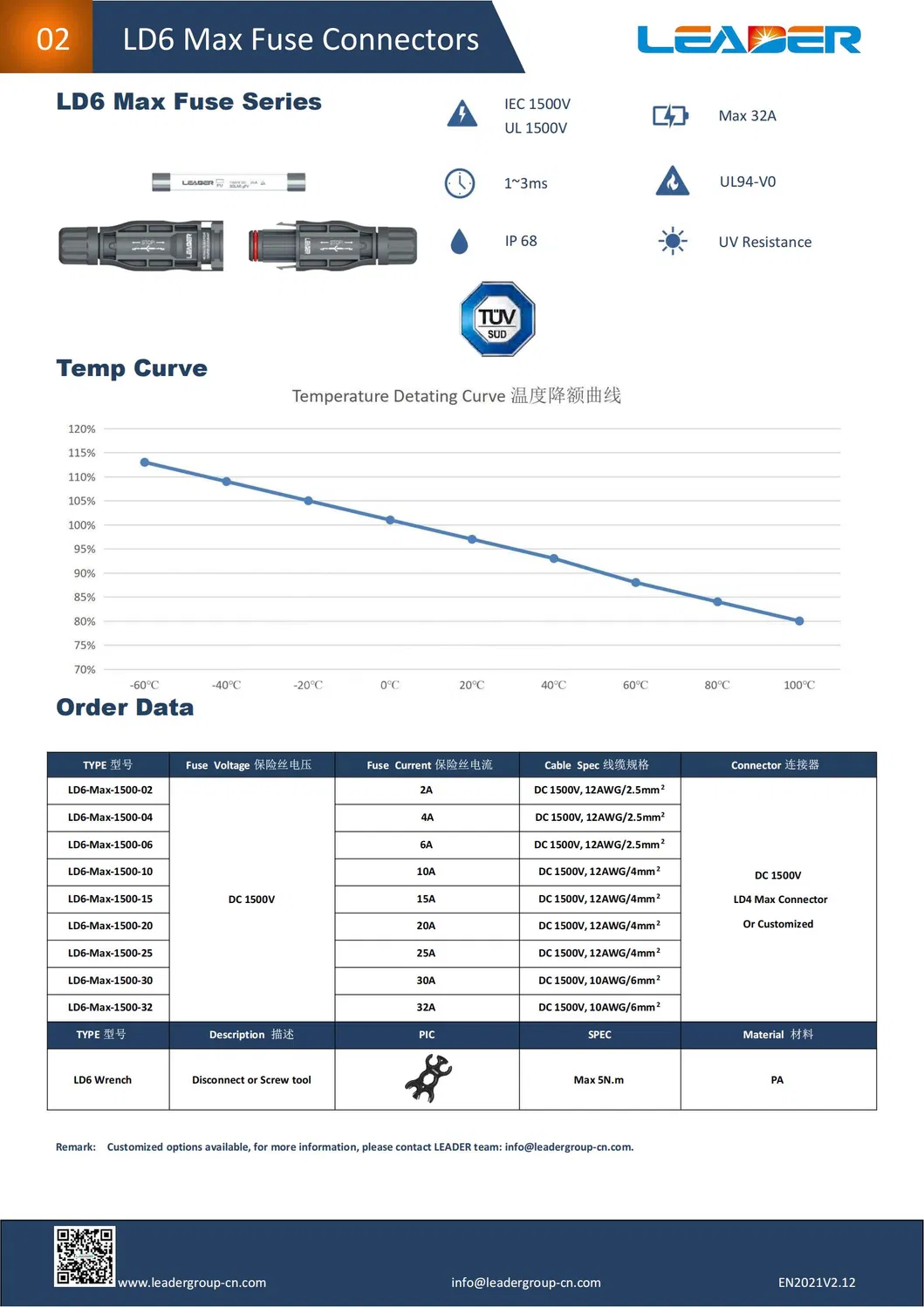

Detailed Dimensions 2
Product Showcase
Discover Our Excellence

Experience our commitment to quality. If, upon receiving your purchase, you find any aspect unsatisfactory, you're welcome to return it within three days. Please ensure all items remain intact and in their original packaging.

1
Receive a prompt response to your inquiry within 24 hours.
2
Get detailed answers to all your technical questions.
3
Benefit from a freight forwarder that is faster, safer, and more convenient.
4
Competitive quotes provided swiftly for items of interest.

As a pioneering force in the new energy sector, we specialize in the research, development, and marketing of PV connectors, junction boxes, and assemblies. Our comprehensive solutions range from solar modules to off-grid solar power systems.

Frequently Asked Questions
What is the maximum voltage this solar fuse connector can handle?
This fuse holder is rated for 1500V DC, making it ideal for high-voltage solar PV systems.
Is the connector waterproof for outdoor use?
Yes, it features an IP68 protection degree, ensuring it is fully dust-tight and protected against long-term immersion in water.
What materials are used for the insulation and contacts?
The insulation is made of high-quality PPO material, and the contacts are made of tin-plated copper for superior conductivity and corrosion resistance.
Does the product meet fire safety standards?
Yes, the connector meets the UL94-V0 flame class standard, which is the highest level of flame retardancy for plastic materials.
What is the operating temperature range?
The connector is designed to operate reliably in ambient temperatures ranging from -40℃ up to +90℃.
Is this connector compatible with standard MC4 solar panels?
Yes, it is an Inline MC4 compatible connector designed specifically for solar panel installations.
